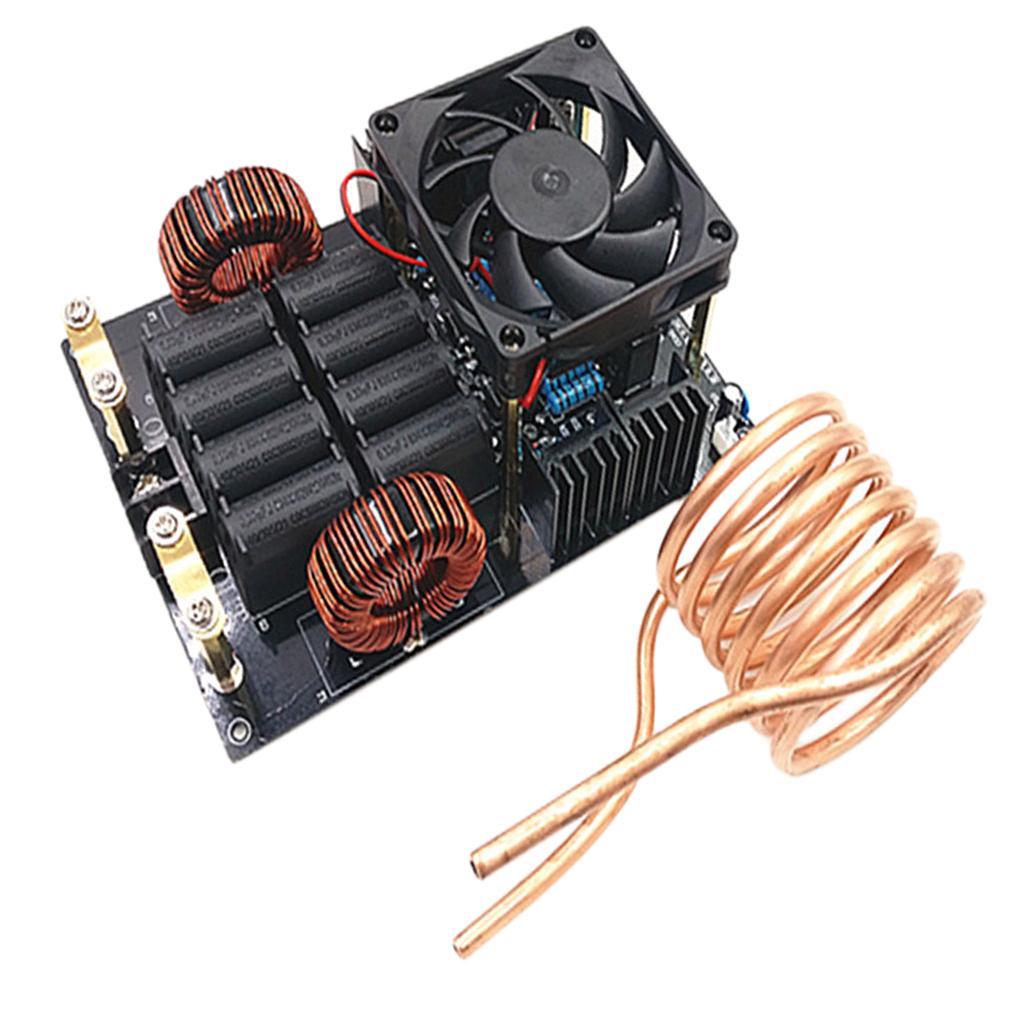

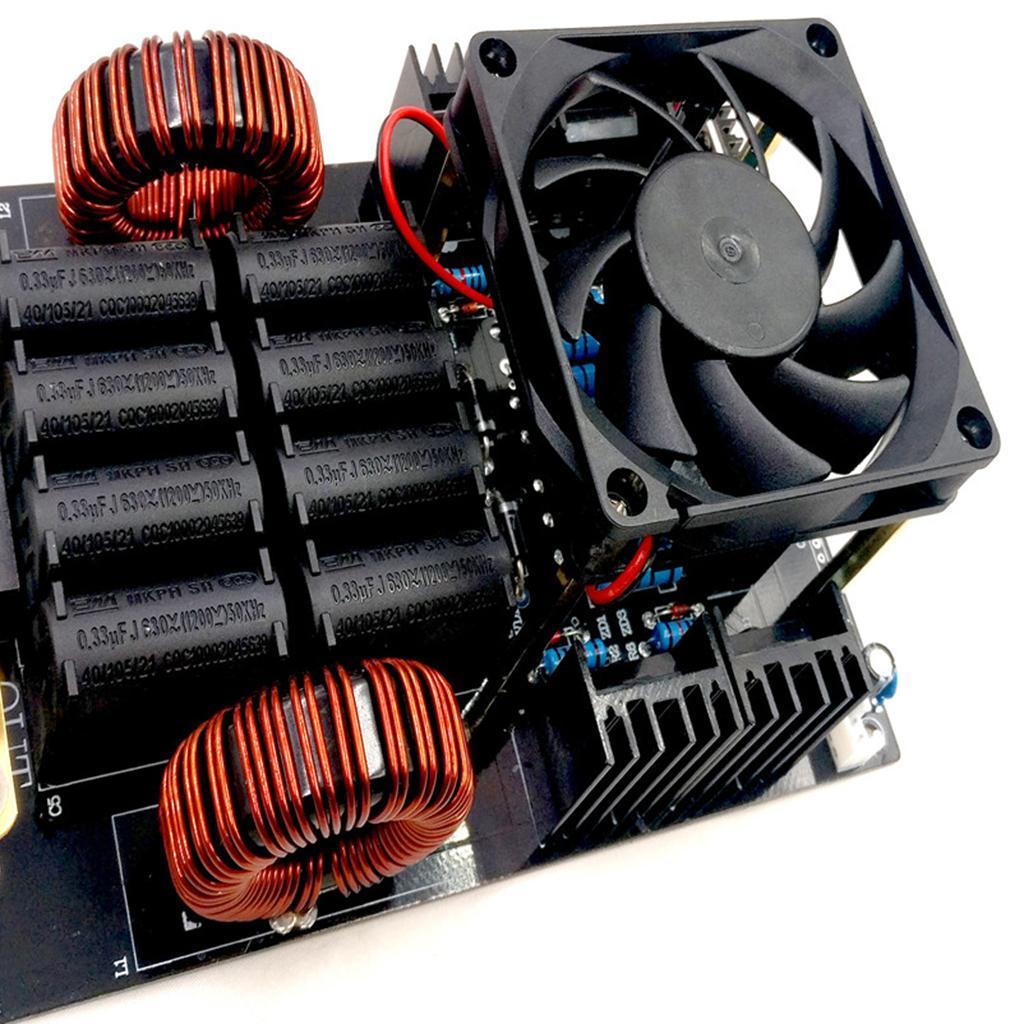

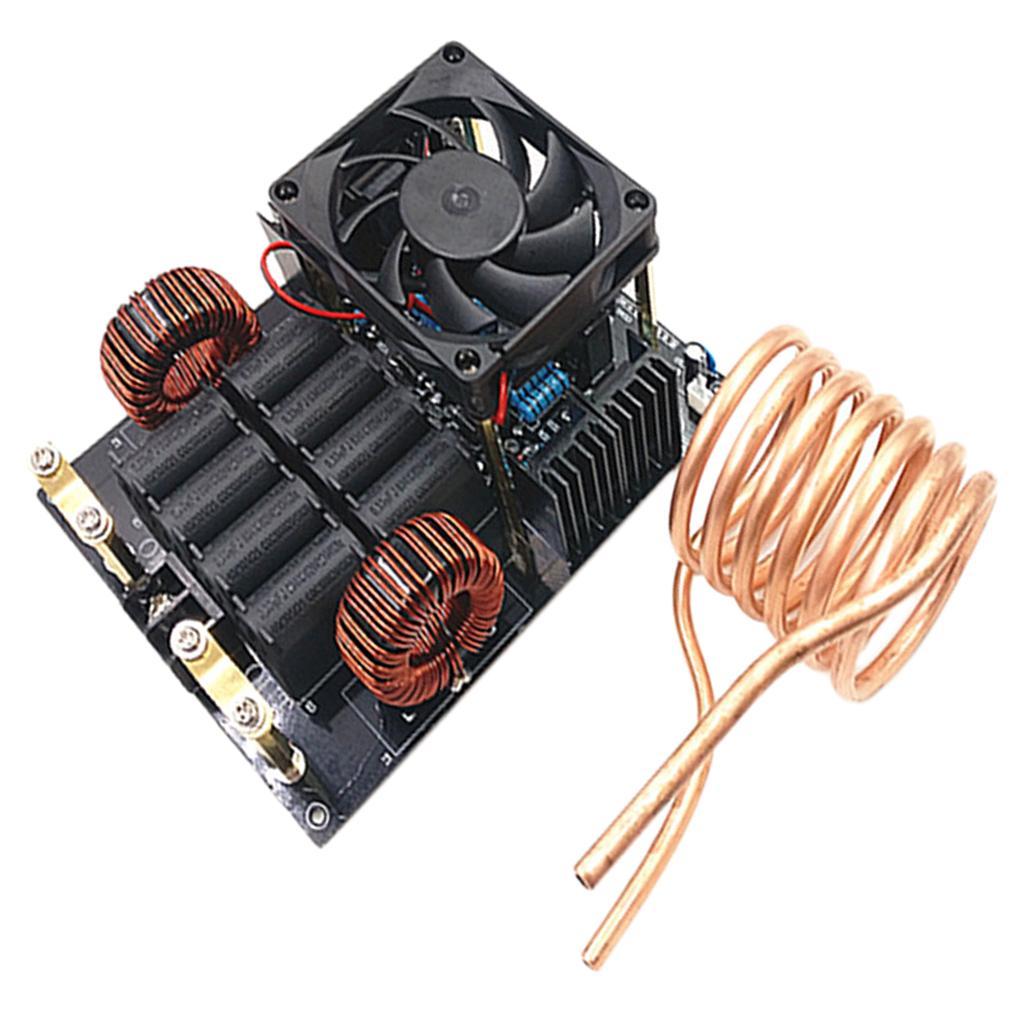

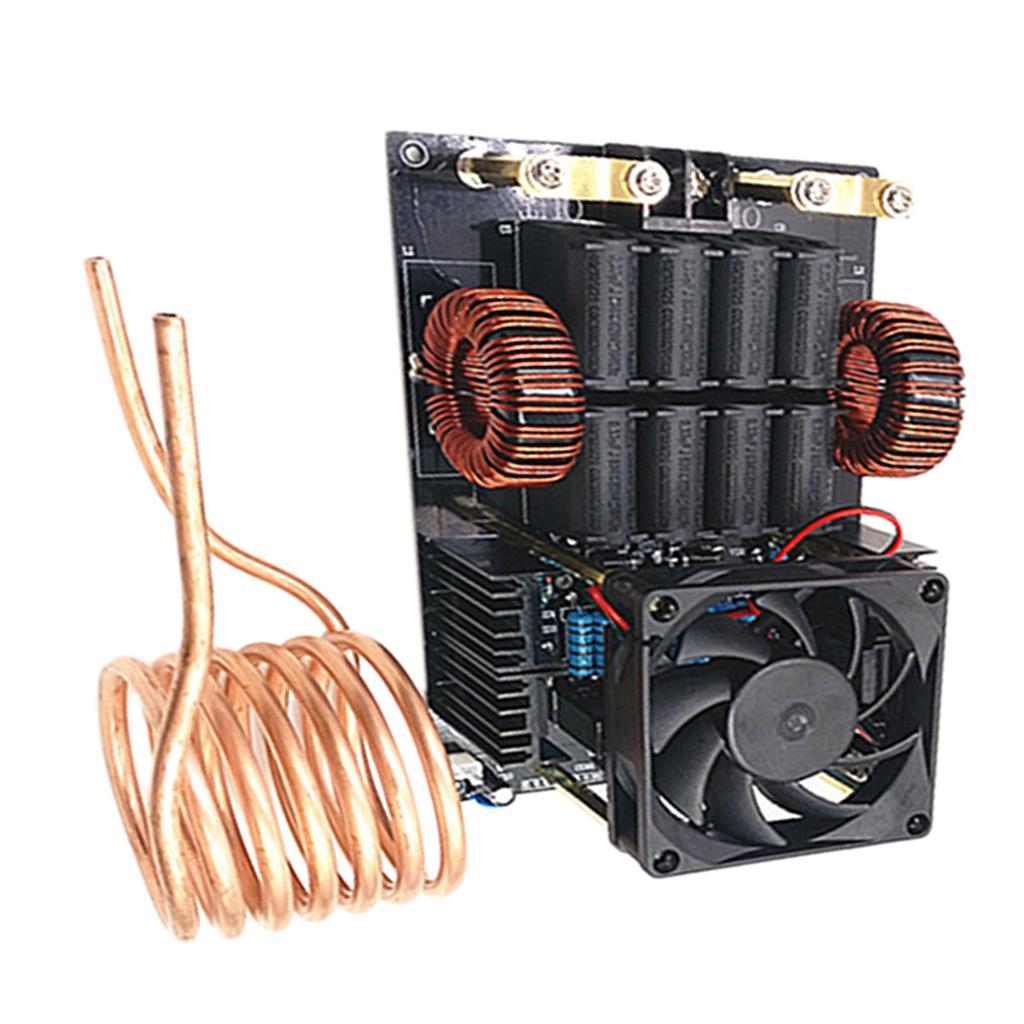

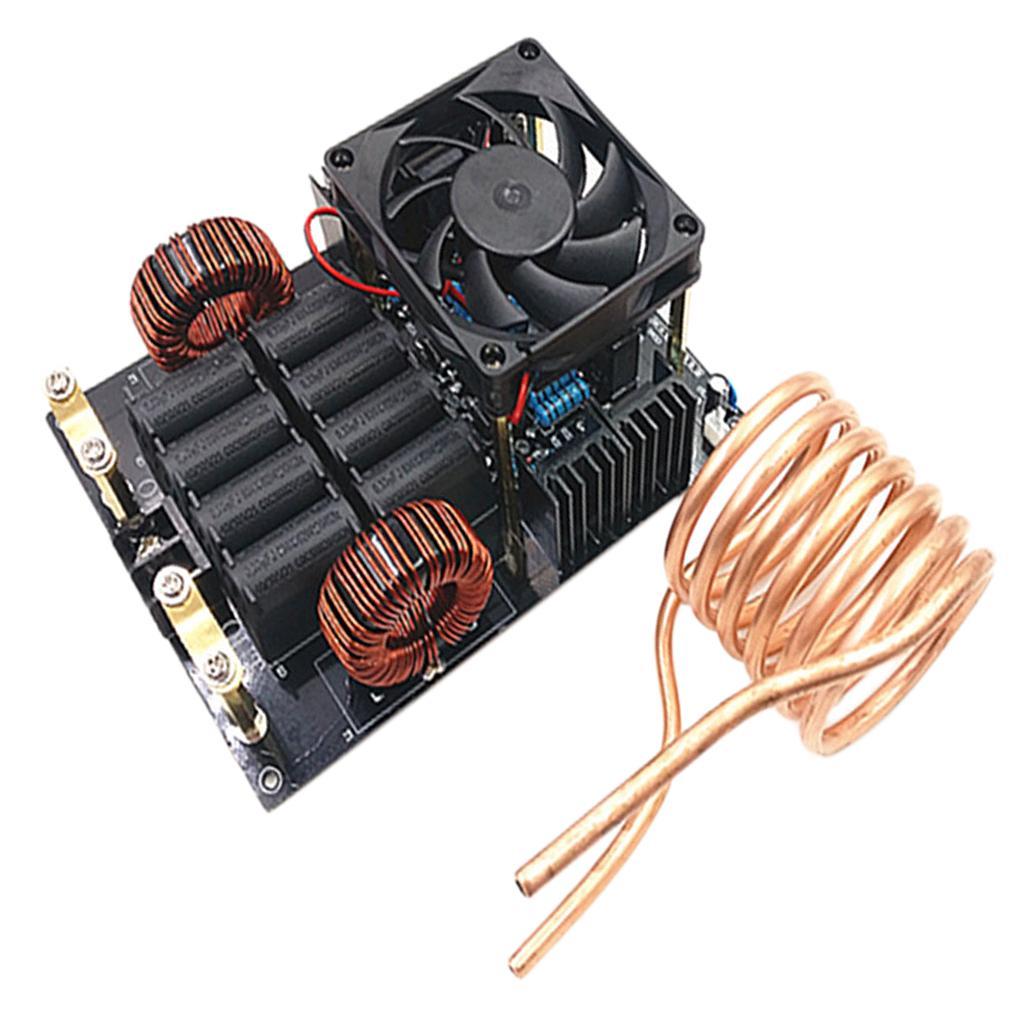

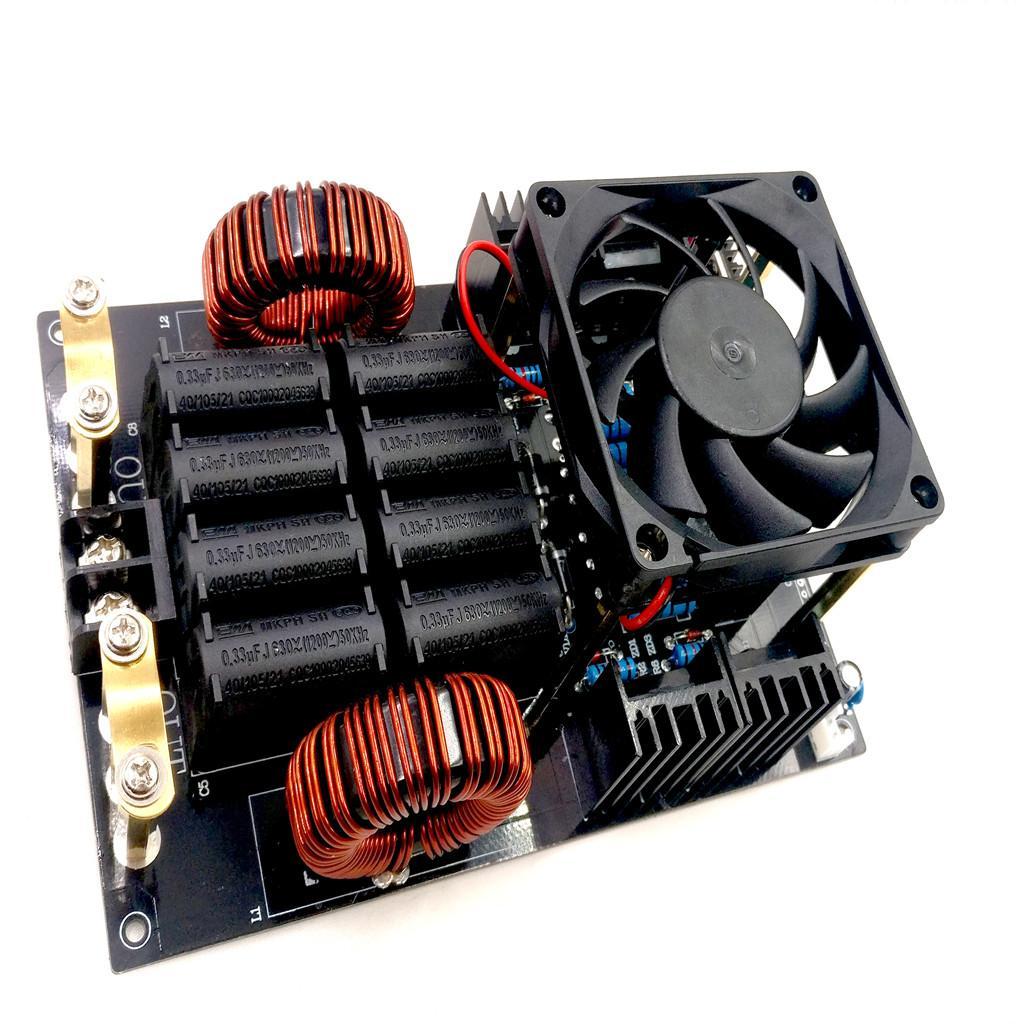

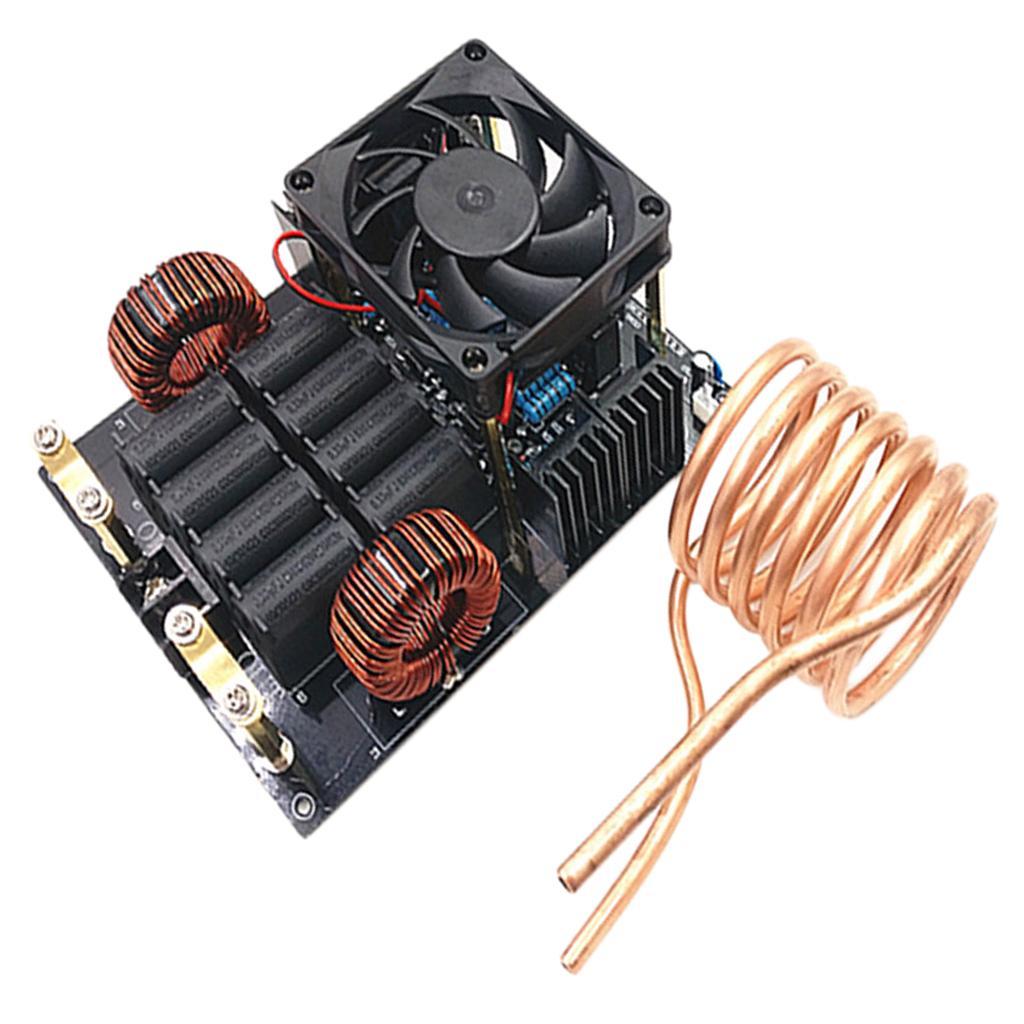

ZVS High Frequency Induction Heating Machine with Copper Coil 1000W

Description:

ZVS low voltage high frequency induction heater 1000W induction heating, can melt iron, copper, aluminum and other metals

The power supply used for heating must be large enough!

12V power supply, current ≥20A; When 24V power supply, current ≥30A; When the power supply is 36V, the current is ≥50A. This is a reference. The actual current is related to the actual usage.

Use a protected power supply whenever possible, and do not use a switch power supply with low current and no protection.

Ensure that the working voltage is above 11V. Note: it is the working voltage, i.e. the input voltage when the coil is connected or the object is heated. Not the voltage when the power supply is empty.

Long time use must use copper tube plus water cooling!

Specification:

Material: Acrylic

Size(LxWxH):Approx.165x112x2mm/6.50x4.41x0.07 Inch

Input voltage DC 12V~40V

Maximum input current 50A (short time)

The recommended input voltage range is DC 24V~36V

Package Includes:

1 Piece Induction Heater

Note:

Use of the board needs a certain hands-on ability and relevant knowledge, if even the soldering iron will not use, the power positive and negative pole will not be divided, it is recommended not to shoot!
