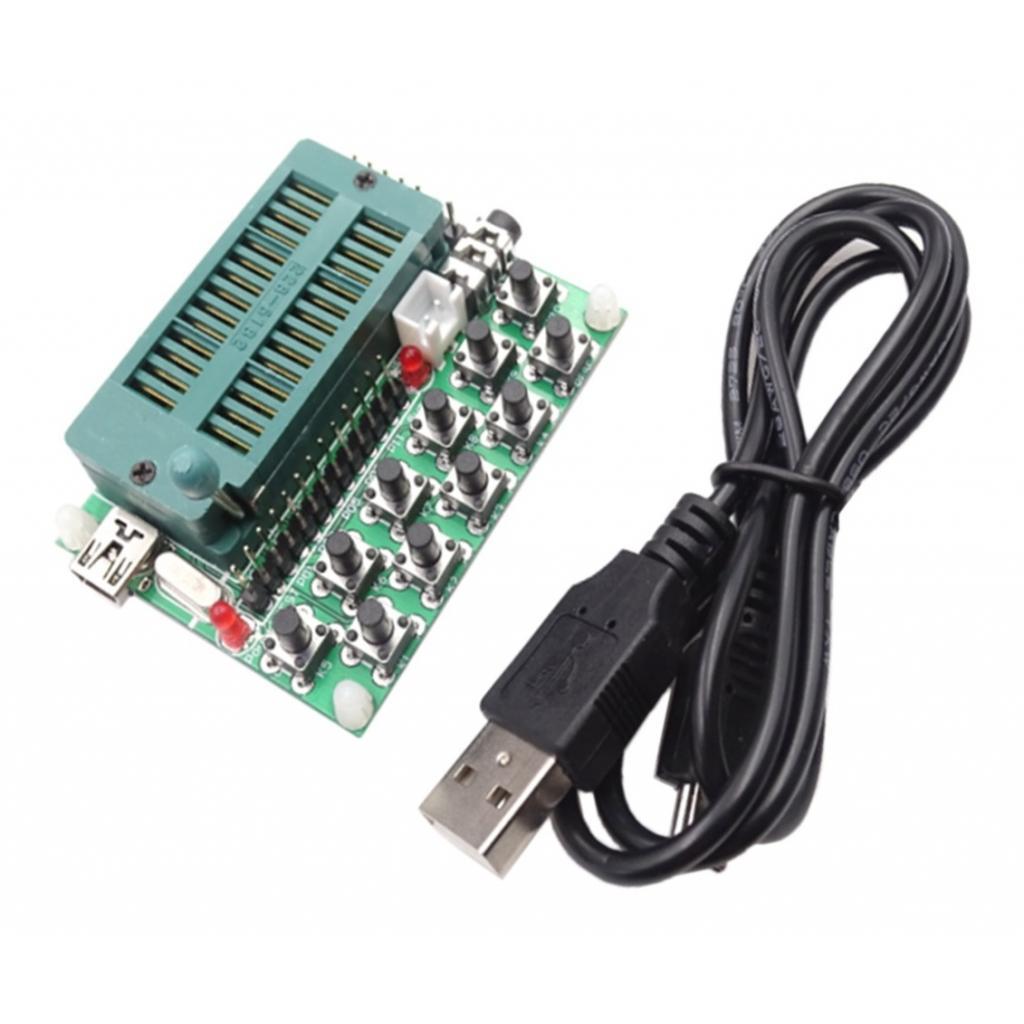

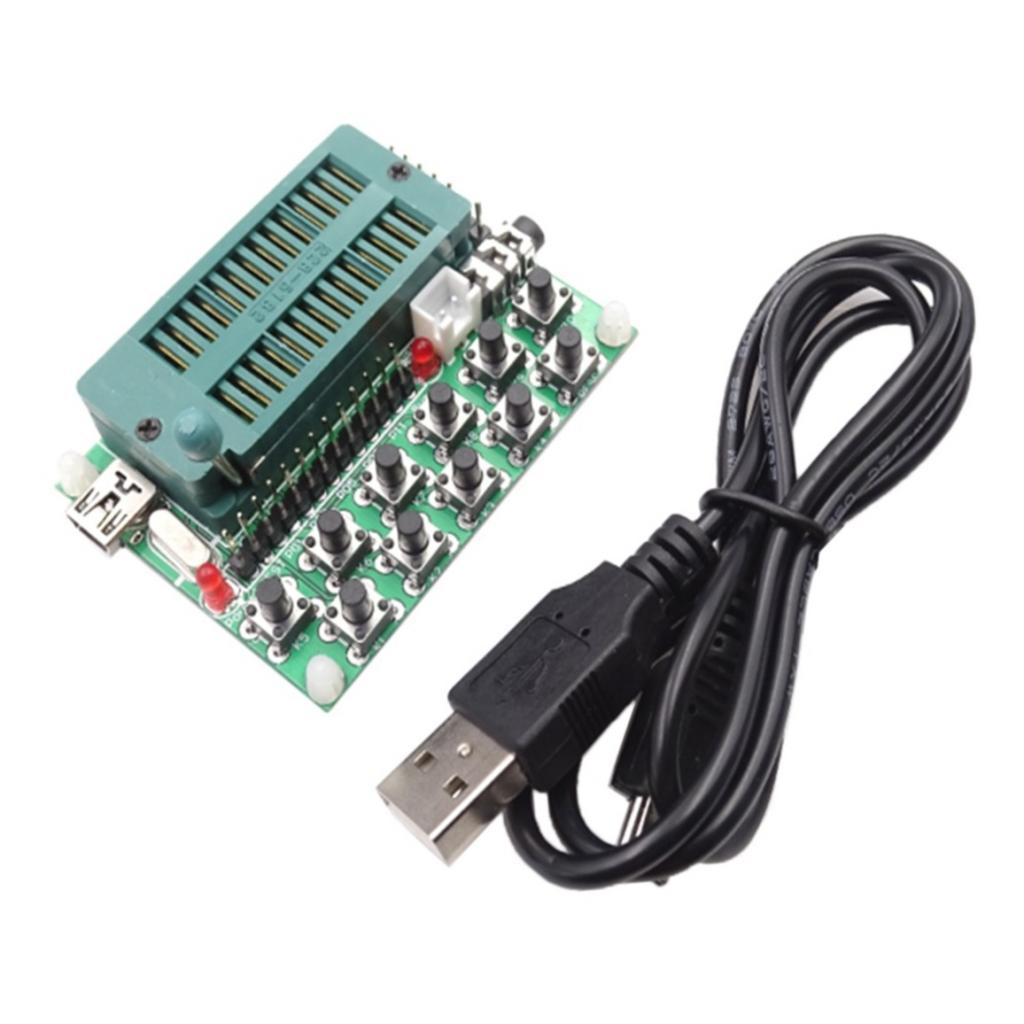

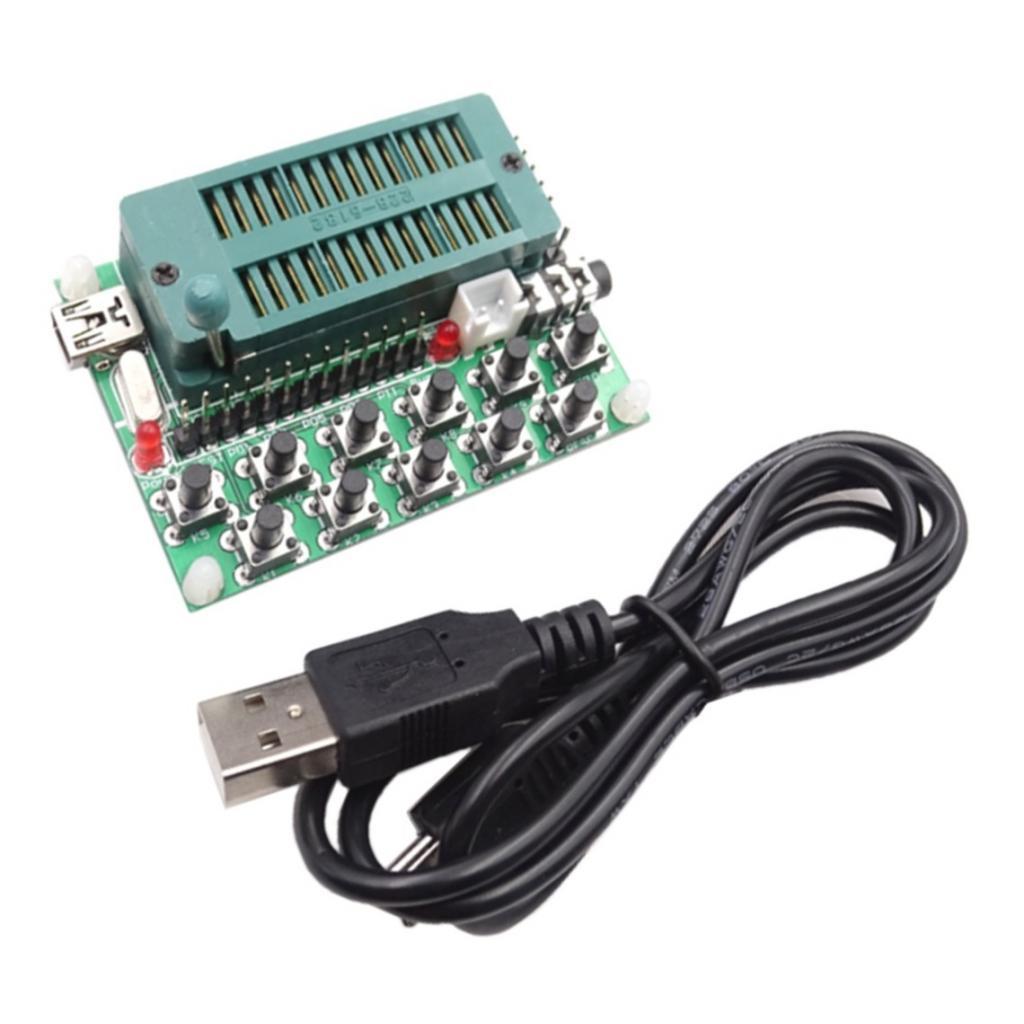

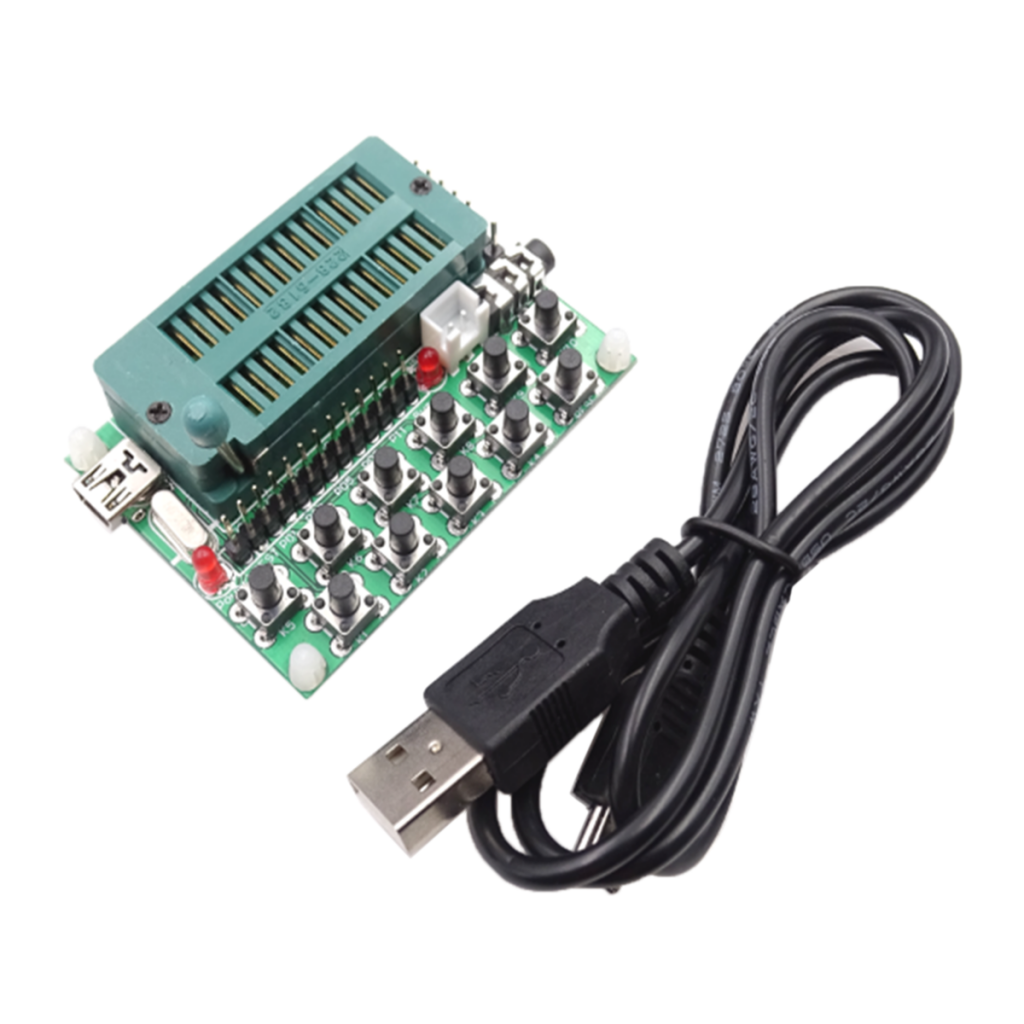

1x-WT588D-Downloader-Mini-Burner-USB-Sound-Module-Programmer-Testing-Board

Description:

DAC audio output, requires an external amplifier, and WT588D is set to DAC output mode
PWM audio output, direct drive speaker 0.5W8 ohm small speaker, and WT588D to be set to PWM output mode
Pin header VCC GND VREST CS CLK DO DI online download output line interface
RESET reset button (when a connection is interrupted, or an error occurs during the connection, and after the download is complete, click this button to reset)
The USB cable input slot is connected to the computer via the USB cable. When connected, the power is supplied by USB.

Specification:

Size: 70 x 50mm / 2.76 x 1.97inch

Package Includes:
