DIY Kits 70W SSB Linear HF/AM/CW/FM Power Amplifier fits FT-817 KX3 Accs

Description:

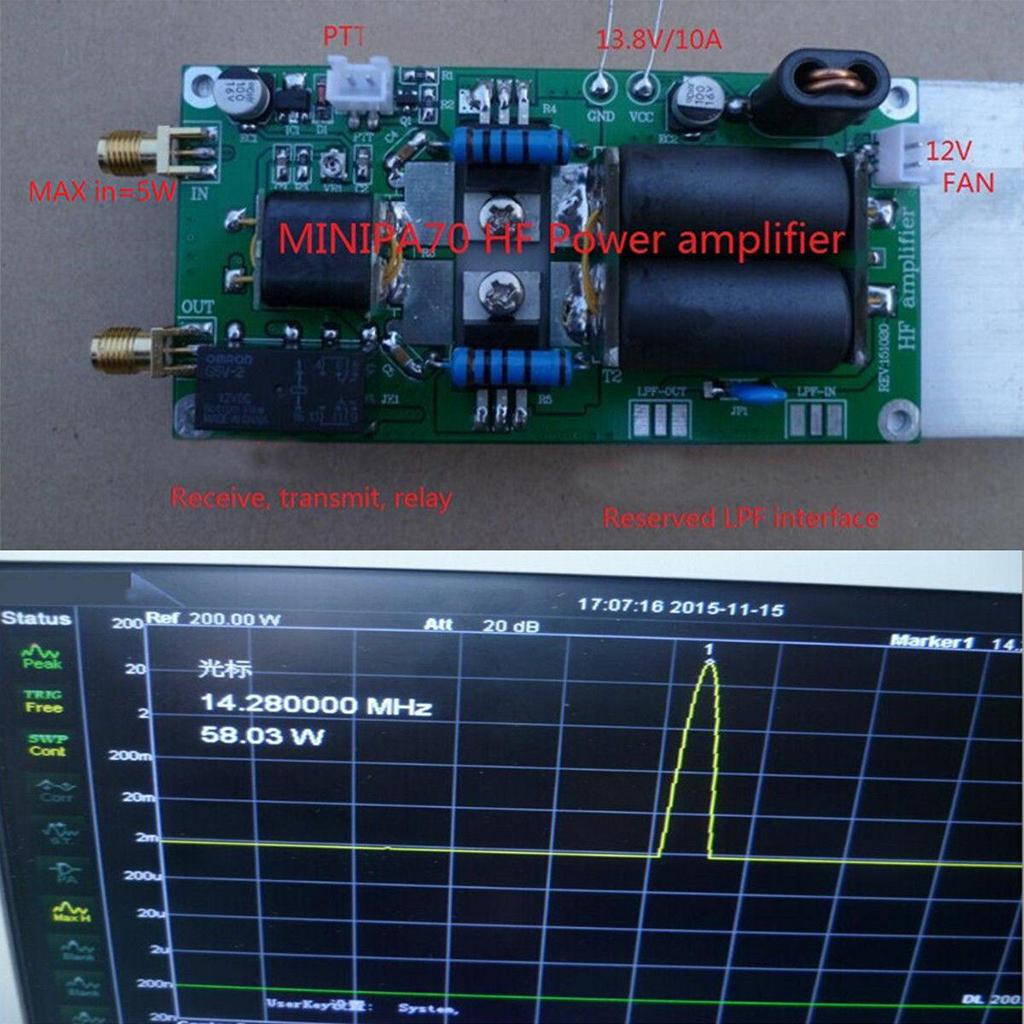

DIY kits 70W SSB linear HF Power Amplifier
Circuit class AB linear amplifier for SSB AM CW FM power amplifier for low-power radio power connection
Suitable for FT-817 KX3 other small power stations
Note: this is kits, not assembled, without heatsink
WARNING: Output prohibit open, short, prohibit VSWR of 2.0 or more

Specification:

Power supply voltage: DC13.8V
Current: 6-10A
Maximum input power: 5W

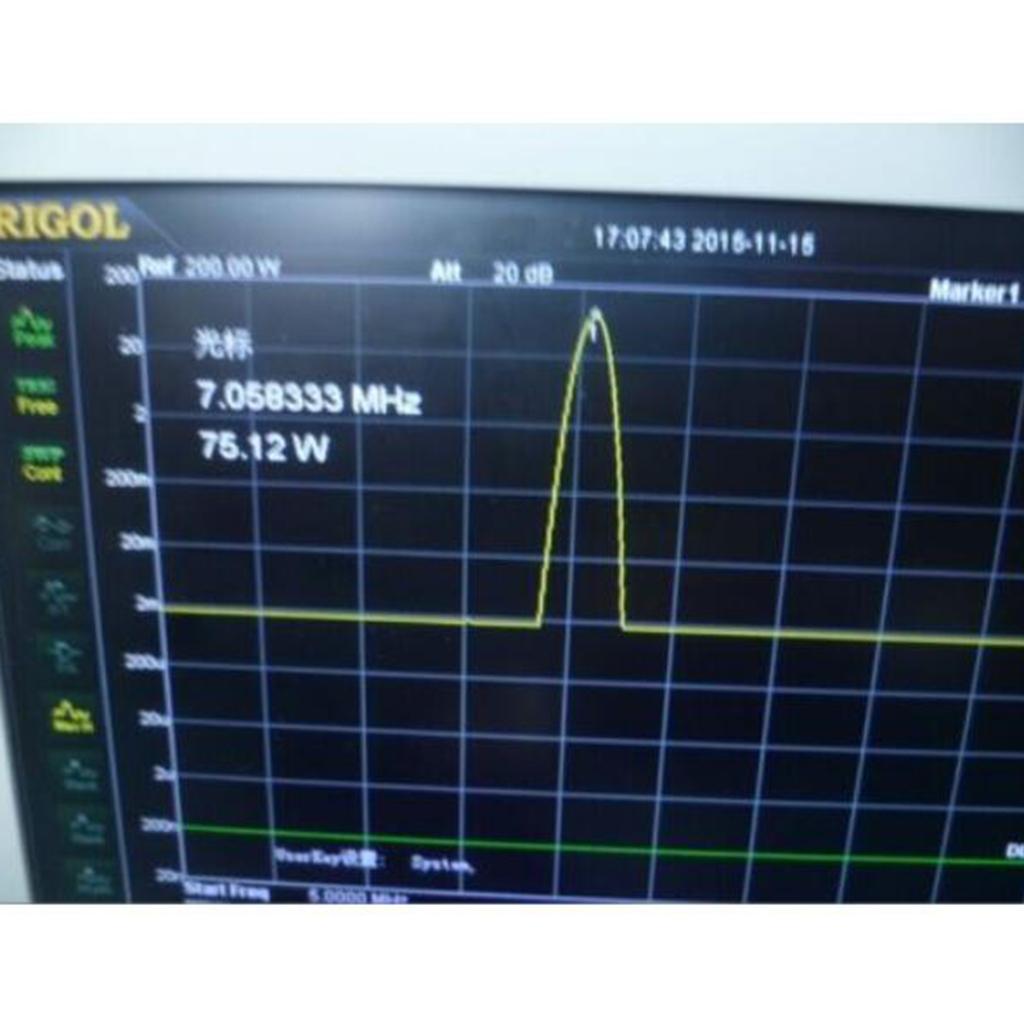

Maximum output power: 70W
Cooled: fan forced cooling
Frequency range 3.5--30Mhz (10M - 80M)

Size Chart:

Board Size: 90x50x10mm / 3.54x1.97x0.39inch

Package Includes:

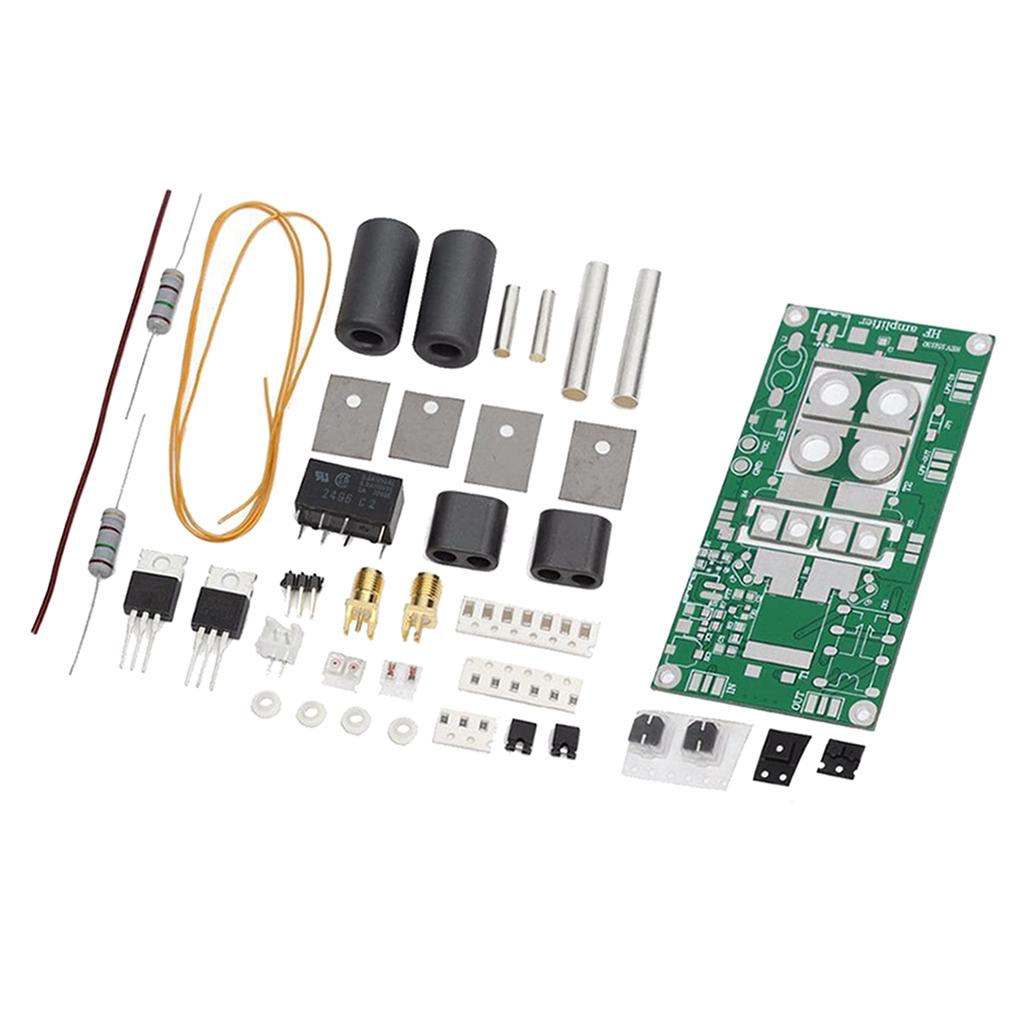

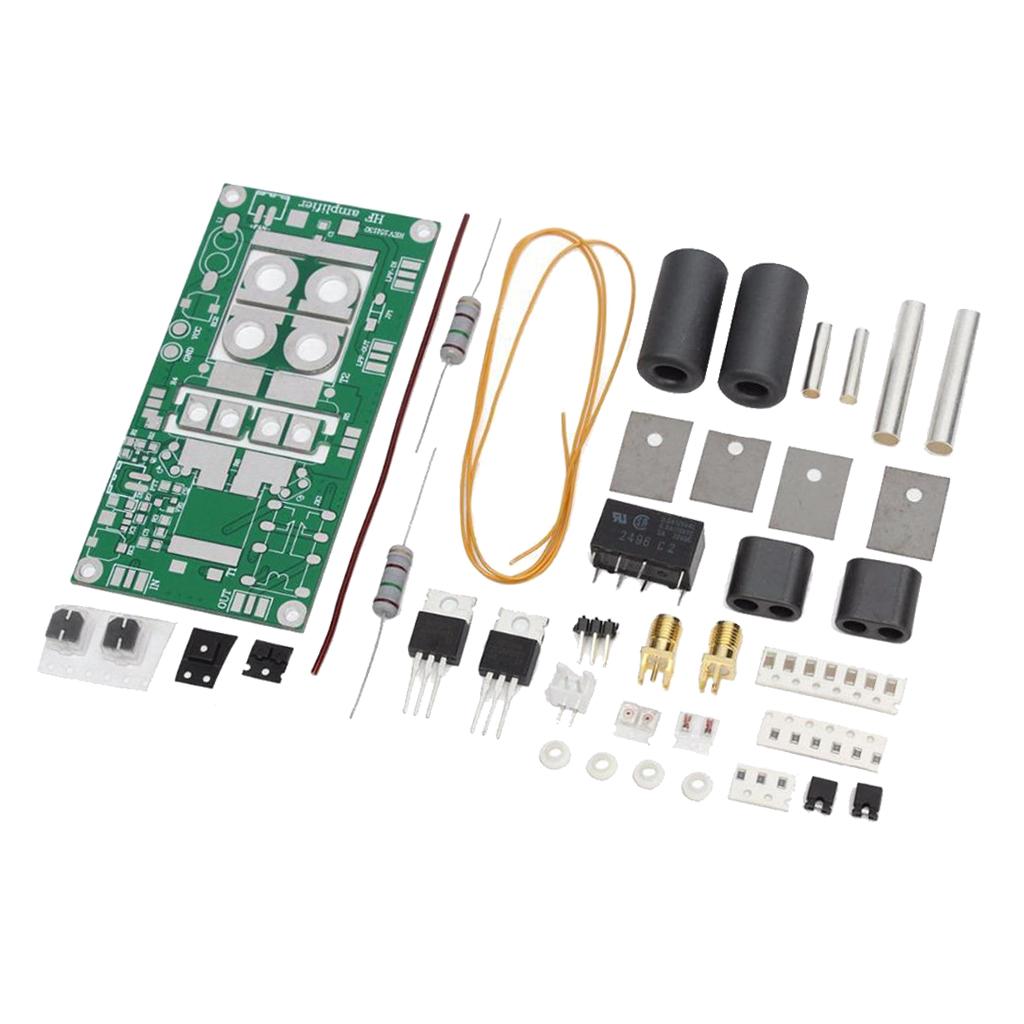

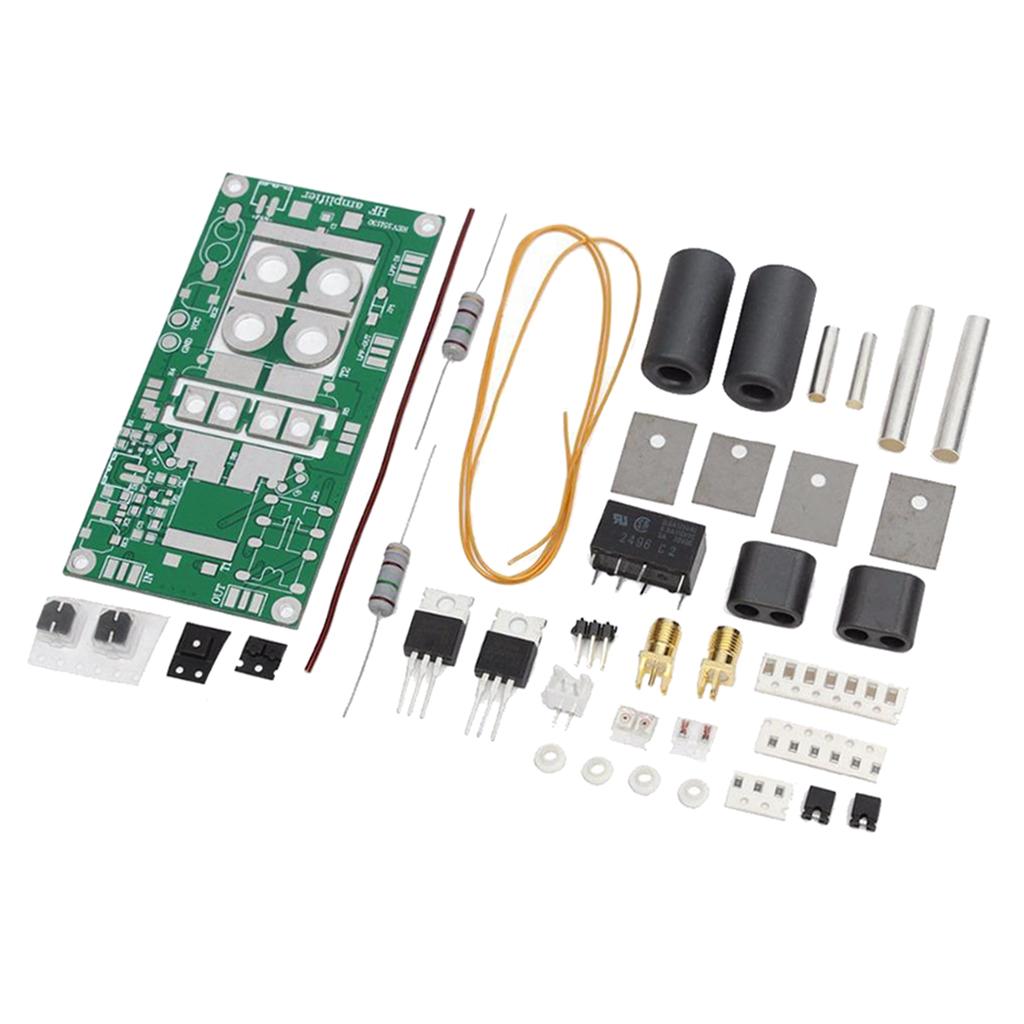

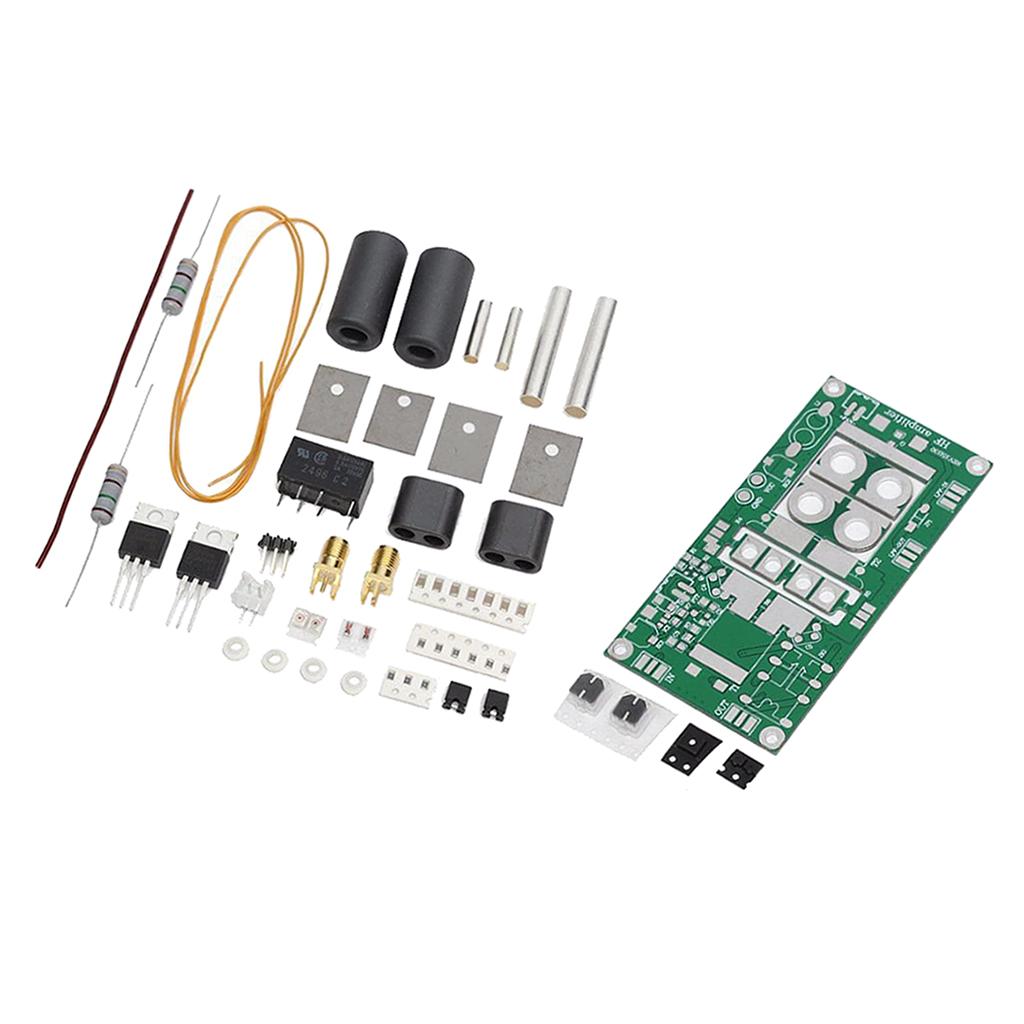

1 Piece Power Amplifier DIY Kit

Note:

The color may be different for different display, pls understand
Pls allow 1-3mm error due to hand tste, thank you
