Humidity and Ambient Pressure Sensors ESP8266 Weather Station Kit

Description:

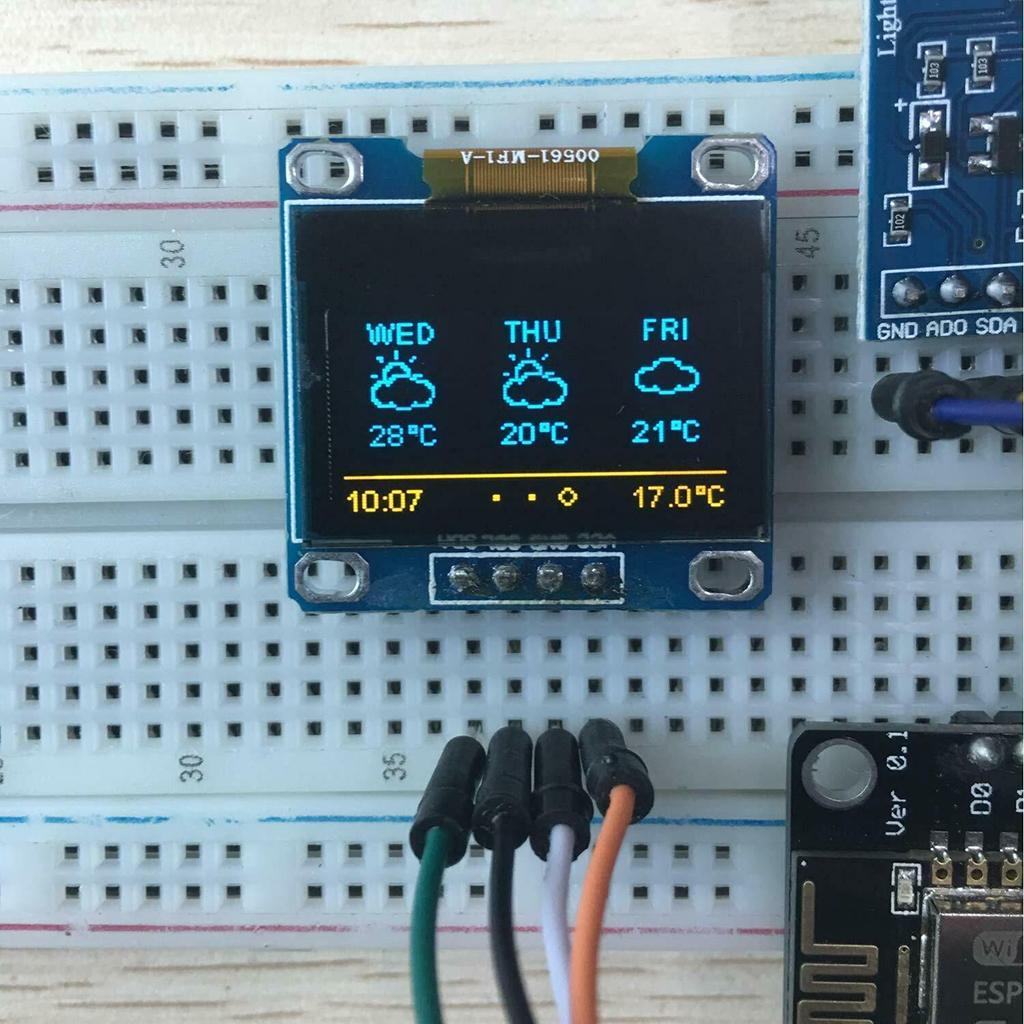

The weather station uses ESP8266-12E to obtain data from the Internet: time of a city, weather data and forecast information for the next 3 days, scrolling on the SSD1306 OLED Display; the device can switch to display data from any city in the world.
The device uses sensors DHT11, BMP180, BH1750FVI to collect temperature, humidity, Atmosphetic Pressure and light data. The weather station reads data indoor via sensor every 5 seconds and uploads it to the Internet every 60 seconds. You can see real-time data charts from your phone or computer. Of course you can modify the code to implement different functions.
ESP8266: CP2102 chip inside, Micro USB, 4MB flash, full I/O port and wireless 802.11 supported IOT platform rduino compatible. DHT11 Sensor: A digital signal output with a calibrated temperature and humidity combined sensor. The simple communication protocol greatly reduces the programming effort required.
BMP180: High-precision, small size, ultra-low power 3μA pressure sensor. Its performance excellence, the absolute accuracy of the lowest can reach 0.03hPa. Can directly through the I2C bus connected with a variety of microprocessors. Pressure range: 300 - 1100hPa.
BH1750FVI: Digital Light intensity Sensor. Direct digital output, OLED Yellow Blue Display: 0.96 inch SSD1306 128X64 Yellow&Blue OLED LCD Display with I2C IIC SPI Serial.

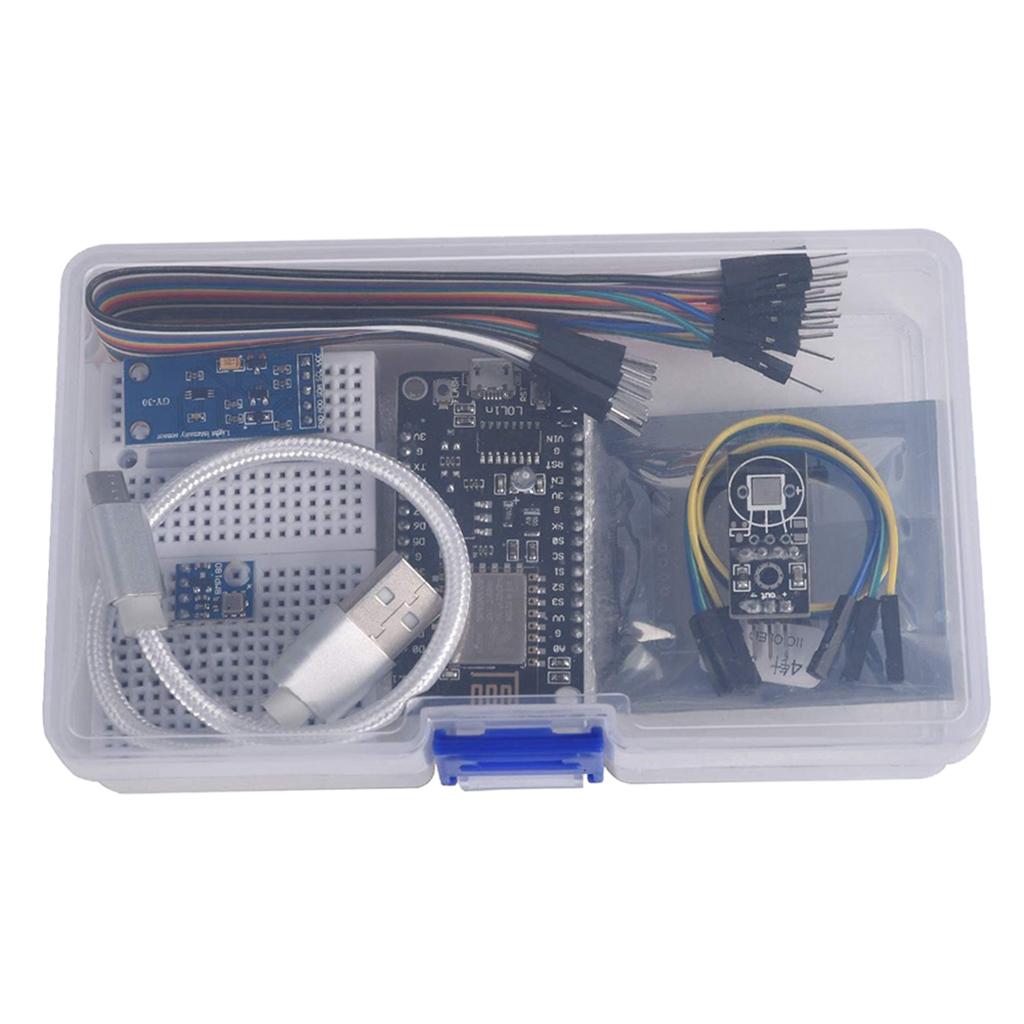

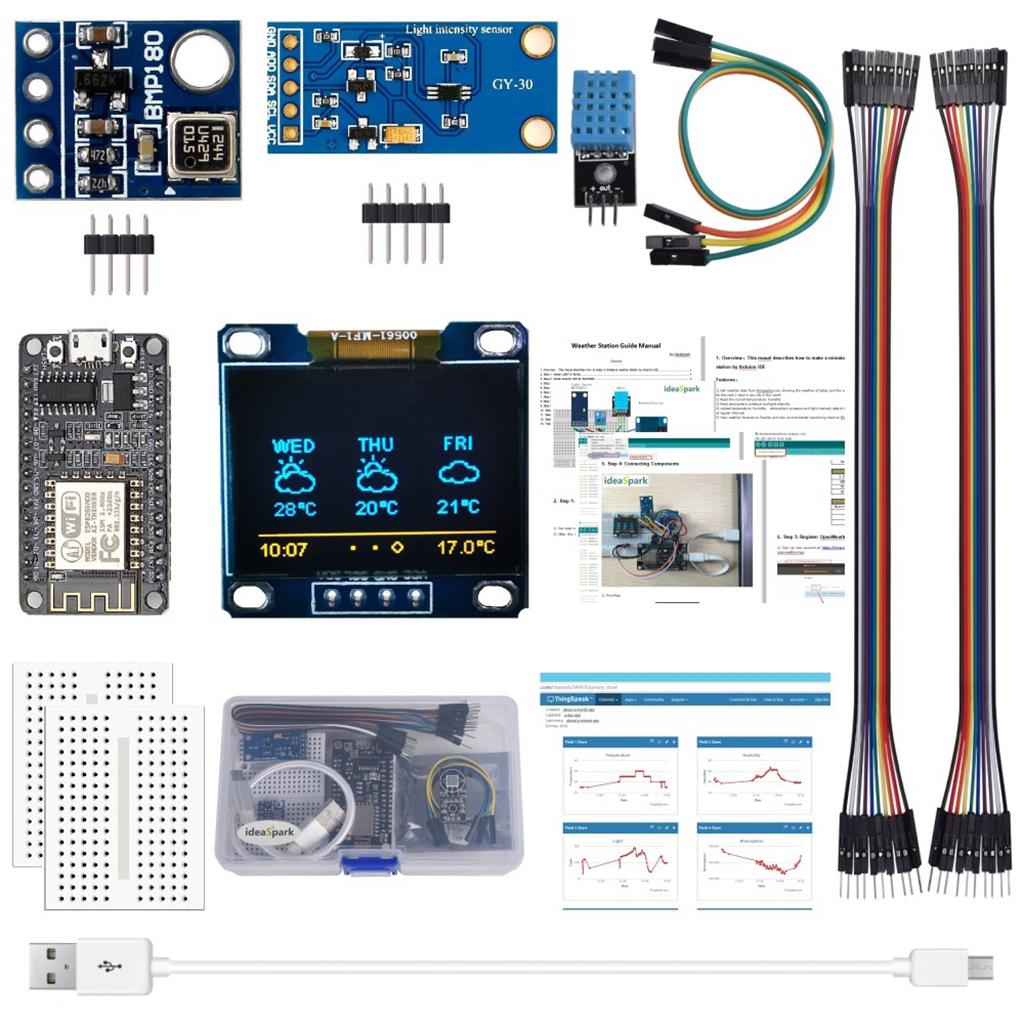

Package Includes:

1 x ESP8266-12E
1 x DHT11
1 x BMP180
1 x BH1750FVI
1 x OLED Display
1 x USB Cable
2 x Breadboard
20 x Dupont Cable

Note:

Kits designed only for Windows OS

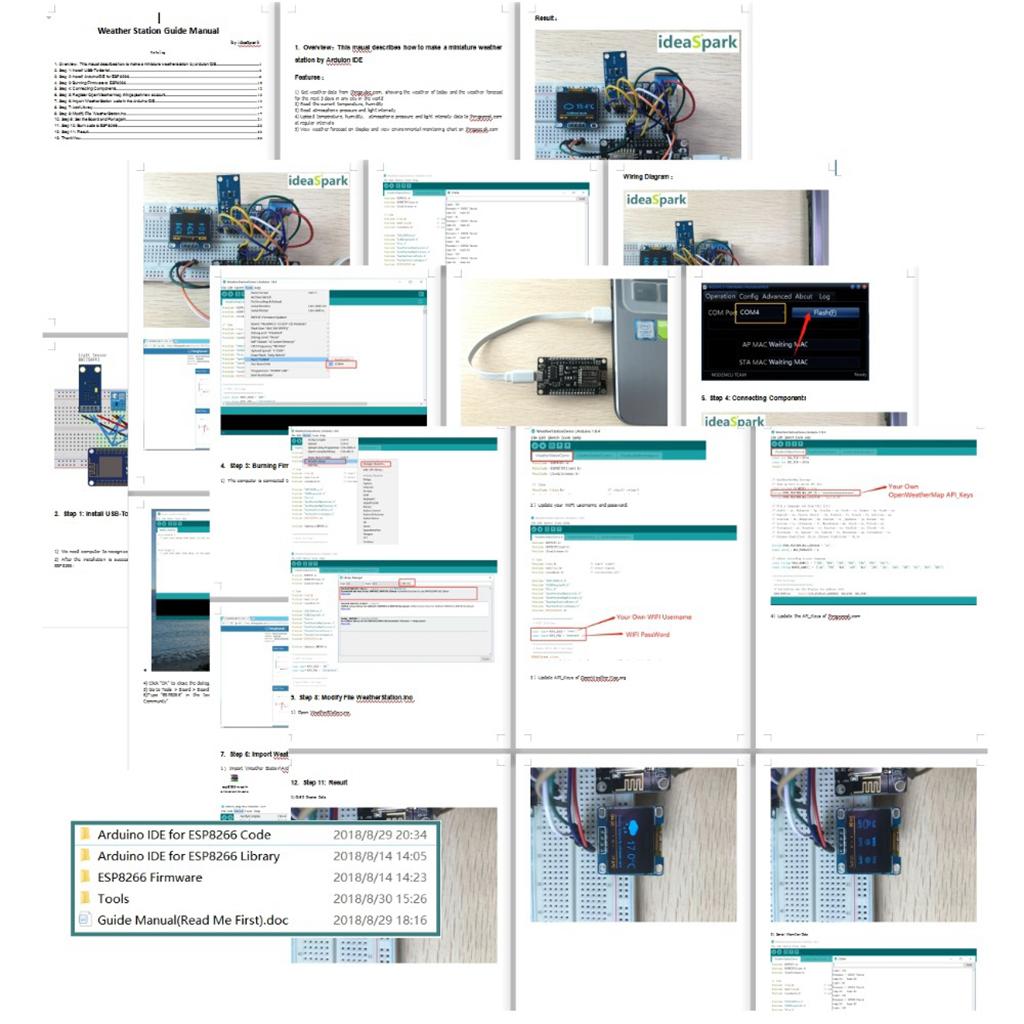

The 50M Guidance Document: Guidance Manual, Demo Code, Burning Tool, and Necessary Class Libraries. Download link label is pasted at the bottom of the packaging box.
