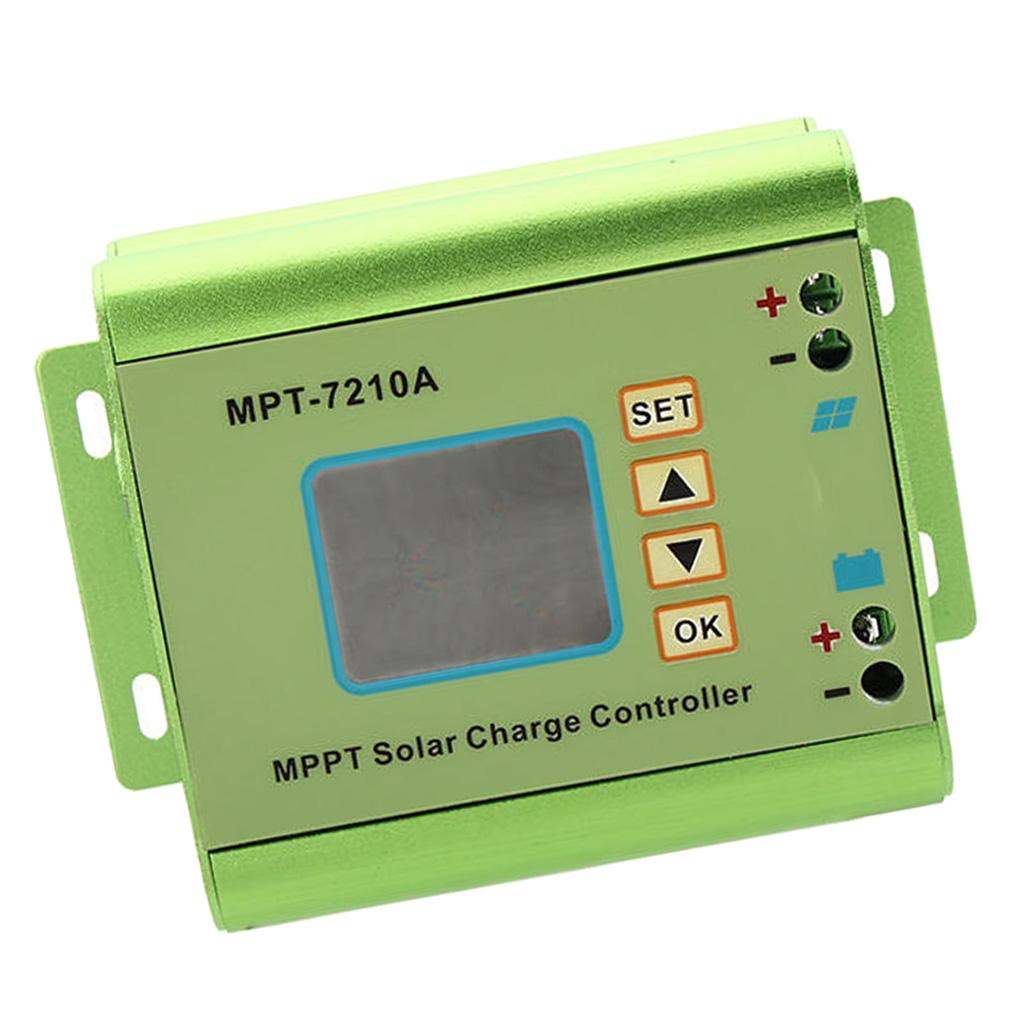

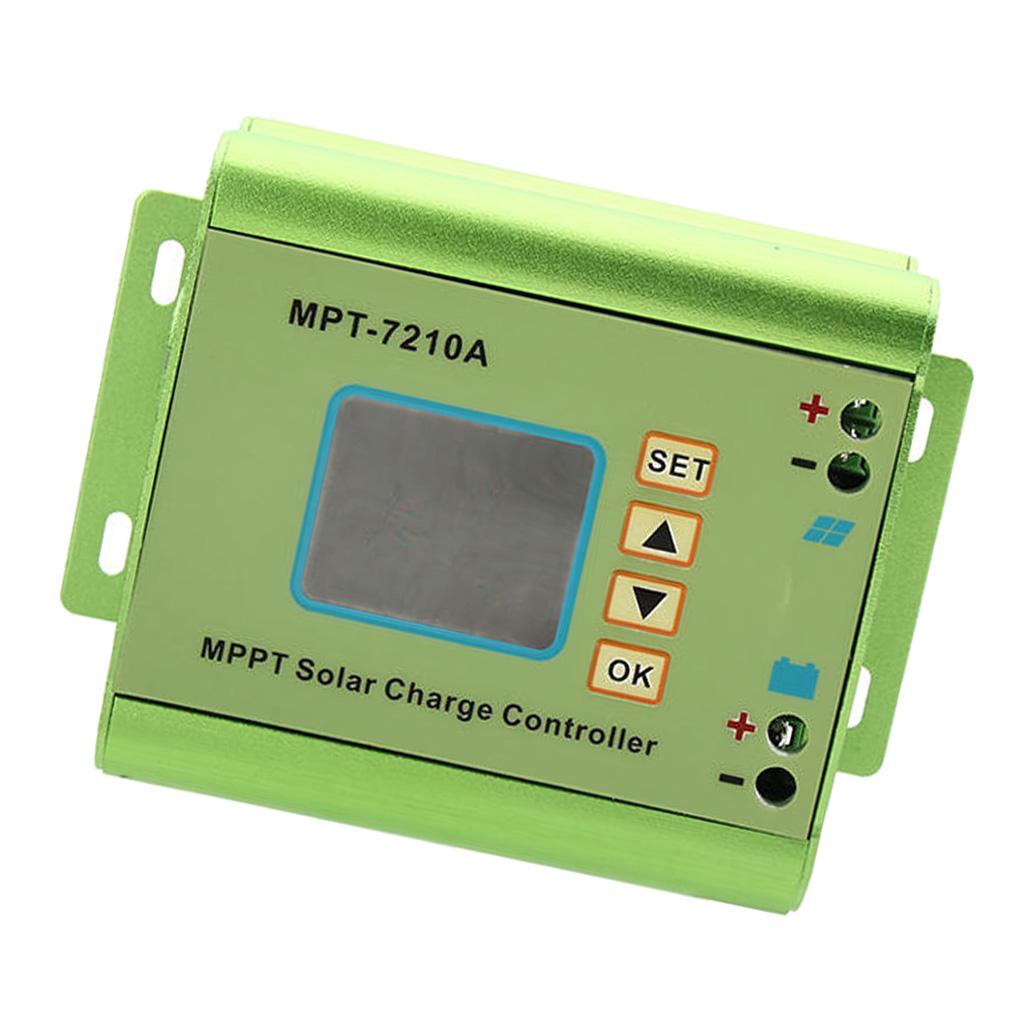

High Performance 10A MPPT Solar Charge Controller Solar Charge With LCD Display for Solar Battery Charging

Description:

Compatible with 24V/ 36V/ 48V/ 60V/ 72V battery pack system, can set the output voltage and current according to actual need.
Innovative MPPT technology and high tracking efficiency, can improve the generated energy.

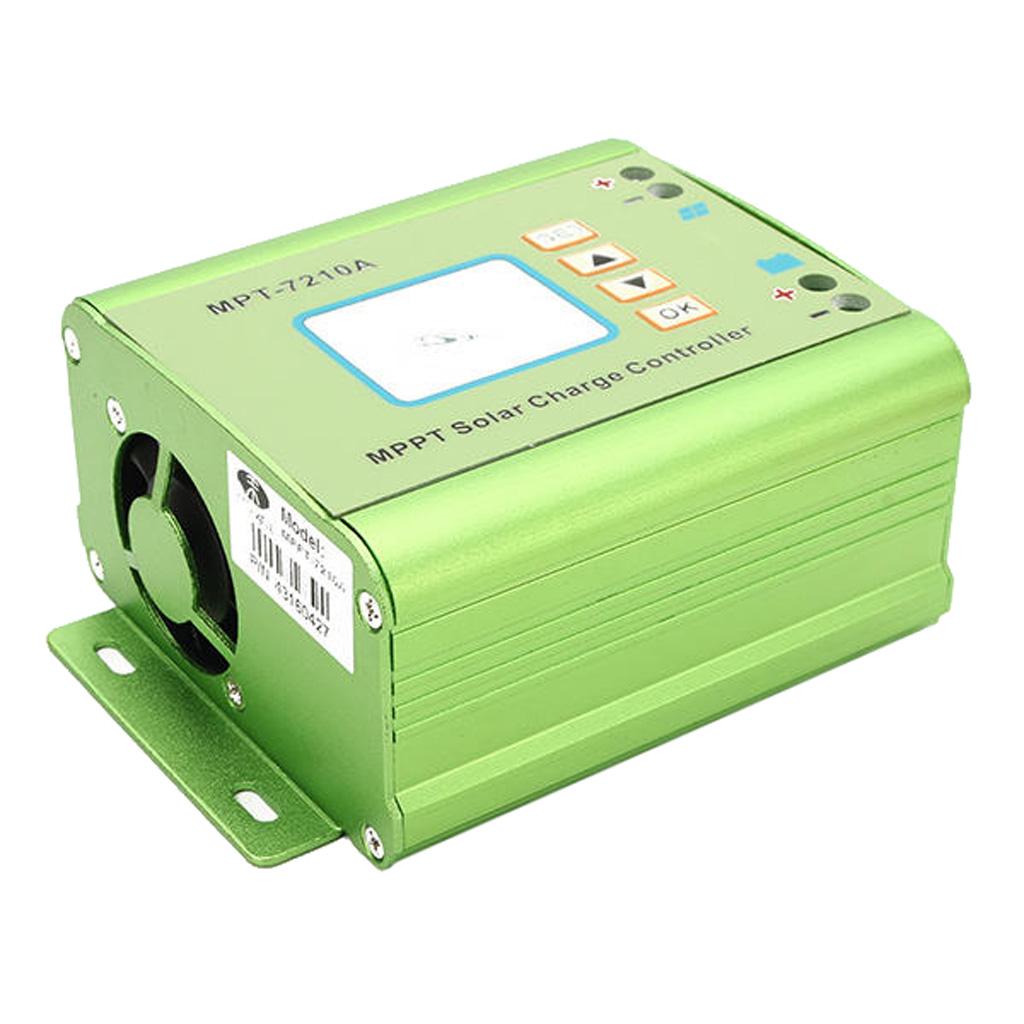

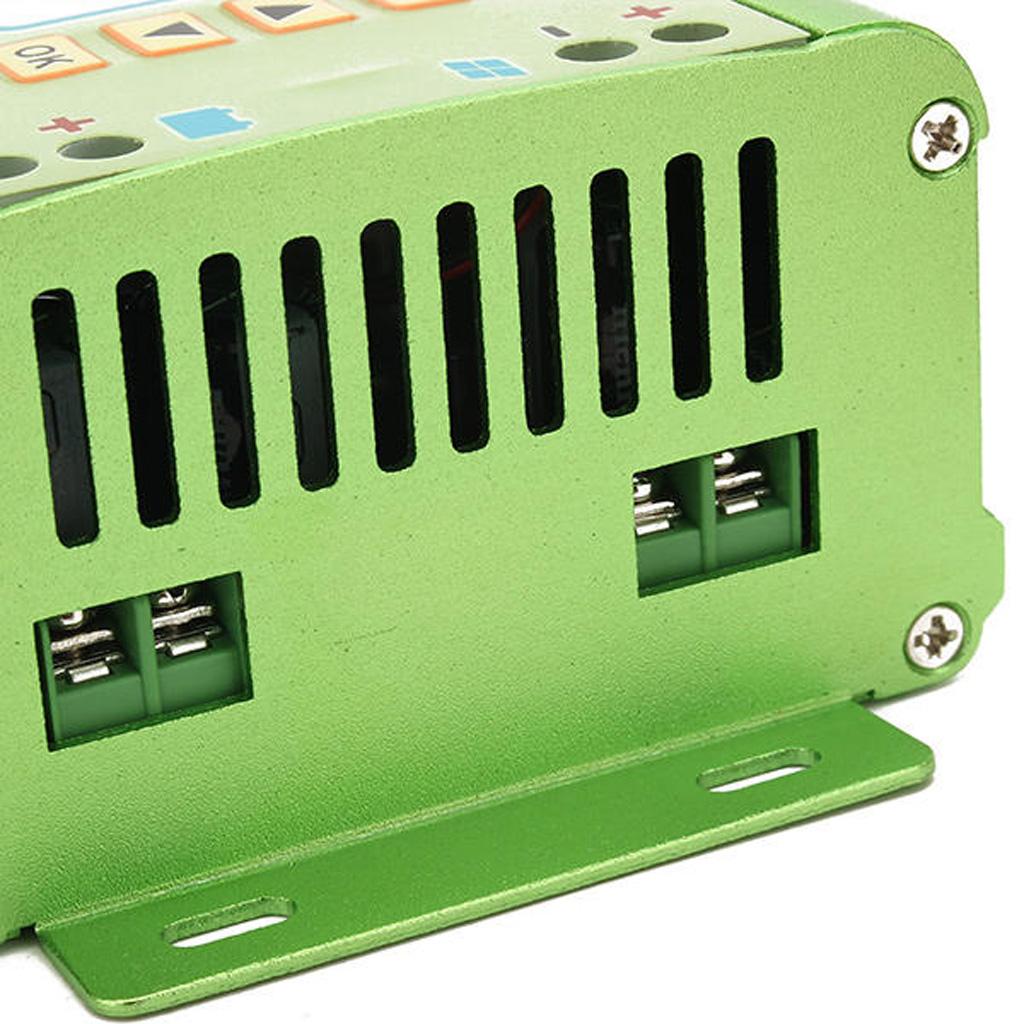

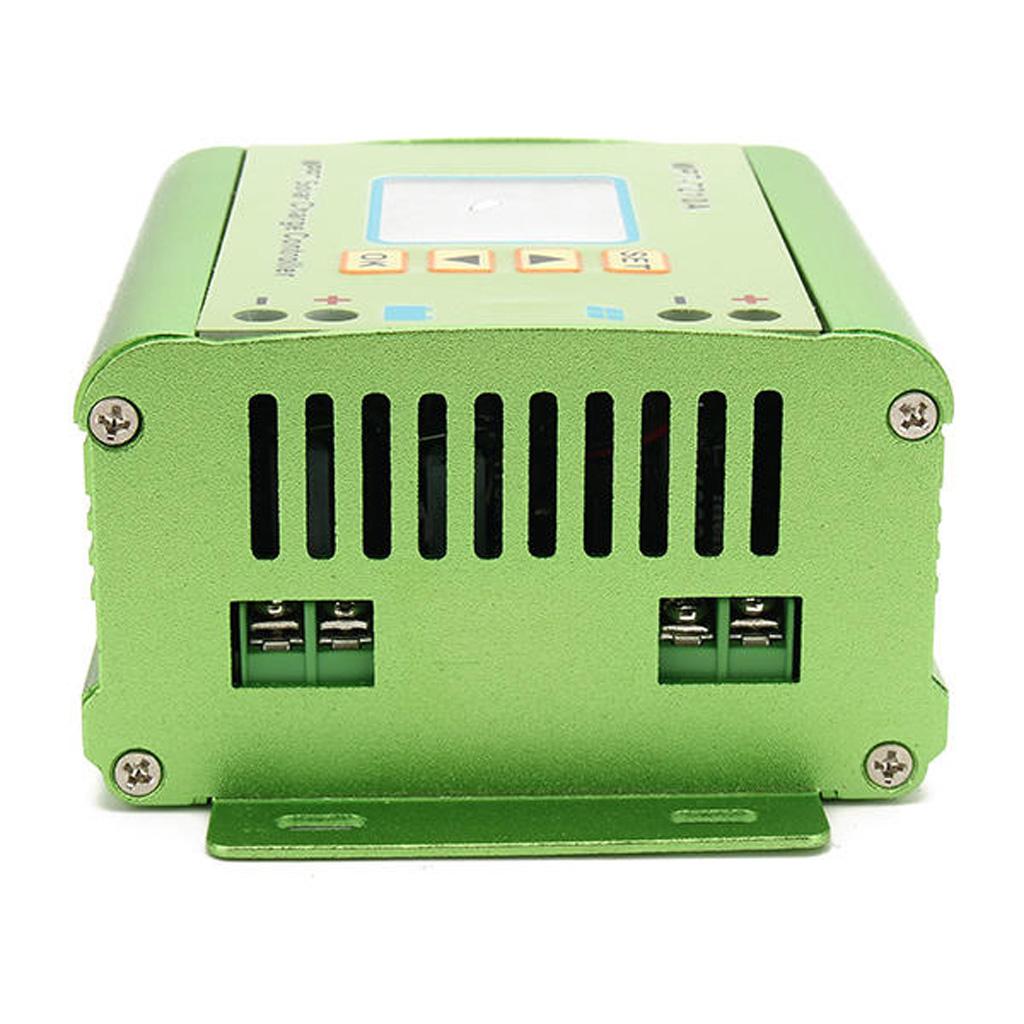

Excellent heat dissipation capability: Adopts advanced fan temperature control technology for quick controlling the heat.

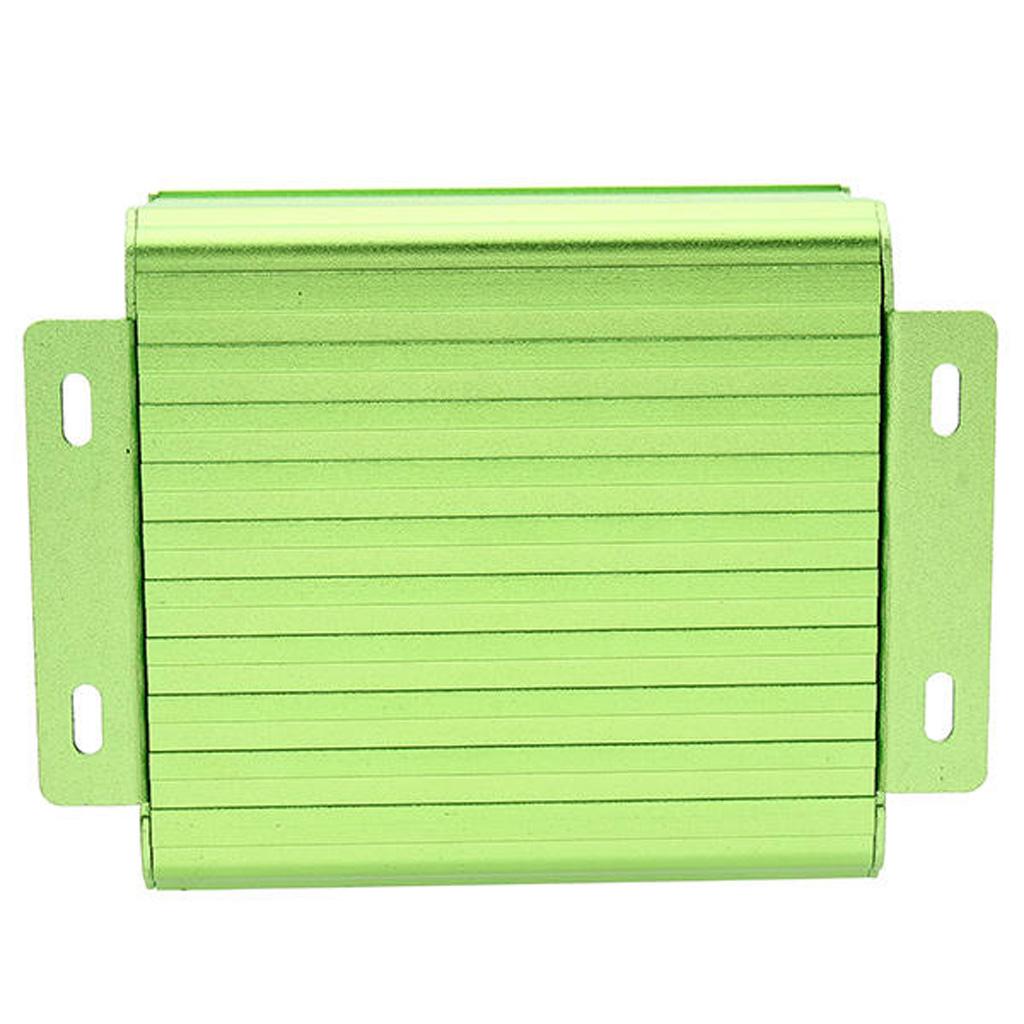

Aluminum alloy case, durable for use.

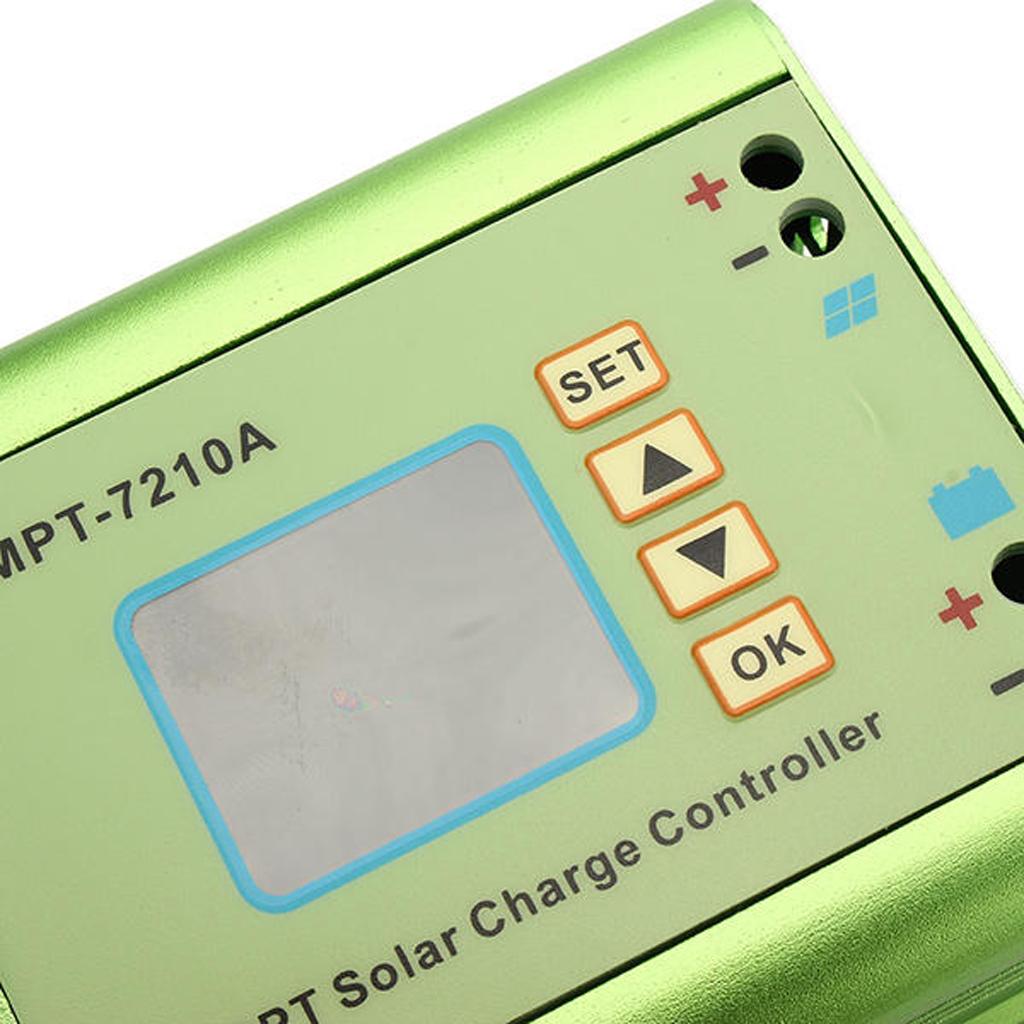

LCD screen displays the current, current, power, charging time, etc..
Working modes: Selectable MPPT and DC-DC (MPPT for photovoltaic panels application and DC-DC for boost power supply).
Built-in 20 groups of data for user to set and store.
Max. output power is 600W, suitable for 100W - 600W solar panel.
Reverse connecting protection: MOS reverse connecting protection circuit at the input and output end for effectively protecting the controller and battery.
Overload protection: the controller will automatically cut off circuit if overload.
High-speed and high-performance design, great for solar charging use.

Specification:

Input voltage range: 12~60V
Output voltage range: 15~90V
Output current range: 0~10A
Material: Aluminum Alloy
Type: Measuring instruments
Primary functions: MPPT Solar Charge Controller
Scope of application: Agricultural, Home appliance, Industrial, Office, Supermarket
Product size: 13.10x9.60x5.50 cm / 5.16x3.78x2.17 inch

Package Includes:

1 x MPT-7210A Solar Charge Controller

Note:

Color maybe slightly different due to different monitor.
The above size is measured by hand, please allow slightly difference. Thanks !
