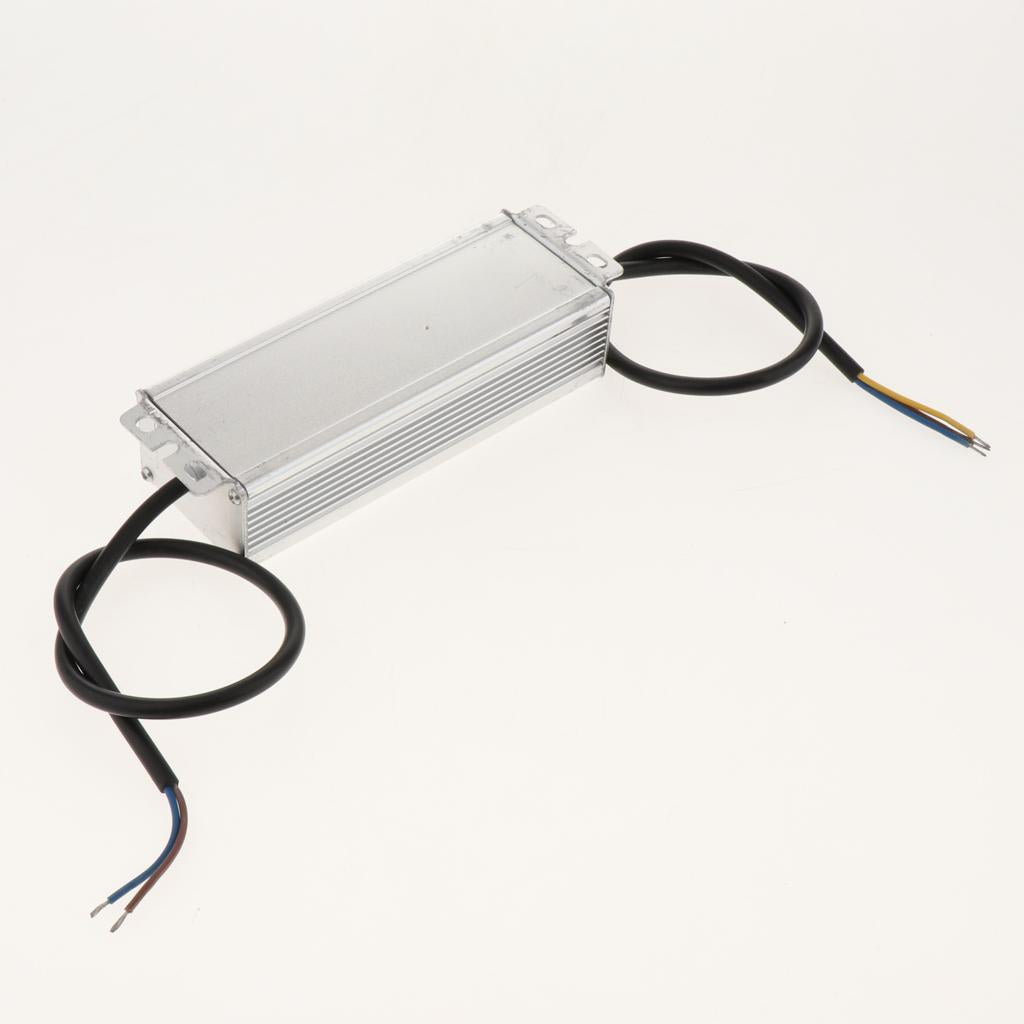

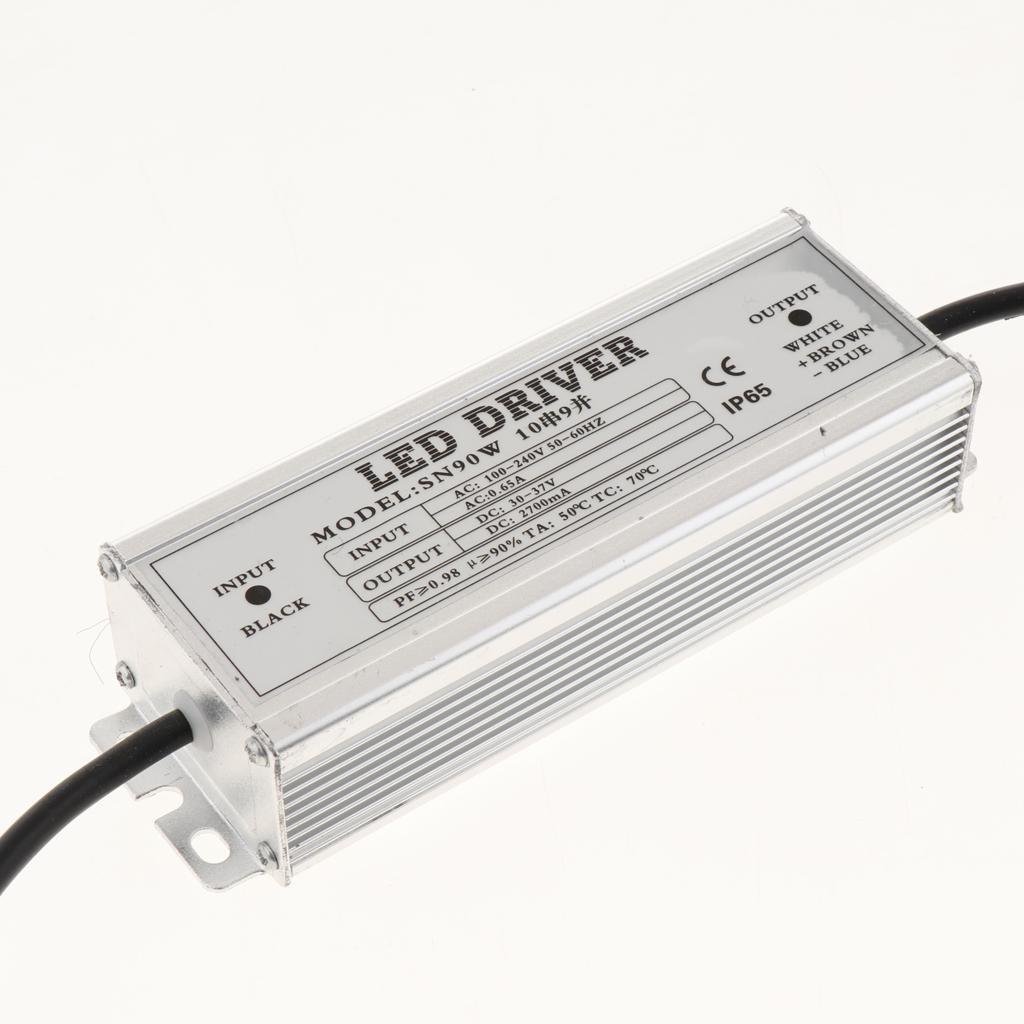

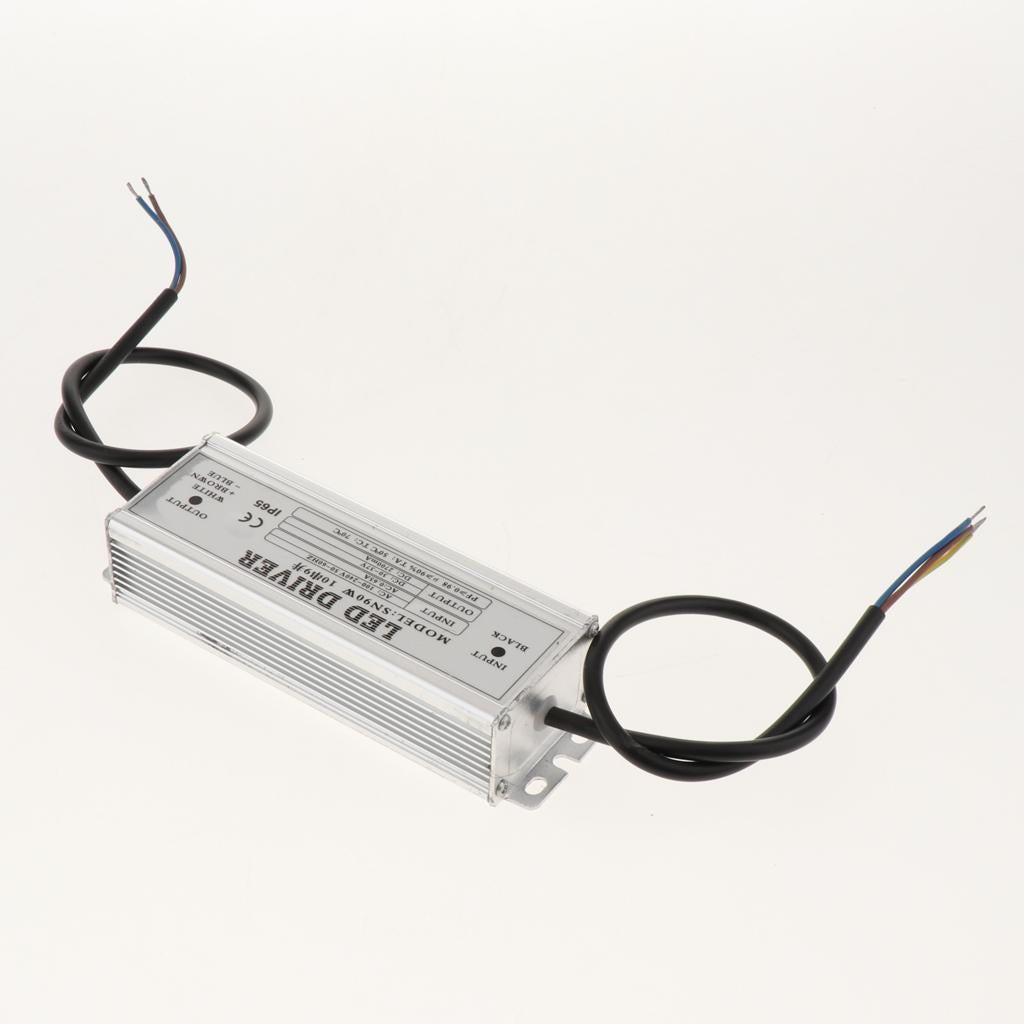

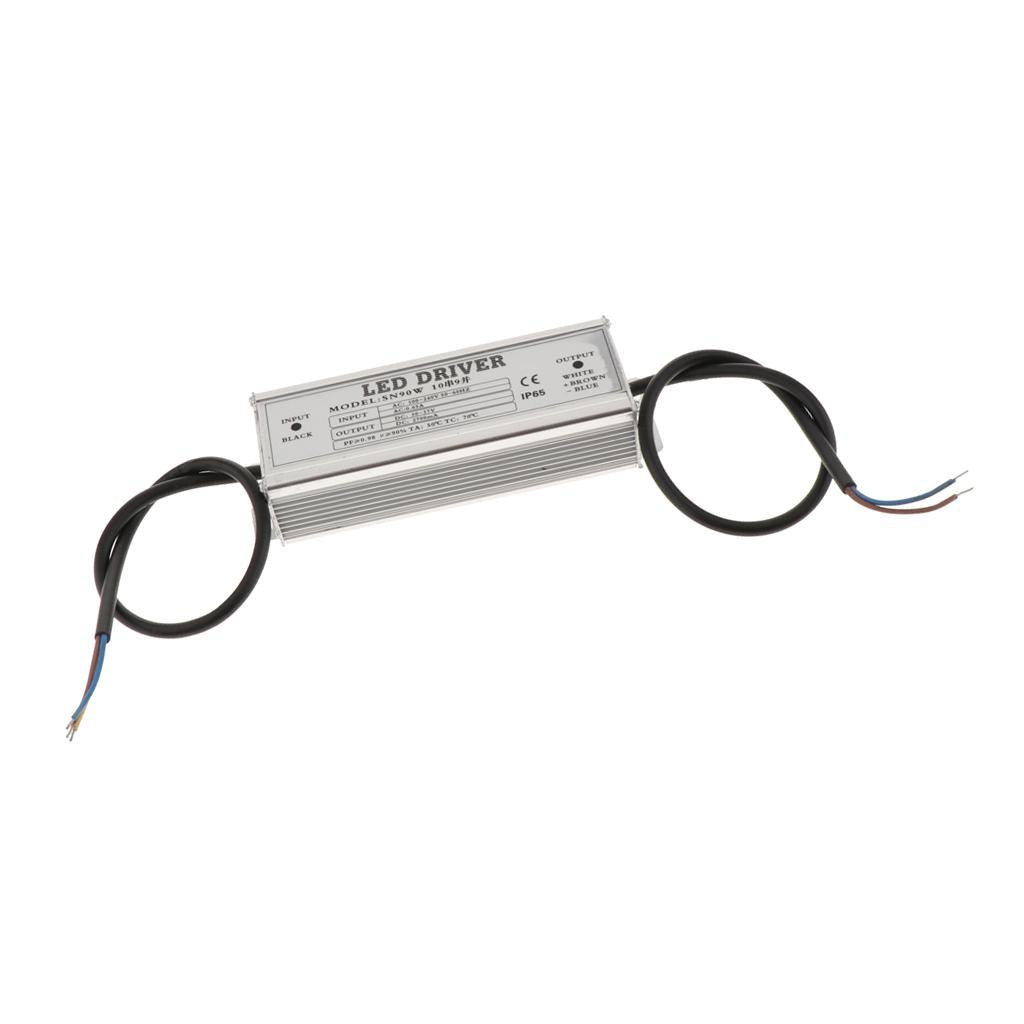

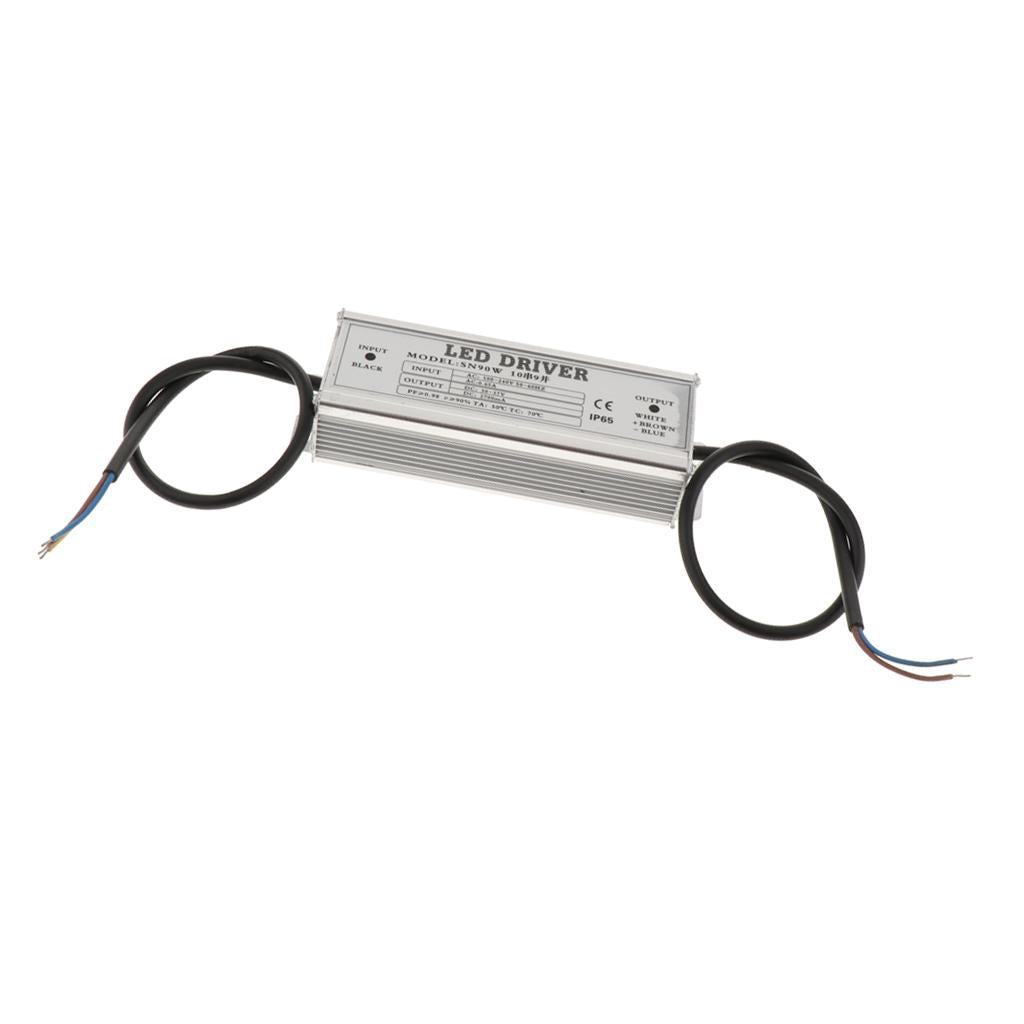

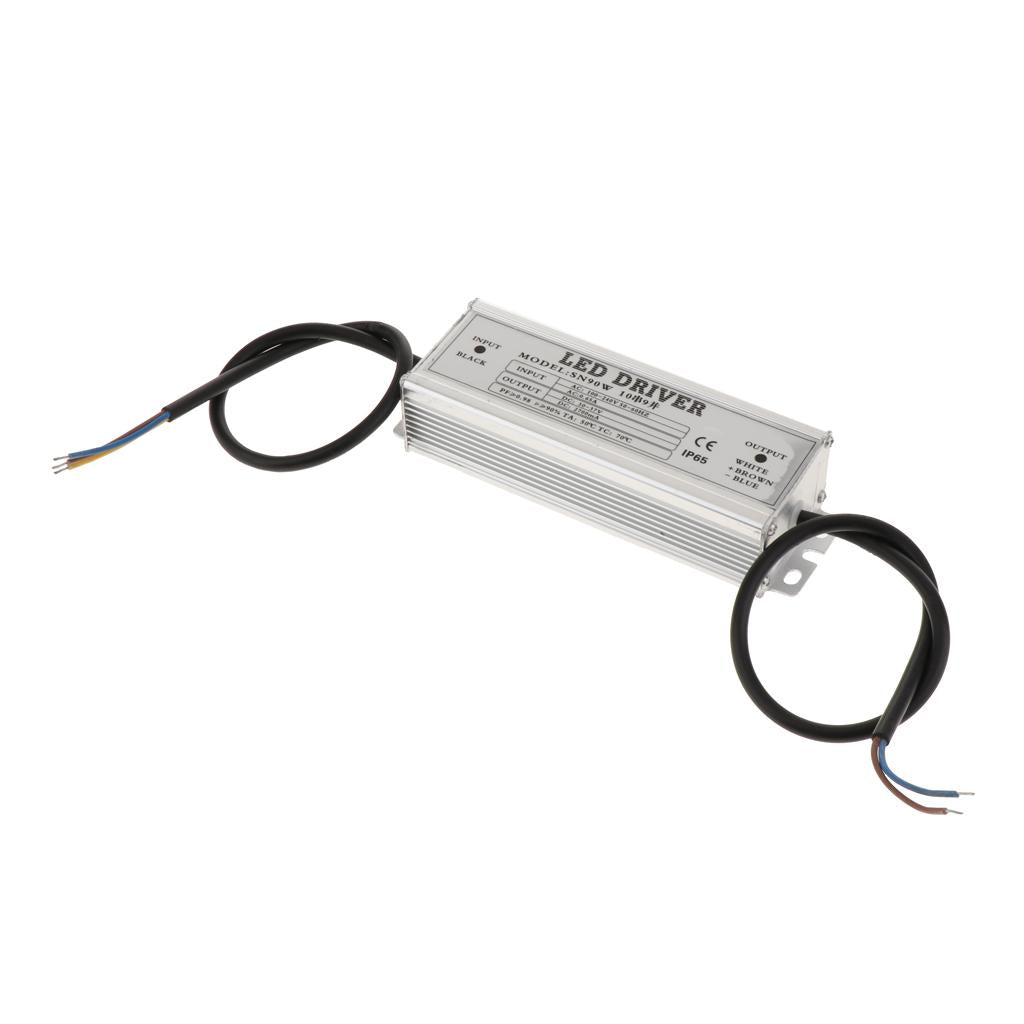

7.01x2.76x0.98inch 90W10 Series 9 And Lamp Drive LED Street Lamp Power Supply

Description:

90W10 Series 9 and Lamp Drive LED Street Lamp Power Supply
Easy to install, mount, and wire. Included AC and DC cords can be removed for use in hard wire installations.
Driver have amazing waterproof effect : The dual waterproof and heat dissipation technologies of the inner and outer shell make the power supply waterproof and heat dissipation more effective and suitable for outdoor use.
Wide range of LED power supply : Suitable for LED strip lights, led light bulbs ,Computer
Most safety of the design philosophy : Short circuit / overload / over voltage / over temperature automatic protection. Hiccup mode, auto-recovery after fault condition is removed

Specification:

Model / Model: PL-WP-2700-36H
Reference standard Basic on: IEC 61347
Technical parameter / Technographic Data
Input/Input rated voltage/Rated voltage: AC85-265V
Working frequency / Frequency: 50 ~ 60 Hz
Input power(load) / Input power(Loading): ≤ 100W
Outcut output current(load) / Outcut current(Loading): 2700MA
Output voltage(load) / Outcut voltage(loading): DC 27 ~ 36V
Output voltage(empty load) / Outcut voltage(no loading) DC ≤ 45V
Short circuit protection/Short-circuit projects: OK
Overloading / Over loading: OK
Insulation Strength / Voltage Return Input-Output / Input-Outcut AC 1.5 KV/5 mA 1Min
Enter-Shell / Input-Housing AC 1.5 KV/5 mA 1Min
Ripple / Ripper ≤ 600 MVpp(120Hz)
Efficiency / efficiency ≥ 85 %
Power factor / PF ≥ 95 %
Working Temperature / Working Temporure -25 °C ~ +40 °C
Operations Size(mm): L * W * H = 178 × 70 × 45mm/7.01x2.76x0.98inch

Package Includes:

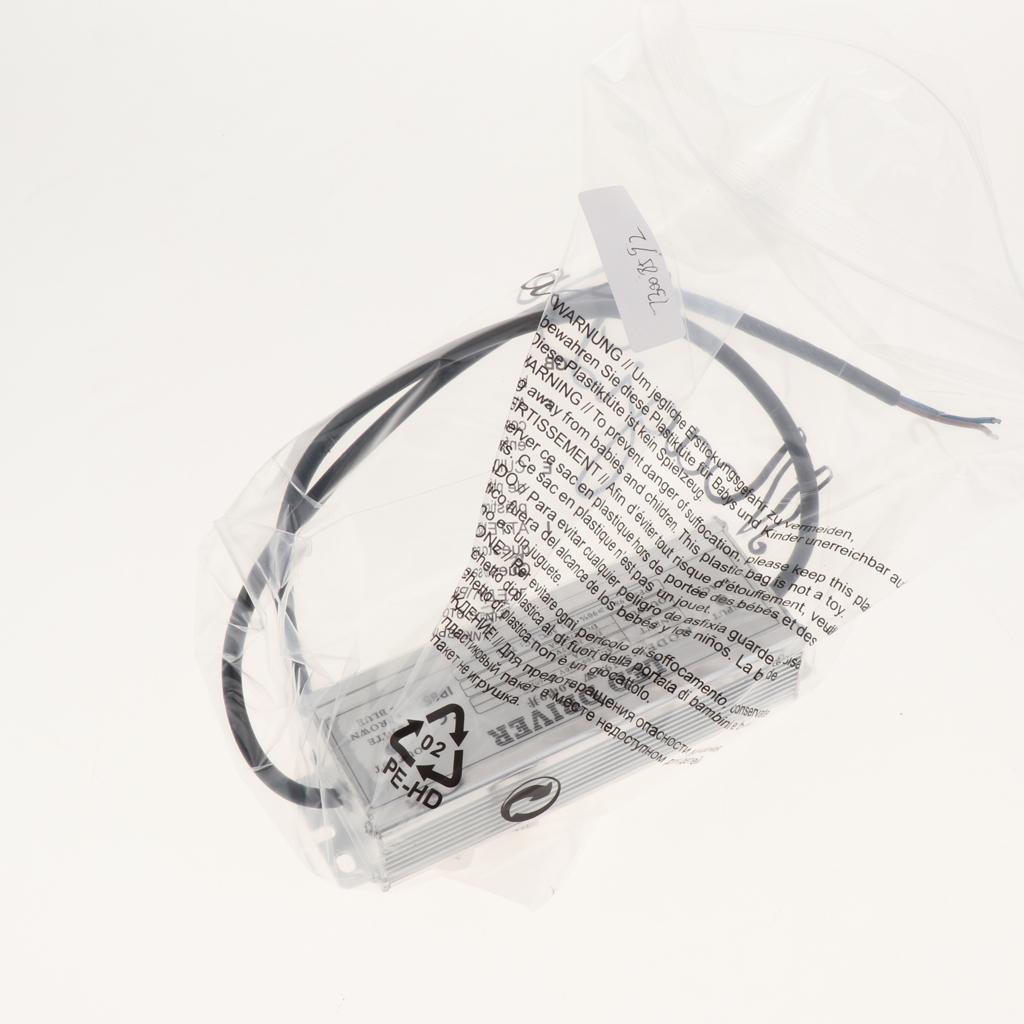

1 Piece Street Lamp Power Supply
