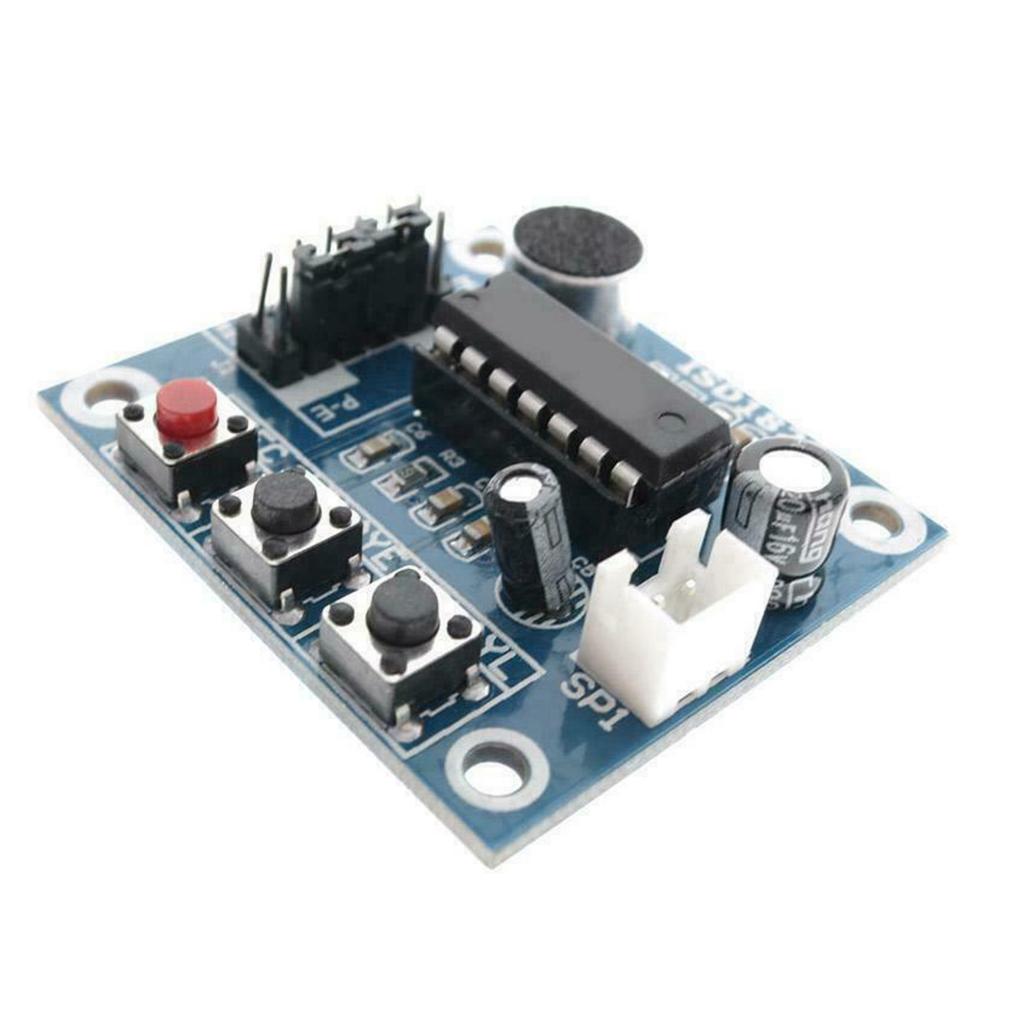

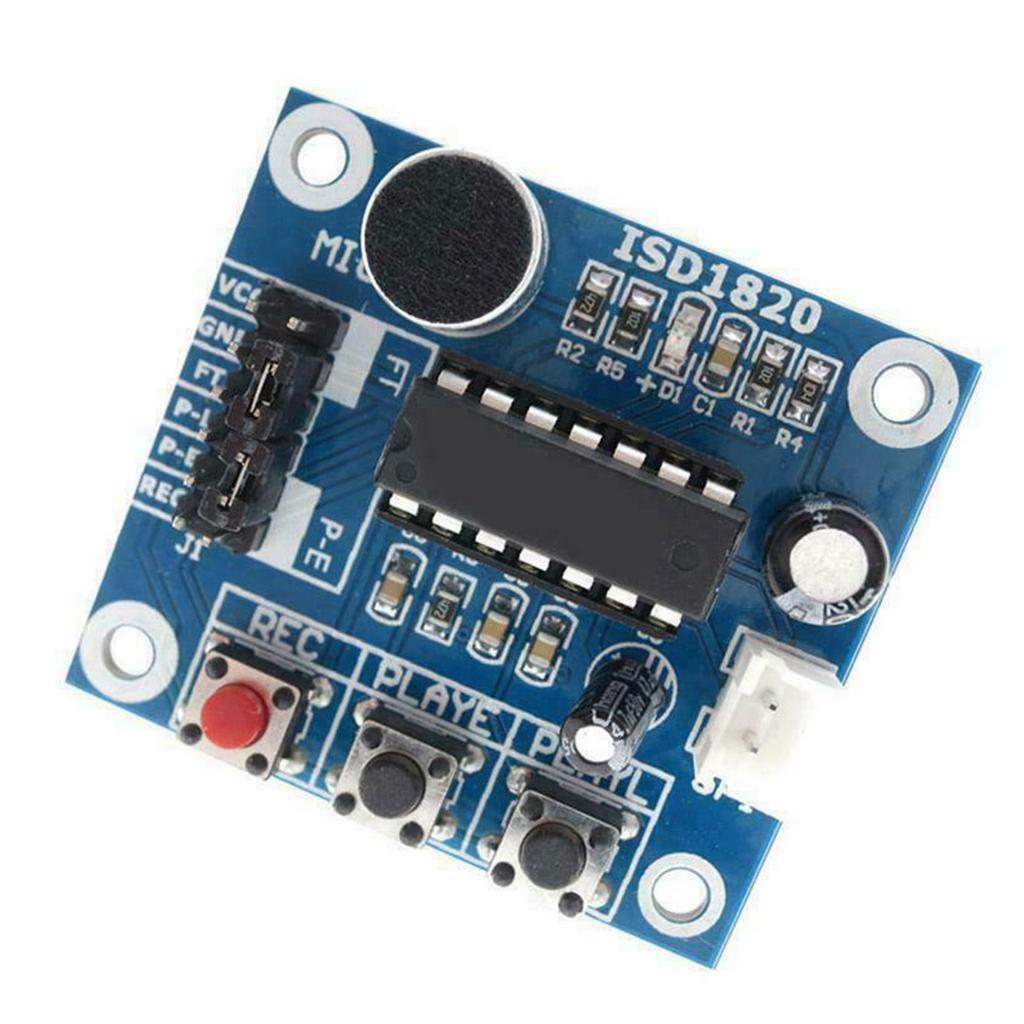

1pc ISD1820 Recording and Playback Module Voice Module with Loudspeaker

Description:

Easy-to-use 10-second voice recording and playback
High-quality, natural voice restoration
Can be used as a megaphone module
With loop play, jog play, single play function
Can be controlled by single chip microcomputer, also can directly drive 8 Euro 0.5W small speakers

Specification:

Main Chip: ISD1820
Working voltage: DC3-5V
Operation method of key control recording and playback:
REC button: record button, press and hold to record, release button to stop recording;
RLAYE key: trigger mode playback, click to play the entire voice of the current segment;
PLAYL key: Jog mode to play, press and hold to play, release to stop playing;
RPL jumper: loop play mode control, loop play;
FT jumper: pass-through control, which can make the microphone voice pass to the speaker to play

Size Chart:

Size: 38x42.5mm / 1.5x1.67inch

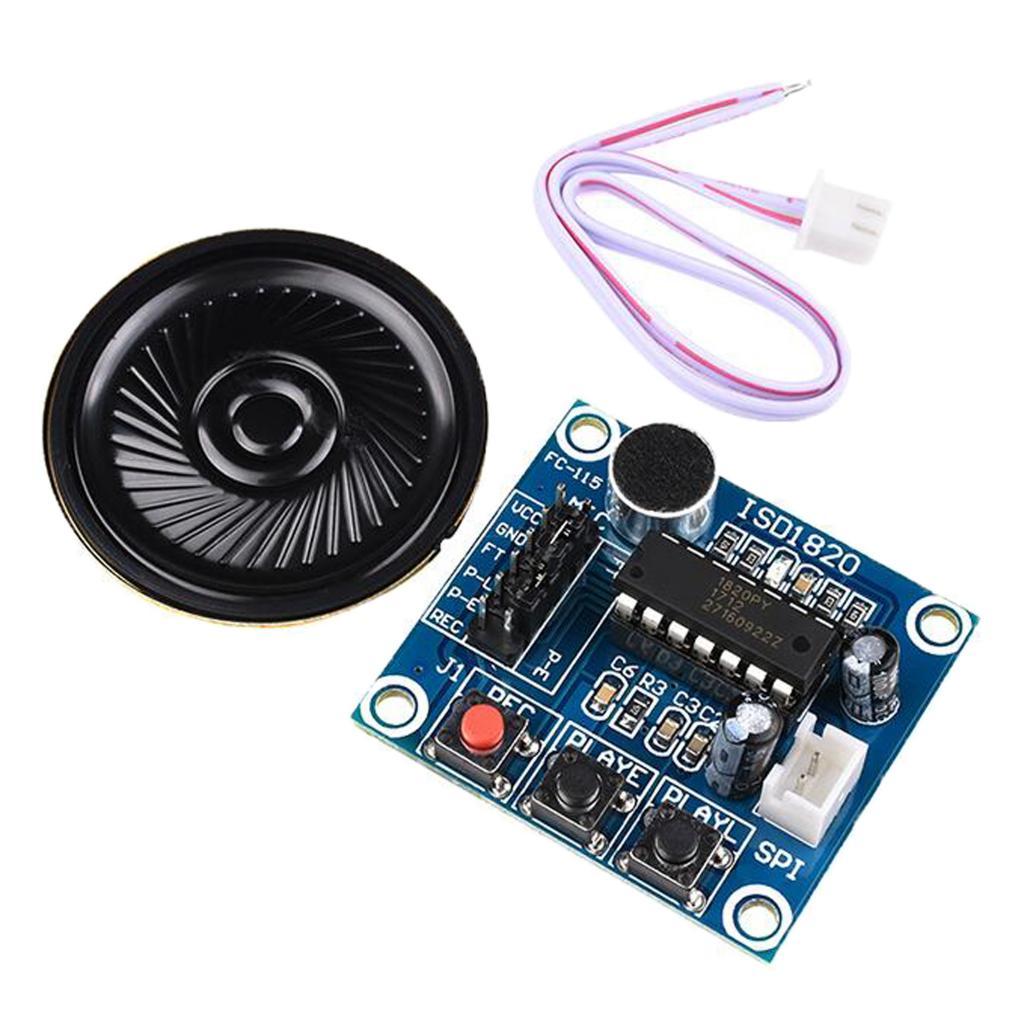

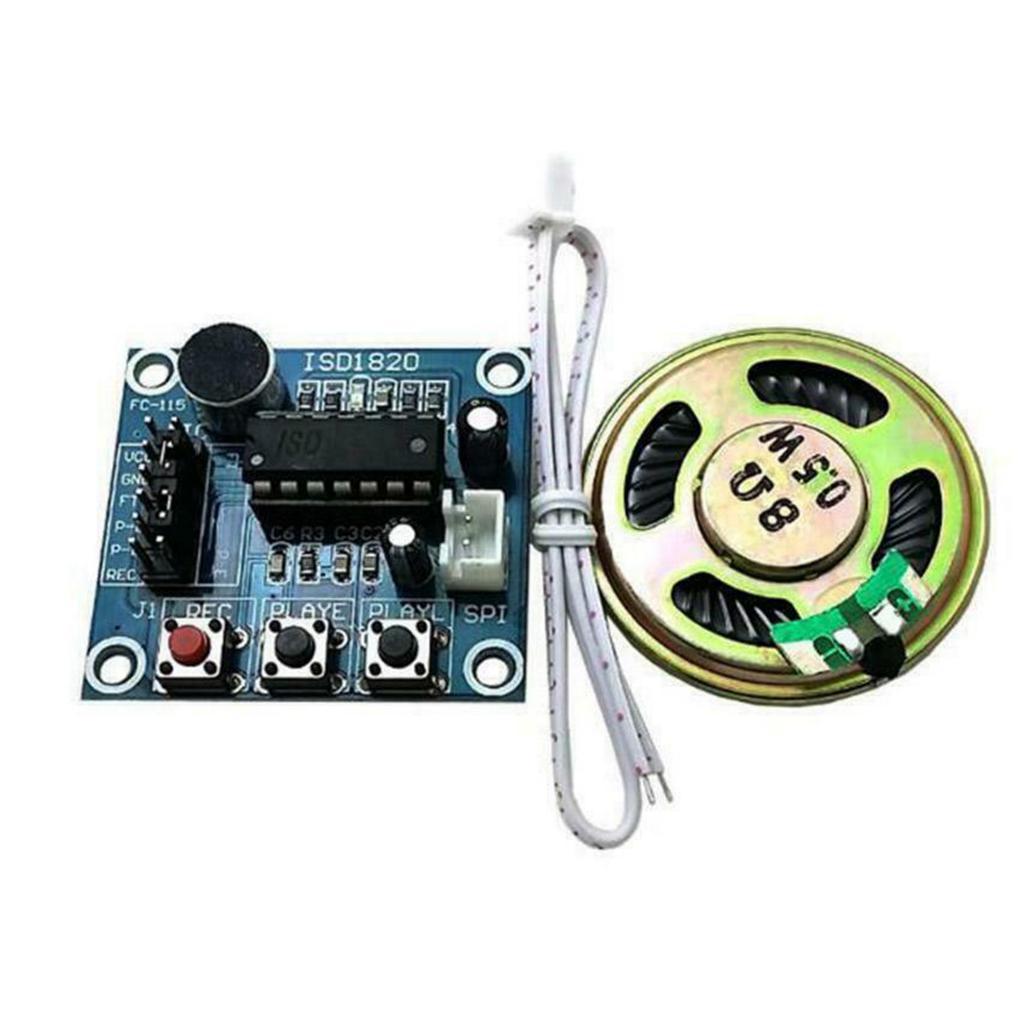

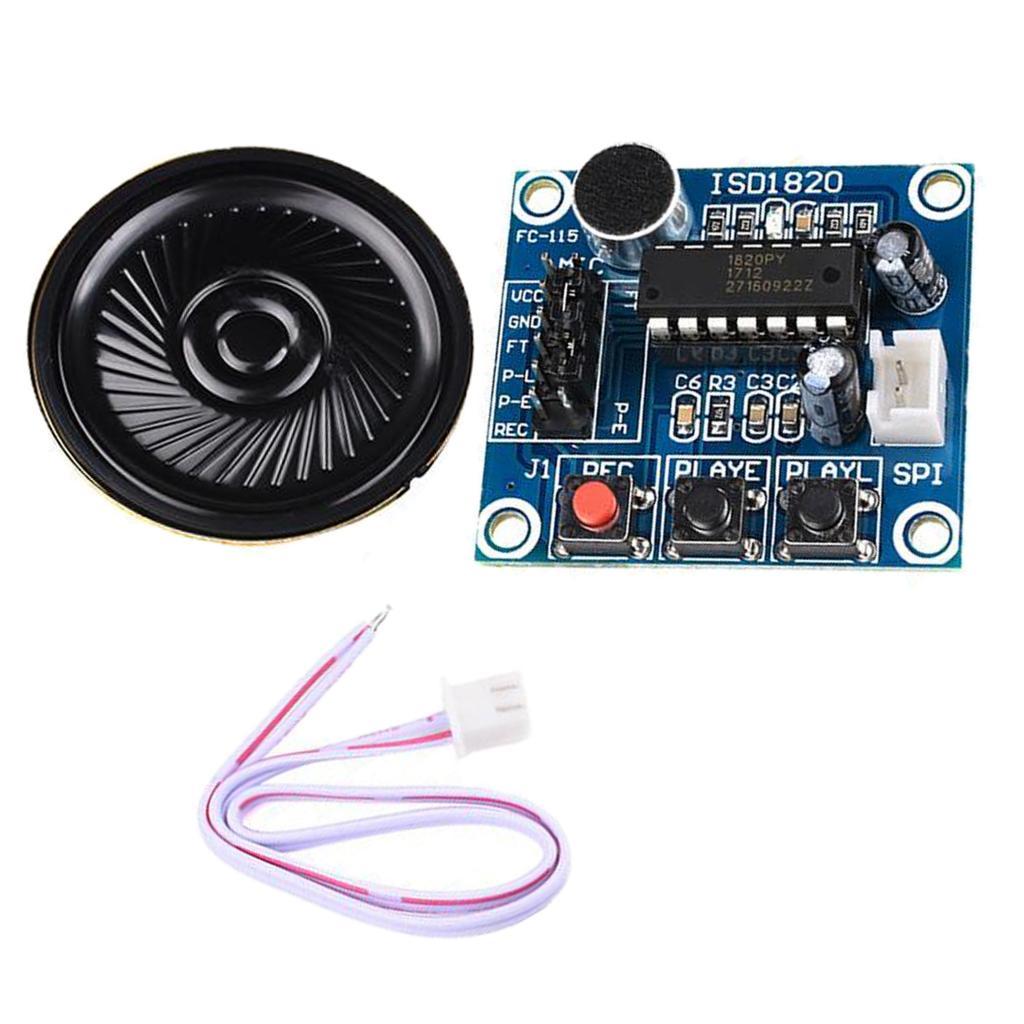

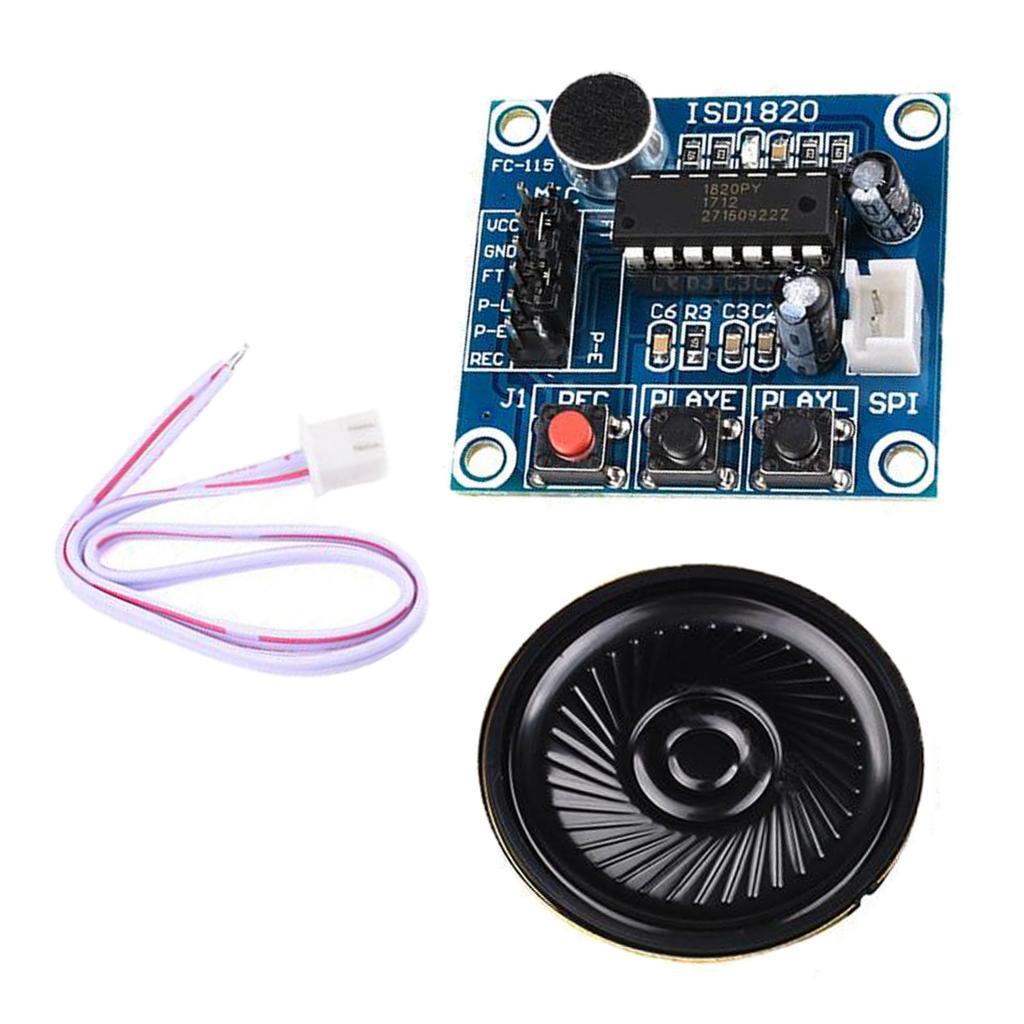

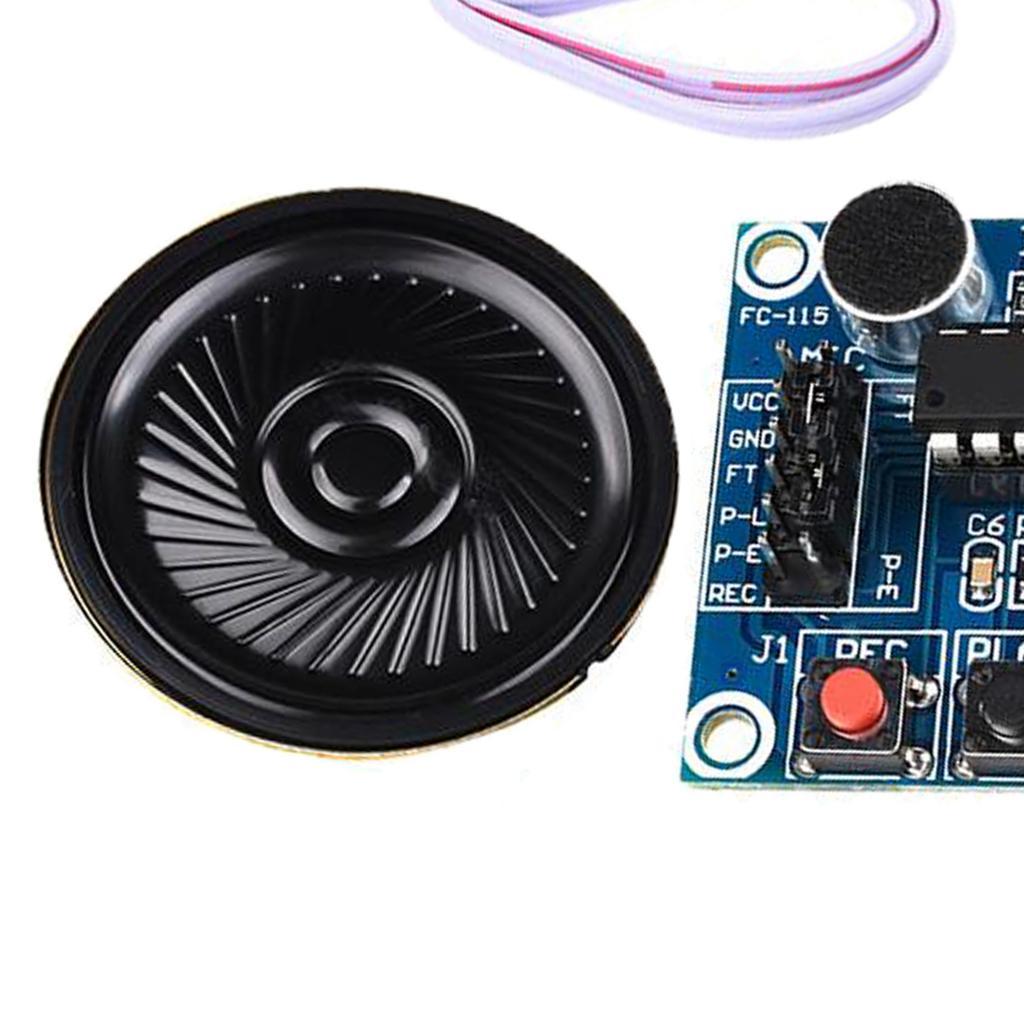

Package Includes:

1 Piece ISD1820 Module
1 Piece Loudspeaker
1 Piece Cable

Note:

The color may be different for different display, pls understand
Pls allow 1-3mm error due to hand tste, thank you
