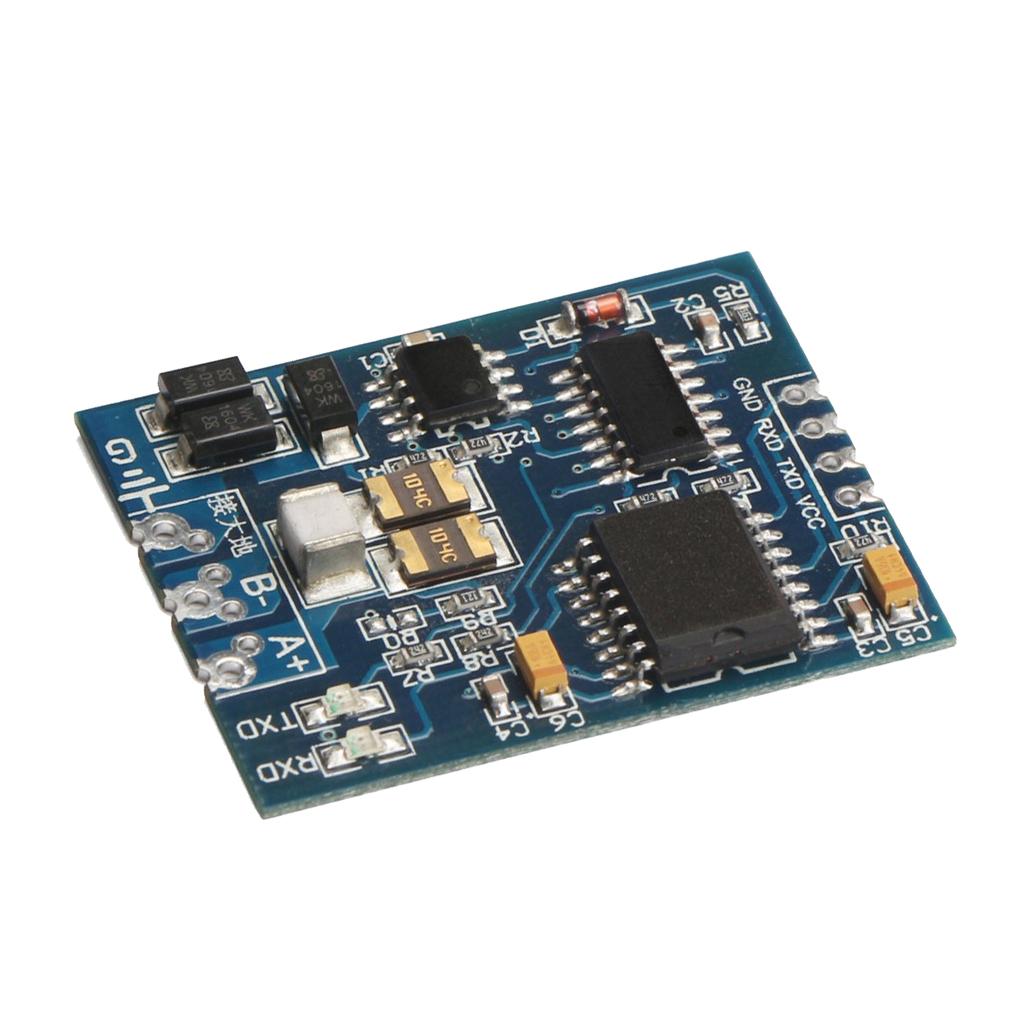

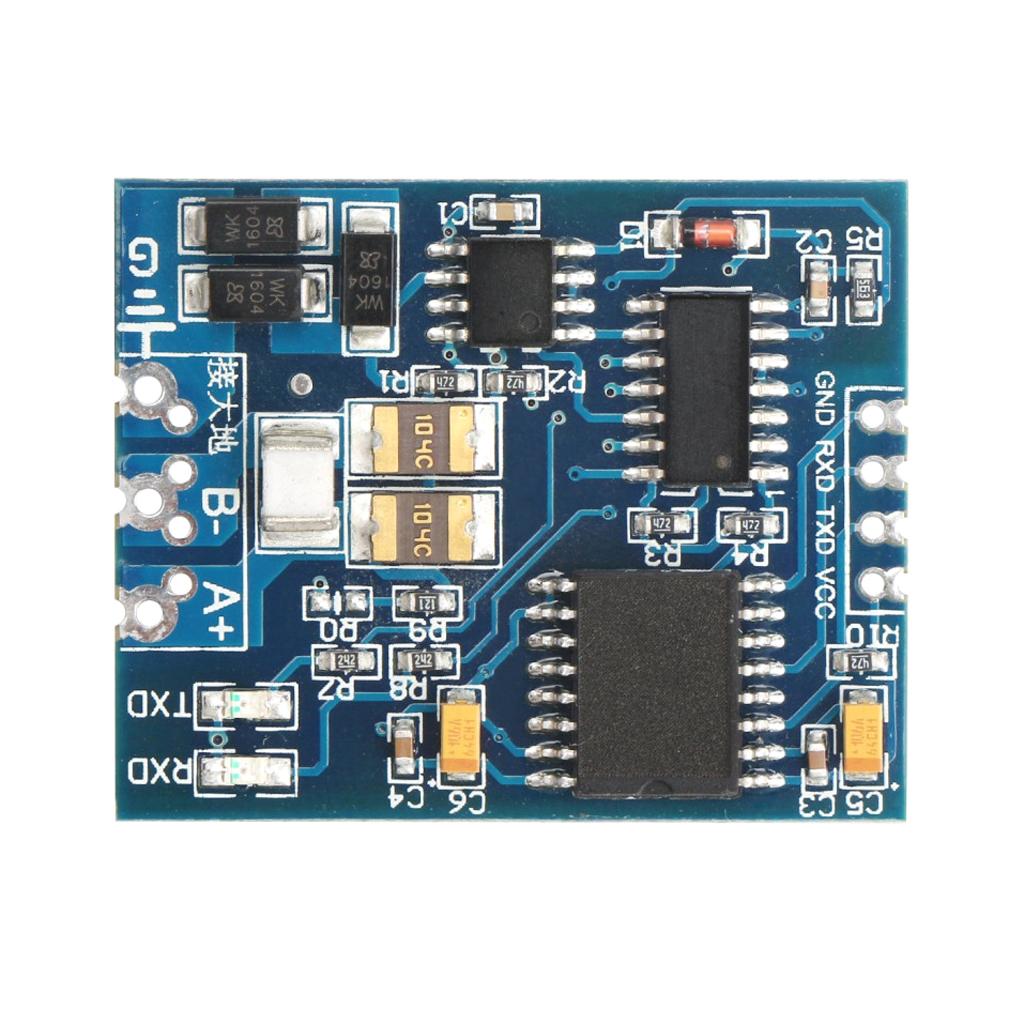

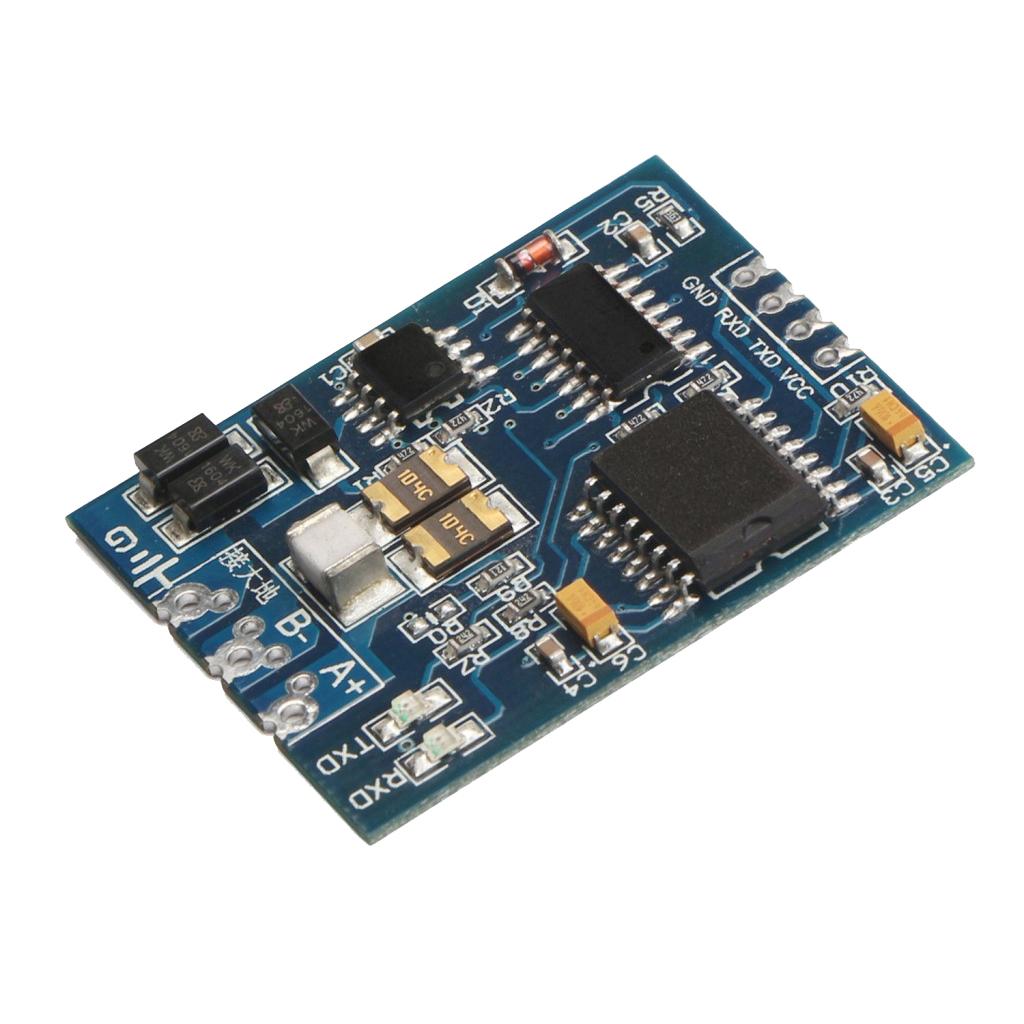

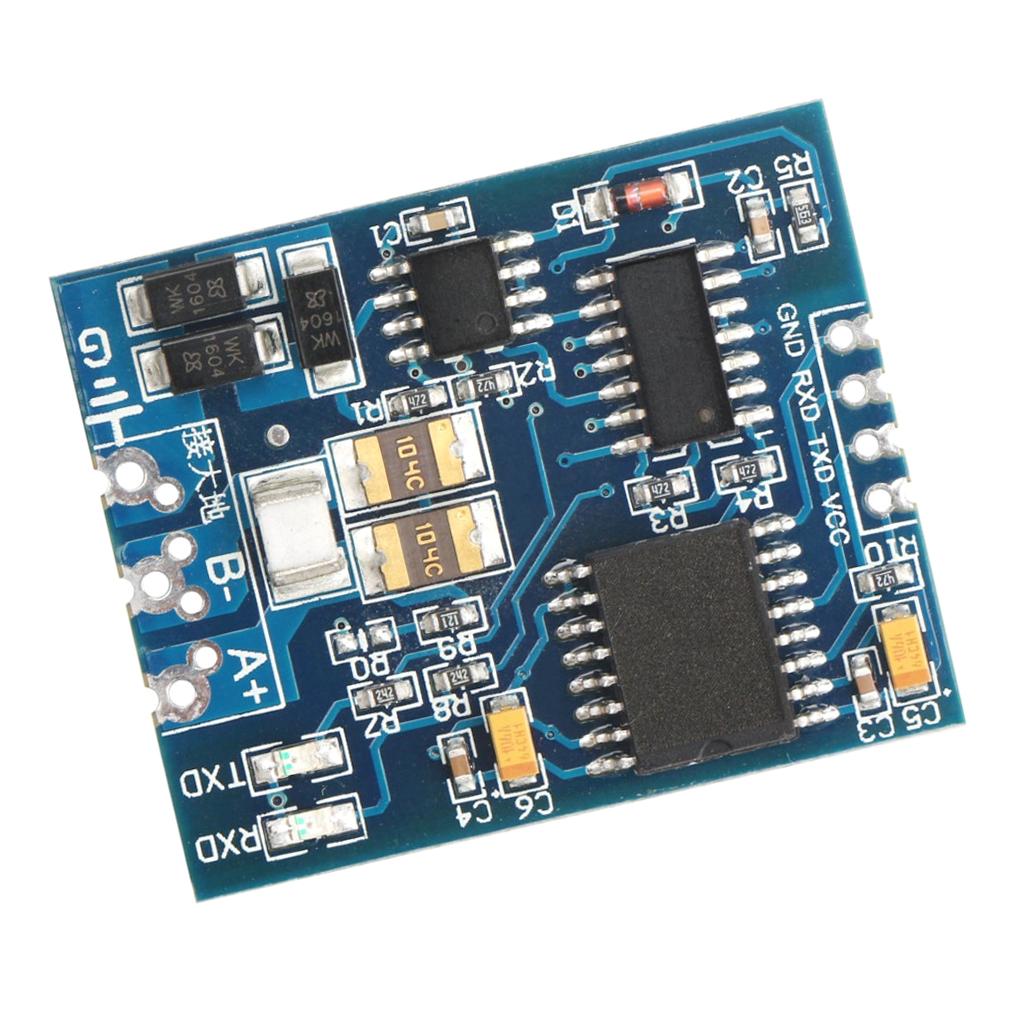

RS485 to TTL Module UART Converter Board Module Serial Port UART Level Converter Module 3.3V 5V

Description:

The power supply is completely isolated from the signal, with high EMC and EMI performance, and the isolation voltage is up to 2500VDC.
Industrial grade design, strong anti-interference ability, and more powerful 485 lightning protection design, can be used in industrial and field harsh environments, working temperature is -40 ° C to +85 ° C, transmission distance can reach thousands Meter (tested with 850 m 2*15 cable, it is recommended to use within 800 meters, please add repeater over 800 meters).
It adopts semi-hole process design, the plate thickness is 0.8mm, it can be easily used as a letter board, and it can also be used as a soldering terminal.
With RXD, TXD signal indicator, the receiving and receiving status is unobstructed

Specification:

Material: plastic + electronic components
Product detailed size: 36mm x 29mm/1.42 x 1.14inch
Baud rate: 100-256000bqs.
Wide voltage supply (3.3V-5V).
Both 3.3V and 5V signals are compatible and can be matched to the module

Package Includes:

1 Piece Industrial grade TTL to RS485 module RS485 to TTL with isolated single-chip serial port UART industrial grade module
