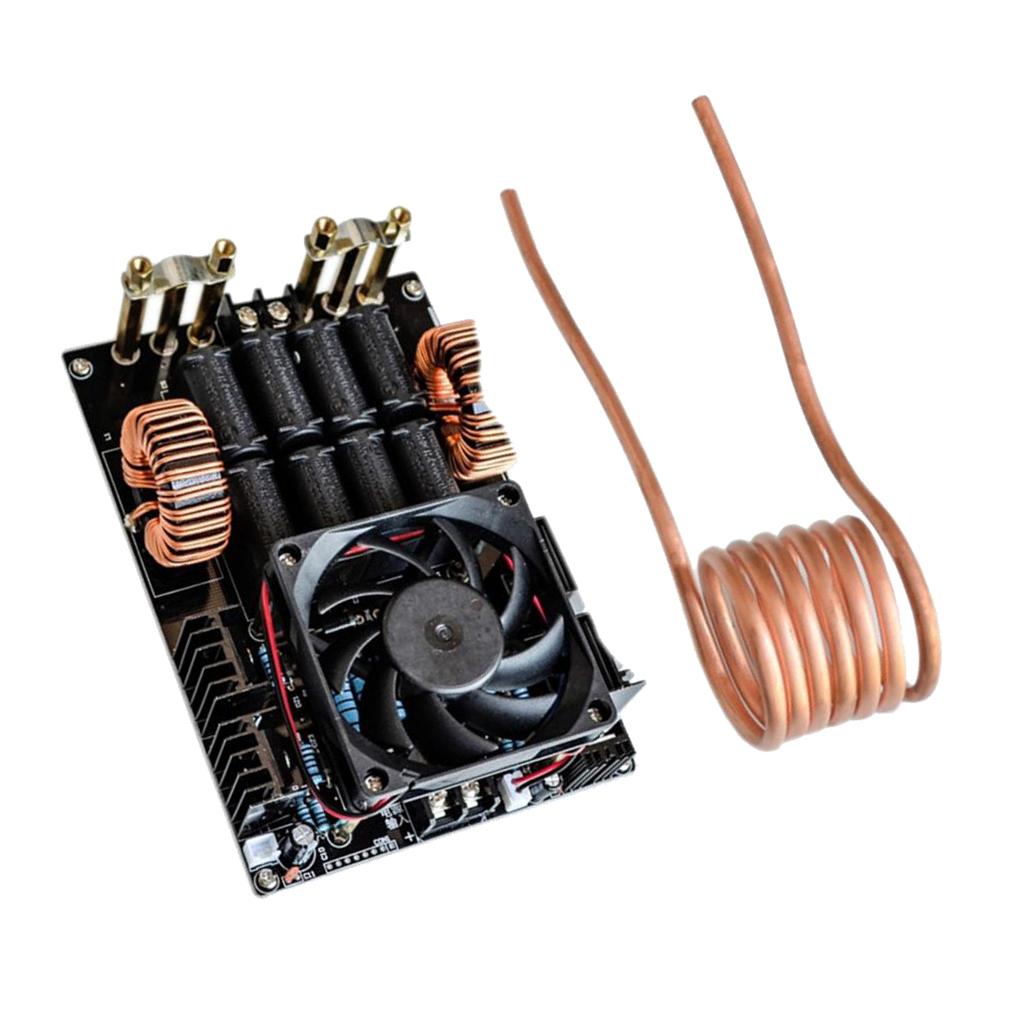

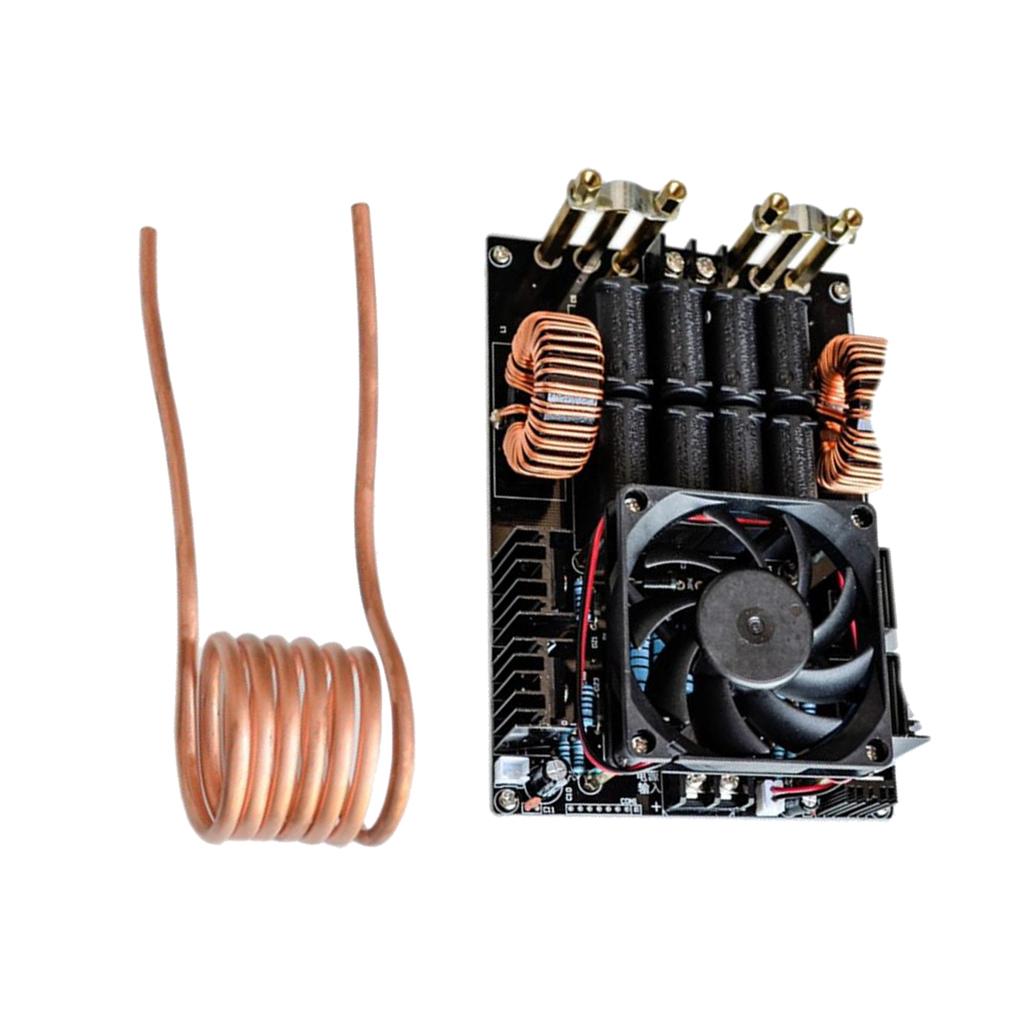

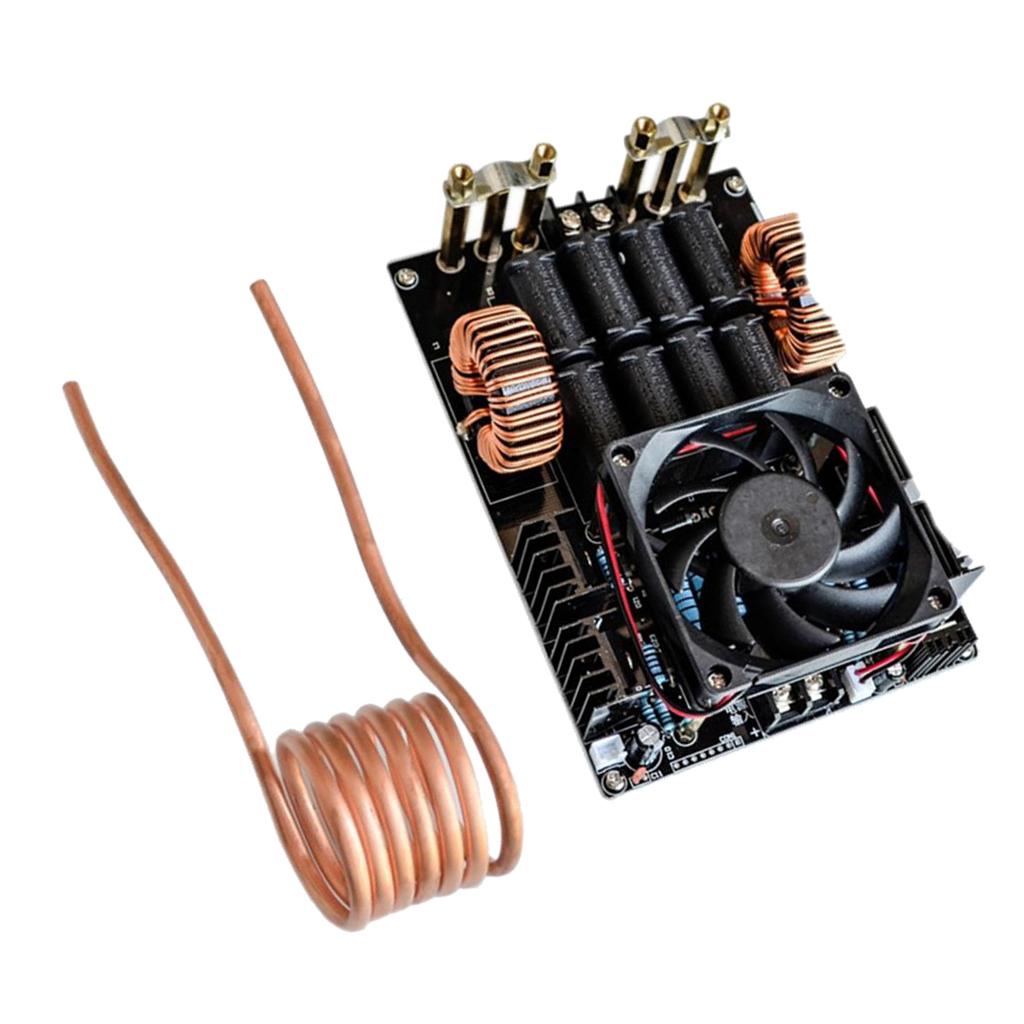

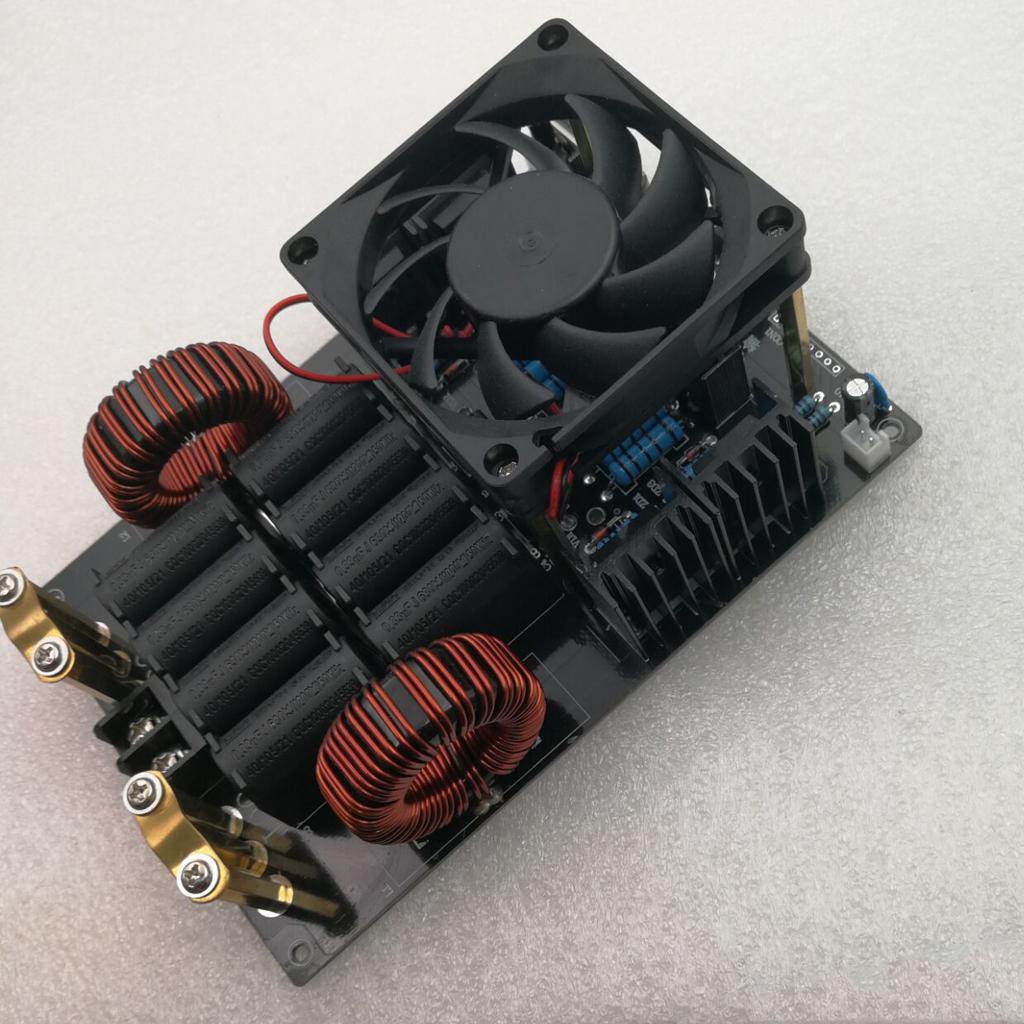

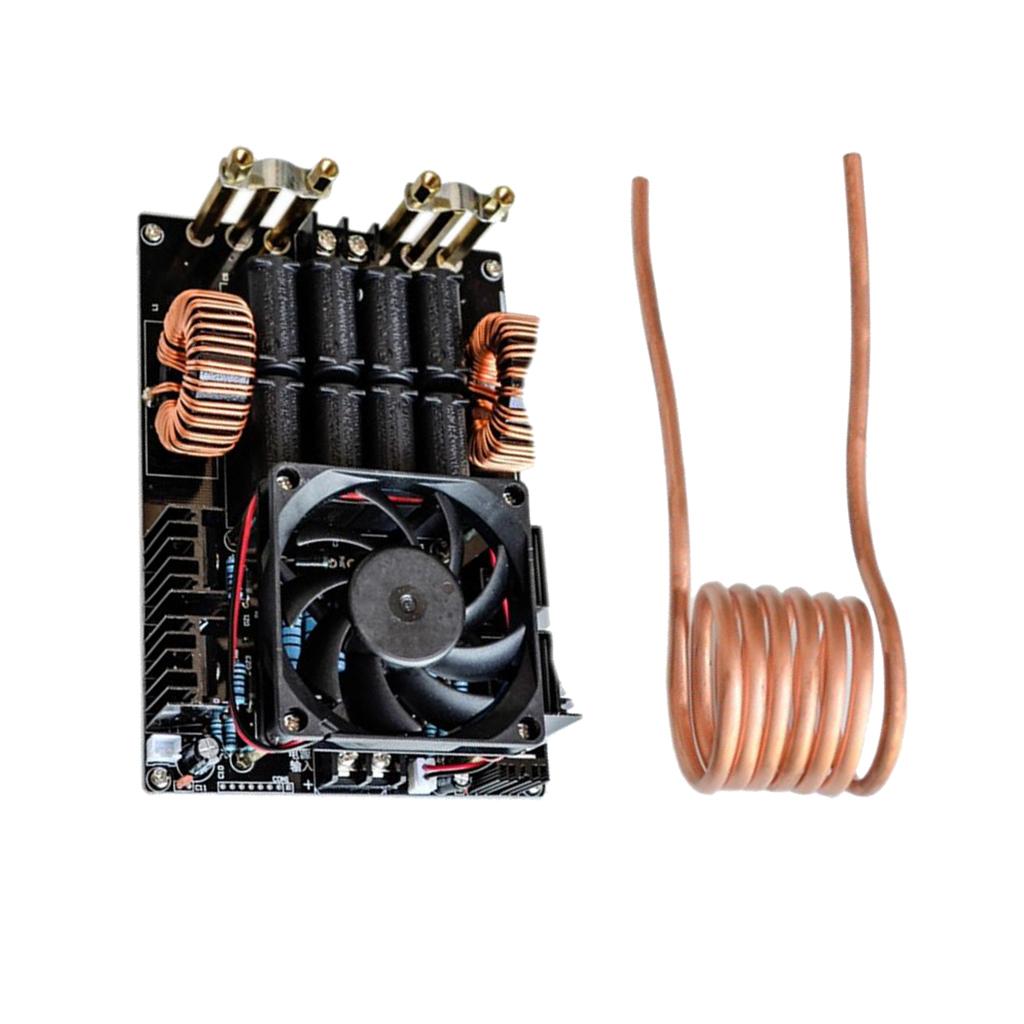

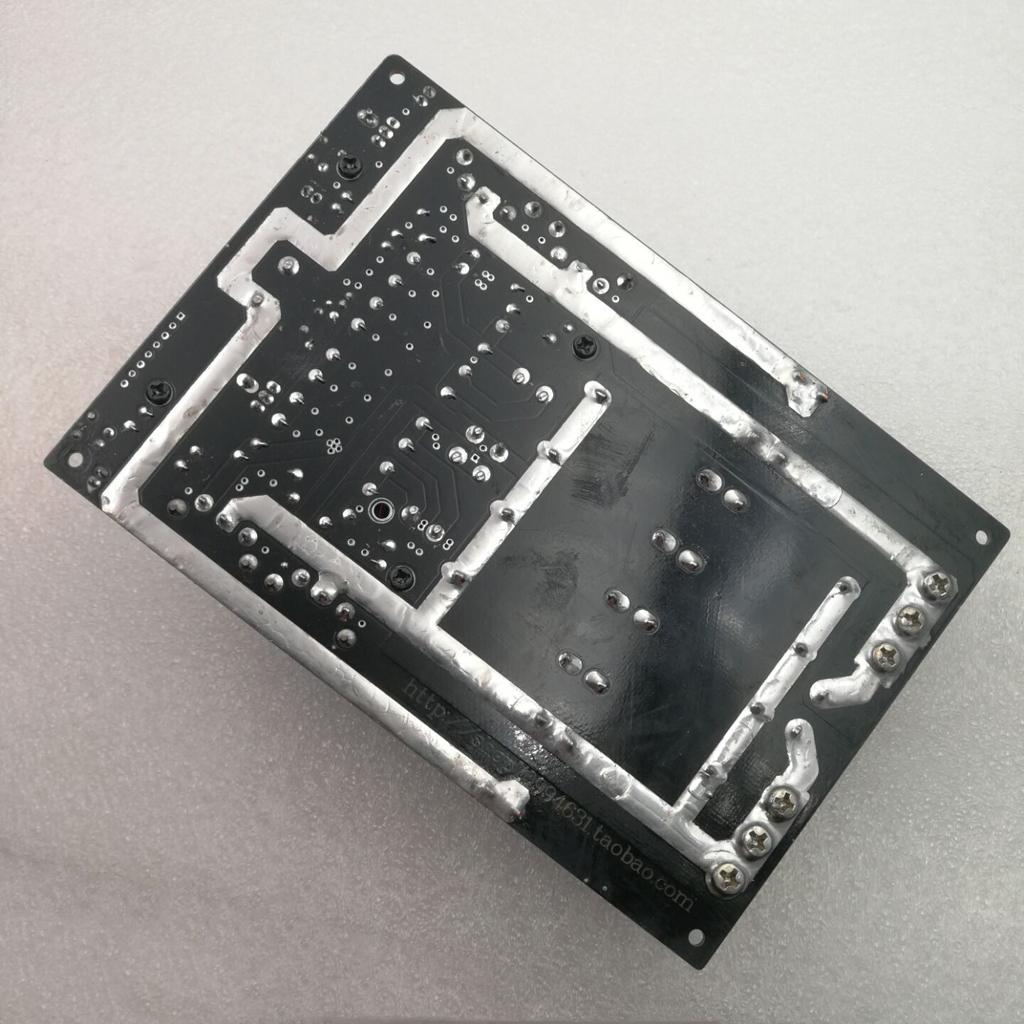

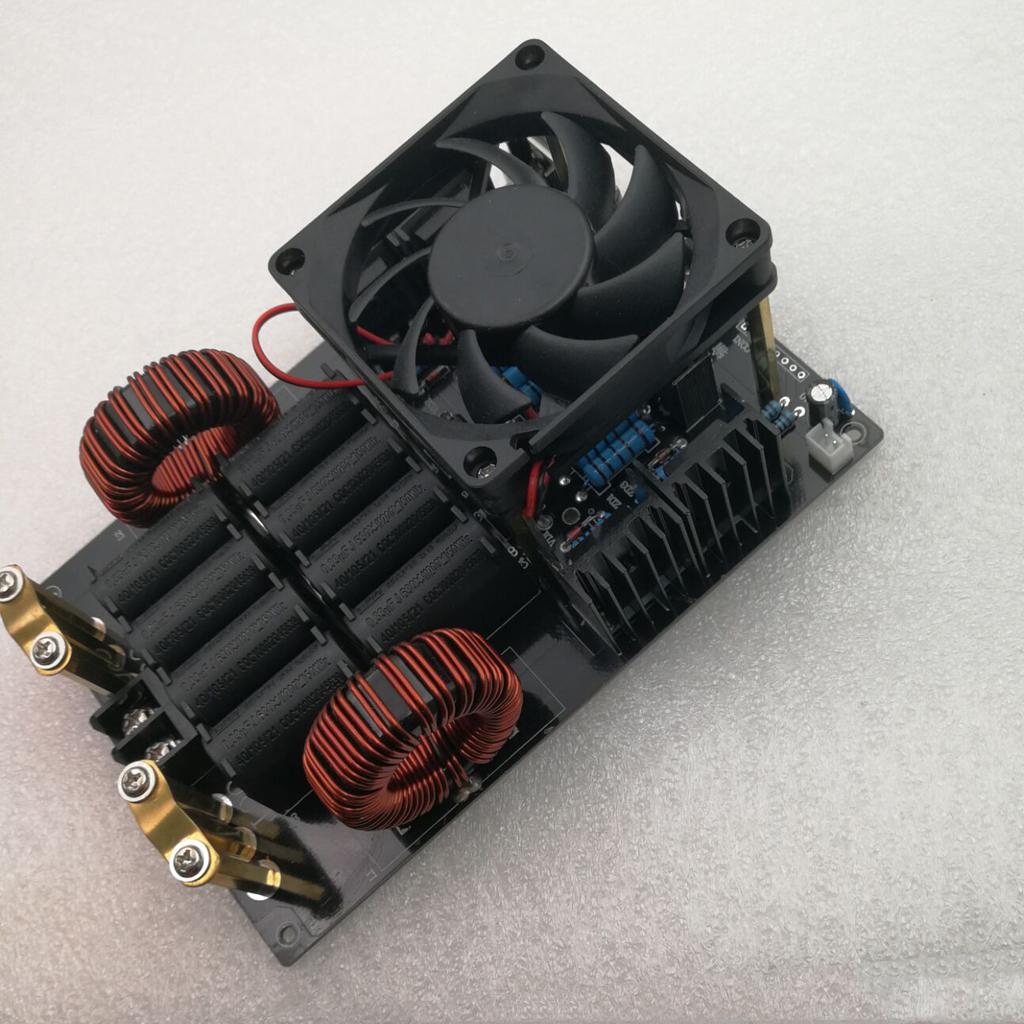

ZVS High Frequency Induction Heater Heating Machine 1KW Without Tap

Description:

1.The working voltage is above 11V, and attention is paid to the voltage at work, that is to say, the input voltage is connected to the coil or heating object; not the voltage when the power is unloaded.
2.Two, long time use must use copper tube with water cooling.
3.The output end of the largest pillar can be installed 10mm diameter copper tube, copper tube diameter less than 4mm can be fixed on the pillars in brass welding and copper clamping piece, a diameter less than 2mm can be connected to the output terminal.
4.Three, heating power is less than 300W, with the other sections of the store can be.
5.Don't use batteries or batteries.

Specification:

Material: mixture
Size:(Approx).165x112x1.6mm/ 6.5x4.4x0.06 Inch
The input voltage is DC 12V~40V
The maximum input current is 50A (short time)
The recommended input voltage range is DC 24V~36V

Package Includes:

1 Piece Induction Heater

Note:

The power required for heating must be large enough
