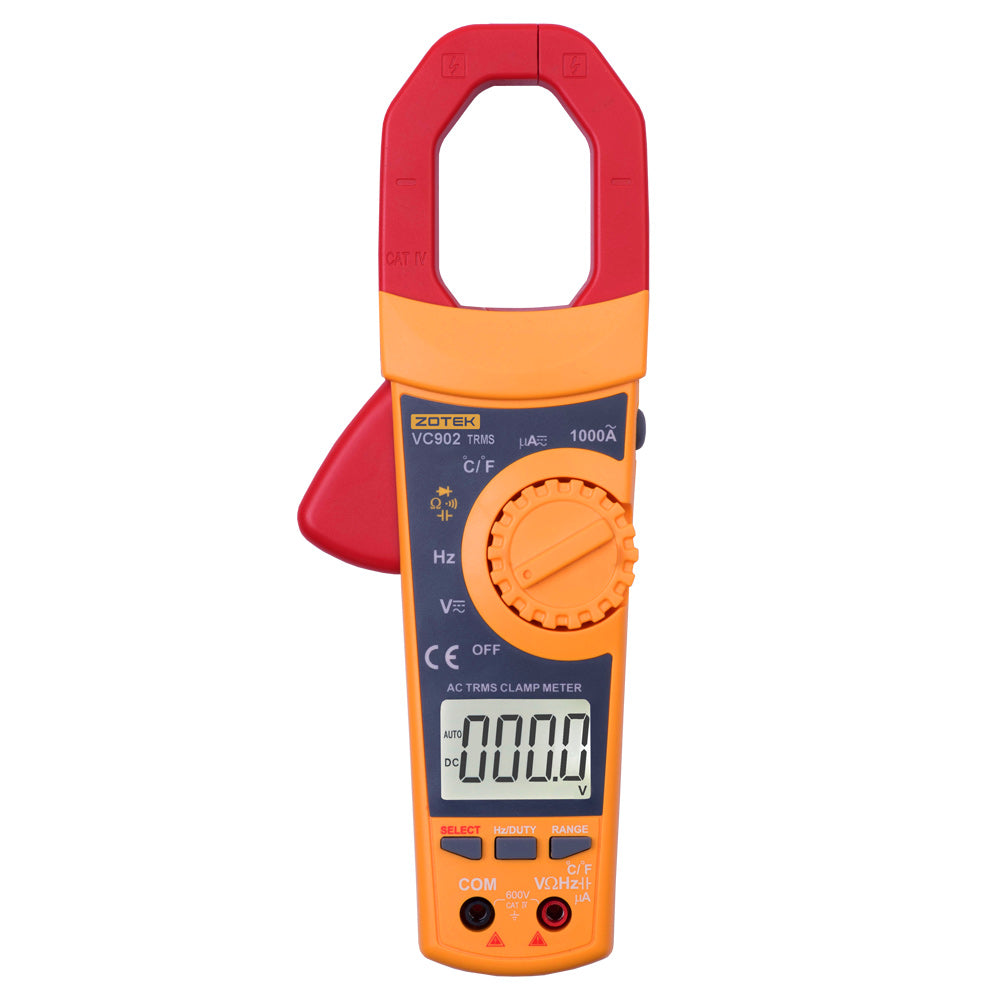

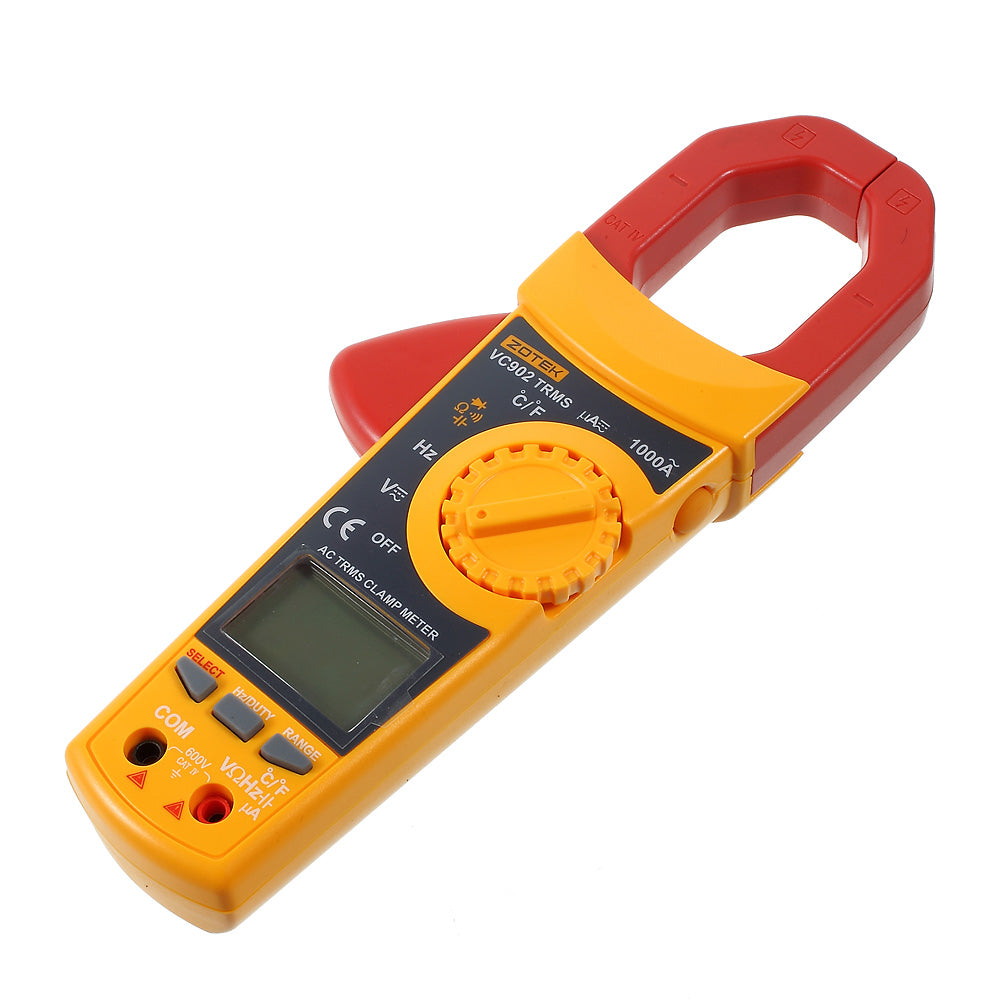

ZOTEK VC902 1000A Autoranging Digital Clamp Meter

• Auto/manual ranges

• True RMS measurement

• 550V protection in resistance and capacitance ranges

• Large LCD display, MAX display 6000 counts

• Sample rate: 3 times per second

• Backlight

• Data hold

• Polarity identification

• Low voltage indication

• 1000A high current measurement, low current measurement

• Auto power off

• Main measurements: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode and Continuity Testing, Temperature, Frequency and duty cycle

  * Frequency: 1Hz to 10MHz

  * Temperature: -20°C to 1000°C(-4°F to 1832°F)

  * Capacitance: 10pF to 6000uF

  * AC volts: 0.1mV to 750V

  * DC volts: 0.1mV to 1000V

  * AC current: 0.1uA to 1000A

  * DC current: 0.1uA to 6000uA

  * Resistance: 0.1? to 60M?

  * Duty cycle: 1% to 99%

Specifications:

• Frequency: 5/50/500/5k/50k/500k/5M/10M (±0.1+3)

• Temperature: <400°C ±(1.0%+5), ?400°C±(1.5%+15)<752°F ±(1.0%+5), ?752°F±(1.5%+15)

• Capacitance: 10nF(±5.0+20), 100nF/1uF/10uF/100uF(±2.0%+5), 1000uF/10000uF(±5.0%+5)

• DC volt: 600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)

• AC volt: 600mV(±3.0%+3), 6V/60V/600V/750V(±1.0%+3)

• DCA: 600uA/6000uA(±0.8%+10)

• ACA: 600uA/6000uA(±0.8%+10), 60A/600A/1000A(±2%+30)

• Resistance: 600?(±0.5%+3), 6K/60K/600K/6M(±0.5%+2), 60M?(±1.5%+3)

• Duty cycle: 1% to 99%(±1%)

• Measurement mode: Double-integral style A/D transform

• Over range indication: OL

• Working environment: 0~40°C, relative humidity < 80%

• Supply power: 3V (1.5V AA batteries x 2 Pcs)

• Dimension: 280 x 70 x 45mm

• Weight: 510g

Package included:

• 1 x ZOTEK VC902 1000A Autoranging Digital Clamp Meter

• A Pair of Test Leads

• 1 x Temperature Probe

• 2 x 1.5V AA Battery

• 1 x Bag

• 1 x User Manual
