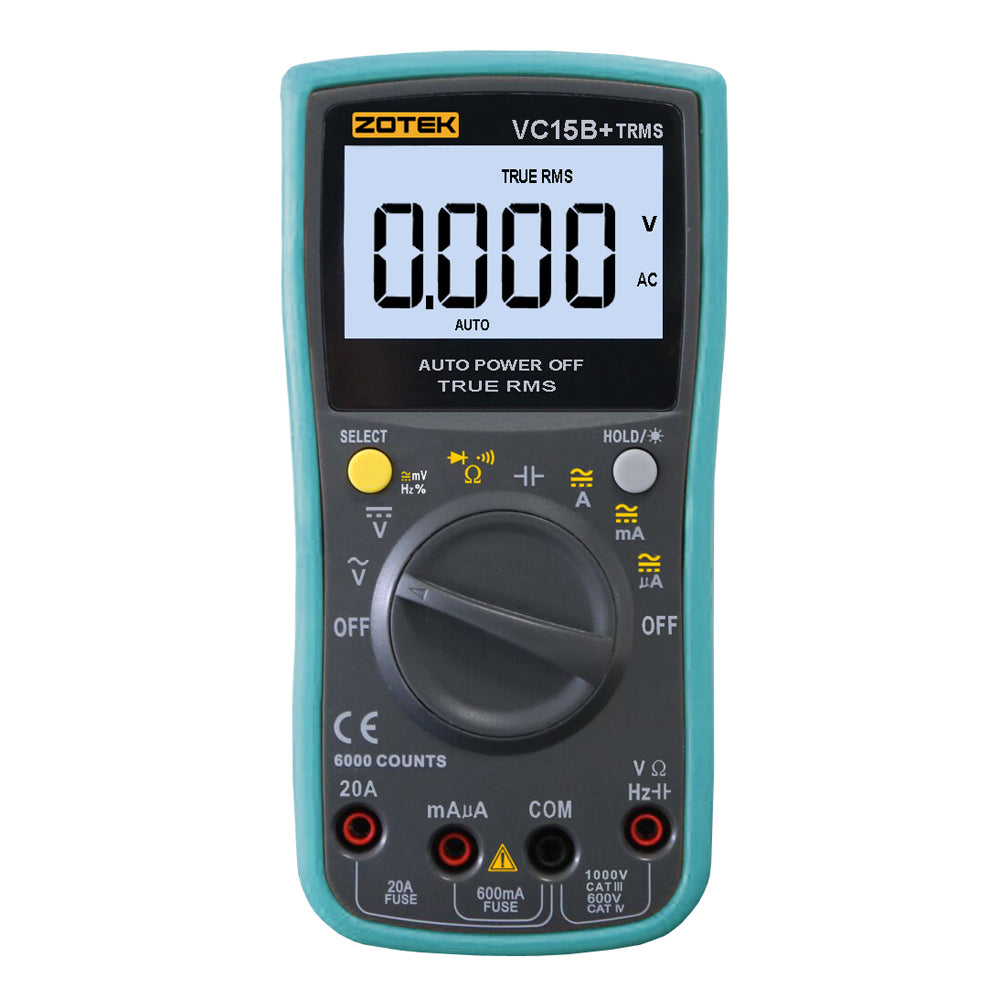

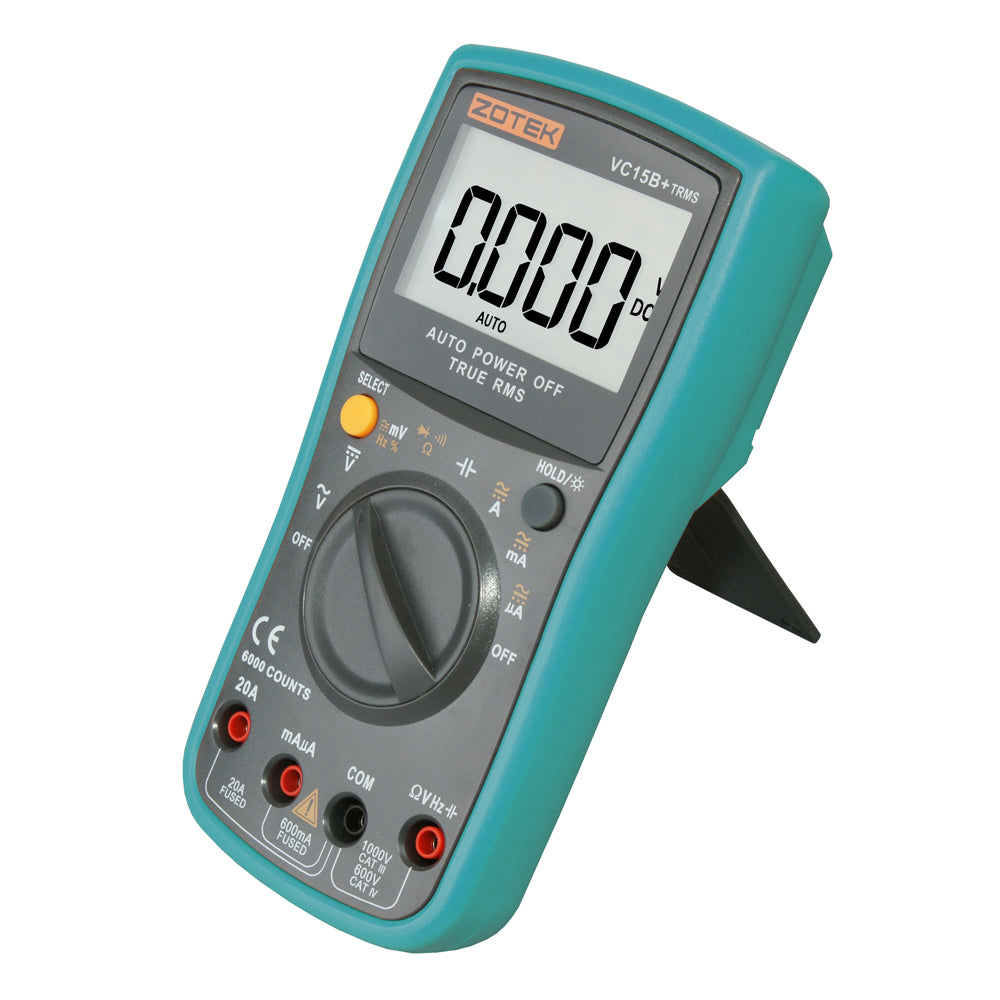

ZOTEK VC15B+ Auto-ranging Digital Multimeter Instruments with LCD Display

ZOTEK VC15B+ auto-ranging digital multimeter using double-integral style A/D transform as the core, can be used to measures AC/DC voltage, AC/DC current, resistance, capacitance, Diode and continuity testing, temperature, frequency and etc. It is characterized by stable function and high reliability, with the features of overload protection and LCD display for clear reading. It is an ideal tool for lab, factory, radio fans and family use.

• Auto ranges function

• True RMS measurement

• 550V protection in resistance and capacitance ranges

• Large LCD display with backlight, display 6000 counts (max.)

• Sample rate: 3 times per second

• Polarity identification

• Low voltage indication

• 20A high current measurement is available

• Auto power off

• Main measurements: AC/DC Voltage, AC/DC current, resistance, capacitance, diode and continuity testing, frequency and duty cycle

• -Frequency: 1Hz to 20MHz

• -Capacitance :10pF to 6000uF

• -AC volts: 0.1mV to 750V

• -DC volts: 0.1mV to 1000V

• -AC current: 0.1uA to 20A

• -DC current: 0.1uA to 20A

• -Resistance: 0.1? to 60M?

• -Duty cycle: 1% to 99%

Specifications:

• Frequency: 5/50/500/5k/50k/500k/5M/20M (±0.1+3)

• Capacitance: 10nF(±5.0+20), 100nF/1uF/10uF/100uF(±2.0%+5), 1000uF/10000uF(±5.0%+5)

• DC volt: 600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)

• AC volt: 600mV(±3.0%+3), 6V/60V/600V/750V(±1.0%+3)

• ACA/DCA: 600uA/6000uA(±1.5%+3), 60mA/600mA/20A(±1.5%+3)

• Resistance: 600?(±0.5%+3), 6K/60K/600K/6M(±0.5%+2), 60M?(±1.5%+3)

• Duty cycle: 1% to 99%(±1%)

• Measurement mode: Double-integral style A/D transform

• Over range indication: OL

• Working environment: 0~40°C, relative humidity: < 80%

• Supply power: 3V (1.5V AA batteries * 2 Pcs)

• Dimension: 180*90.5*45mm

• Weight: 420g (excluding battery)

Package included:

• 1 x ZOTEK GM550 Industrial Non-Contact Digital Infrared Thermometer -50°C~550°C

• 2 x 1.5V Batteries

• 1 x Shockproof Cover

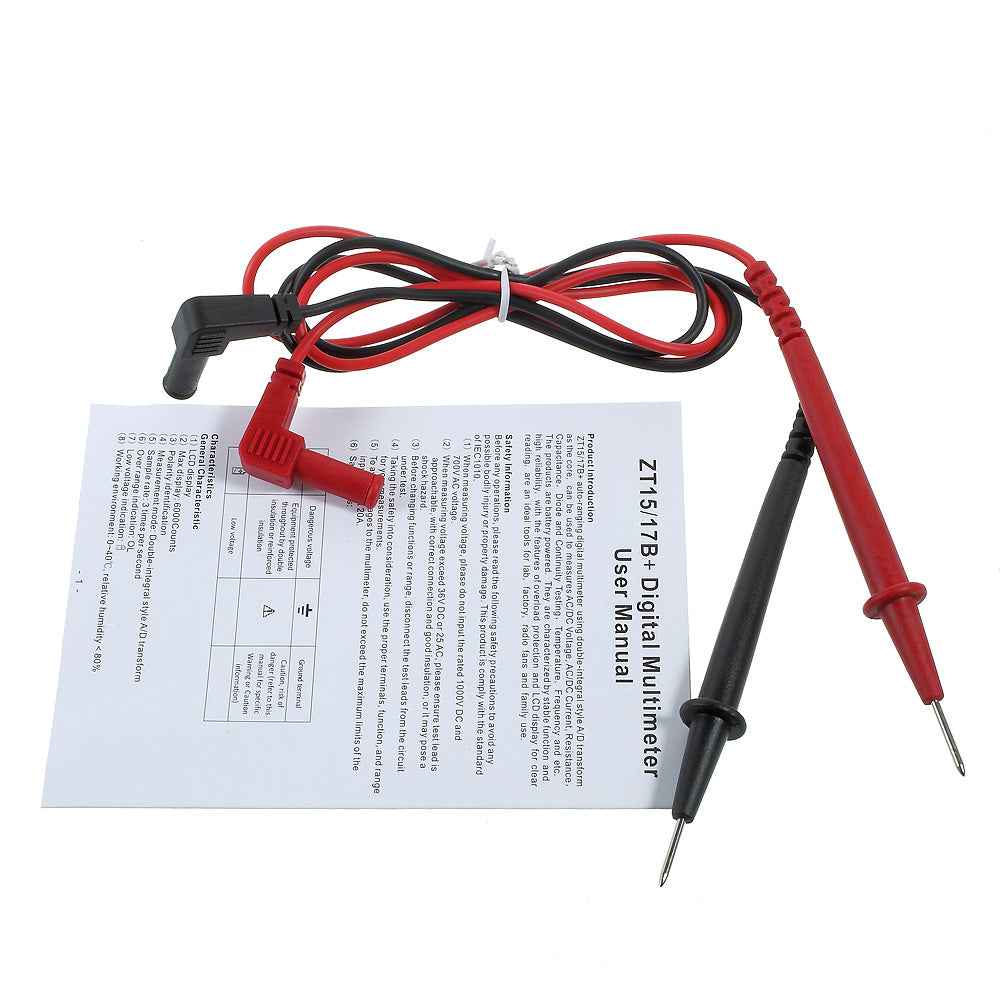

• 1 Pair of Test Leads

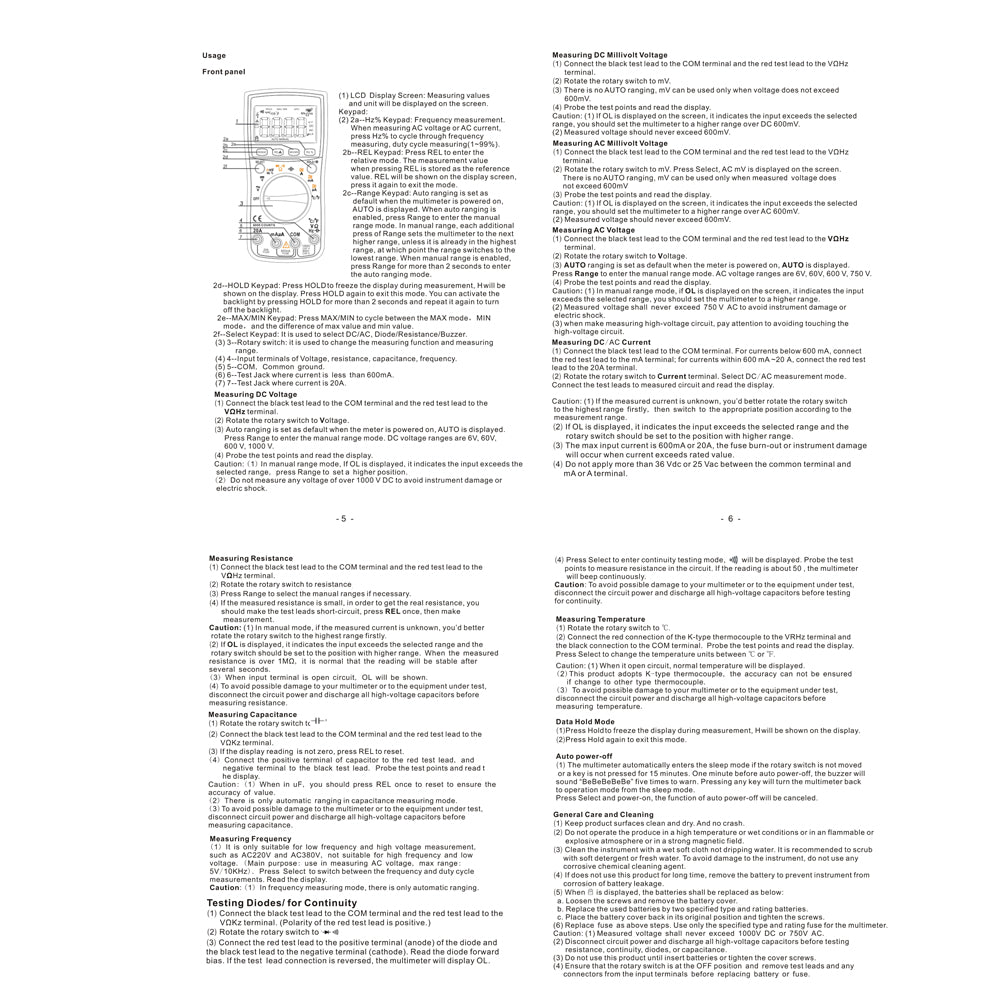

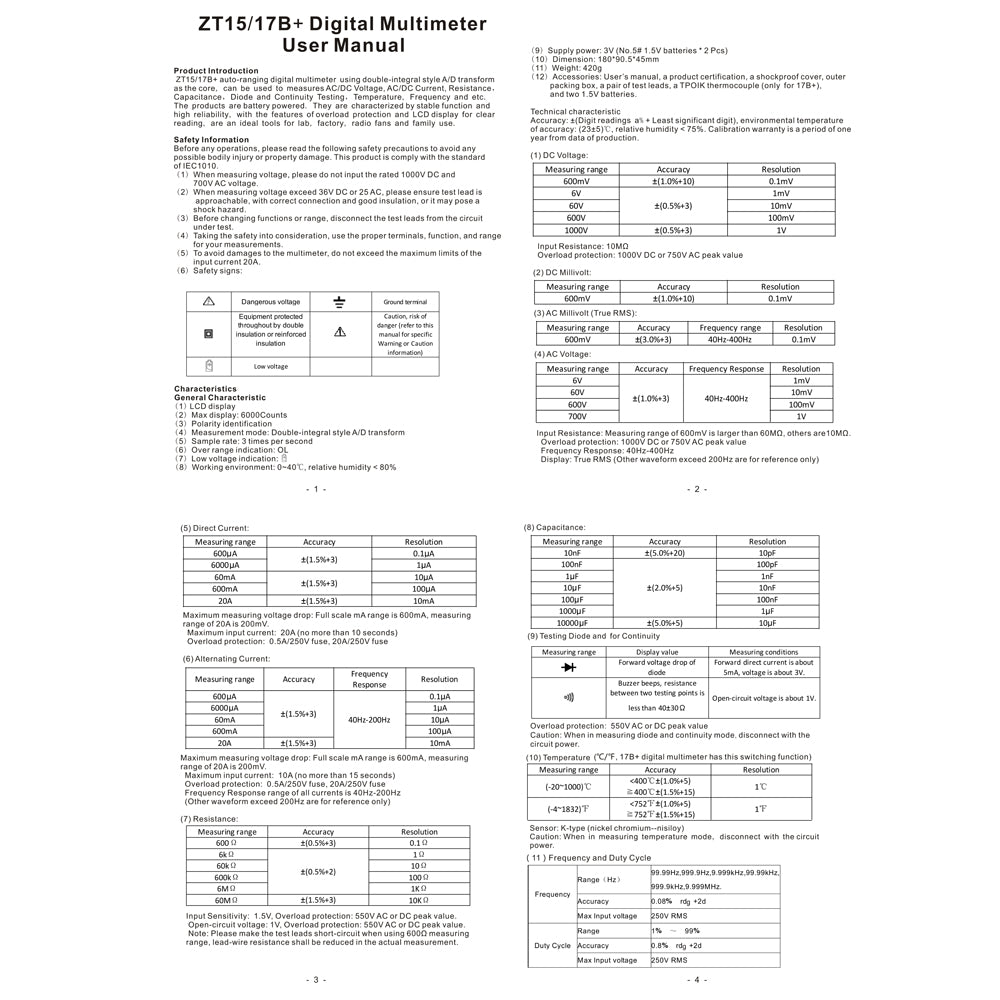

• 1 x User Manual
