WiFi Robotic Controller Kit Servo Motor Driver Board DT-06 Serial WiFi HC-06 Module for Arduino

Description:

WiFi robot controller ARM Development Board kit compatible with Arduino 2 way Motors 16 way servo tank toy DIY
Espduino Development Board is designed by doit Company based on esp8266, compatible with Arduino Uno R3. It is similar to the arduino WiFi version.
Development board kit can control the 2-way motor and the 16-way servo at the same time. Therefore, this kit is very suitable for the control of the mobile robot, as a mobile robot arm, which needs to drive the motor to let the car move, and to drive the servo to let the servo move.
In addition, the espduino plate is similar to the arduino WiFi version. thus, it is very convenient for the remote control the robot.
Independent research and development, powerful, ultra-low power consumption, can achieve rapid development

Specification:

Material: Alloy
size: 2 road motor & 16 road steering gear expansion board: 69x54x20mm/2.72x2.13x0.79inch
ESPDuino development board is about: 68x53x11mm/2.68x2.09x0.43inch
Compatible with Arduino;
It has the WiFi function;
For the driven shield
It can control 2-way motor and 16-way servo;
You can use Bluetooth (preserve the interface) and / or WiFi;

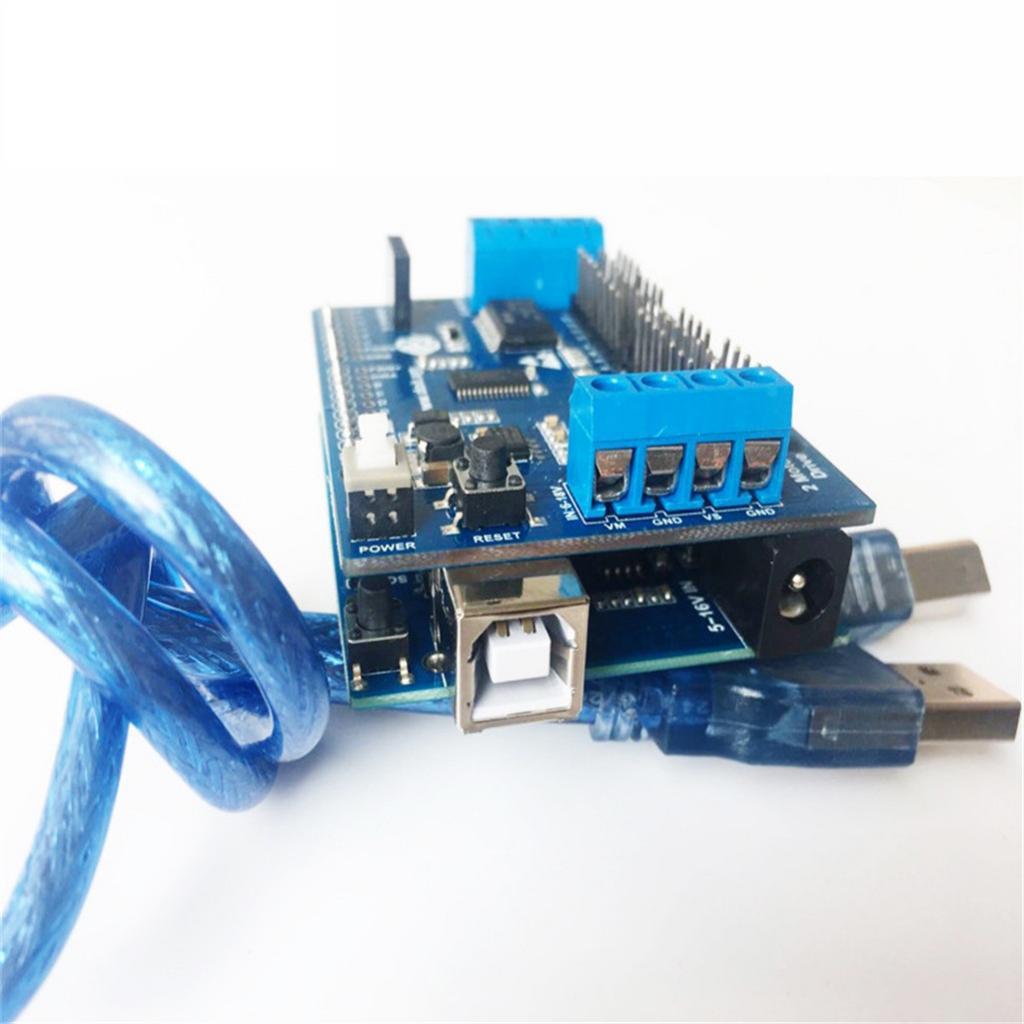

You can insert the Arduino Uno R3 conveniently;
Connection of
If you cut VM and VIN, you can only control the motor with 6-18 V;
If you cut vs and VIN, you can only control the servo with 6-18 V;
If you short VM and VIN, and short VS and 5 V, then you can control the 2-way motor (with 6-18 V) and 16-way 5 V servo

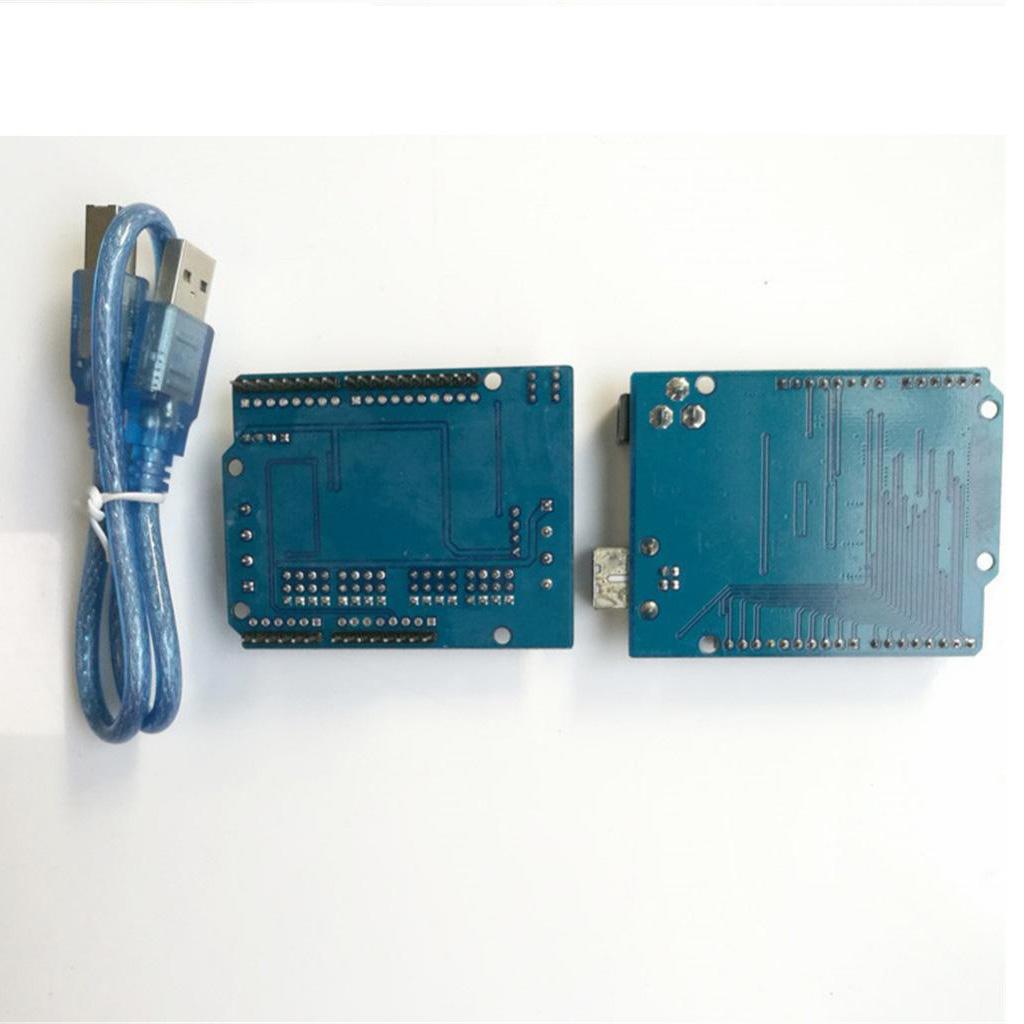

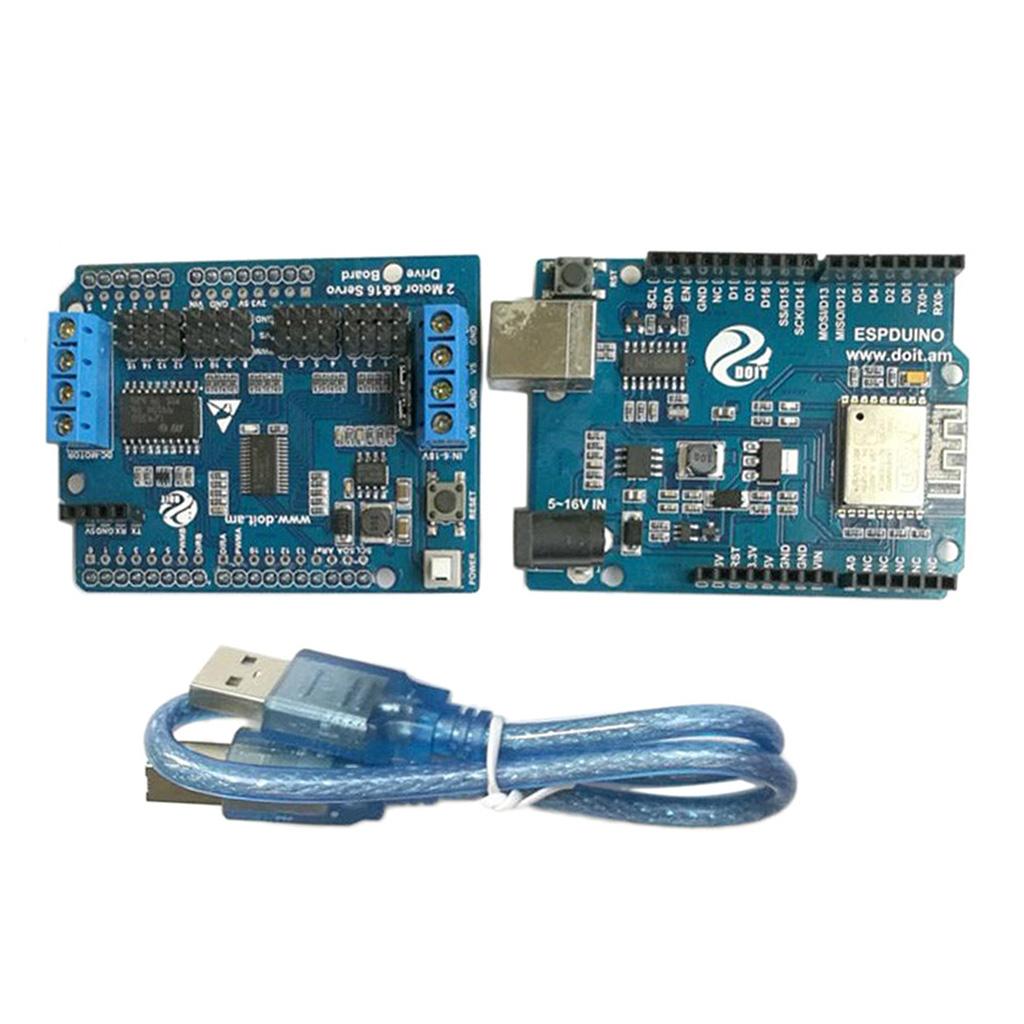

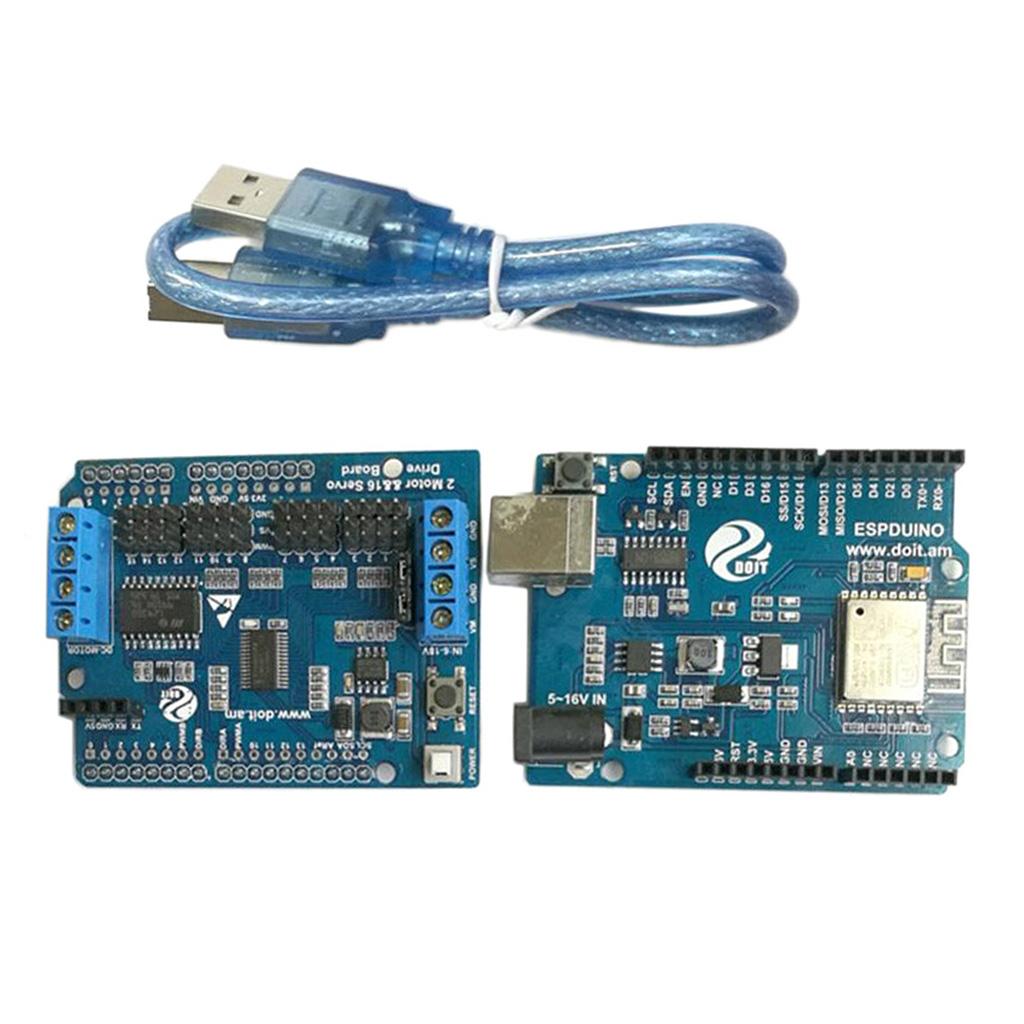

Package Includes:

1 Piece ESPduino Develop board

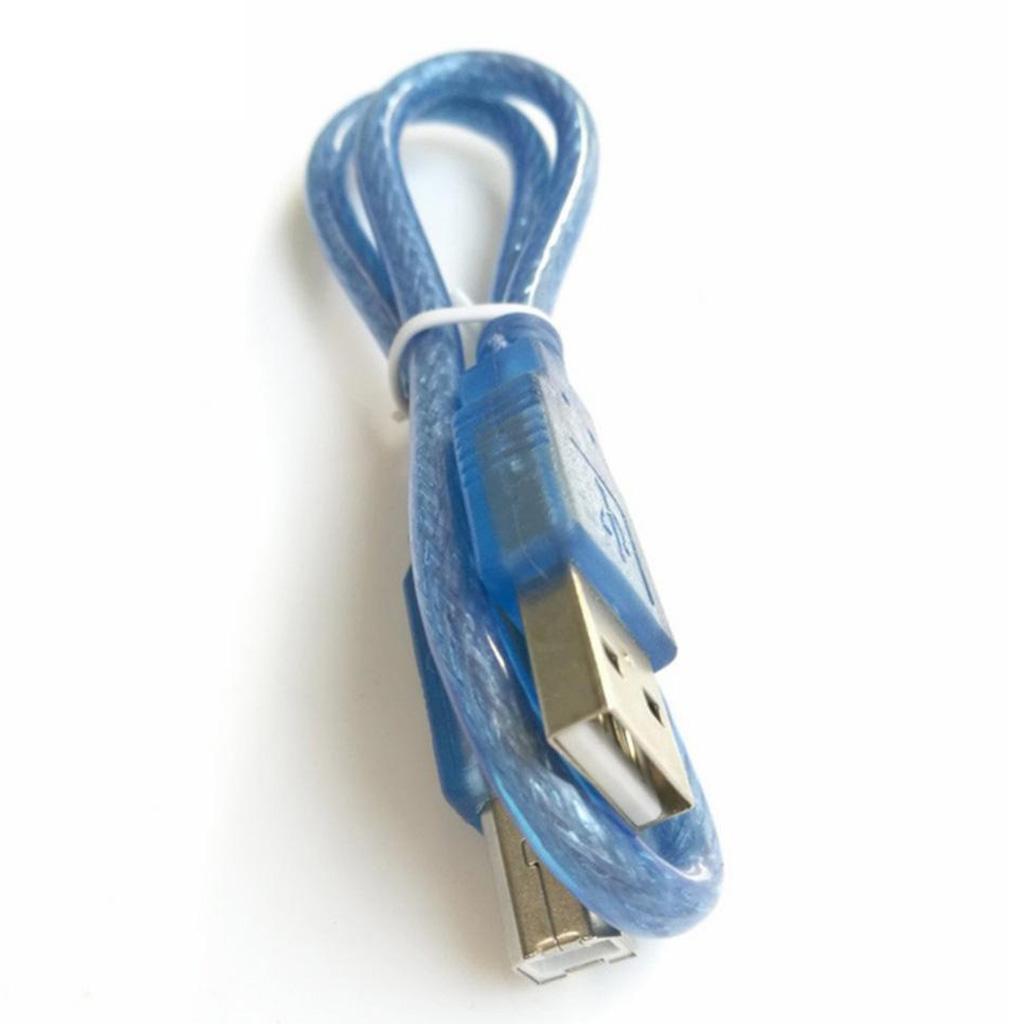

1 Piece USB cable

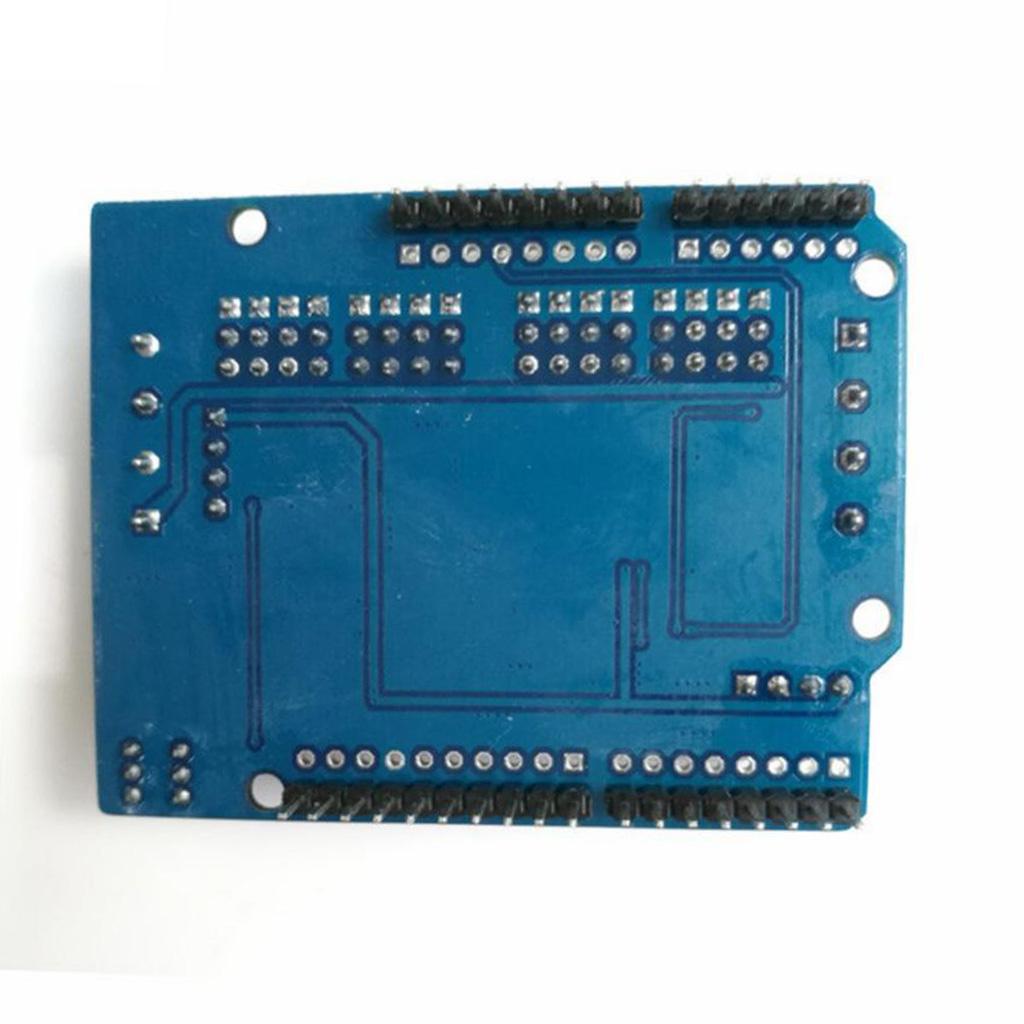

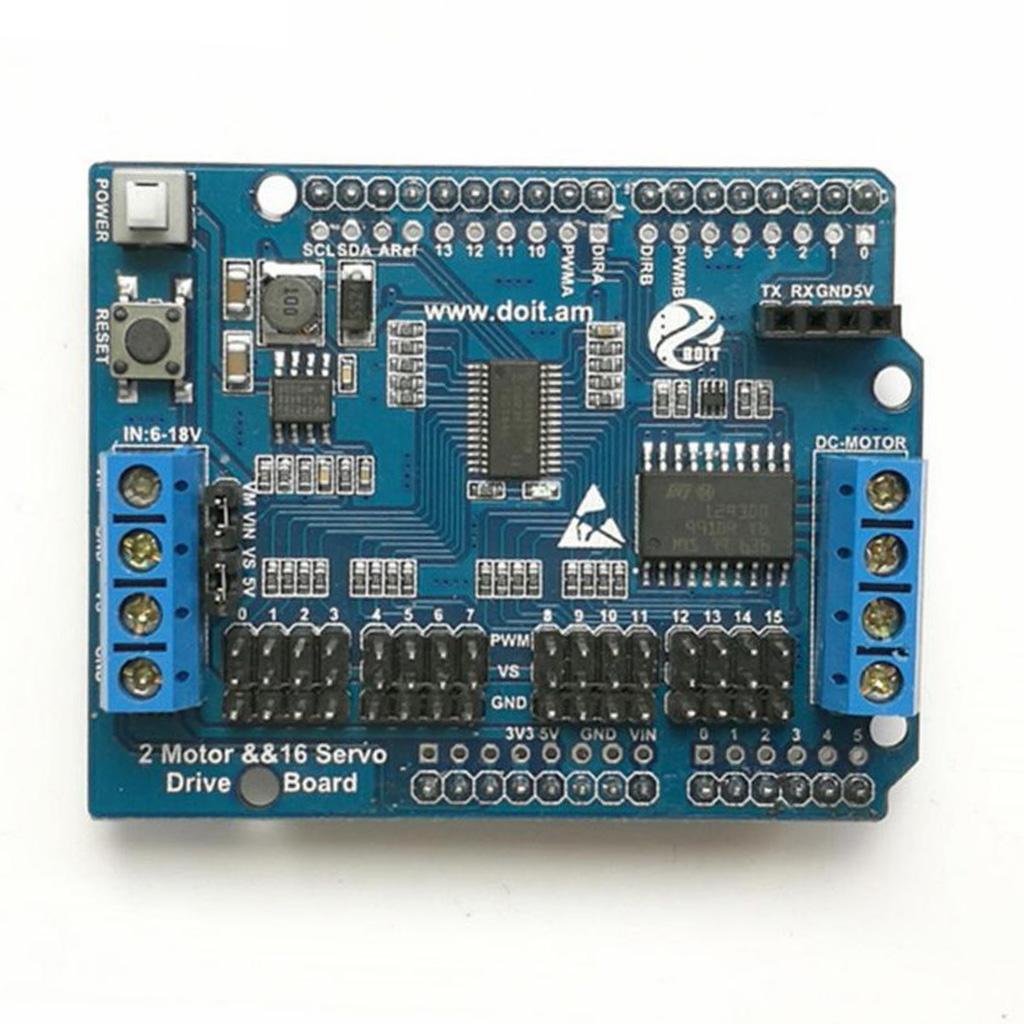

1 Piece 2-way motor & 16-way servo expansion board
