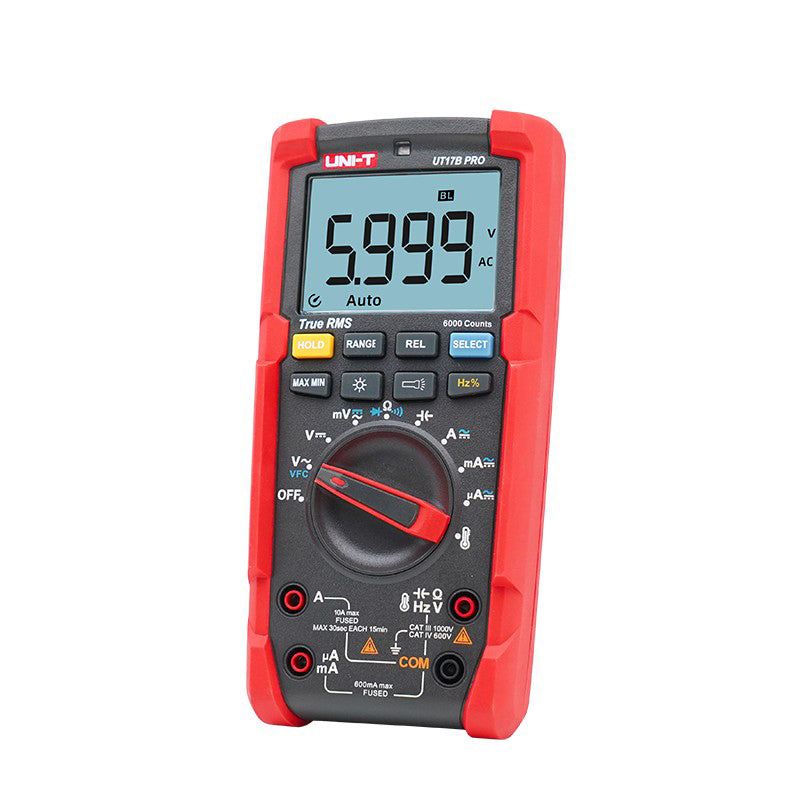

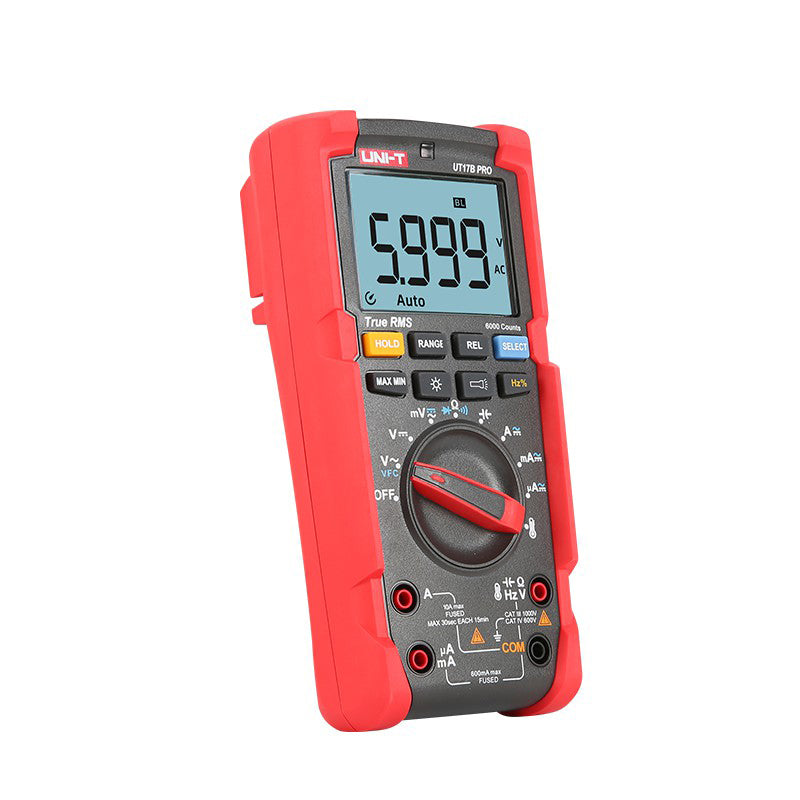

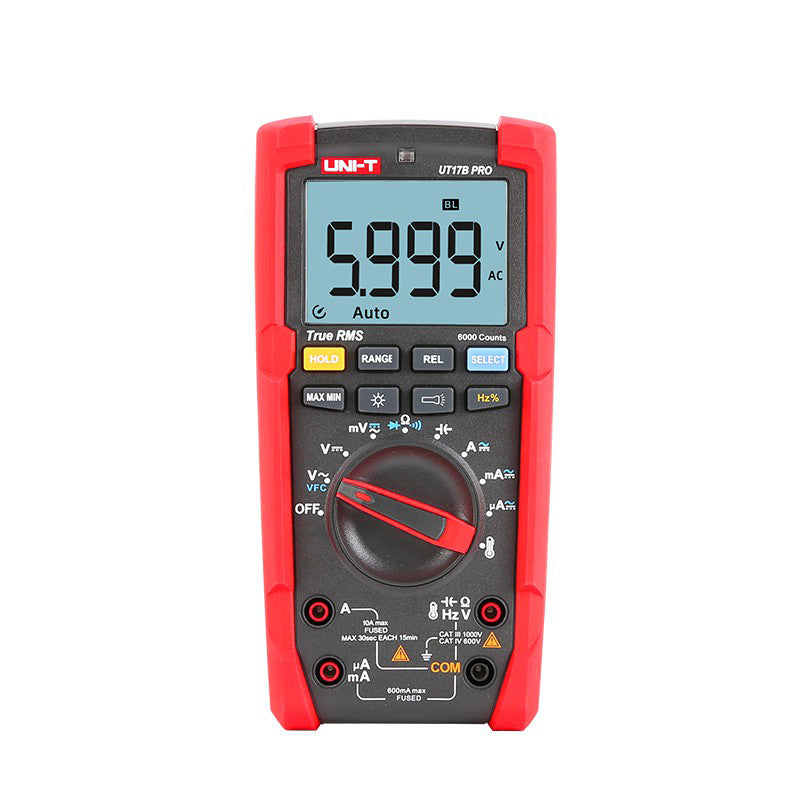

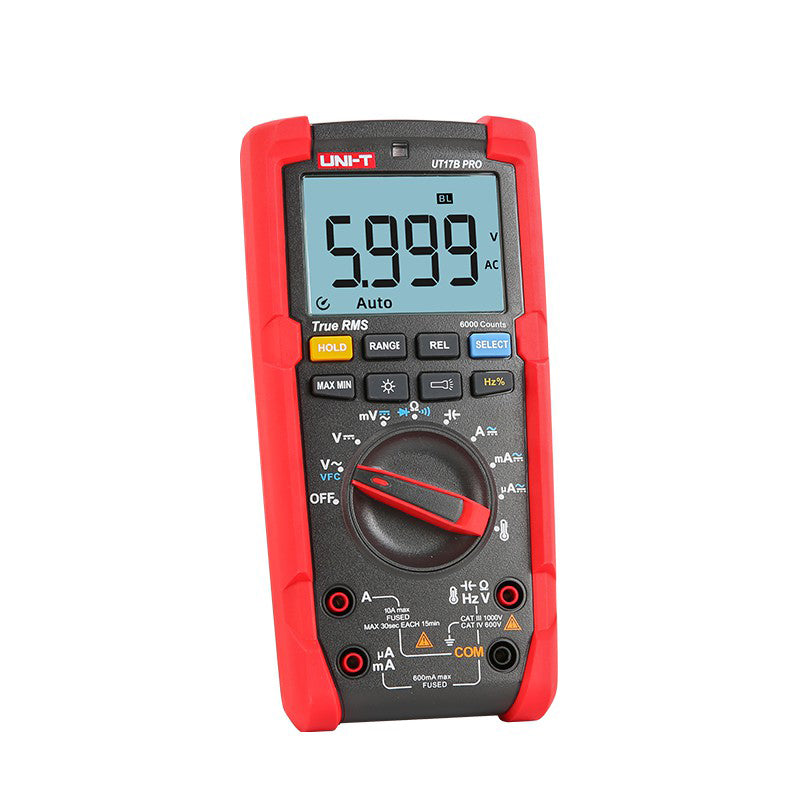

UNI-T UT17B Pro High Accuracy True RMS Digital Multimeter Auto-Ranging Multitester

• LCD display: big LCD screen with large digital-readout and backlight for clear readings

• Reliable quality: employed double insulation design and protective rubber covering, which is robust, durable and impact-resistant, ensuring maximum safety

• A host of measurement capabilities: DC/AC voltage, DC/AC current, resistance, capacitance, diode, live wire. Besides the above, UT17B PRO can also measure temperature, frequency and duty ratio

• VFC mode: provides more accurate and stable measurement

• Auto shut-off: to save power, it would automatically shut off if there is no operation for 15 minutes. This feature can be turned off as per your needs

• Safety level: meet CAT-III 1000V and CAT- 600V standards

• Greater convenience: a built-in flashlight will be very helpful in dark conditions, and the kickstand can free your hands with your work

• More features: true RMS, 6000 counts, auto/manual , buzzer alarm, data hold

Specifications:

• Material: ABS

• Max. Display: 6200

• Control: Auto/Manual

• Operating Temperature: 0~40? (32~104?)

• Storage Temperature: -10~50? (14~122?)

• Relative Humidity: 0~30?: ?75%RH, 30-40?: ?50%RH

• Operating Altitude: 0~2000m

• DC Voltage: 600mV / 60V / 600V / 1000V

• AC Voltage: 600mV / 60V / 600V / 1000V (VFC: 600V)

• DC Current: 600?A / 6000?A / 60mA / 600mA / 6A / 10A

• AC Current: 600?A / 6mA / 60mA / 600mA / 6A / 10A

• Resistance: 600? / 6K? / 60K? / 600K? / 6M? / 60M?

• Capacitance: 6nF / 60nF / 600nF / 6?F / 60?F / 600?F / 6mF

• Frequency: 10Hz~100KHz (UT17B PRO only)

• Duty Ratio: 1%~99% (UT17B PRO only)

• Temperature: -55~500°C / -67~932°F (UT17B PRO only)

• Power Supply: 2 * 1.5V AA R6P battery (battery not included)

• Safety Level: CAT-III 1000V and CAT- 600V

• Item Size: 195 x 95 x 58mm

• Item Weight: 445g

Package included:

• 1 x UNI-T UT17B Pro High Accuracy True RMS Digital Multimeter Auto-Ranging Multitester
