TPA3116D2 Wireless BT 4.0 Dual Channel 120W+120W Audio Receiver Digital Amplifier Board DC 12V-24V for DIY Home Sound Car Audio

Description:

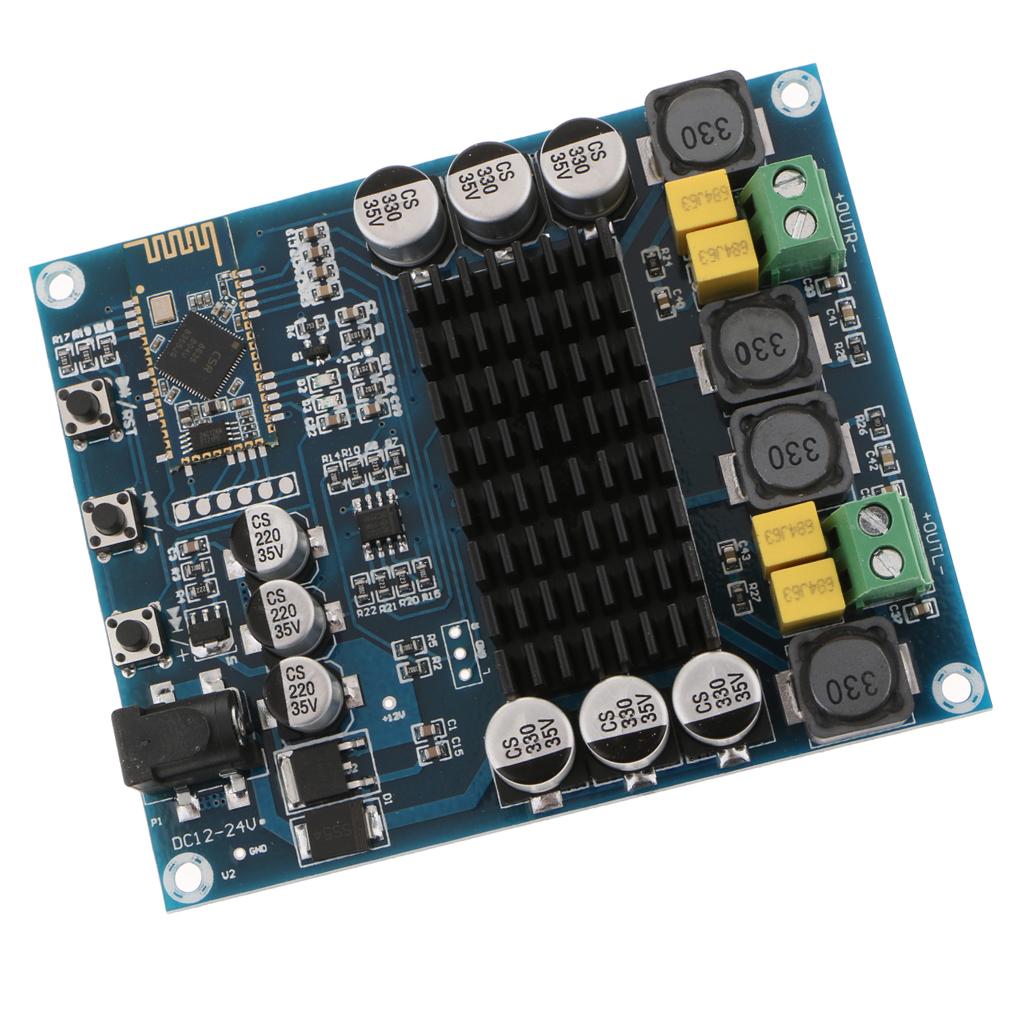

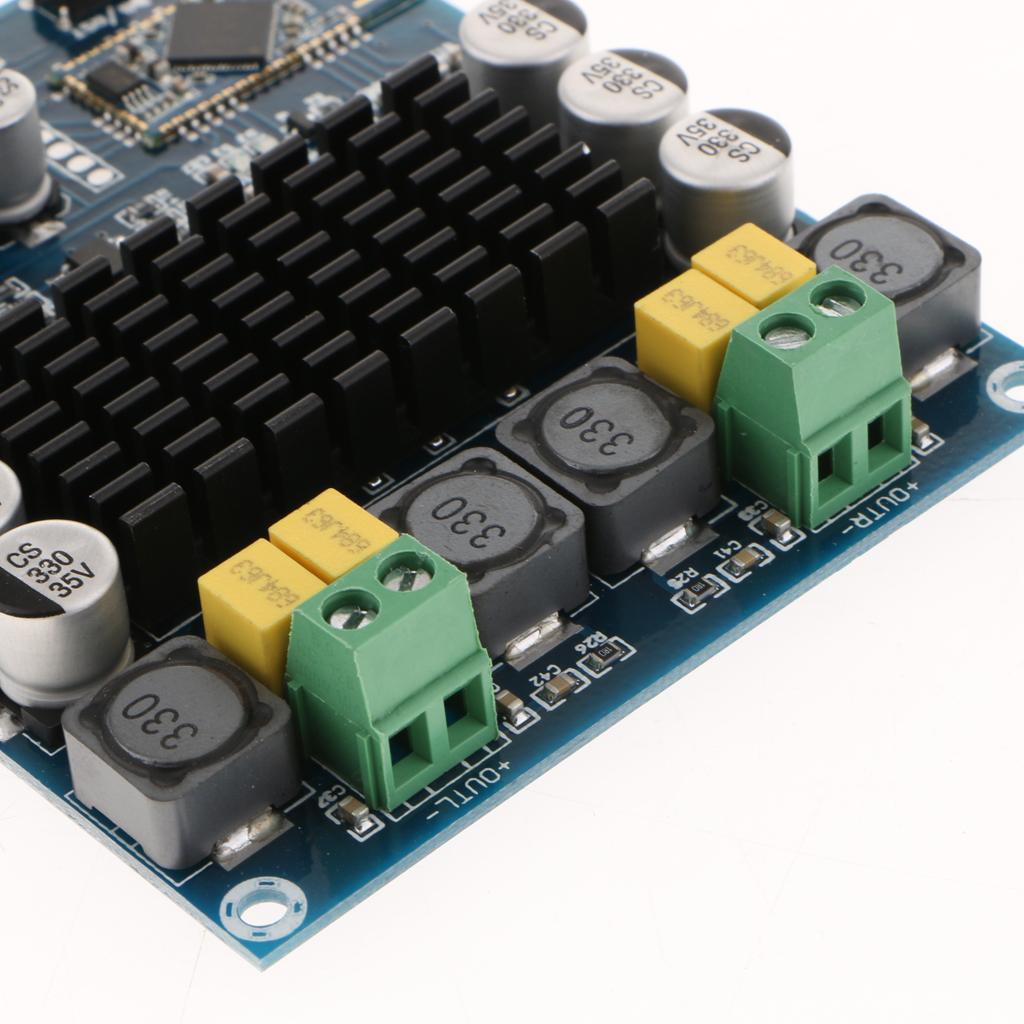

Name: M548 Two channel 2x120W TPA3116D2 Bluetooth 4.0 Digital Audio Hifi Amplifier Board
Model: XH-M548
Chip type: TPA3116D2 X 1
Input voltage: DC12-24V
Output power: 2*120W

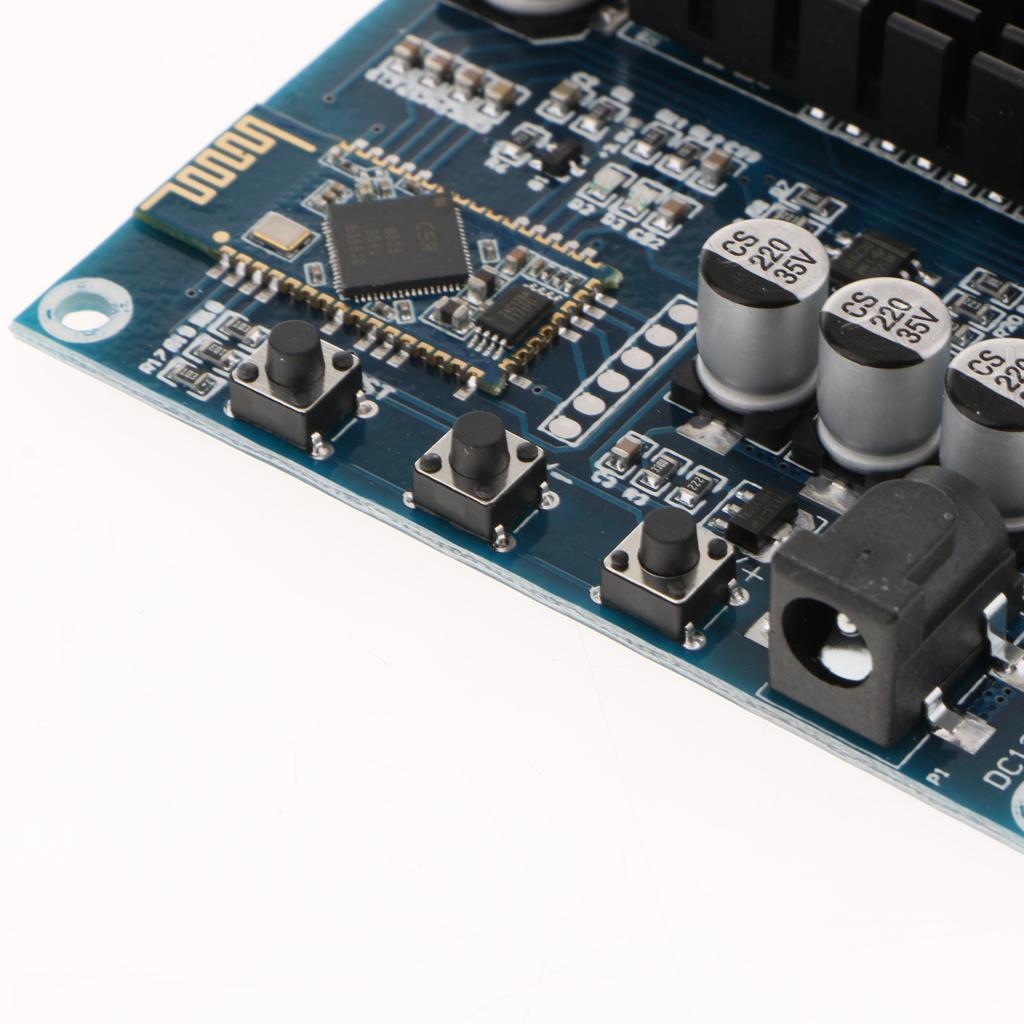

The bluetooth module:BTM835/CSR835(4.0)
Transmission Distance: more than 10 meter
Output channel: 2
Size: 98*80*16mm
Net weight:81g

Specification:

Bluetooth module Parameters:
Specification:Bluetooth V4.0
Modulation Mode:GFSK π/4 DQPSK,8DPSK
Voltage:3.3-4.2V
Suppotr Bluetooth Protocol:HFP V1.6,HSP V1.2,A2DP V1.2,AVRCP V1.4,DI V1.3
Work Current:≤30mA
Standby Current:＜50uA
Temperature range:-40℃ to +80℃
Wireledd Transmission Distance:10m
Transmit Power:Support CLASS1/CLASS2/CLASS3 8dBm Max
Sensitivity:-80dBm＜0.1%BER
Frequency Range:2.4GHz-2.480GHz
External Interface:PIO,SPI,Audio in/out and PCM,USB
Audio Support:AAC,MPA,SBC,Stereo
Distortion Factor:≤0.1%
Module Size:21.9*14.1*1.8mm

Package Includes:

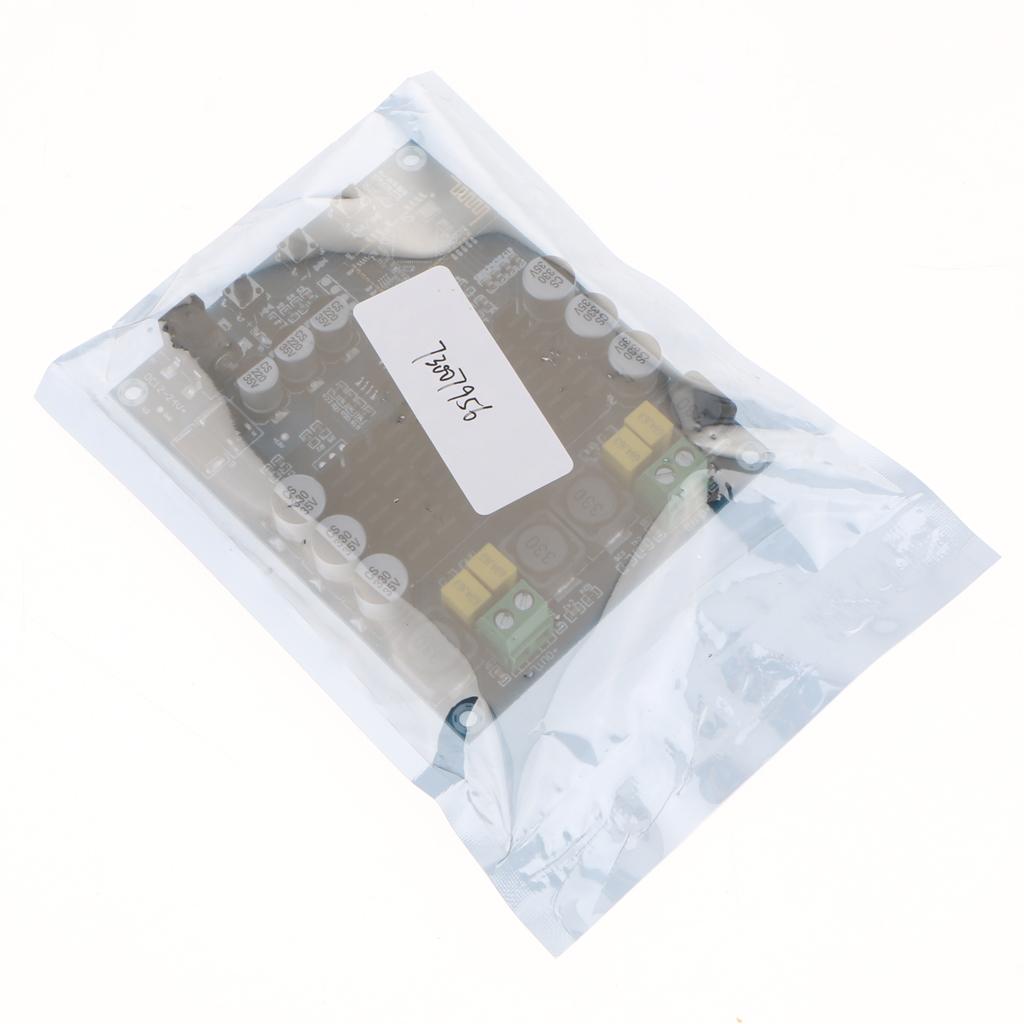

1 x Bluetooth 4.0 Audio Receiver Digital Amplifier Board
