TJL-H4 Waterproof 1080P WIFI Wearable Snapshot Cap Live Streaming Hat Camera Cap

Play:

• Power on: Press the square Red Power Button for 2 seconds to start it. When powered on, the Green Status Light should stay solid on

• Choose/Switch the square White Mode Bottom mode between video / photo

• Video mode (default): Blue Mode Light stays solid ON

• Photo mode: Blue Mode Light stays OFF

Video Mode:

• To record a video, press the Green Start Button, the Green Status Light will blink and recording will start

• Press the button again to save the video and stop, the Green Status Light will stay on and  the hat turns into the video standby mode

Photo Mode:

• To take a picture, press the Green Start Button to take a photo, the Green Status Light will flash

Shutdown:

• Press the Red Power Button  for 2 seconds, all indicators light will go out

Browsing Recorded Videos/Photos:

• Use USB Cable to connect the hat to a USB port in a computer. As a USB storage disk, the recorded videos and photos can be copied, transferred, and stored to the computer for viewing and editing

• Alternative: While power OFF, use the tweezers (supplied) to take out the micro USB card. Use a micro USB card adapter to view and edit on a computer

Reset:

• While powered ON, use the reset pin (supplied), to press the Reset Pinhole for once

Control Buttons:

•  White: Switch mode (Video/Photo)

•  Green: Start

•  Red: Power ON/OFF

Specifications:

• Product name: 1080P camera cap

• Model: TJL-H4

• Camera type: non-hidden, hidden

• Color: camouflage

• Size(L x W x H): 260.0 x 180.0 x 140.0mm

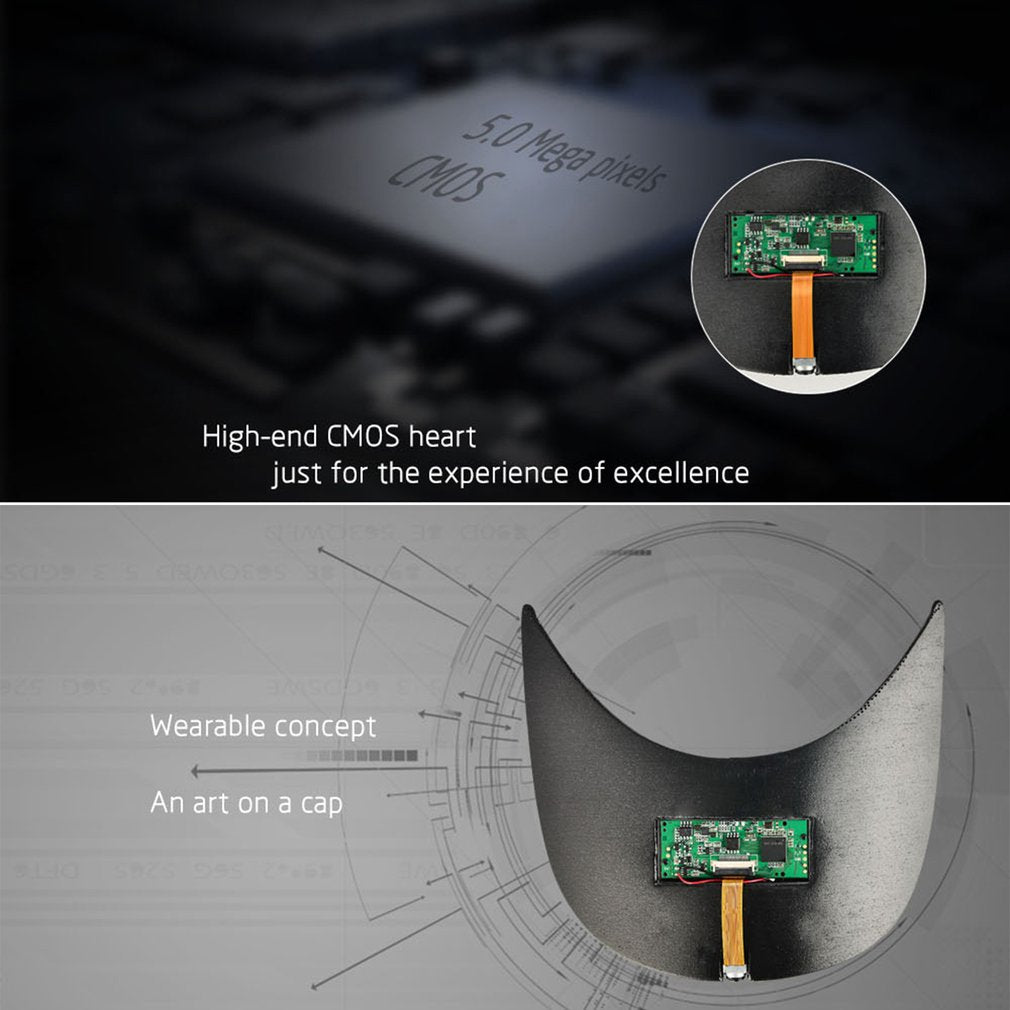

• Image processor: CMOS

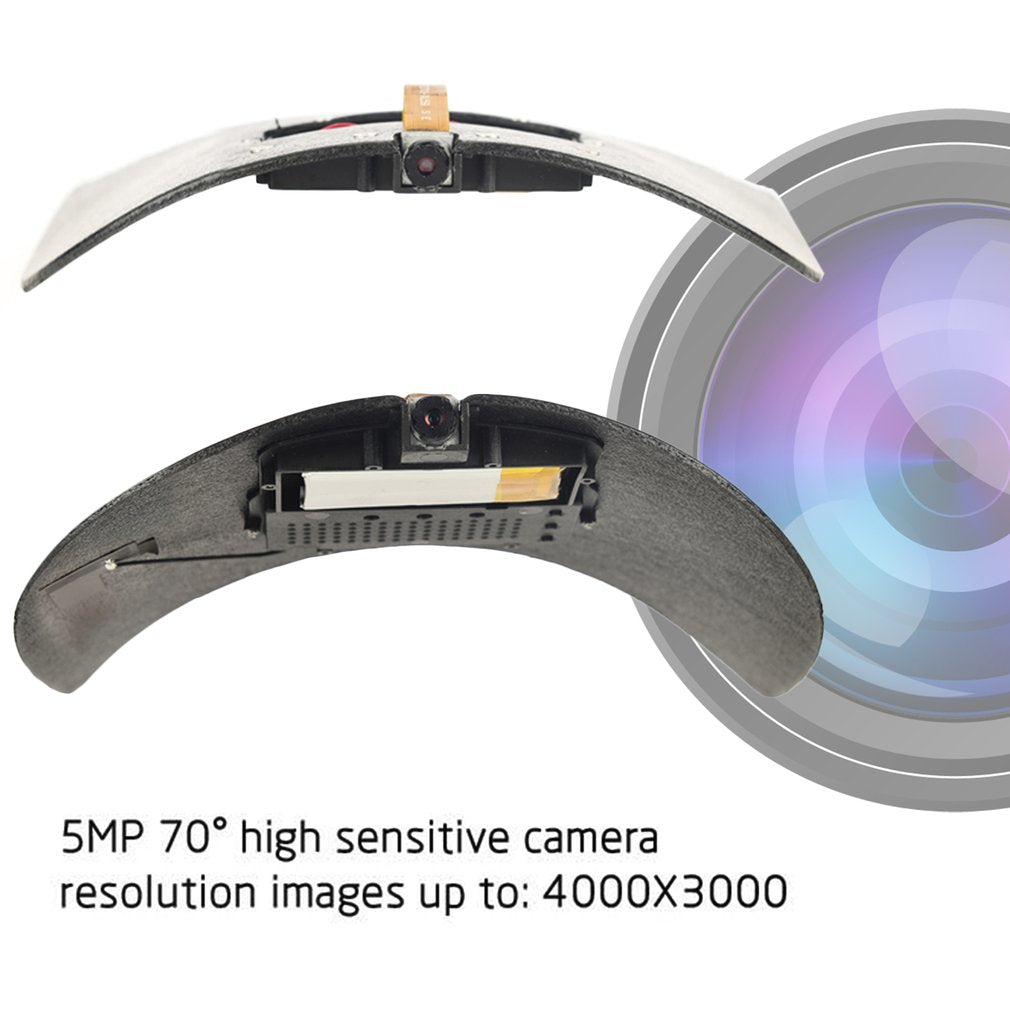

• Image resolution: 5.0 mega pixels

• Save format: JPEG

• Video resolution: FHD 1080P@30fps

• USB interface: Micro USB

• Power: internal lithium 400mAh

• Charging specifications: input DC 5.0V / 500mA

• Storage extension: Micro secure digital (maximal 32GB)

• Lens: 120 degree wide optical lens

• Battery endurance: 90min (max)

Package included:

• 1 x 1080P WIFI Cap Live Camcorder

• 1 x USB Cable

• 1 x Reset Pin

• 1 x Tweezers (for Micro Secure Digital card)

• 1 x User Manual

• Other things not included
