Single Port RJ45 Gigabit Industrial Network Card RTL8111F Mini PCIE Gigabit Single Port Ethernet LAN Card

Mini PCIe RTL8111F Gigabit LAN is a high performance 10/100/1000M BASE-T Ethernet LAN controller, it supports IEEE802.3u specification for 10/100Mbps Ethernet and IEEE802.3ab specification for 1000Mbps Ethernet, supports auxiliary power The auto-detection function will automatically configure the relevant bits of the PCI power management registers in the PCI configuration space.

• Single-lane (x1) PCIe with throughput up to 2.5Gbps
• Compatible with mini PCIe Card Electromechanical Specification Revision 1.2
• Compatible with half/full size mini PCIe card type size
• Compliant with PCIe Base Specification Revision 1.1
• Plug and play

Specification:

• MiniPCI-E master card: 30*51mm
• MiniPCI-E daughter card: 25*38mm
• 4-pin cable: 26.5 cm
• 10-pin cable: 27 cm
• Applicable network: Gigabit Ethernet server
• Main Chipset: Realtek RTL8111F
• Bus type: MiniPCI-E
• Media Interface: 1 x RJ45, copper twisted pair
• Transmission rate: 10/100/1000Mbps (data rate auto-negotiation operation)
• High-performance 1000BASE-T Ethernet controller card, backward compatible with 10/100BASE-T networks
• Network topology: fully compliant with IEEE802.3, 802.3u, 802.3ab
• Support: full-duplex flow control (IEEE802.3x)
• Support: IEEE802.1P layer 2 priority encoding
• Support: IEEE802.1Q VLAN tagging
• Management features: IPv4 and IPv6 checksum offload support
• Receive Side Scaling (RSS): with two hardware receive queues
• Support: Jumbo frames of 9k bytes
• Supports: Cross detection and automatic correction operations

Operating system:

• Windows ME/98SE/2000/XP/Vista/Win 7/Win 8/Win 10 32 & 64bit
• Windows Server2003/Server/Server2008/Server2012 32 & 64bit
• for Linux, DOS, for MAC OS X10.4.X or higher

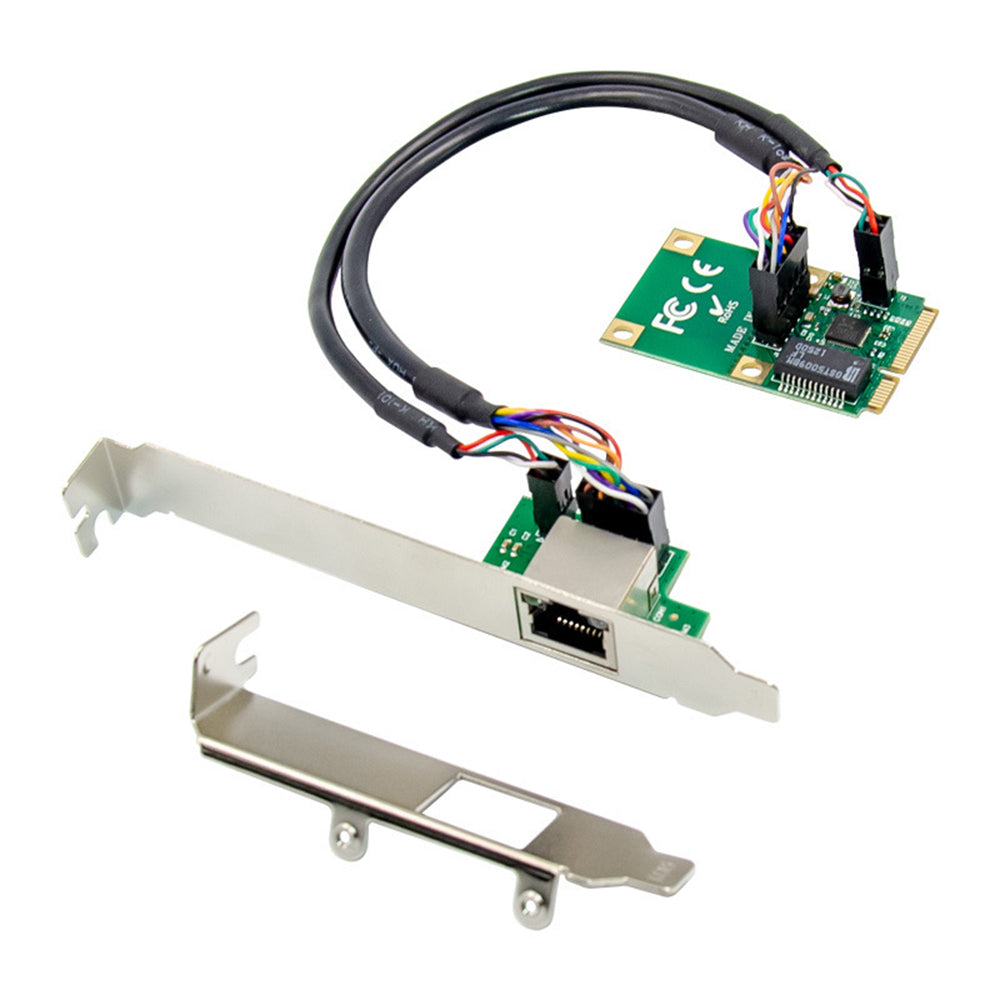

Package included:

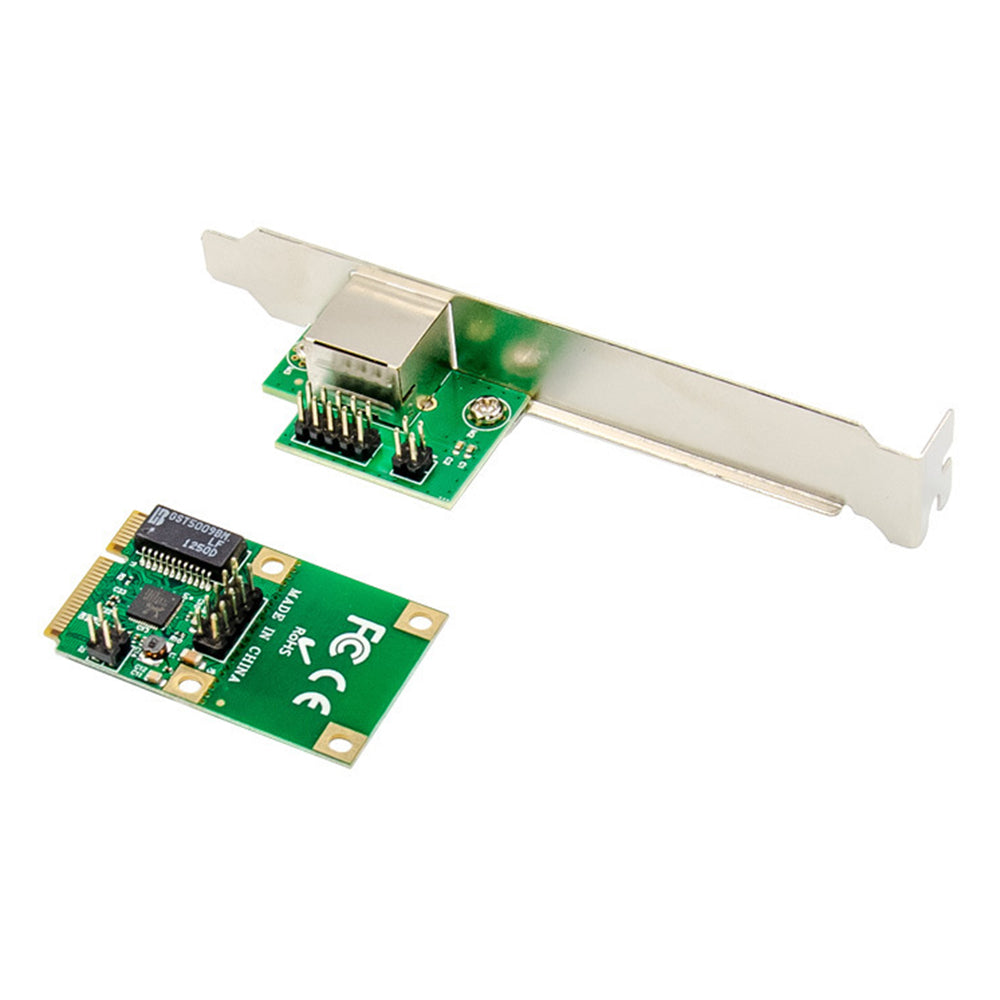

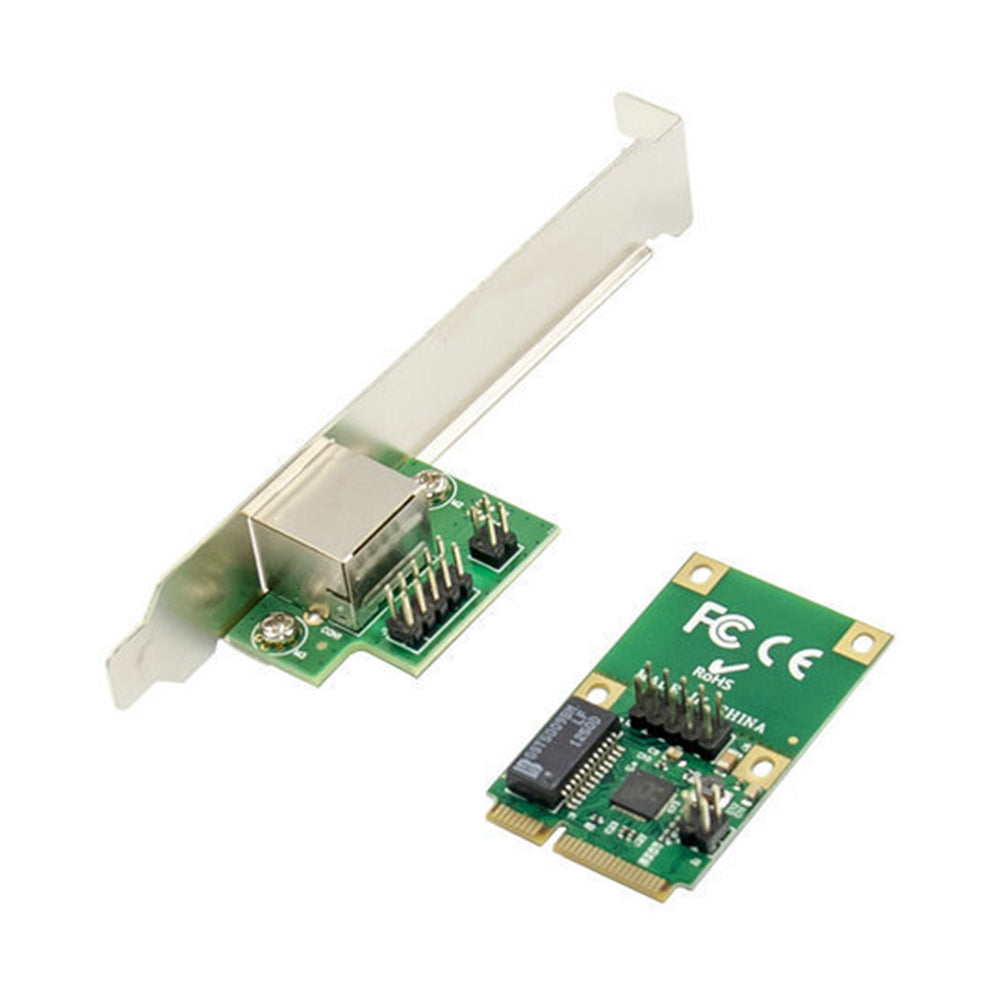

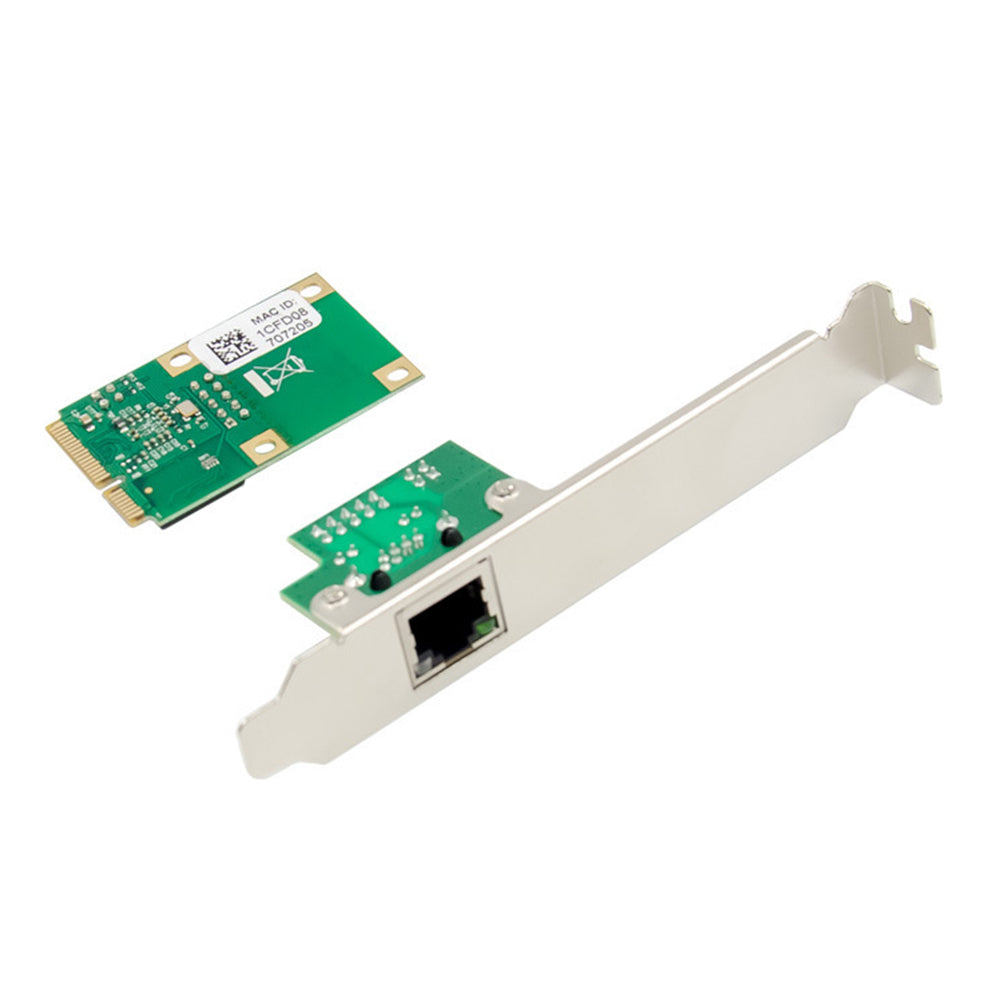

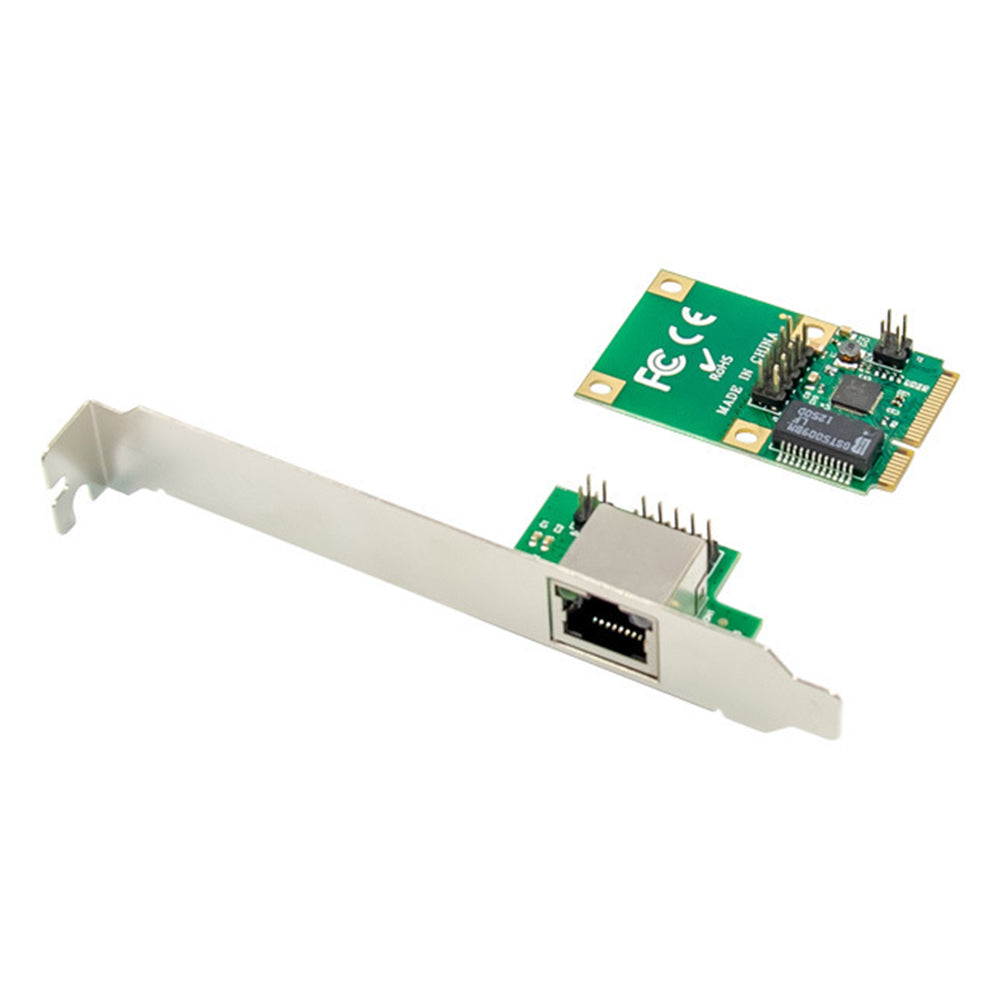

• 1 x Mini PCIe RTL8111F Gigabit Network Adapter (Master Card)

• 1 x Mini PCIe RTL8111F Gigabit LAN Daughter Card

• 1 x 10-pin Network Cable

• 1 x 4-Pin LED Cable

• 1 x CD Driver

• 1 x Short Bracket

• 1 x English User Manual
