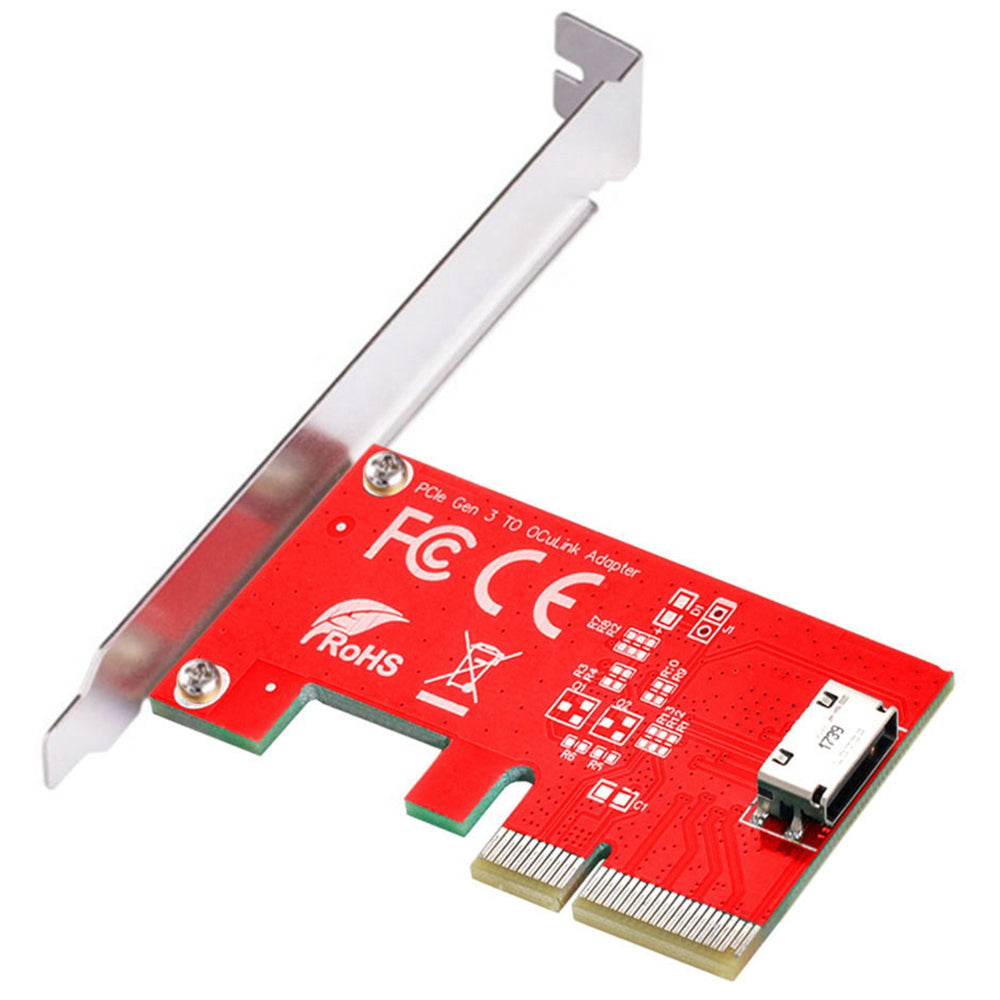

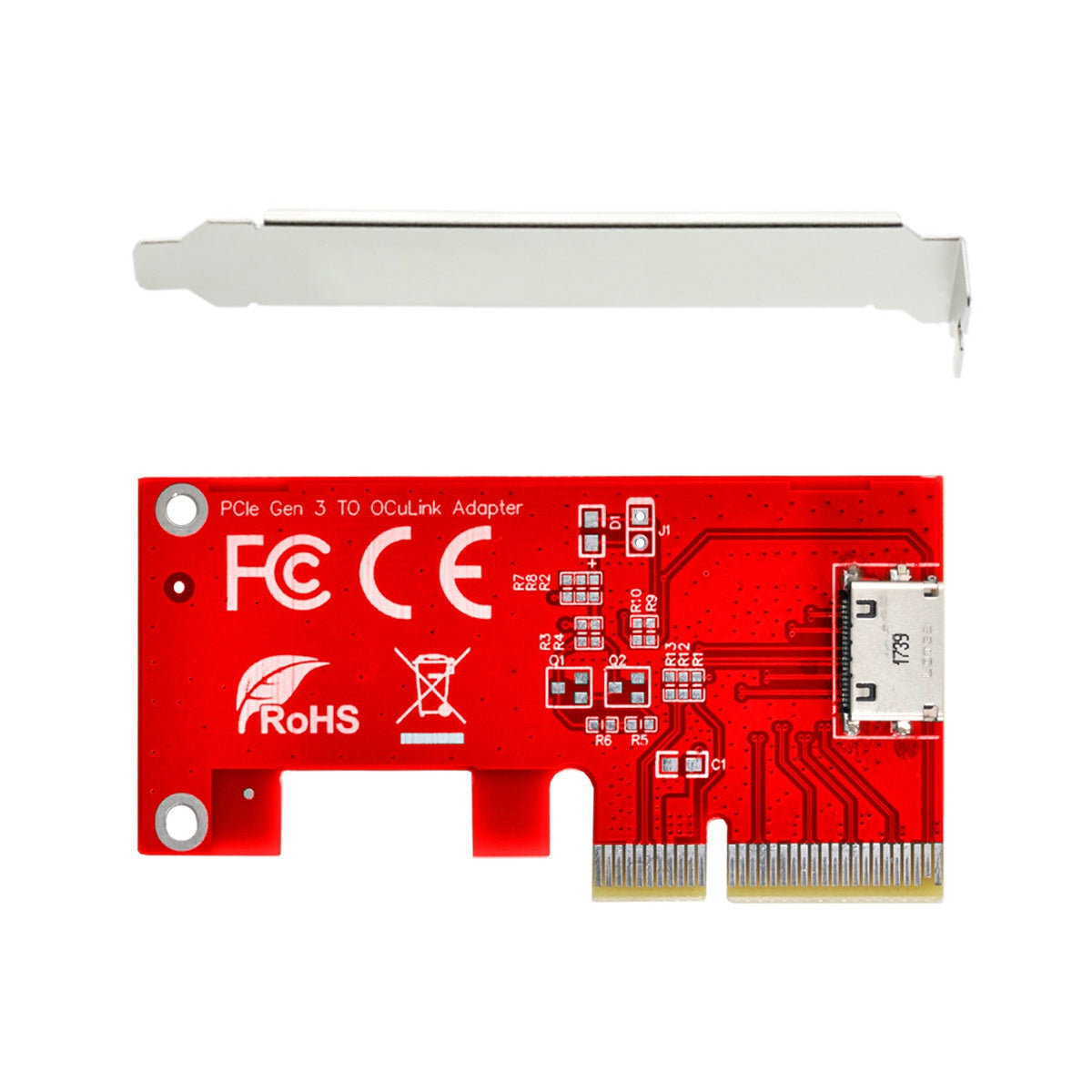

SF-022 PCI-E 3.0 4X to Oculink SFF-8611 Host Adapter for PCIe SSD with Bracket

• This PCI Express card expands the PC by one SFF-8612 interface

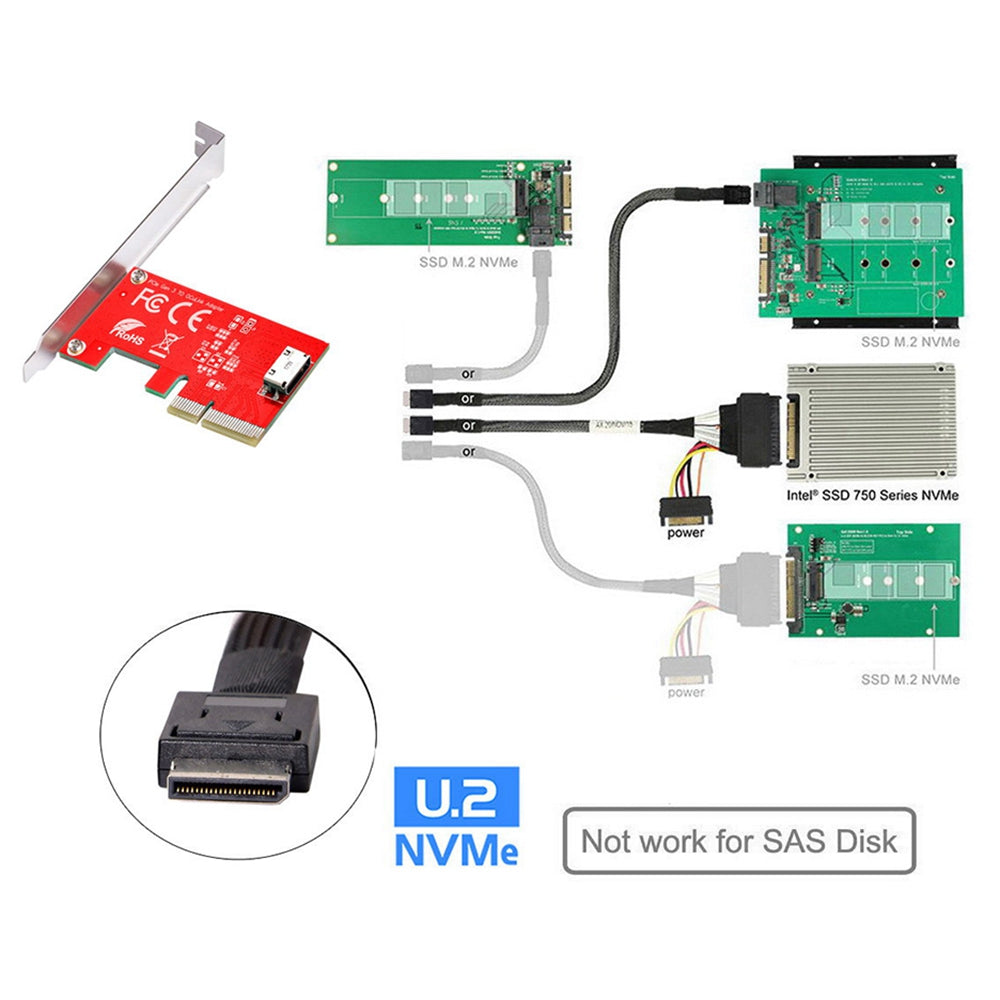

• It can be connected e.g. one SSD by using an optional cable
• The cards transmit PCI Express signals using the NVMe protocol

Specification

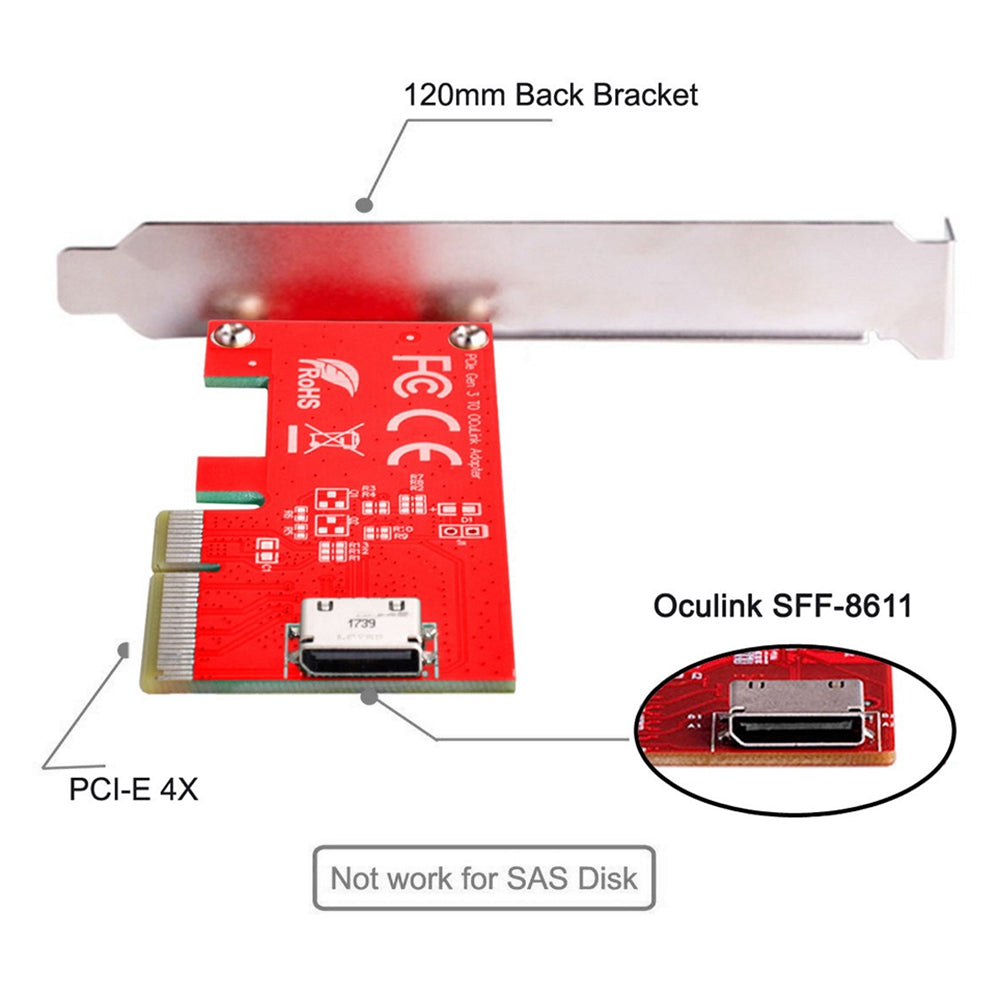

• Connectors: OCuLink SFF-8612 female; PCI Express 4X, V3.0

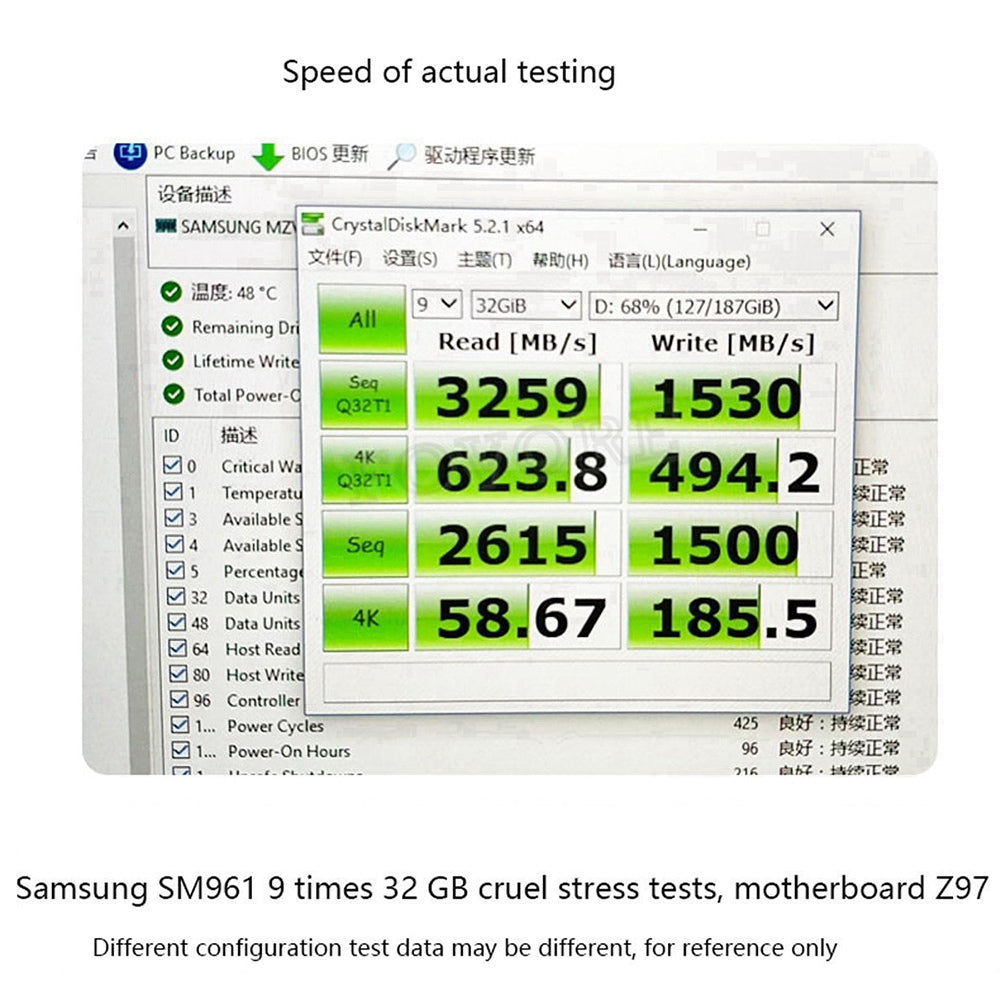

• Data transfer rate: up to 32 Gbps
• Bootable, ex UEFI version 2.3.1
• Support: NVM Express (NVMe) 1.2
• System requirements:
• Linux Kernel 4.3 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package included:

• 1 x Host Adapter

• Other items not included
