SDI 1 In-2 Out Distributor SDI2X1splitter SDI Video I-In-2-Out Converter

Description:

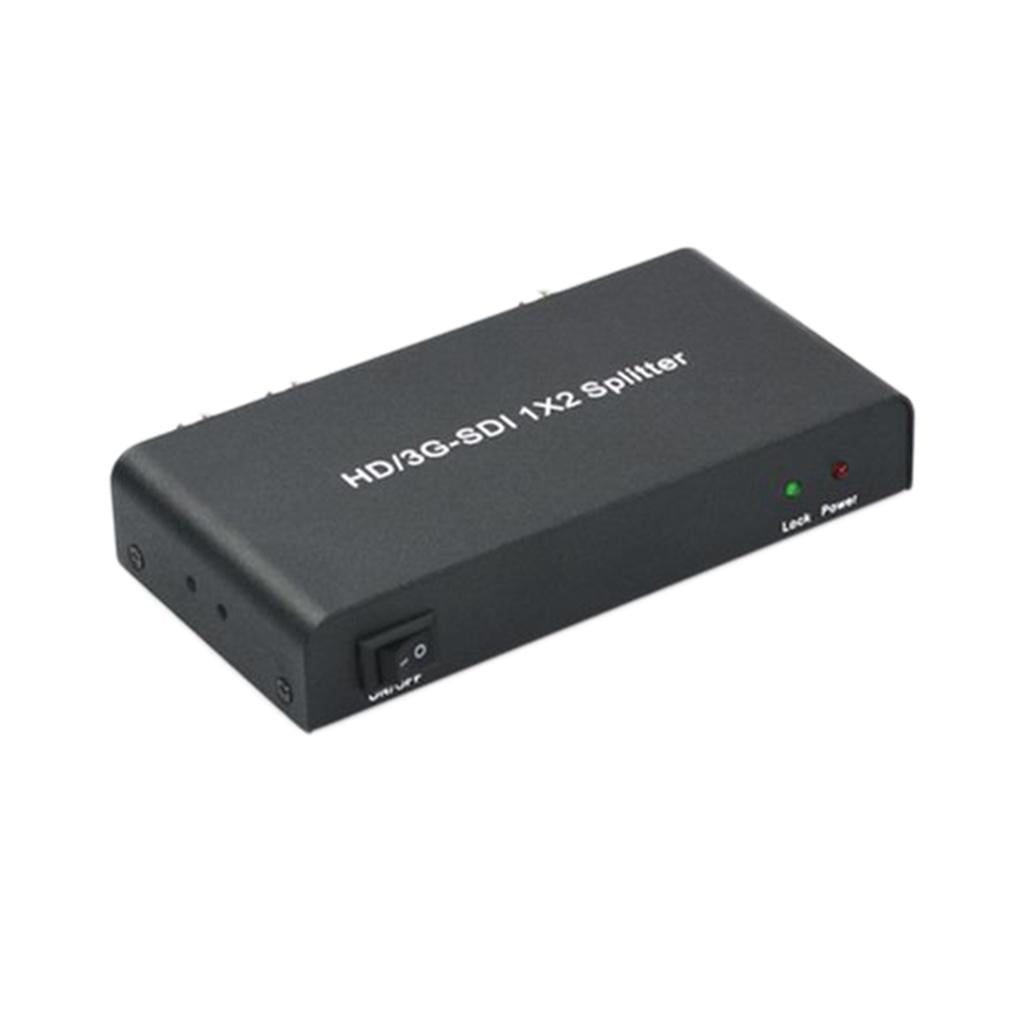

SDI Splitter 1x2 HD-SDI & 3G-SDI 1 Source To 2 Displays w/ Power Adapter
This 3G SDI 1x2 Splitter allows you to distribute a single SDI video source to two SDI video monitors.
This splitter supports bit rates up to 2.970 Gbps and supports HD-SDI, and 3G-SDI video signals.
Features equalizer circuitry on the inputs and outputs, allowing it to support long cable runs.
Support for multiple standard and high definition video resolutions.
High quality sound quality is ensured with a 24bit/192KHz DAC chip.
This product can be used in places with limited noise, transmission distance and security, such as data center control, information distribution, remote monitoring, conference room presentation, digital environment and company training places.

Specification:

Material:Plastic
Size:125x66.5x22mm/4.92x2.62x0.87''
SDI transmission rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s,
input and output resolution:
SD 480i@60, 576i@50
HD:720P@50/60, 1080P@50/60, 3G:1080p@24/25/29.97/30/50/59.94/60
Audio sampling rate: 48KHz
Input port: 1xBNC (SD/HD/3G-SDI)
Output port: 2xBNC (SD/HD/3G-SDI)
Input voltage: DC 5V-12V
Maximum power: 1.5W
Working temperature: -10~55 degrees Celsius
Storage temperature: -10~60 degrees Celsius

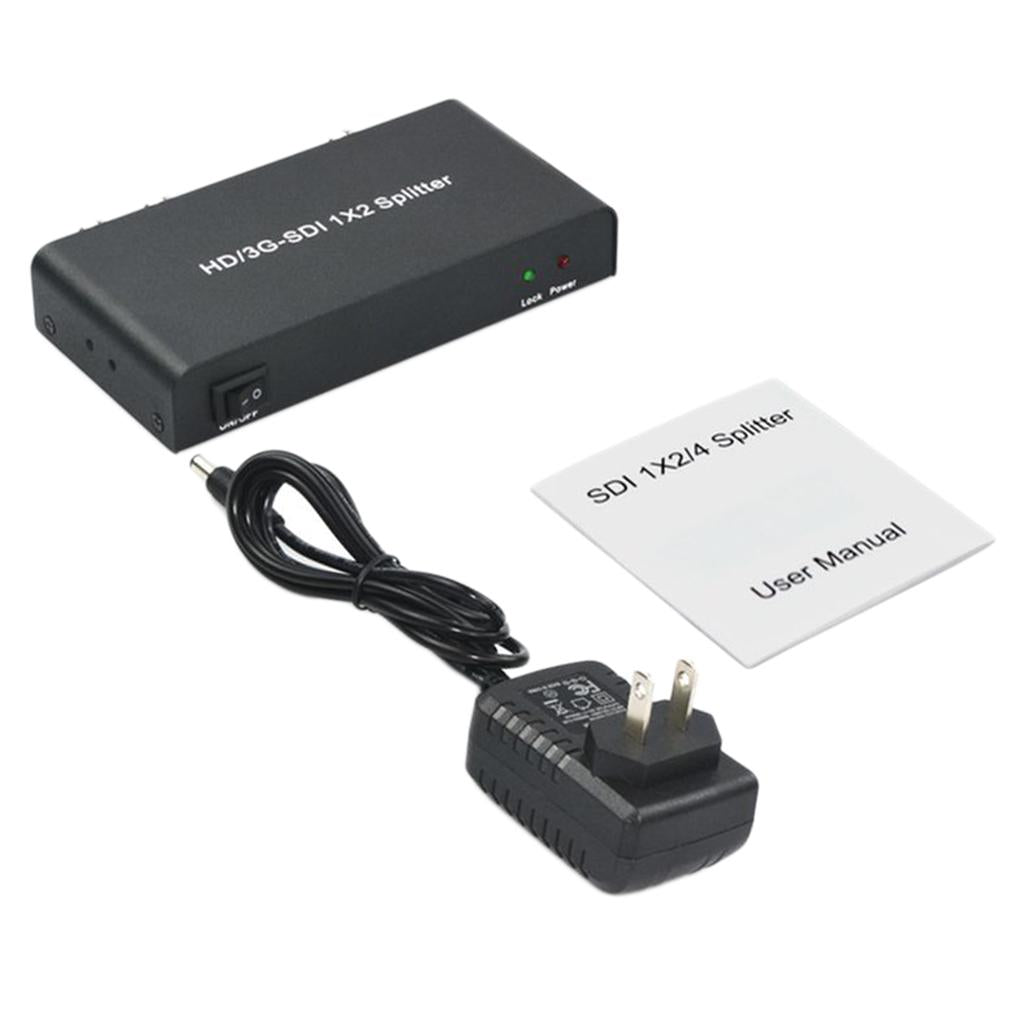

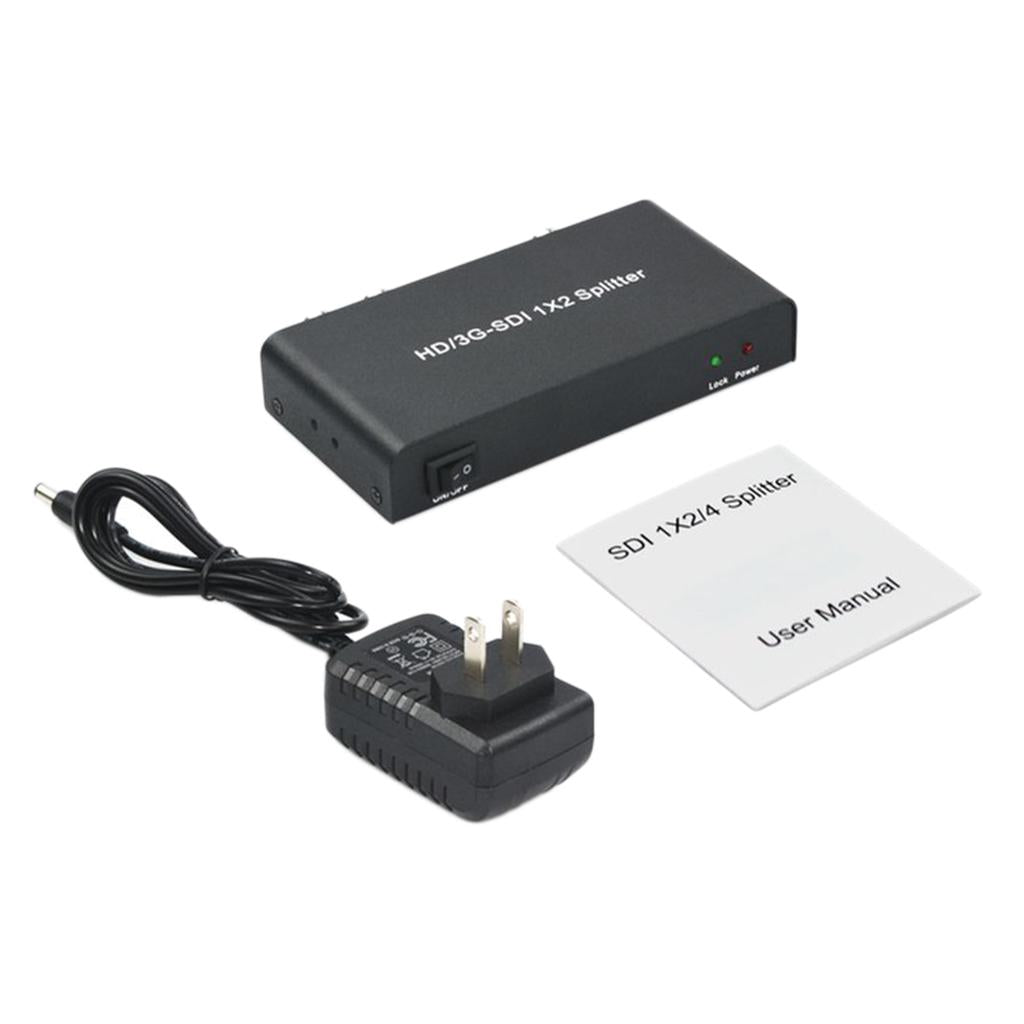

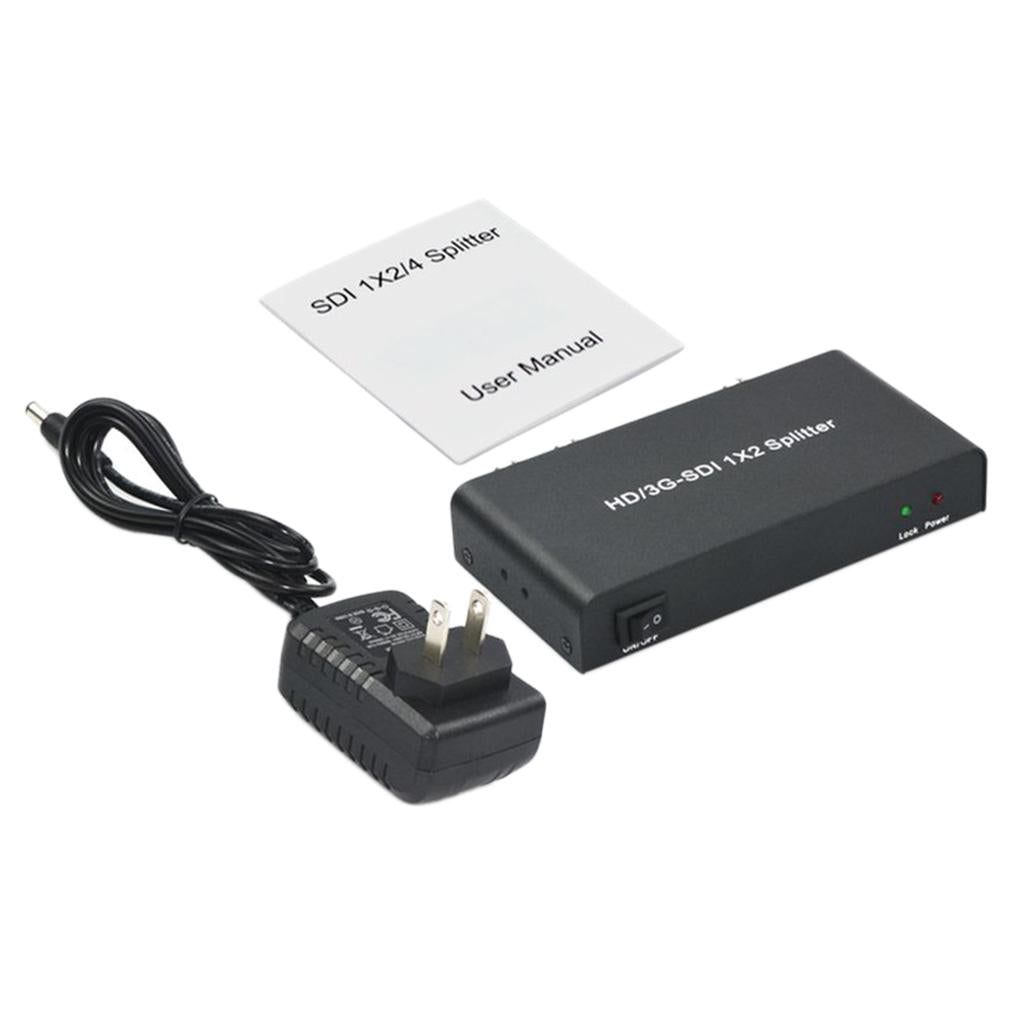

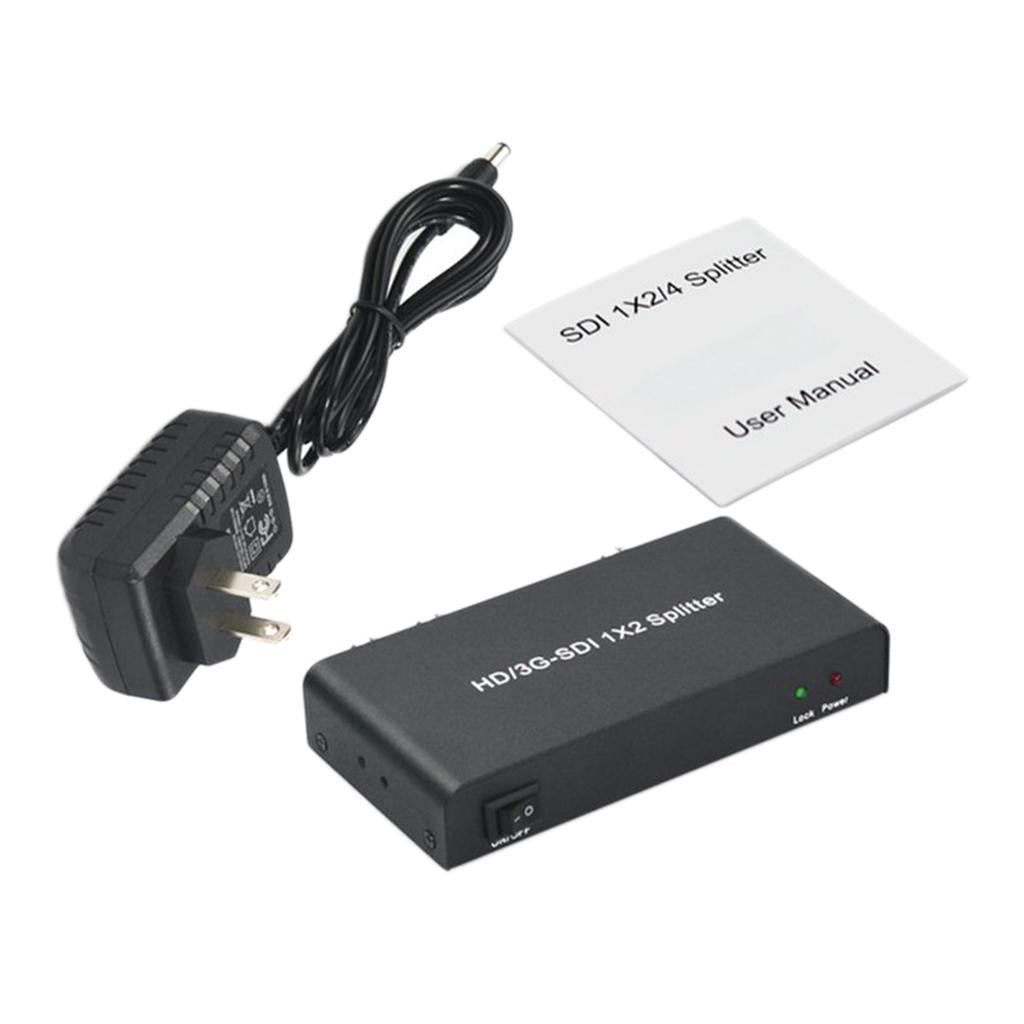

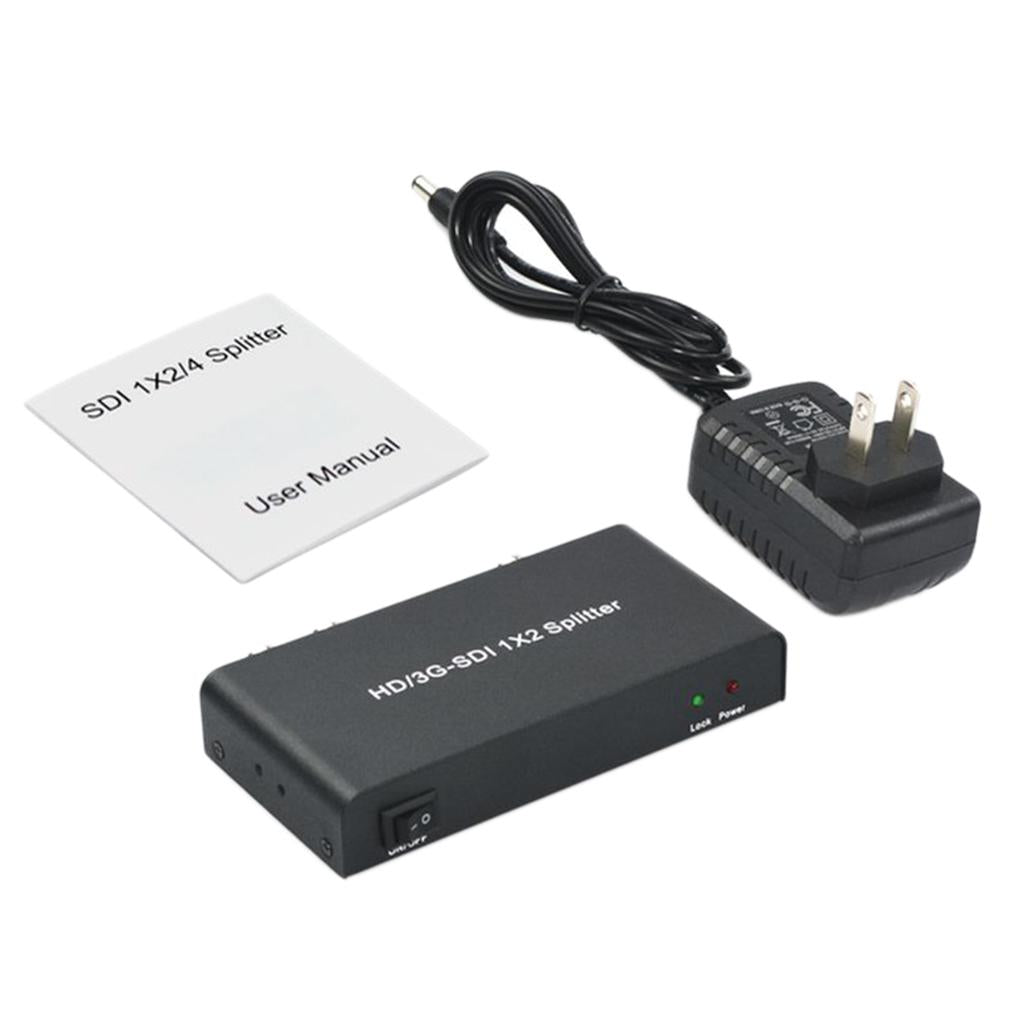

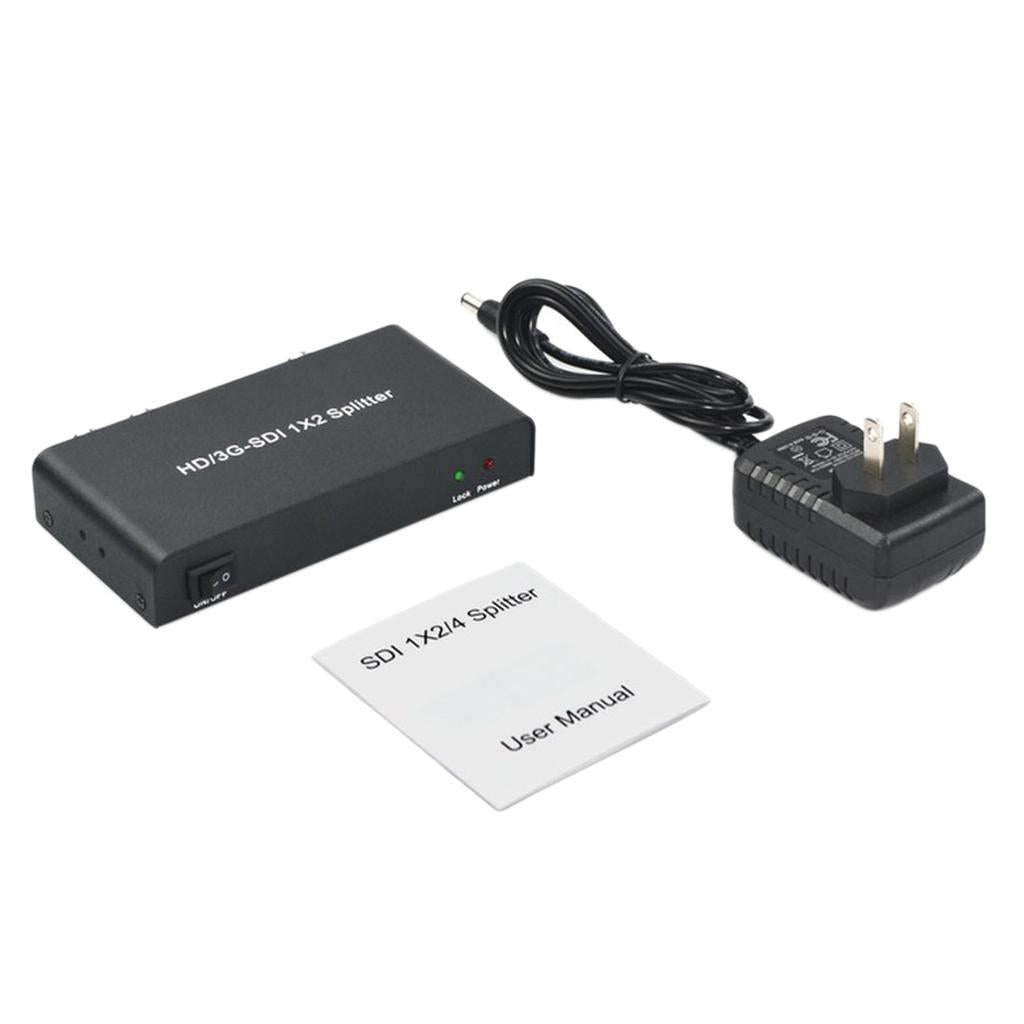

Package Includes:

1 Piece 3G-SDI Splitter
1 Piece US Power Supply(5V 1A)
