- R80 DIY Aviation Radio Receiver Kit High Sensitivity 118-136MHz AM R80 DIY Aviation Radio Receiver Kit High Sensitivity 118-136MHz AM
- Description
- Reviews
Description:
All kits in this shop need to be welded and debugged by the buyer;
kit installation is risky. Buyers should correctly evaluate their own technical level and equipment to avoid unsuccessful kit installation;
The kit uses PIC18F1320 single-chip microcomputer as the main control, built-in high-precision PLL circuit (pre-welded), and comes with a frequency indicator circuit (using 7-segment digital tube display, the photo has color difference, the actual color is red), the receiving frequency covers 118-136MHz, 100KHz Stepping.
The kit adopts bandpass filter + high amplifier + NE602+MC3361+TA7640+LM386 to complete the secondary frequency conversion, one intermediate frequency 10.7MHz, two intermediate frequency 455KHz, ultra-high sensitivity, can receive 118-136MHz AM signal.
With LED tuning indicator function, it can assist in accurately and quickly adjusting the receiving frequency, which is convenient for use.
Specification:
Material: PCB
Size: 14x8.5cm
12V power supply
Package Includes:

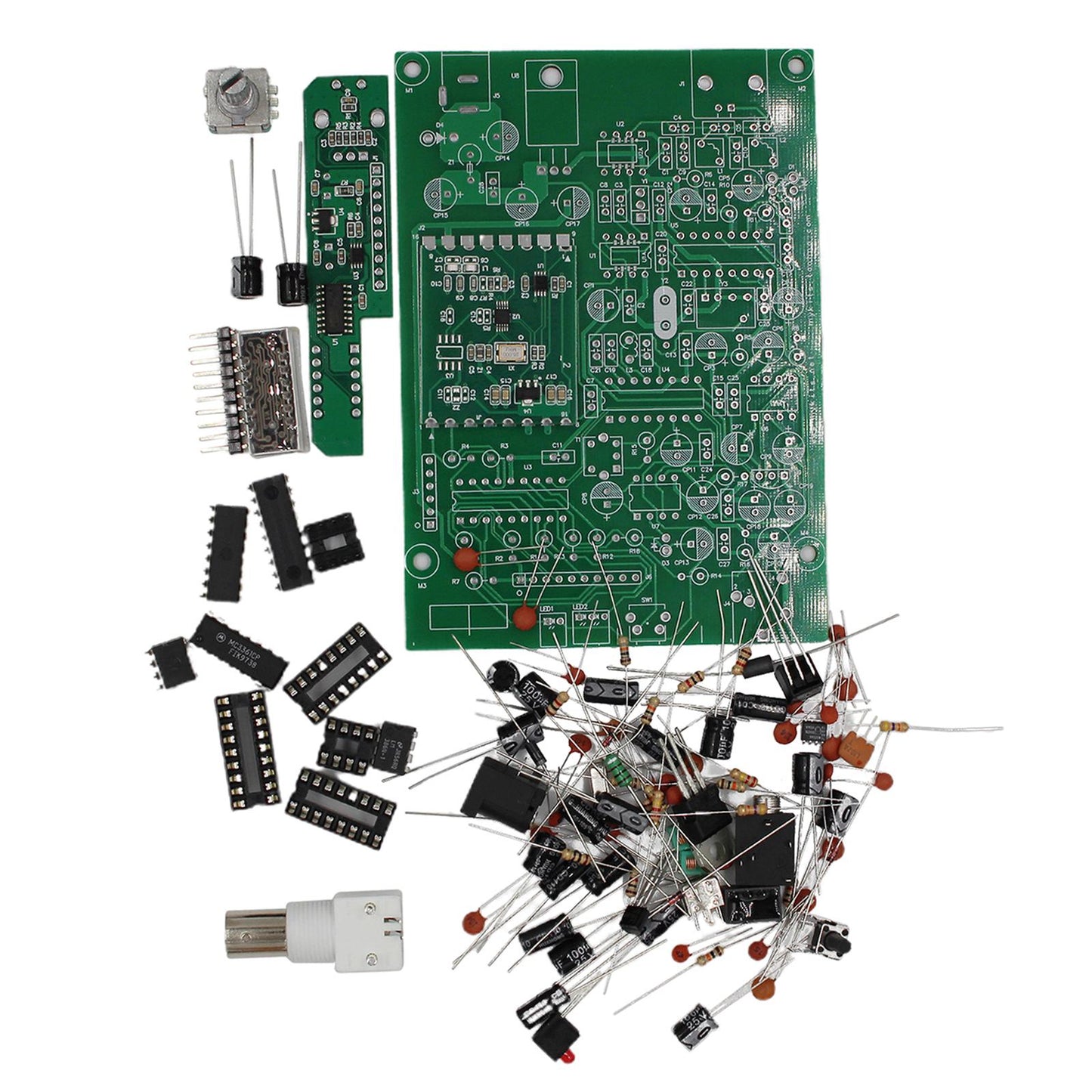

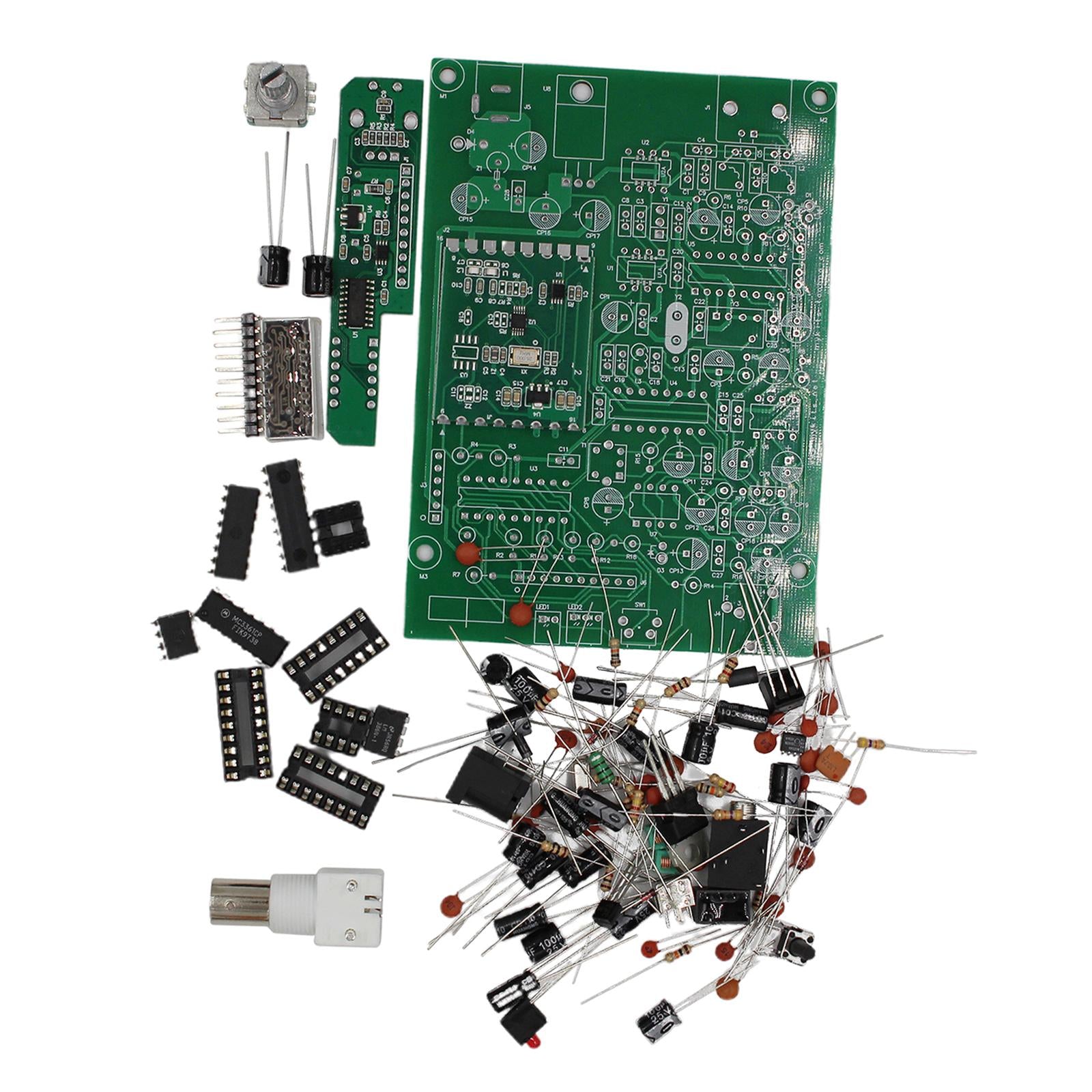

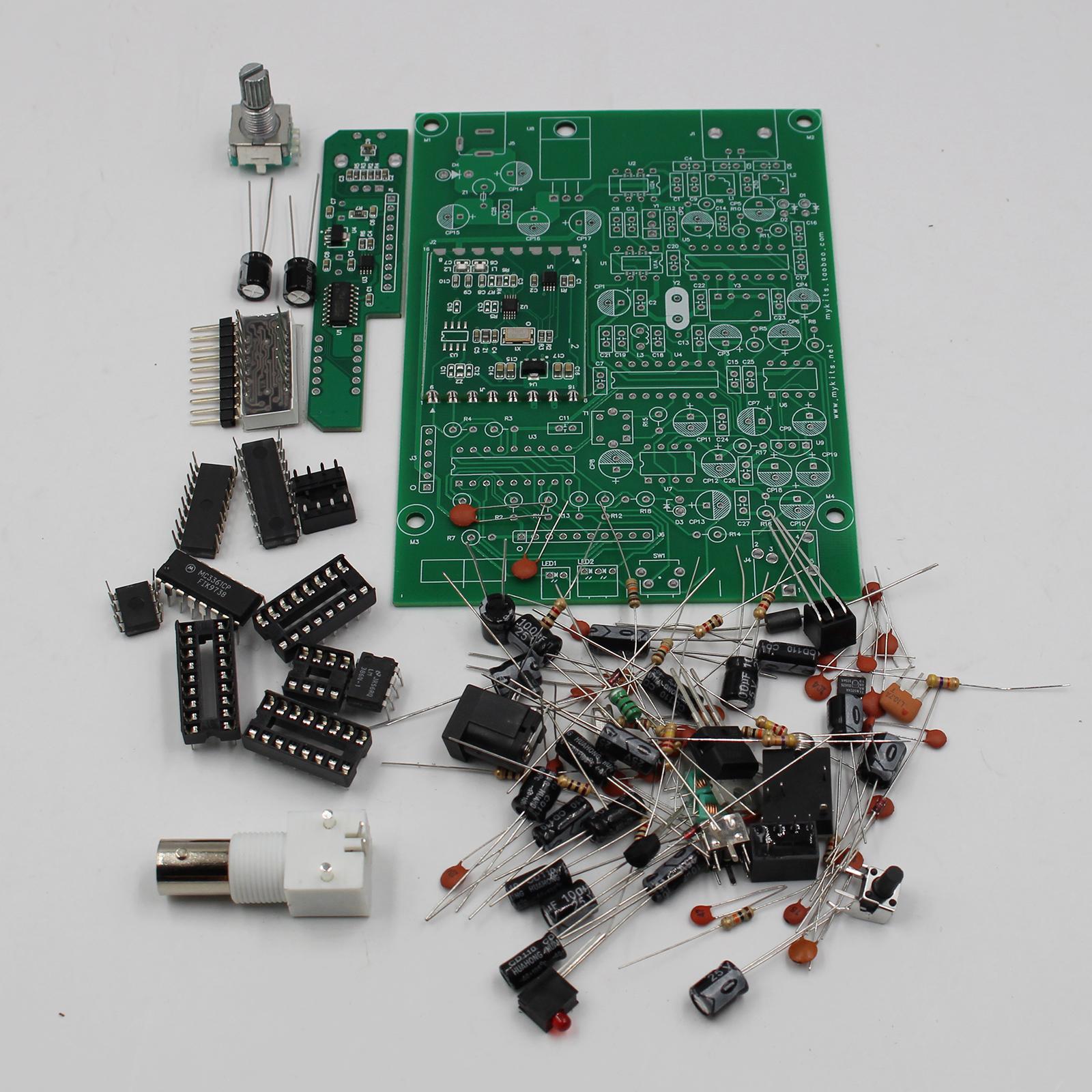

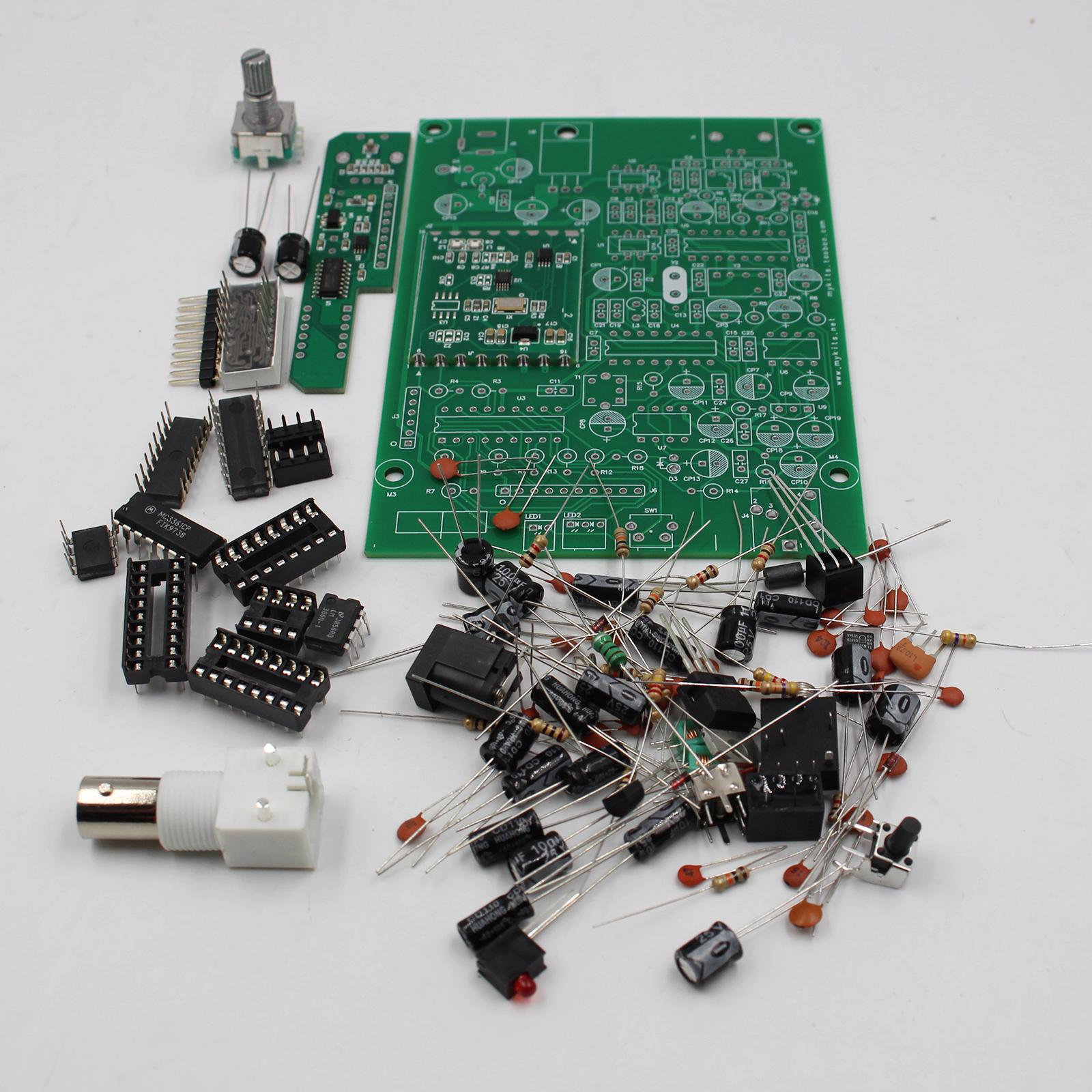

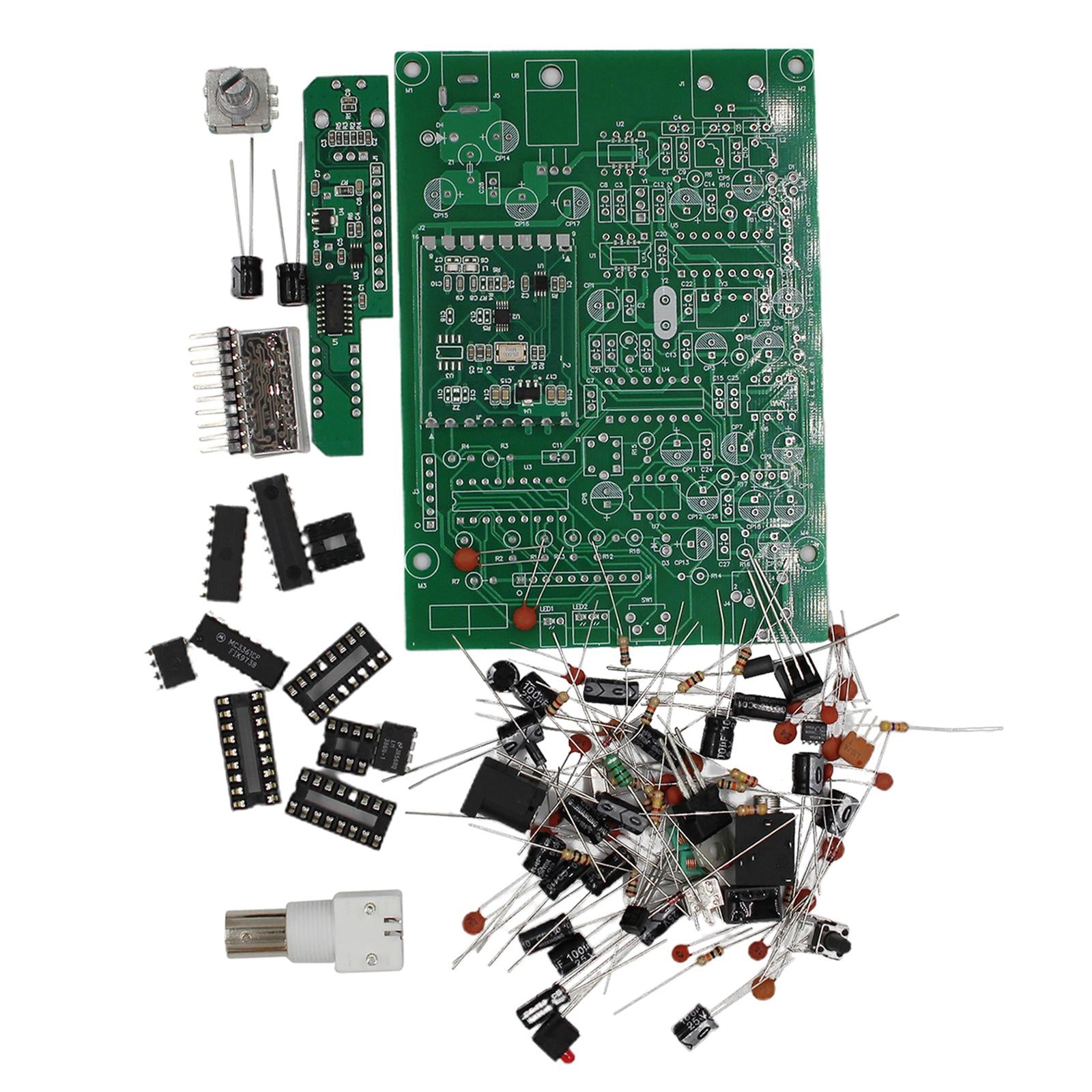

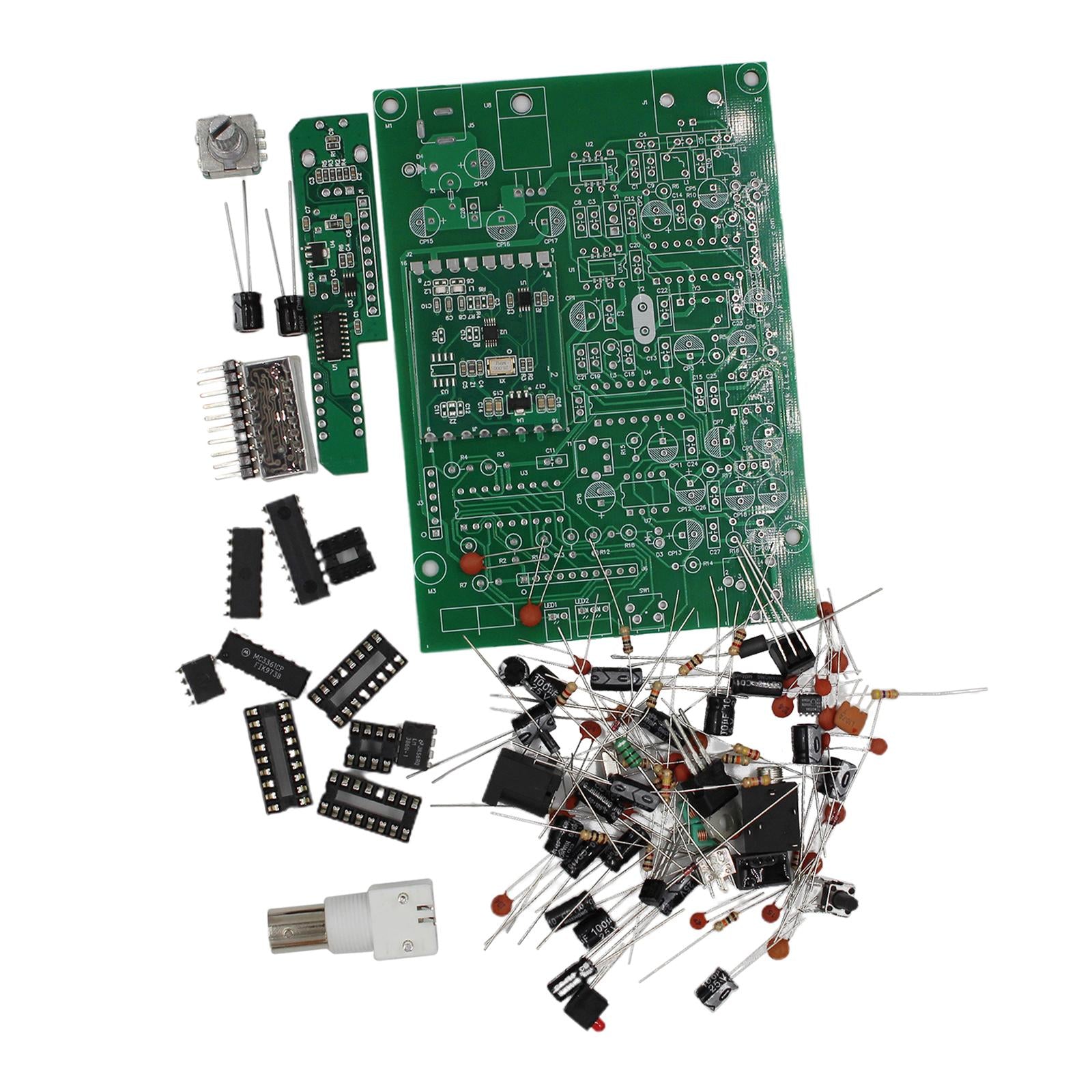

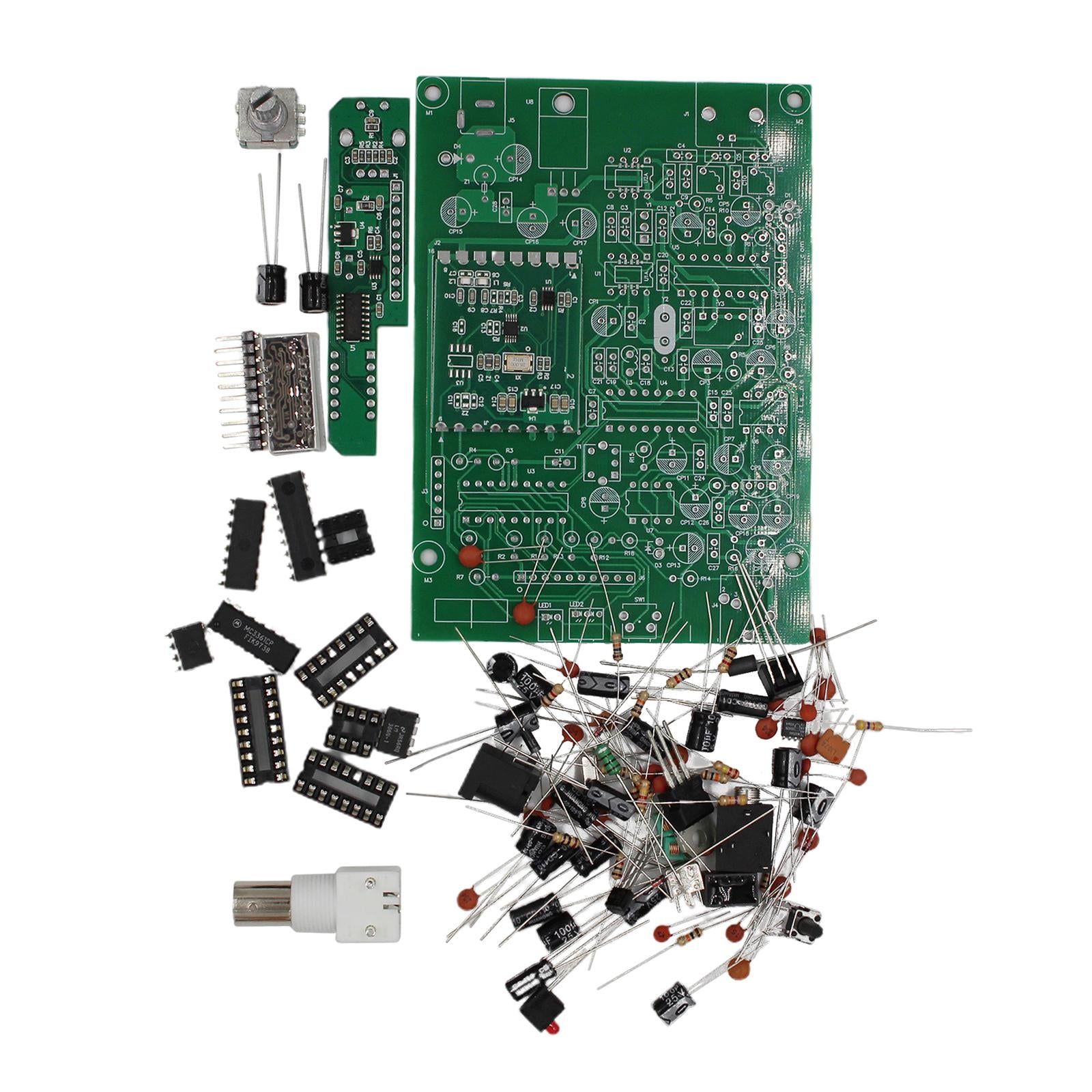

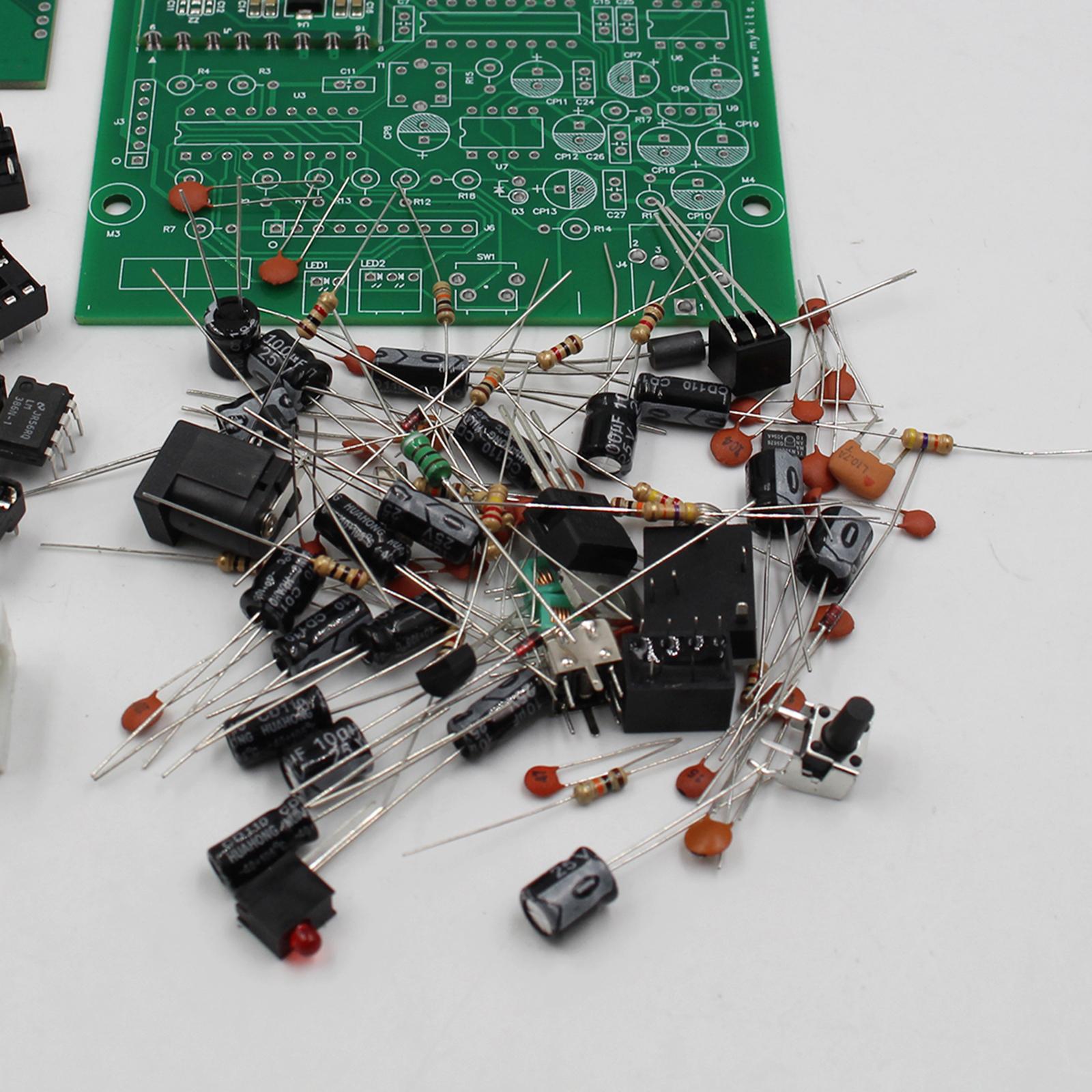

1 x Radio Receiver DIY Kit
1 x Circuit Diagram
i have been sent R20 kit since R80 was not in stock, but no schematics/assembly instructions/component layout information is provided with the kit, without which kit is useless.
