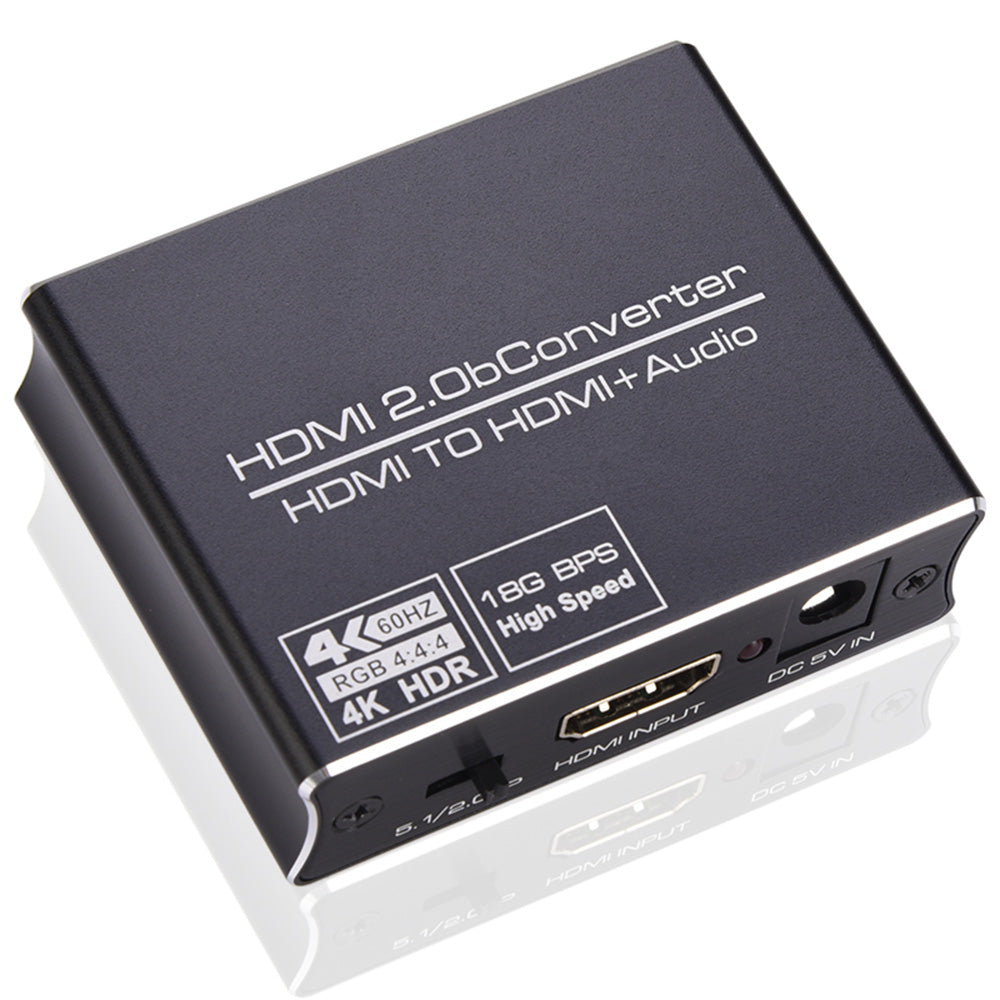

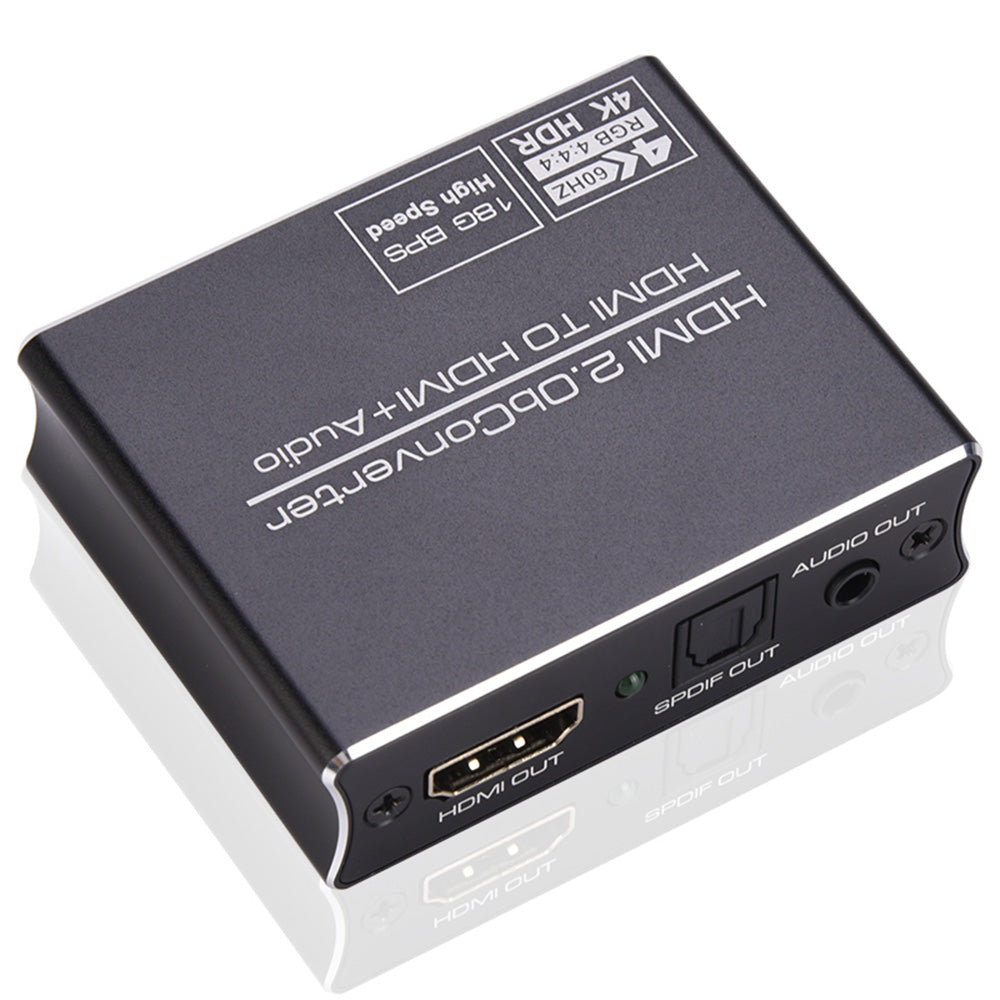

NK-330M HDMI to HDMI+Audio Converter K60PS5 to Optical 5.1 Audio 3.5 Headset Split to Amplifier Audio Adapter

• One HDMI input to one HDMI output (pass-through mode), SPDIF (optical) digital audio output (2-channel/5.1-channel mode), and 3.5 mm stereo audio output (2-channel mode); 3.5 mm to RCA stereo audio cable. The astronomy head unit is not supported
• SPDIF and L/R audio support separate output to an amplifier without TV/monitor connection; input resolutions up to 4K x 2K60Hz, 3D/24Hz For some devices with low-power HDMI ports (e.g. for PS4, for PS4 Slim, and others for Sony devices), use the phone adapter to charge them (USB cable only)
• Supports 24-bit/dark 30-bit, 36-bit per channel (36-bit for all channels) dark; supports video EDID pass-through, audio EDID settings: Pass, 2CH and 5.1CH
• 3.5 mm audio output supports 2-channel PCM stereo audio only. The SPDIF output supports 2-channel PCM, 5.1-channel Dolby Digital, and DTS. The HDMI audio extractor will output Dolby True-HD, DTS-HD, AC3, DTS, and DSD audio formats, but will not decode these audio formats. If your amplifier or bar does not support these audio formats, there will be no audio on the bar or amplifier, so please set the audio format on the HDMI source to PCM/LPCM audio format
• Suitable for a variety of HDMI source devices such as Roku or Chromecast without a dedicated audio output as well as Blu-ray/DVD/HD players, cable/satellite boxes, for Amazon Fire TV, for Apple TV, PS-3/4, X-BOX, PC/laptop computers, HD cameras, HD digital camcorders, etc.

Specifications:

• Output audio support: SPDIF+R/L analog audio output
• Input resolution: up to 2160p60
• HDMI for simultaneous audio signal separation
• Audio mode: PASS/2.0CH/5.1CH
• LED indicators: LEDs glow relative to each other when the light source or receiver is working

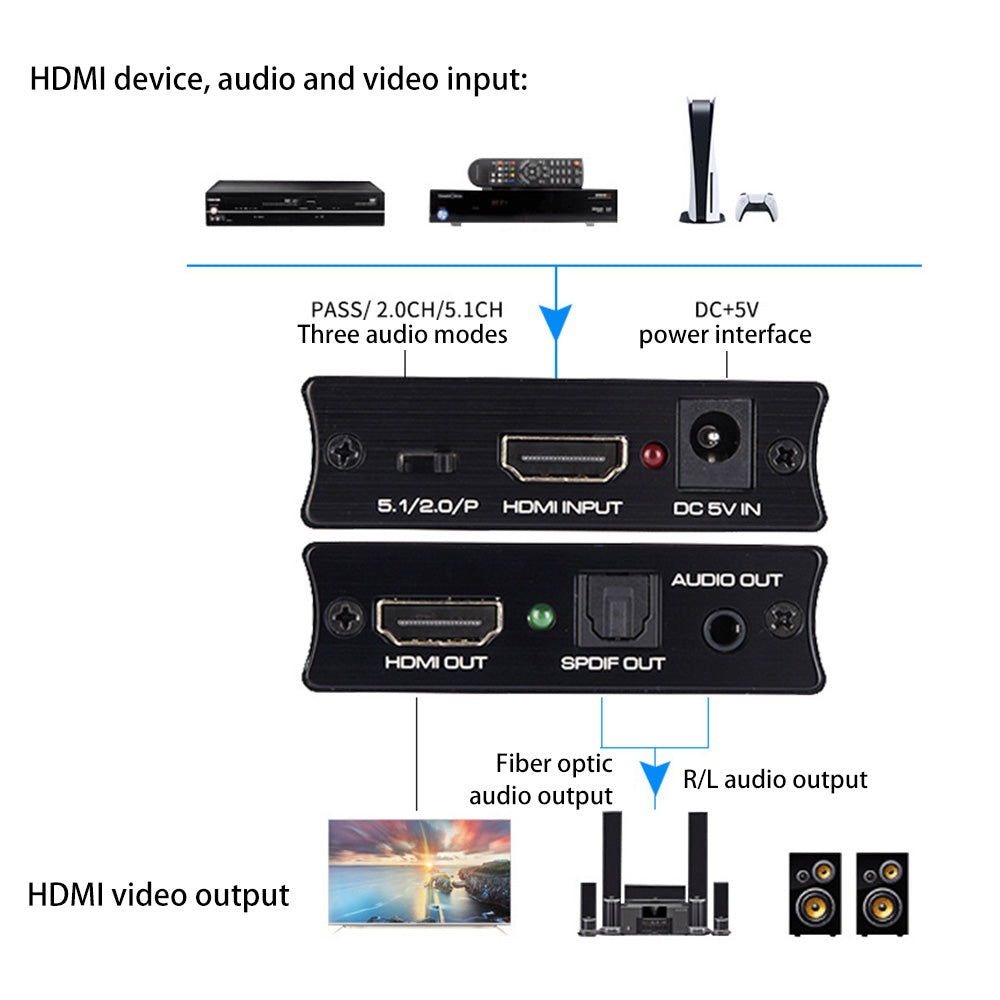

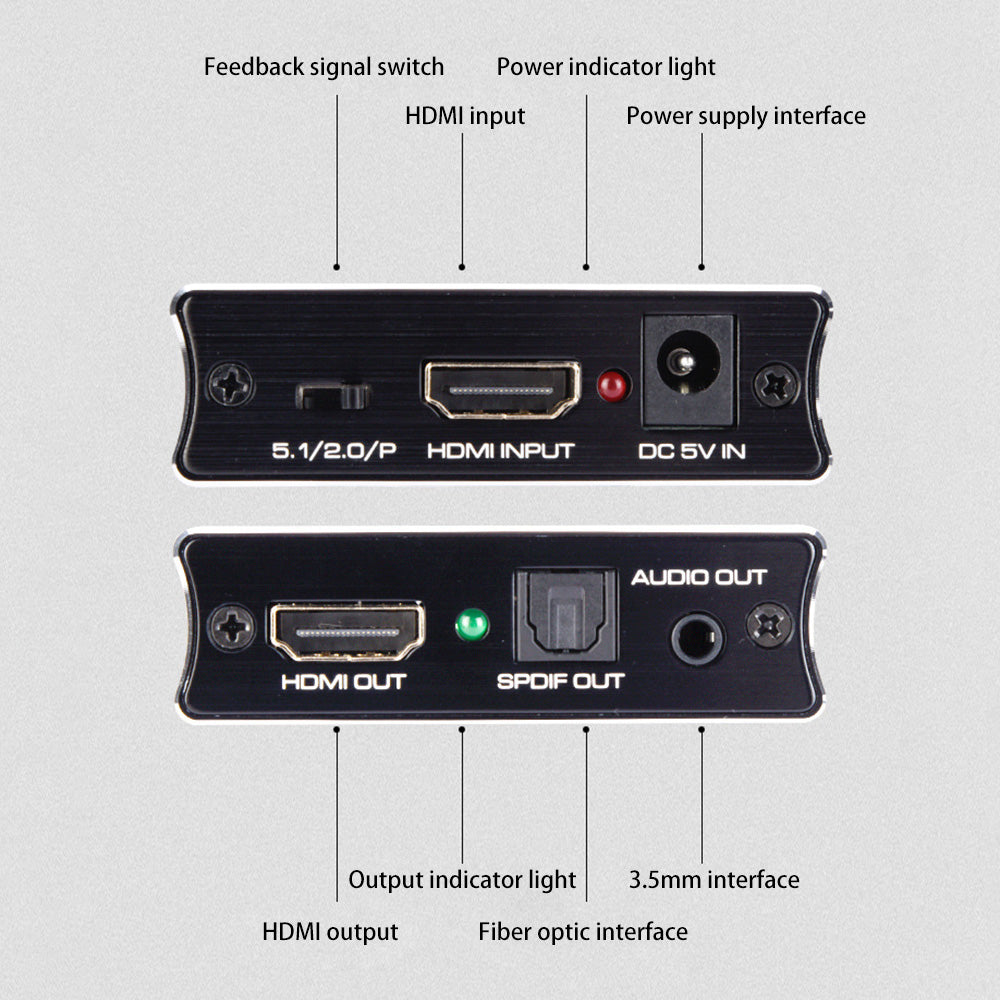

• Features: One HDMI input converted to one HDMI+Audio (SPDIF+R/L) output

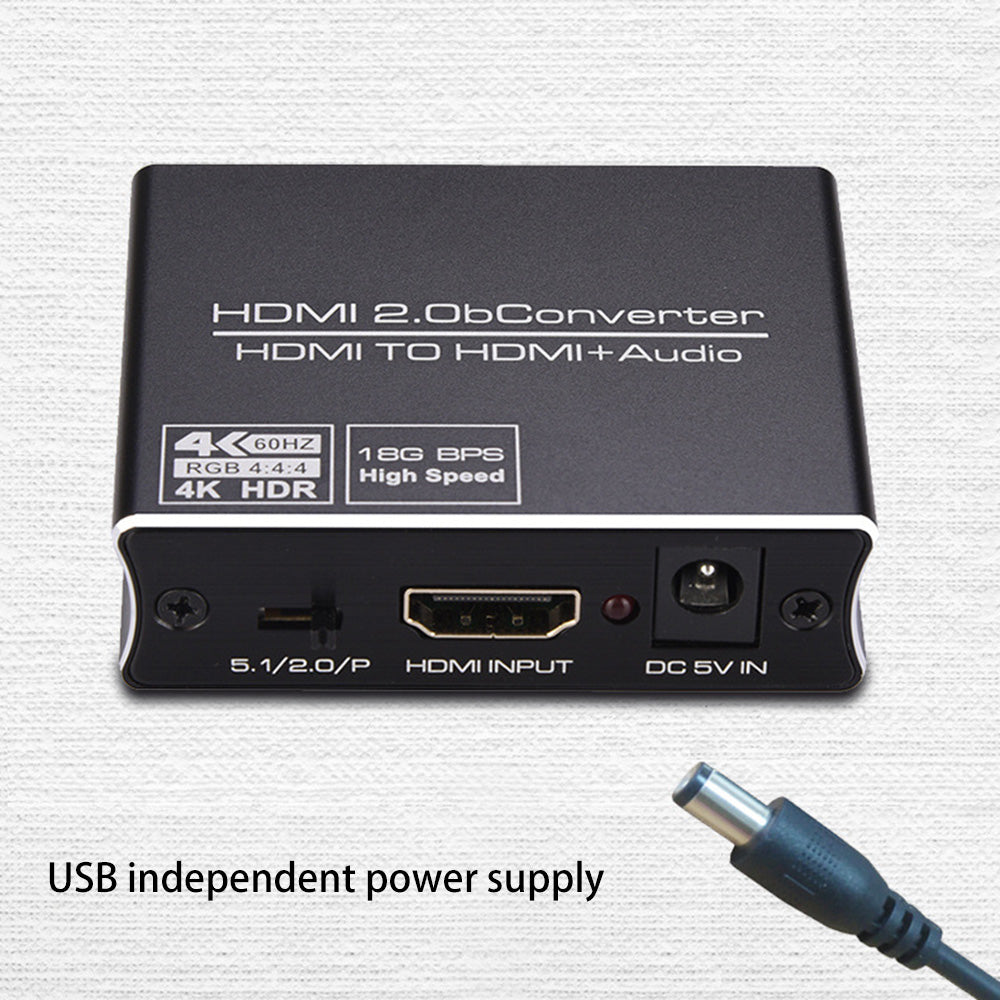

• Power supply: DC5V
• Material: Aluminium case
• Size: 4 x 5.2 x 2cm
• Weight: 3g

Package included:

• 1 x Audio Converter

• 1 x USB Power Cable

• 1 x English Manual

• Other items not included
