MSI.SDR 10kHz To 2GHz Software Radio Receiver TCXO 0.5ppm MsiSDR Set 1

Description:

Robust and strong aluminum case

Perfect for portable operation

No need for an up-converter

Covers all amateur bands from experimental LF through HF, VHF and UHF

Simultaneous entire amateur band monitoring possible

Works with all the popular SDR software (including HDSDR, SDR Console, Cubic SDR & )

Compatible with existing open source radio software

ExtIO based plugin available

Multiplatform support including Windows, Linux, Mac,Android and Raspberry Pi 2/3

Specification:

Continuous coverage from 10kHz to 2GHz

12-bit ADC silicon technology (not another 8 bit dongle!)

Up to 10 MHz bandwidth

Built-in TCXO 0.5ppm

Built-in Performance front-end filters ·

Low noise floor

Simple USB interface (type micro)

SMA antenna socket

Powers over the USB cable

Compatible with SDRPLAY RSP1 software HDSDR ，SDR# ，SDRConsole

Size: 62mm x 25mm x 15mm

Low Current: 120 – 175 mA

Connectivity

Single 50Ω RF connector (SMA)

USB 2.0 (high speed) type micro socket

Frequency Range

Continuous coverage 10kHz – 2GHz

Frequency Tolerance: 0.5ppm (max)

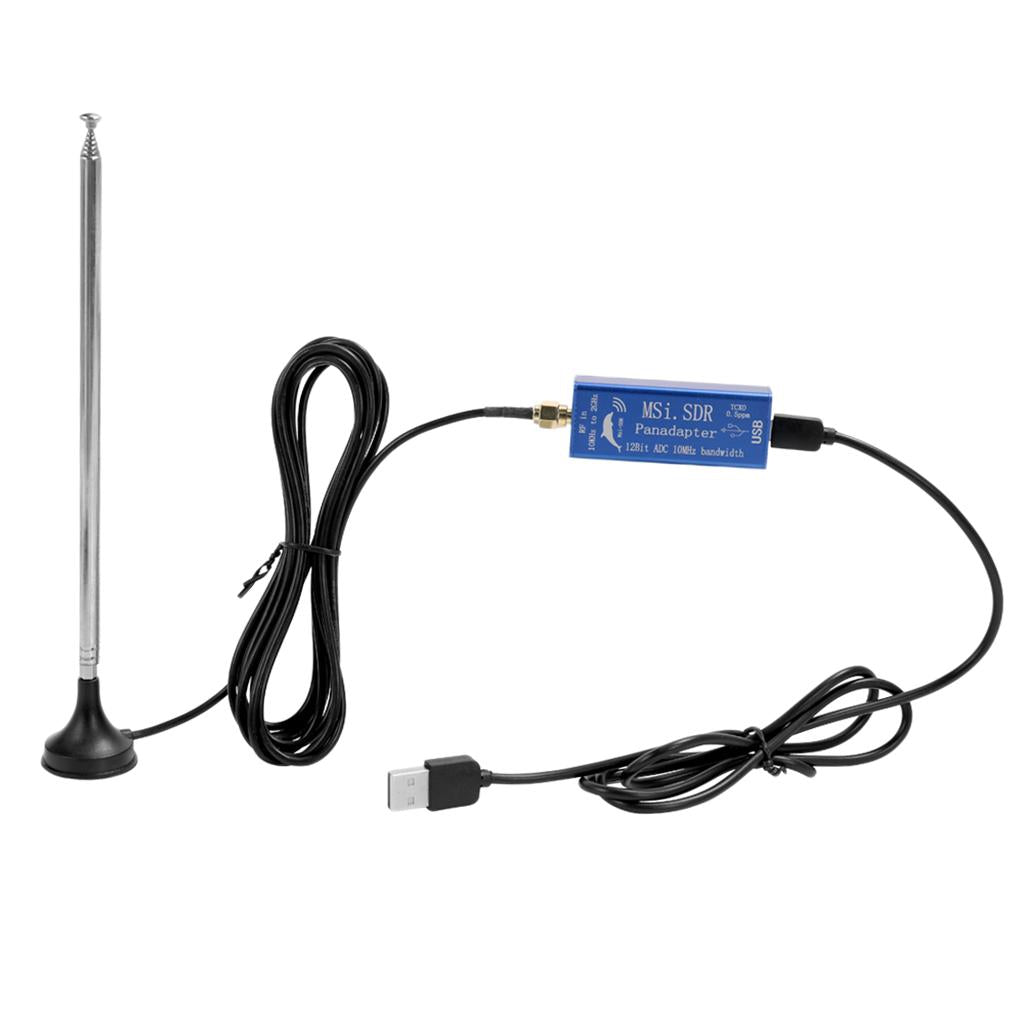

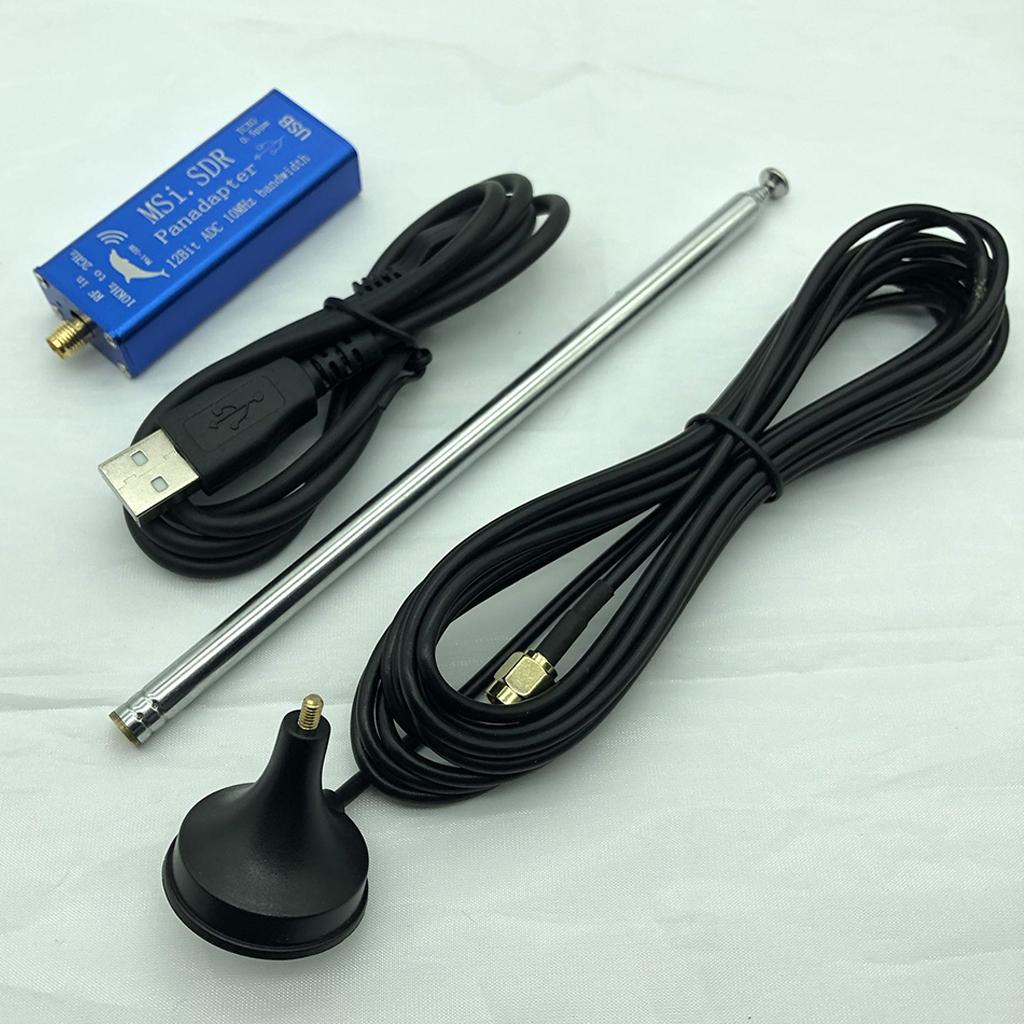

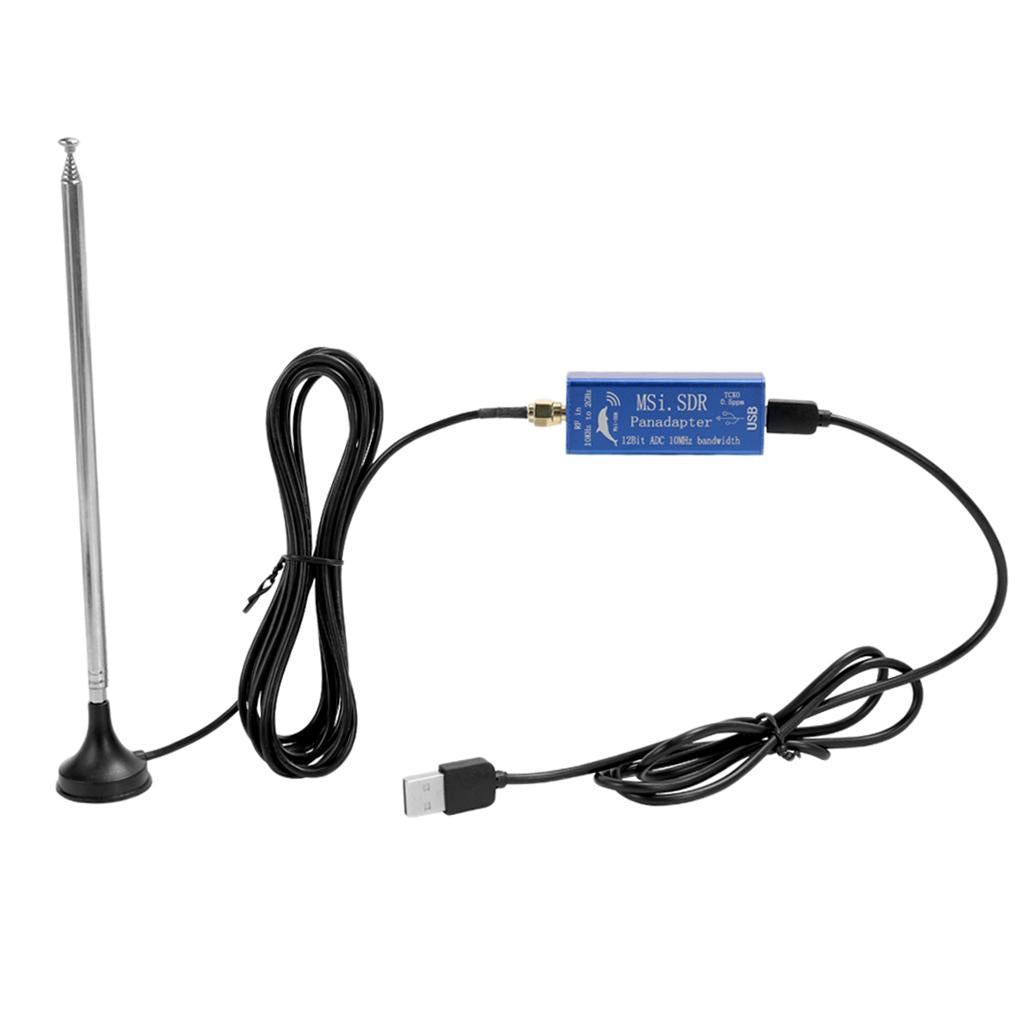

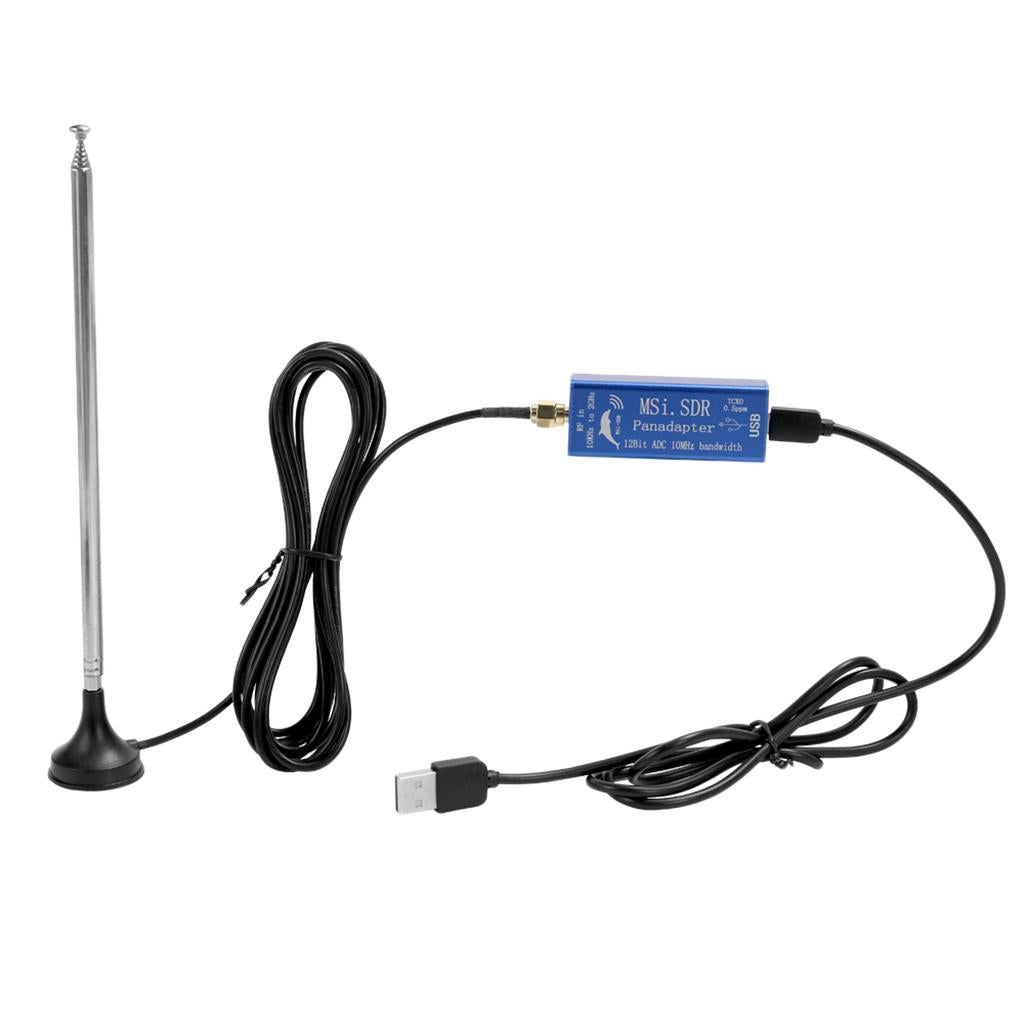

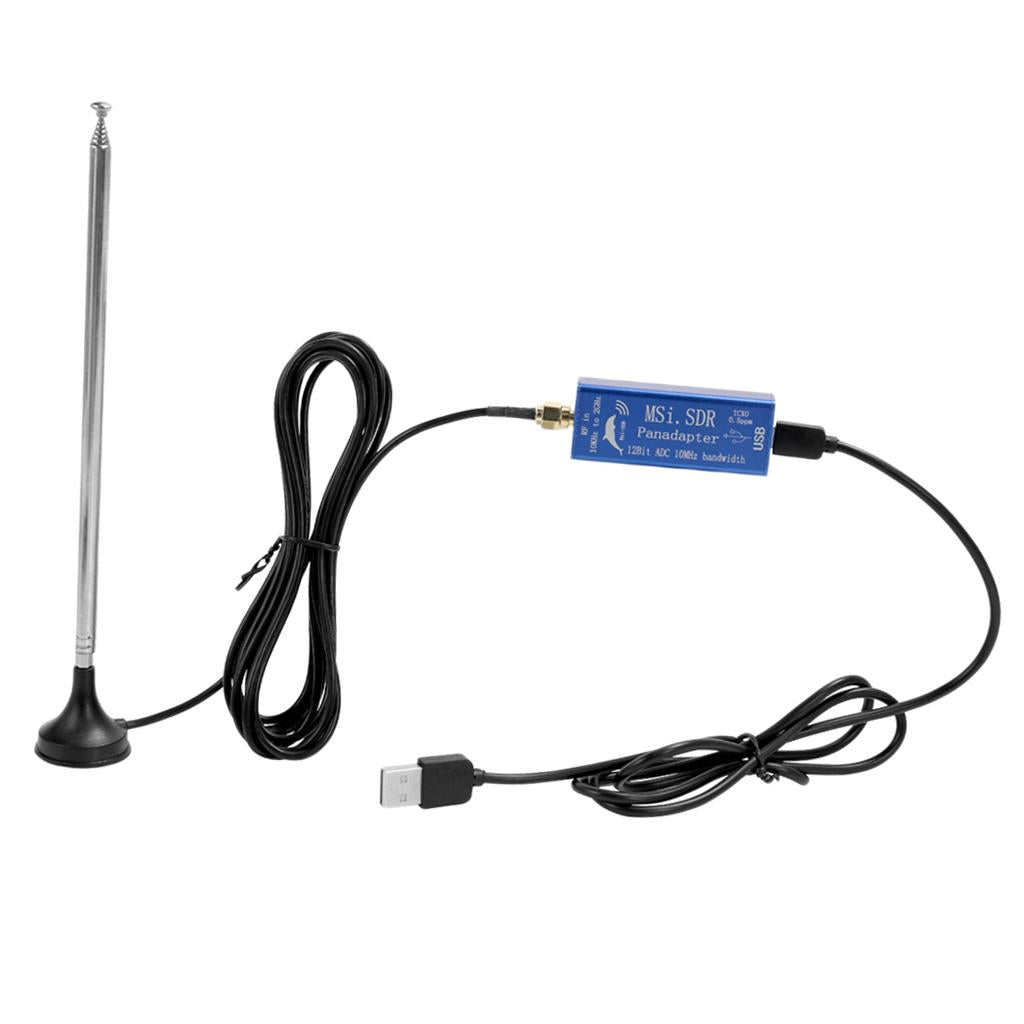

Package Includes:

1x MsiSDR host X1

1x Micor USB cable (1.0M)

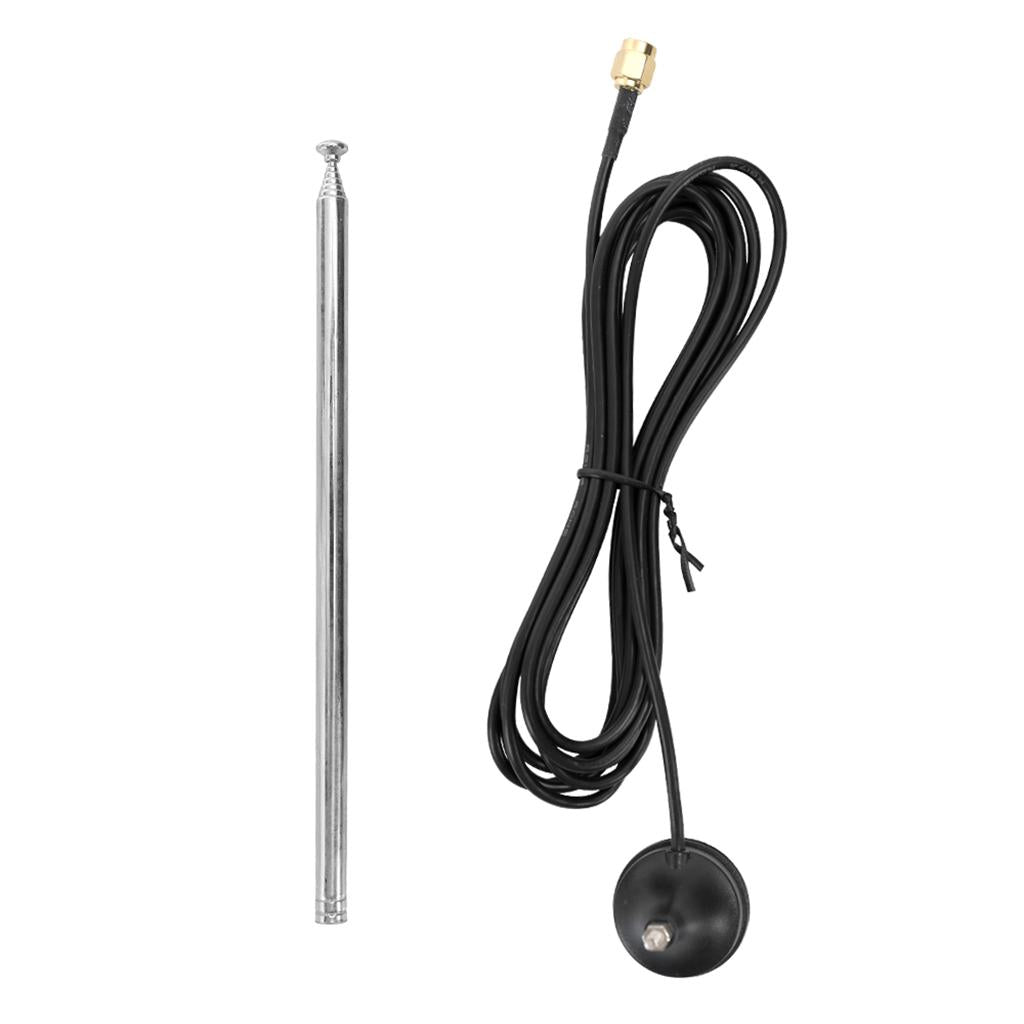

1x Test antenna
