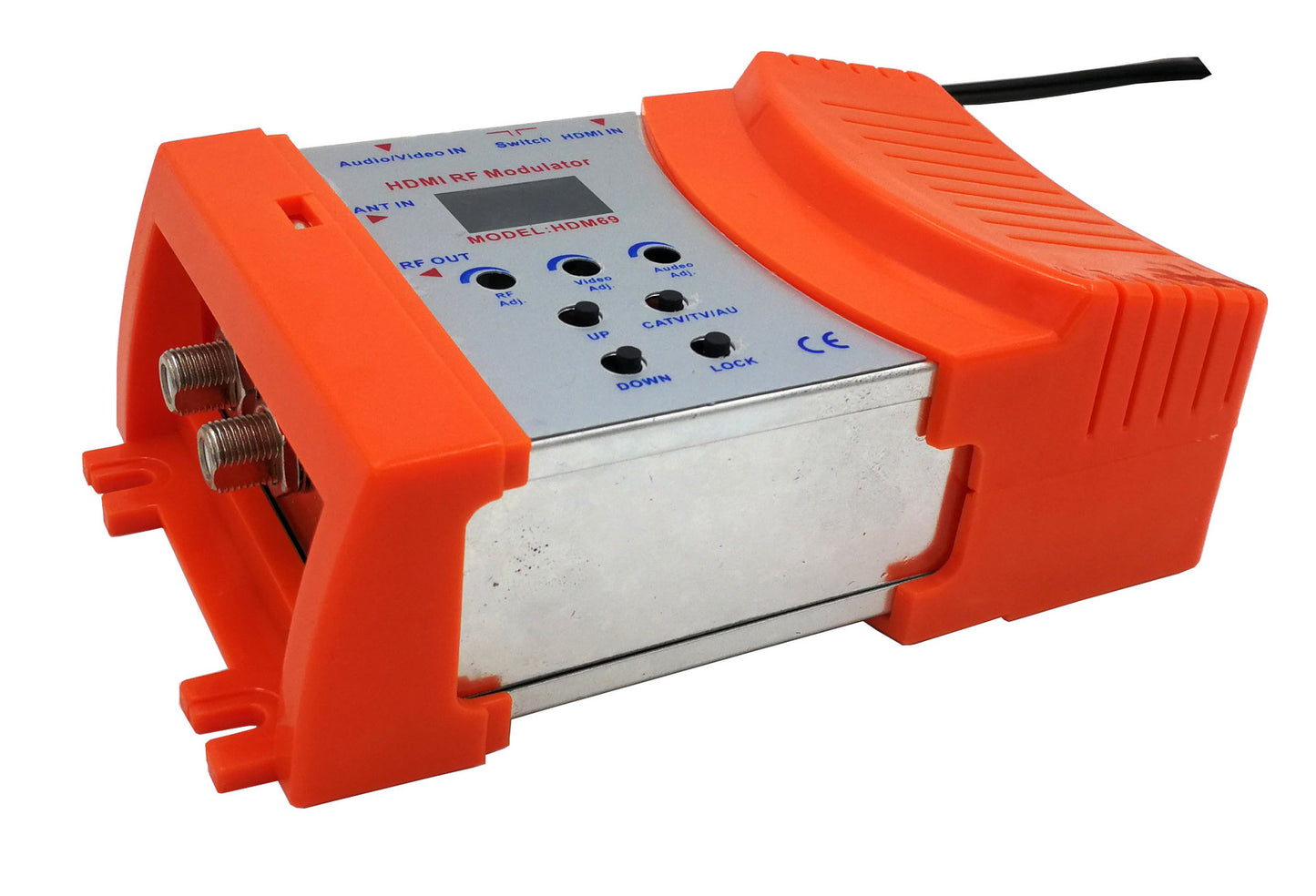

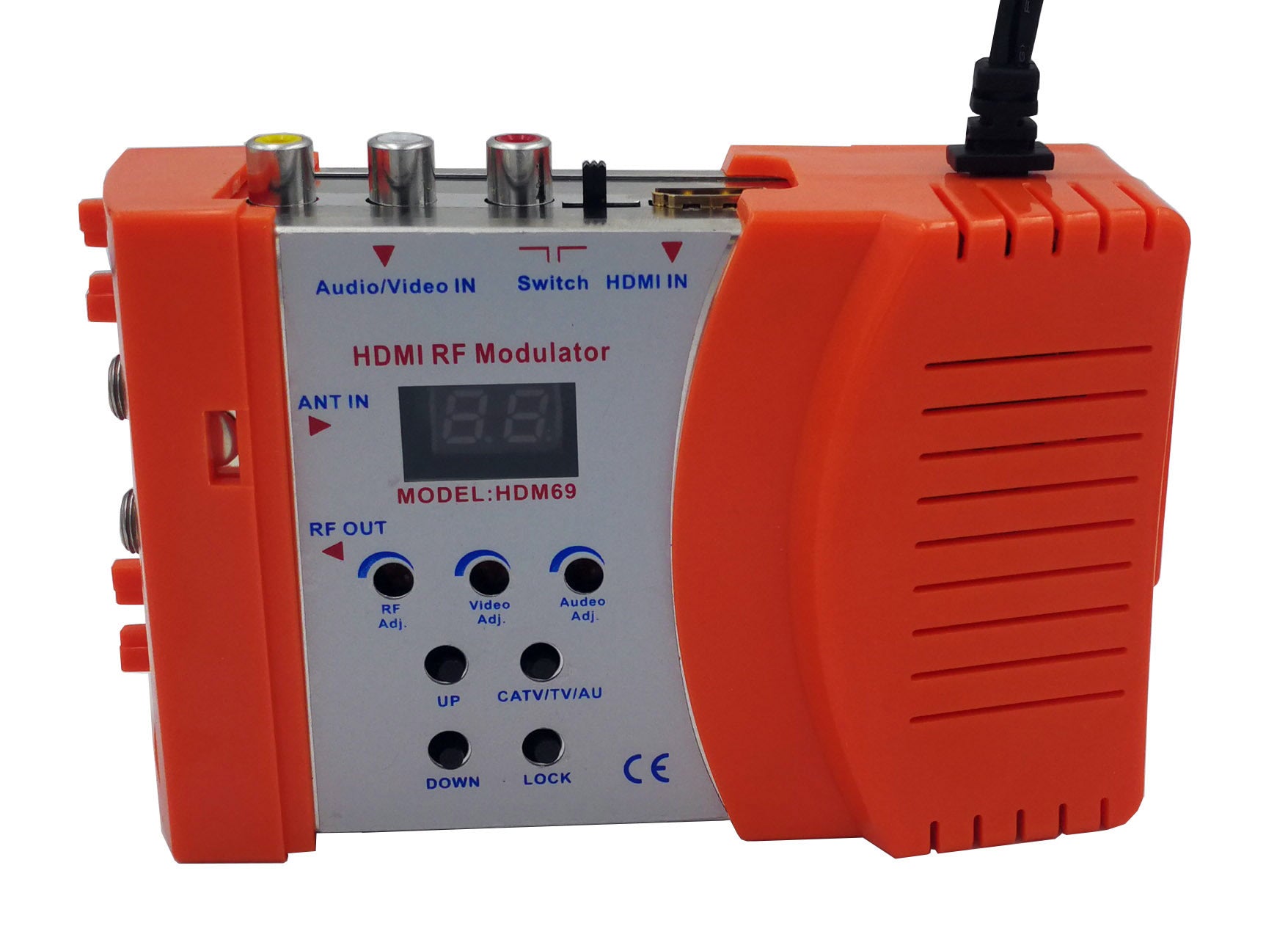

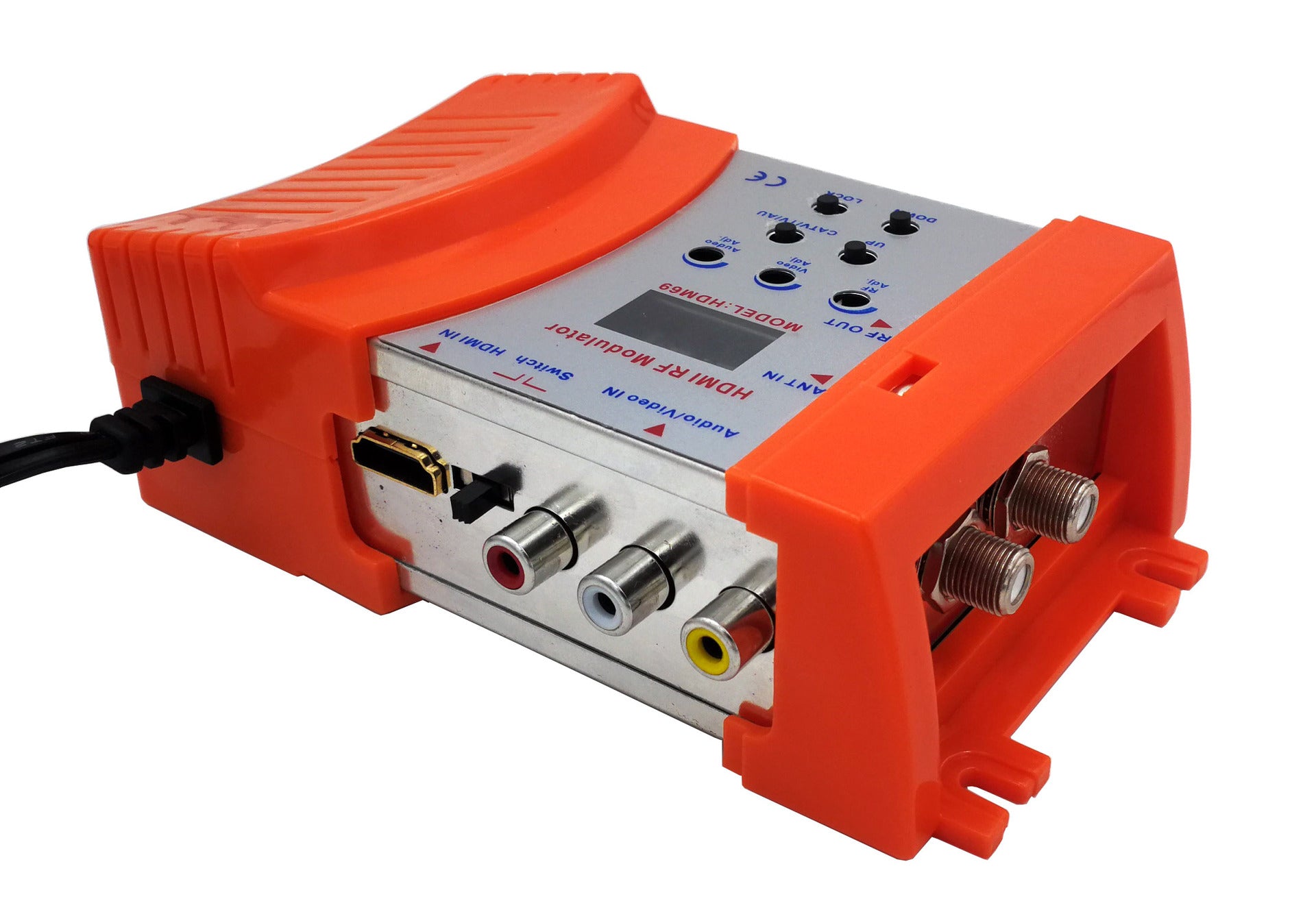

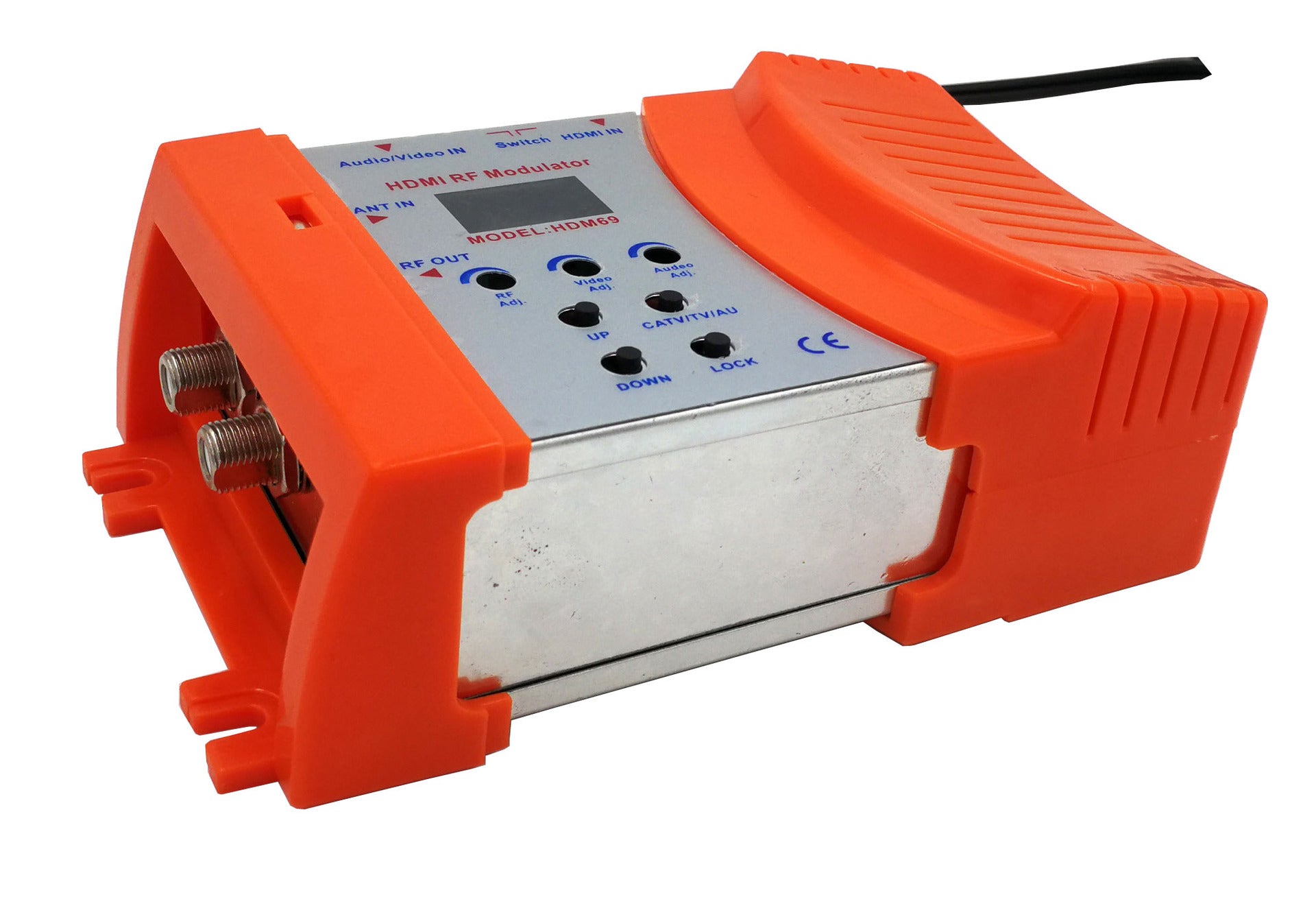

HDMI Modulator HDMI/AV TO RF HD Modulator HDM69C

ITEM

SPECIFICATION

ITEM

SPECIFICATION

Frequency Range

45~870MHz

Video Input Level

0.8V _P-P  for 80 %± 10 %  modulation

Output Level

90dBμV

Video Input Level Adj.

0.4V _P-P  ~ 0.8V _P-P

A/V Ratio

-15±2Db

Video S/N Ratio

55dB

Visual Carrier Freq. Accuracy

± 5KHz

Video Freq. Response

± 2.5dB(50Hz to 4.2MHz)

Output Return Loss

14dB

Video Input Impedance

75Ω

Spurious Rejection

50dB

Audio Freq.Deviation

± 50KHz

Output Impedance

75Ω

Audio Freq. Response

± 2dB

HD Input Resolution

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Audio Input Impedance

600Ω

HDMI Version

HDMI 1.3

Input Voltage

100-240V ～ 50-60Hz

HDCP Version

HDCP 1.3
