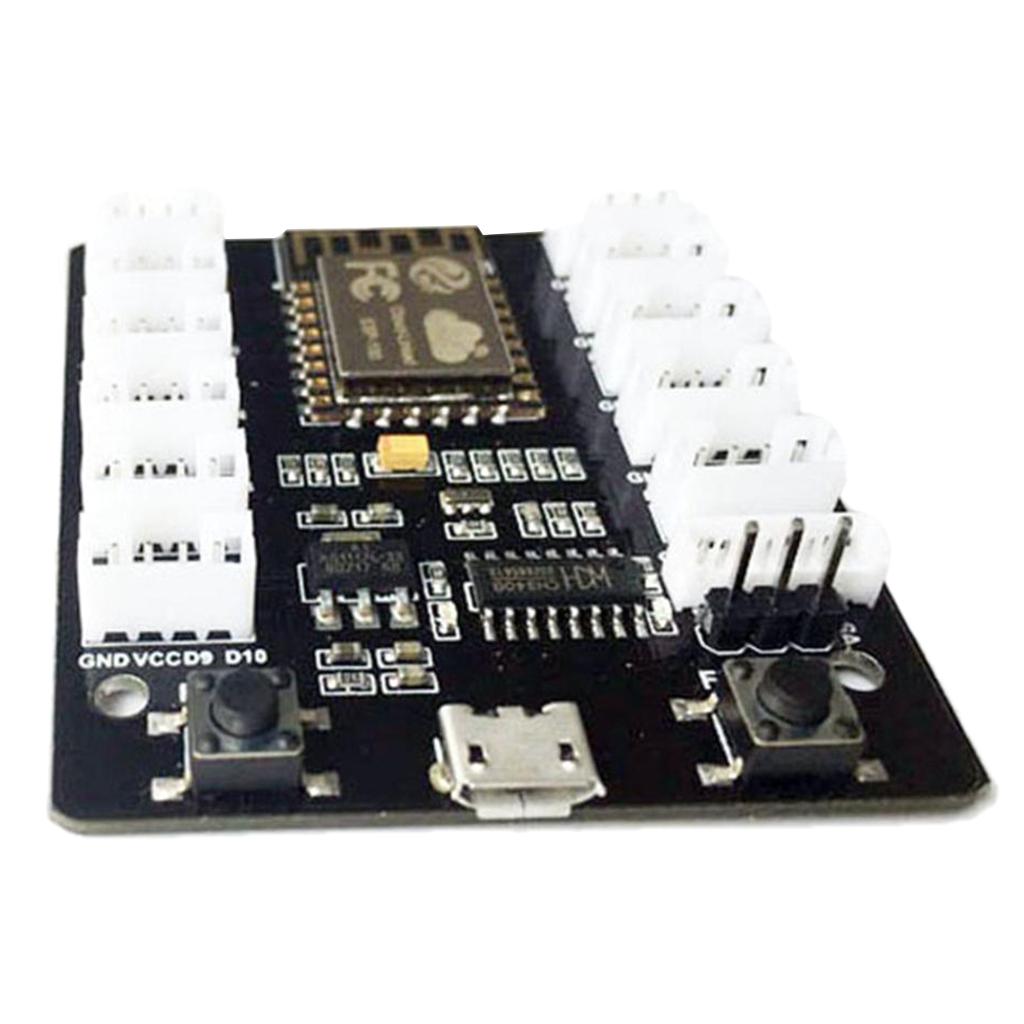

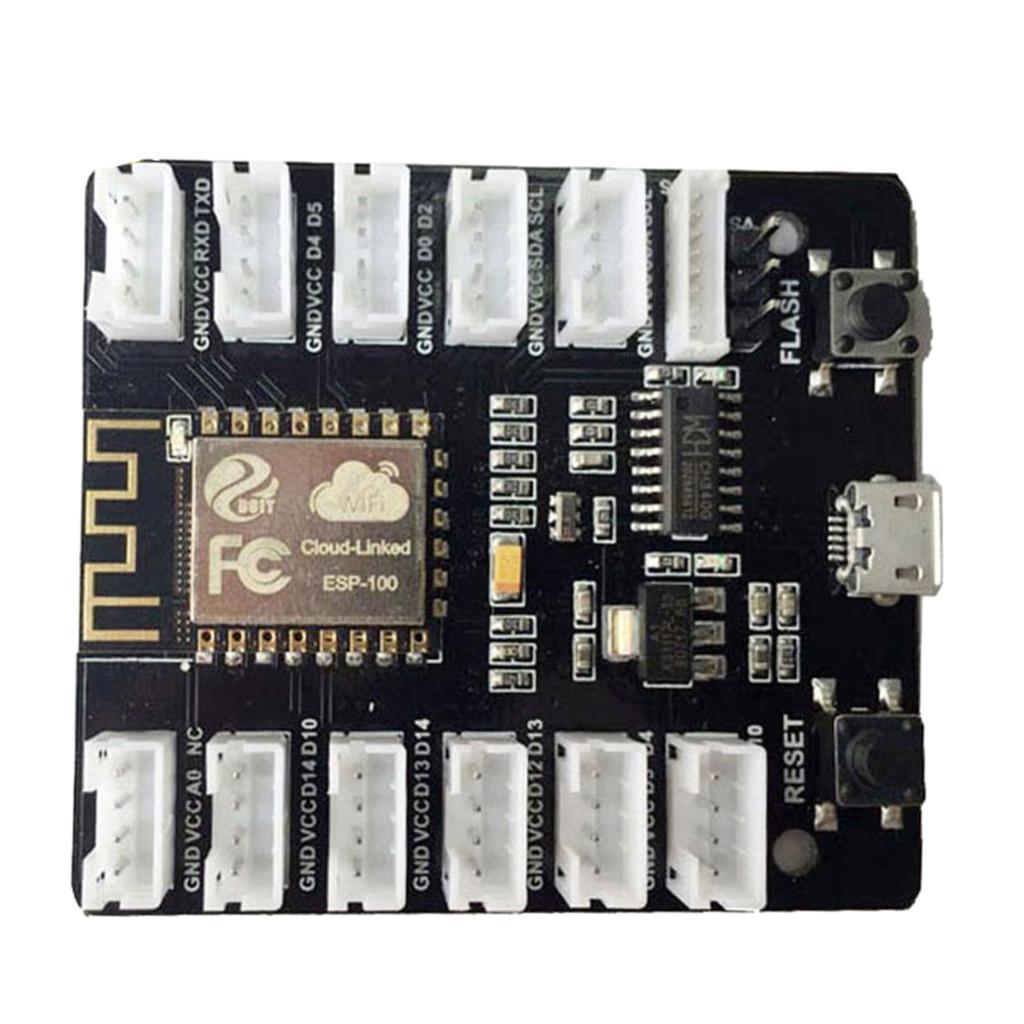

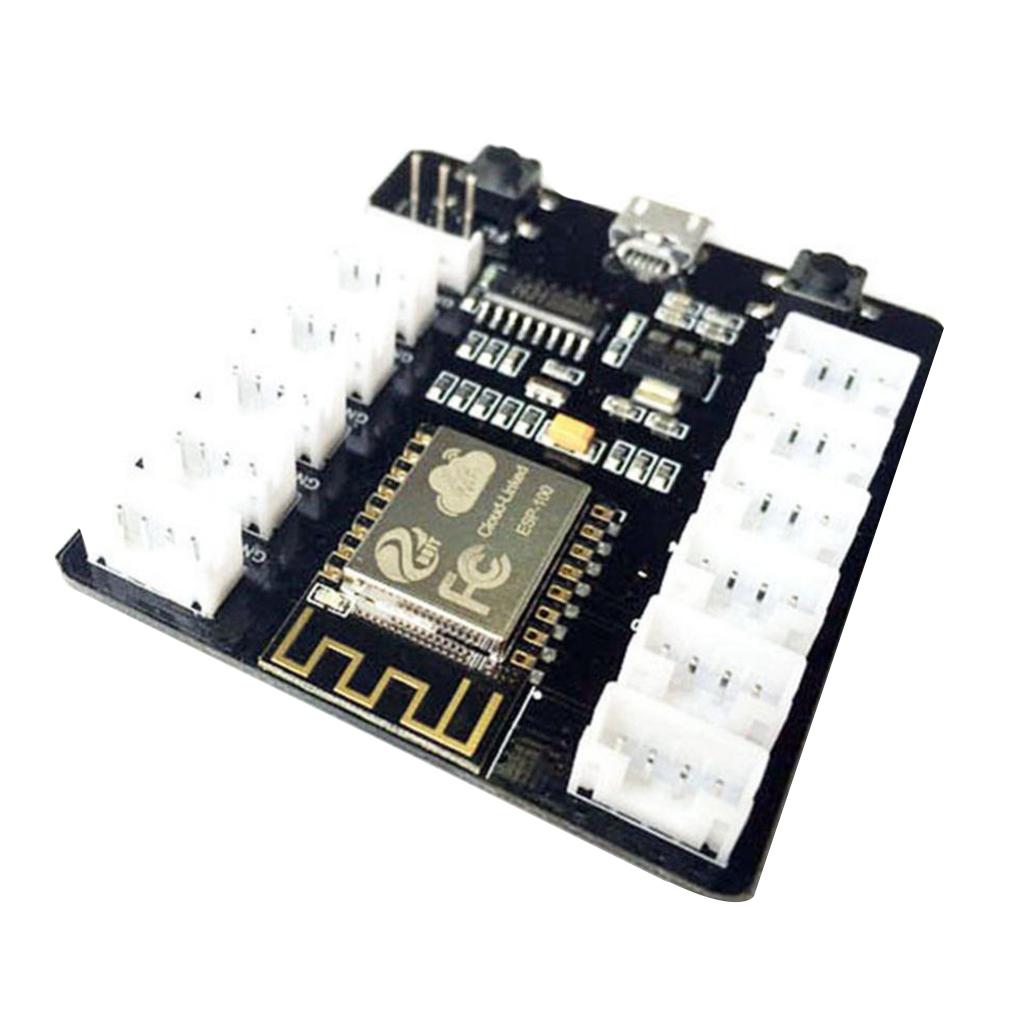

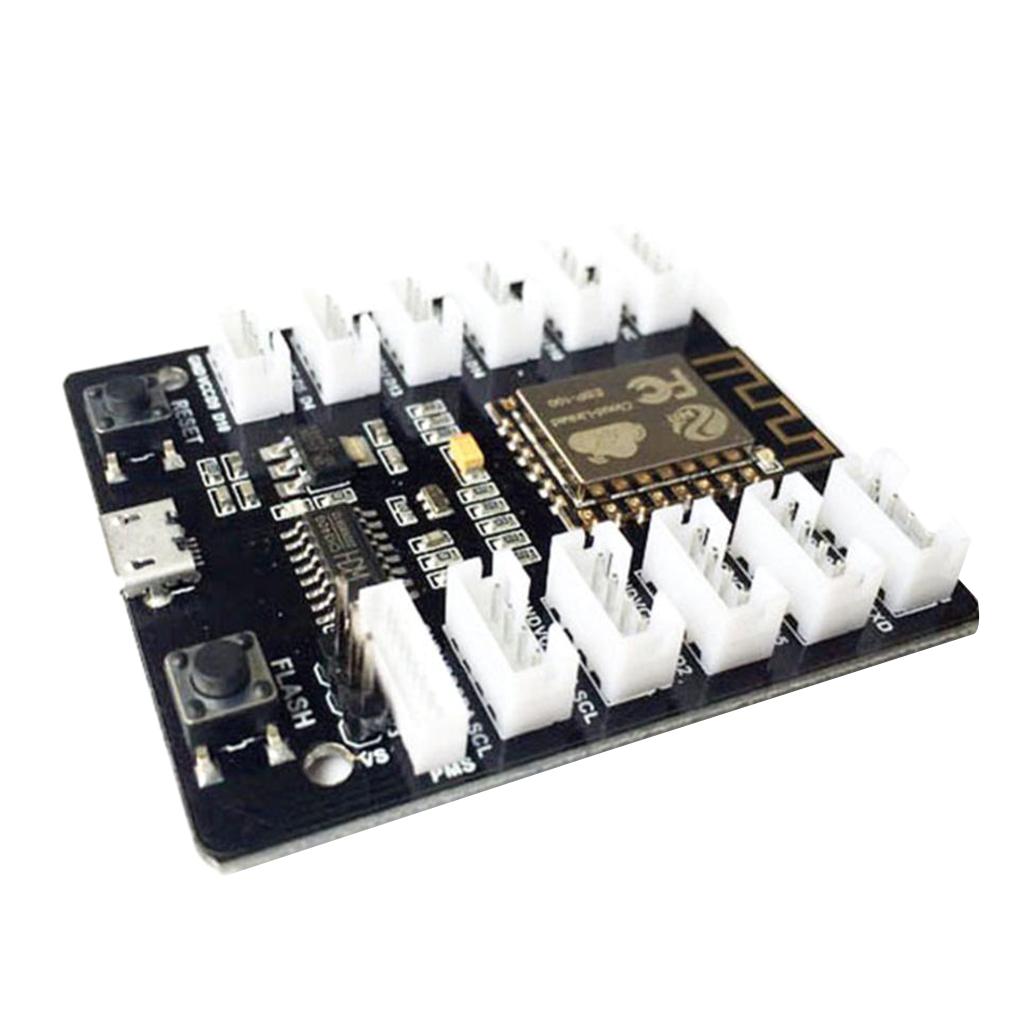

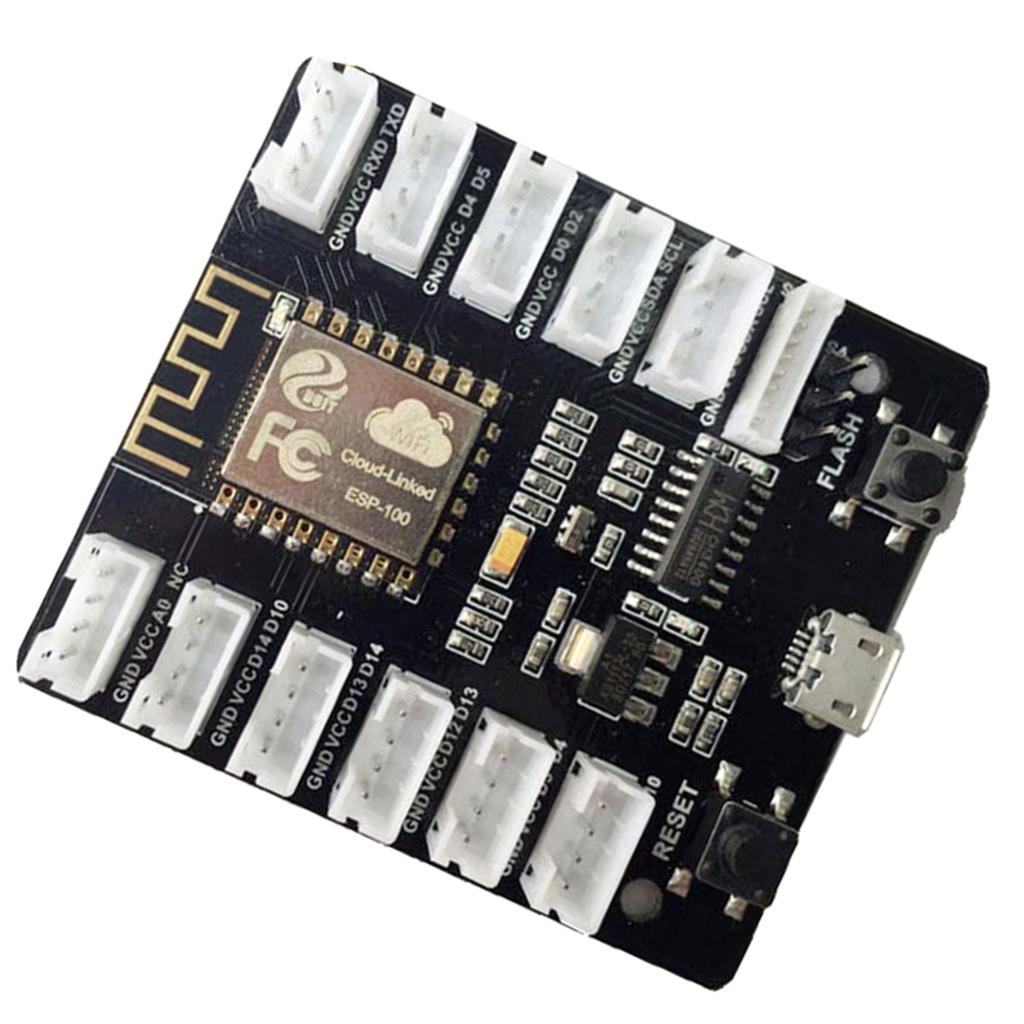

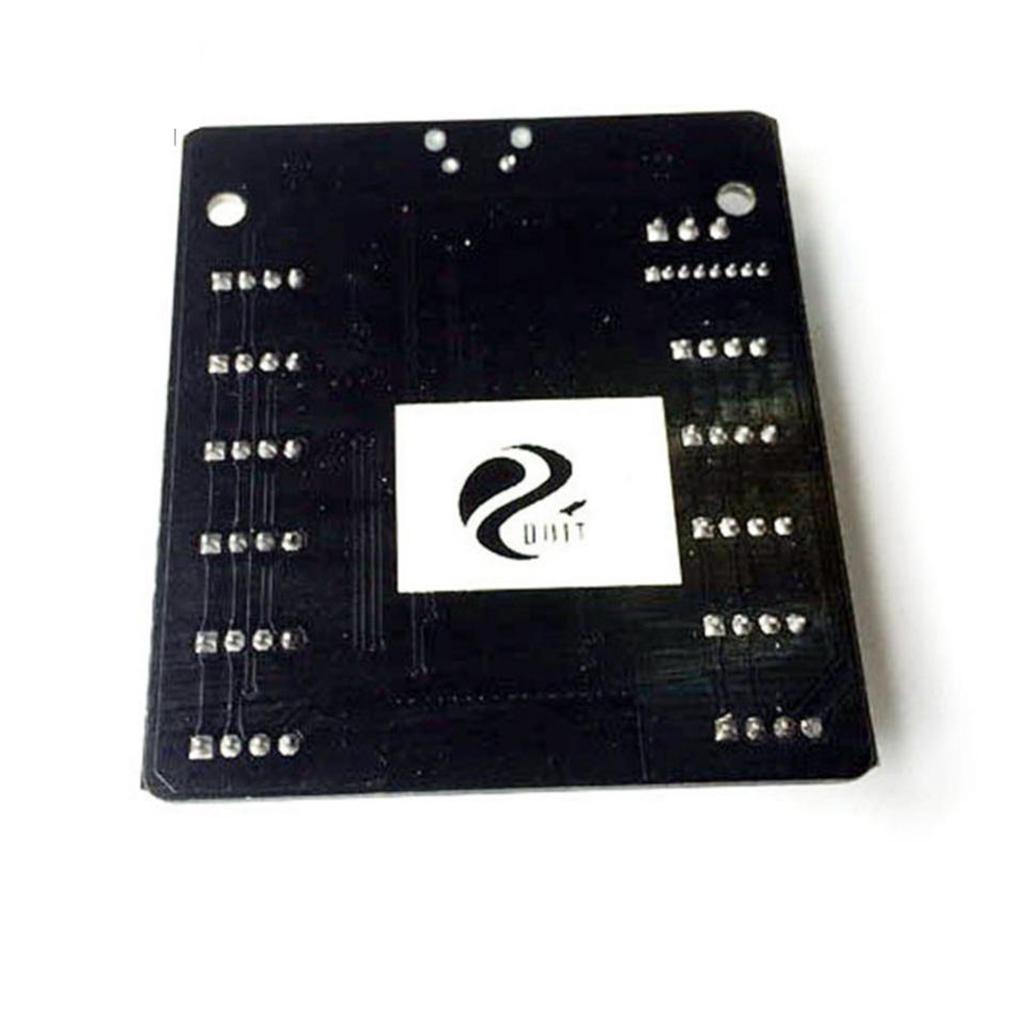

Grove Sensor kit Shield IOT Board Extension ESP8266 WiFi Grove kit

Description:

Grove sensor kit Shield IOT Board extension esp8266 WiFi Grove kit Board pms5003 WiFi sensor Remote control shield
Module is designed based on esp8266 by Espressif Systems, which is a competitive WiFi solution. The module has the following interface for users, such as UART, IIC,AIO,DIO etc.
Grove connector pitch is 2.54mm. The PM5003 connector pitch is 1.27mm (NC,NC,NC,RX,TX,NC,GND,VCC)(Up to Down)
ESP8266 WiFi Kit Development Board Kit PMS5003 WiFi Sensor Shield Remote Control Extension Board ESP-12F - Arduino Compatible SCM & DIY Kits Module Board
Independent research and development, powerful, ultra-low power consumption, can achieve rapid development

Specification:

Material: Alloy
Product detailed size: 5.65x5mm/0.22x0.20inch
Parameters
802.11 b/ g/ n wireless standards
STA/AP,STA+AP modes support
TCP/ IP protocol stack, One socket
Supports standard TCP/UDP Server and Client
Supports serial port baud rate configuration:
1200/2400/4800/9600/19200/38400/57600/74800/115200 bps
Supports serial data bits: 5/6/7/8 bits
Supports serial parity: none
Supports serial stop bits: 1/2 bit
ESP8266 GPIO Pinout 0/2/4/5/9/10/12/13/14/15/16 / ADC/ EN/UART TX/ UART RX
WiFi operation current: continuous transmission operation: ≈70mA (200mA MAX), idle mode:<200ua;< span="">
Serial WiFi transmission rate: 110-460800bps
Temperature: -40 ~ + 125
Humidity: 10%-90% non-condensing

Package Includes:

1 Piece Sensor kit
