DC12V Learning Code RF Wireless 4CH Receiver 4 Buttons Transmitter 200meter

About the product
1. 100% Brand new and high quality
2. Lightweight and portable
3. Easy to install and use

Specifications
1. 12V 2CH 10A RF wireless remote control system.
2. It is a learning code wireless remote control switch (receiver), the output way / working way can be changed as you like, it is easy to match the transmitter.

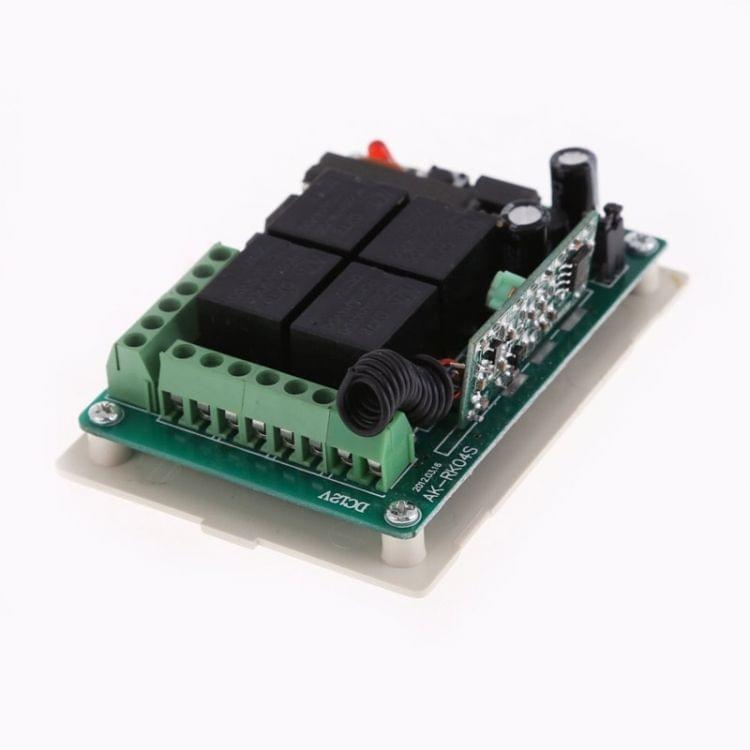

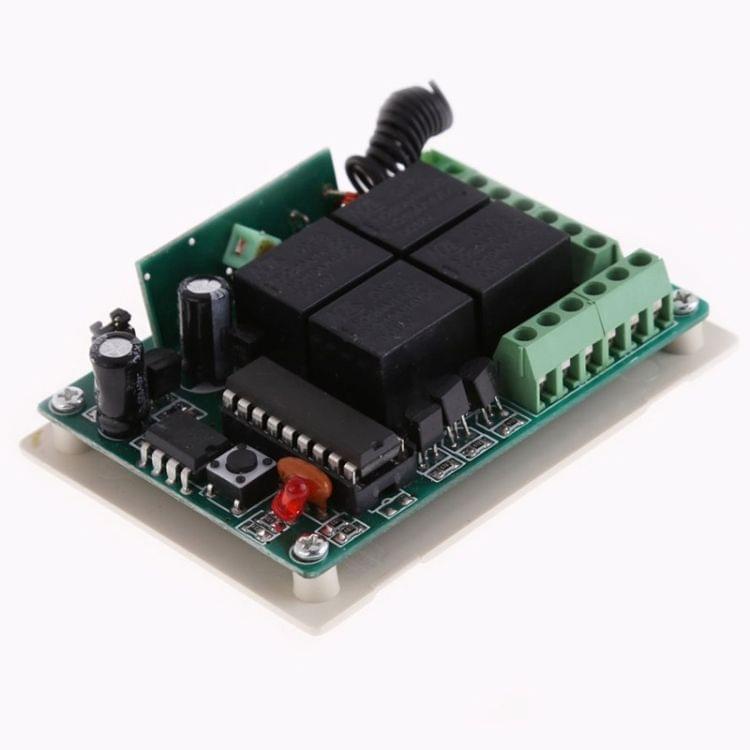

3. The AK-RK04S-12 4 channel wireless remote control switch with 4 Relays.
4. It can make the equipment turn or reverse on / off and so on to come true.
5. The volume is small and the performance is stable and reliable, high receive sensitivity.

Application range
1. Auto door, window, lifting equipment, entrance access, up and down controller, alarm system industrial control and security
2. The switch can compatible 2262 / 2260 / 1527 / 2240 chip and several code wireless remote control. So it can meet someone need of choosing the wireless remote control as they like to work with it.

Output working way
1. Self-lock --- Connect the JP1 with the cutting out cap.
2. Jog --- The cutting-out cap is non-occupation, JP1 and JP2 do not connect either.
3. Inter-lock --- Connect the Jp2 with the Cutting out cap,
4. 2 Channel is self-lock and 2 channel is Jog, connect the Jp1 and Jp2 with the cutting-out cap.
Jog----Press one button is ON. Loosen your finger on the same button is OFF. (Need one channel switch and one button remote control)
Self-lock-----Press one button for one time is ON. Press the same button again is OFF.
(Need one channel switch and one button remote control)
Inter-lock-----Press one button is ON, press another button is OFF. (Need one channel switch and 2 buttons remote control).

Please notice that

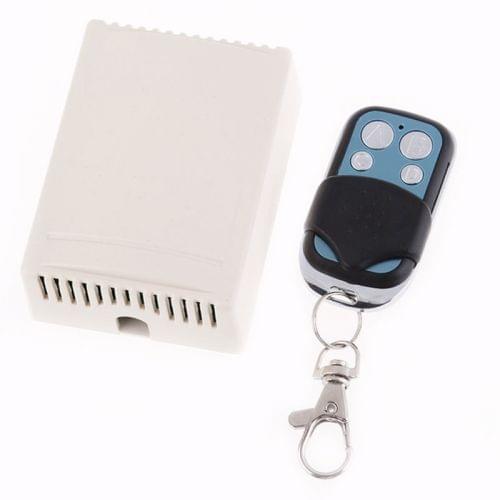

Here is the 4CH receiver and 4 buttons transmitter, you just can choose the self-lock or jog or self-lock and jog together.

Learning and remove method
1. Press the learning code. The indicator flash, loosen your finger, press any button of the remote control, the indicator flash 2 times and off. It means you learn it successfully.
2. It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control.
3. Remove / clean: Press the learning button about 8 seconds, the indicator turn on to off, it means the information that you keep have been removed successfully.

Features
1. This product covers application ranging from simple domestic remote control to autonomous control.
2. Extremely easy to set up and use.
3. It is applied to the annunciator of family, car, motorcycle etc.
4. These remote controls are designed to control a wide variety of electronic devices with a wireless signal.
