Cooling CPU Cooler Fan Single Tower Hydraulic Bearing for LGA 1200/115x/1700

Description:

55pcs 0.4x50x128mm fins, the single piece heat dissipation area is 140CM²., the cumulative heat dissipation reaches 7700CM². It exceeds the traditional radiator by more than 25%.

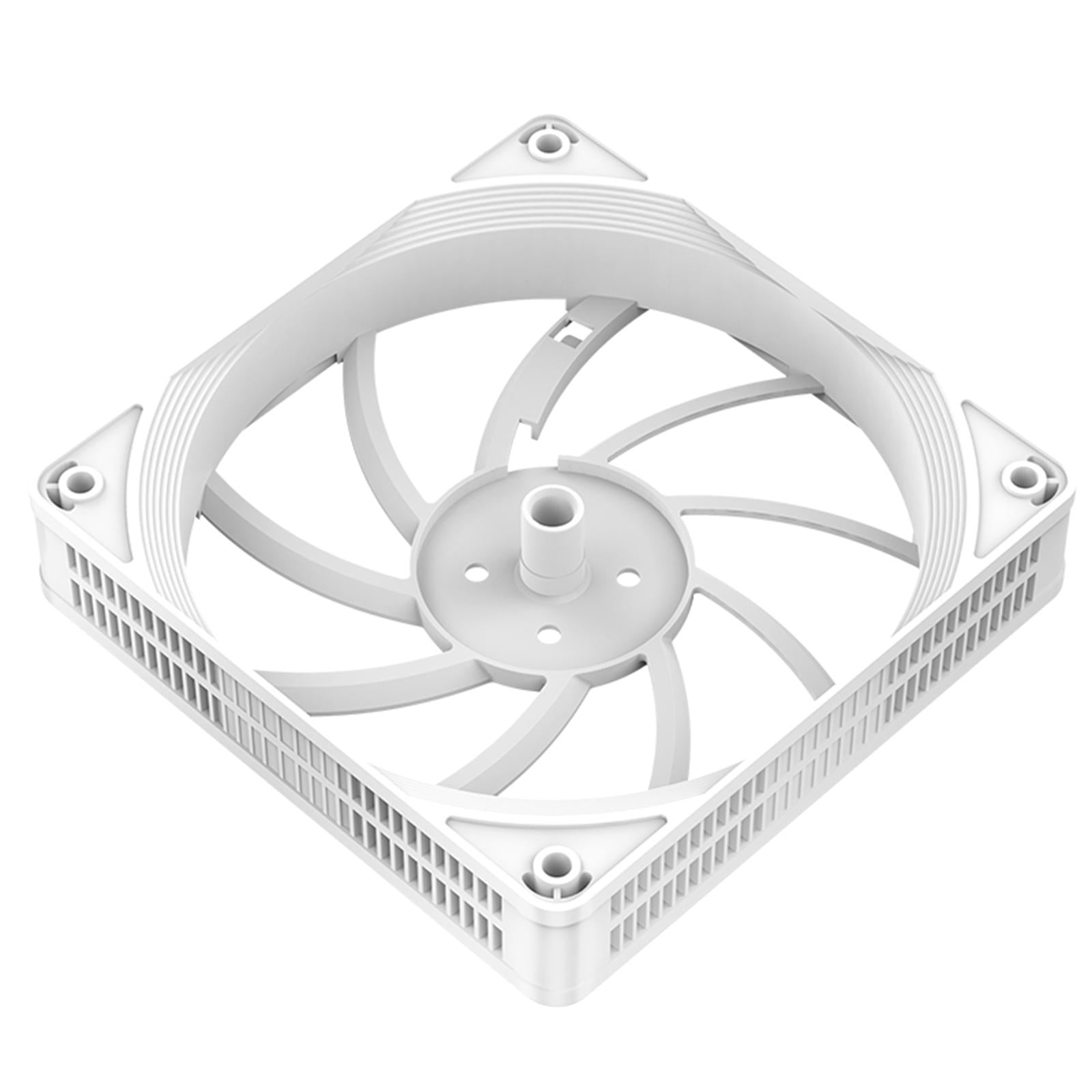

Fan design, 9 air guide ribs design, make the wind pressure reach 2.1mmH20, weight 154g, speed: 1500/min, air volume: 68.4CFM, 4pin pwm motherboard speed control.

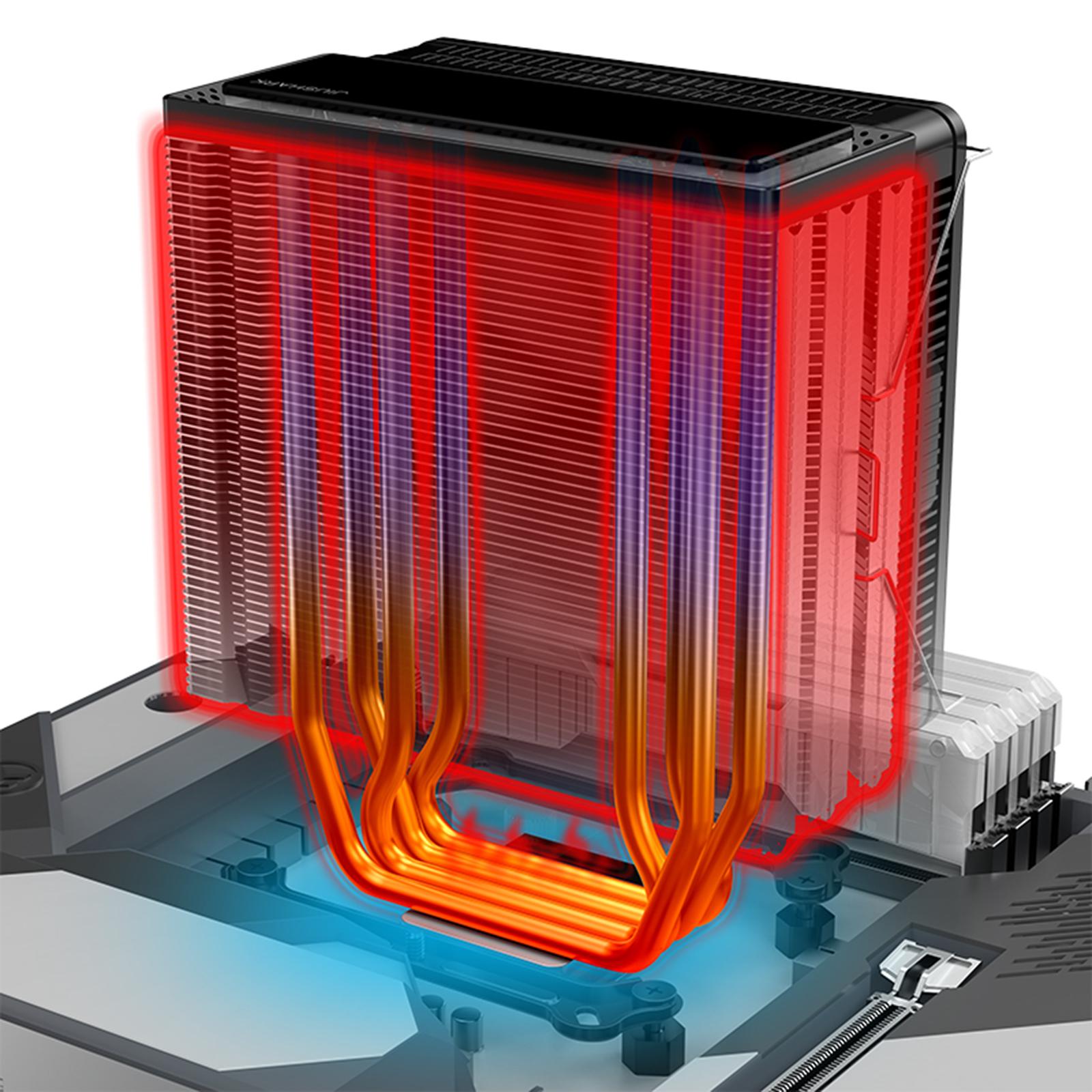

Heat dissipation module The net weight of the heat dissipation module is 588g, the heat pipe directly touches the uniform heat pipe distribution + complex bending process, and the heat disperses faster.

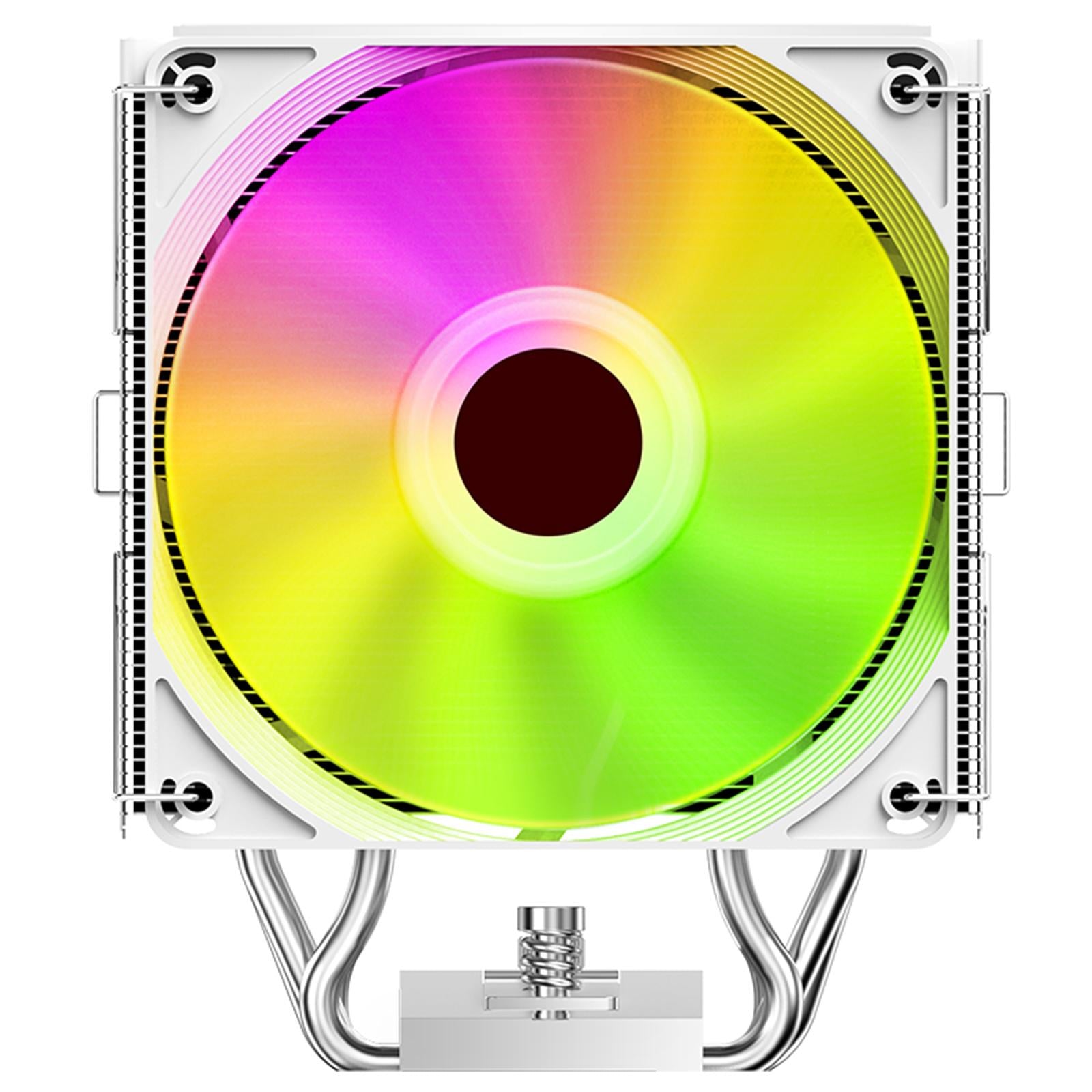

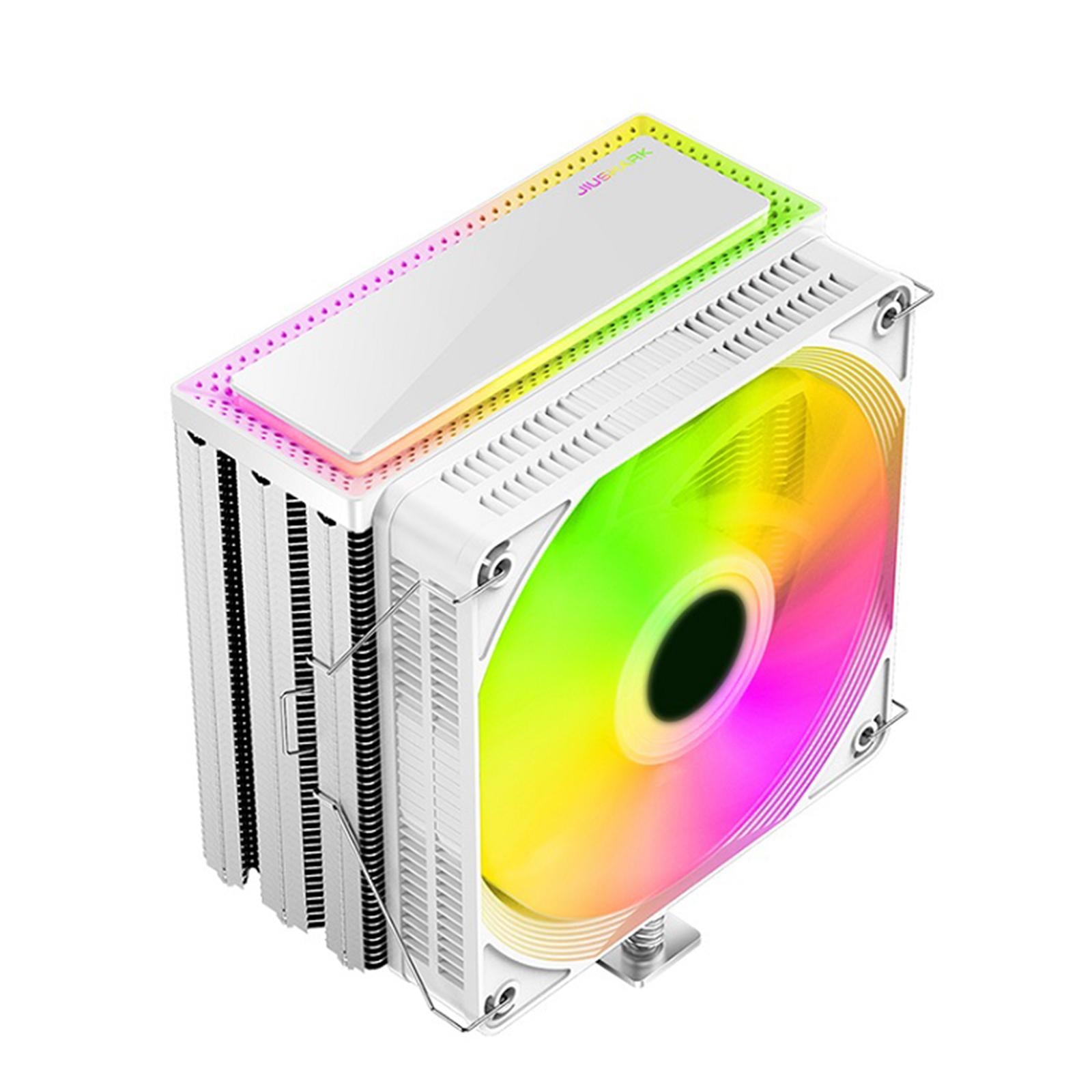

The extravagant 14 LED high brightness lamp beads of the LED light board emit light evenly, without breakpoints, transparent fans, transparent fans, uniform light effect without breakpoints; softer air intake and lower noise.

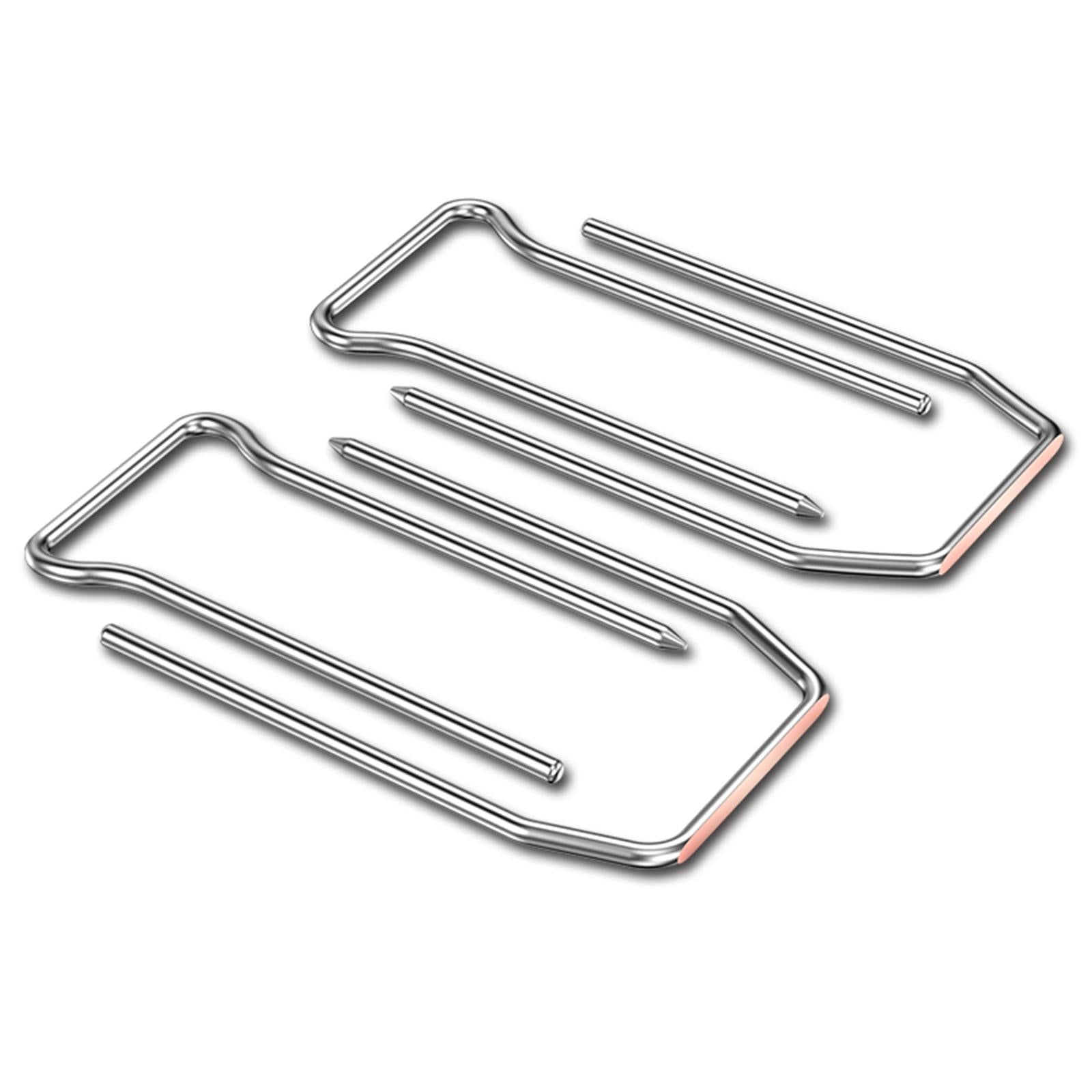

2mm thick tempered glass panel, no need to worry about surface scratches and fingerprints. Metal buckle 2mm thickness, center through beam metal buckle.

Specification:

Type: CPU radiator (single tower four heat pipes)
Fan Color: White (Single Fan)

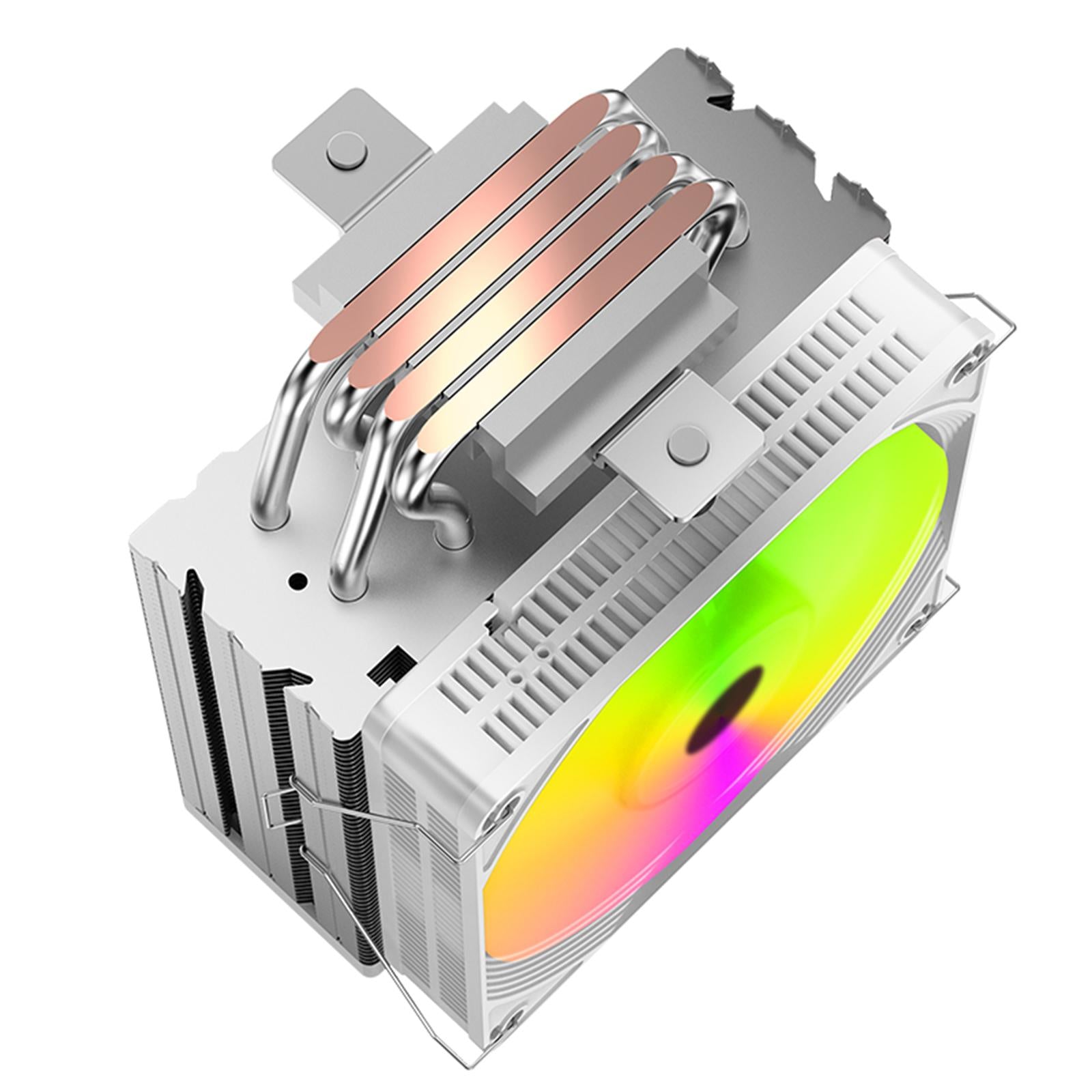

Heat pipe specification: Φ6mm x4pcs
Fan Speed: 600-1500RPM(±10%)
TDP: 230W (CPU 11900K measured)
Fan air volume: 26.18-68.4CFM
Fan air pressure: 0.36-2.05mmH20
Fan noise: 20-35.3Dba
Fan terminal: PWM 4PIN
Bearing form: Hydraulic Bearing
Fan rated voltage: 12V DC
Fan rated current: 0.35A (MAX)
Fan power consumption: 8.4W(MAX)
Scope of application: Intel: LGA 1200/115X/1700,
Scope of application: AMD: AM4
Product Net Weight: 770g

Size Chart:

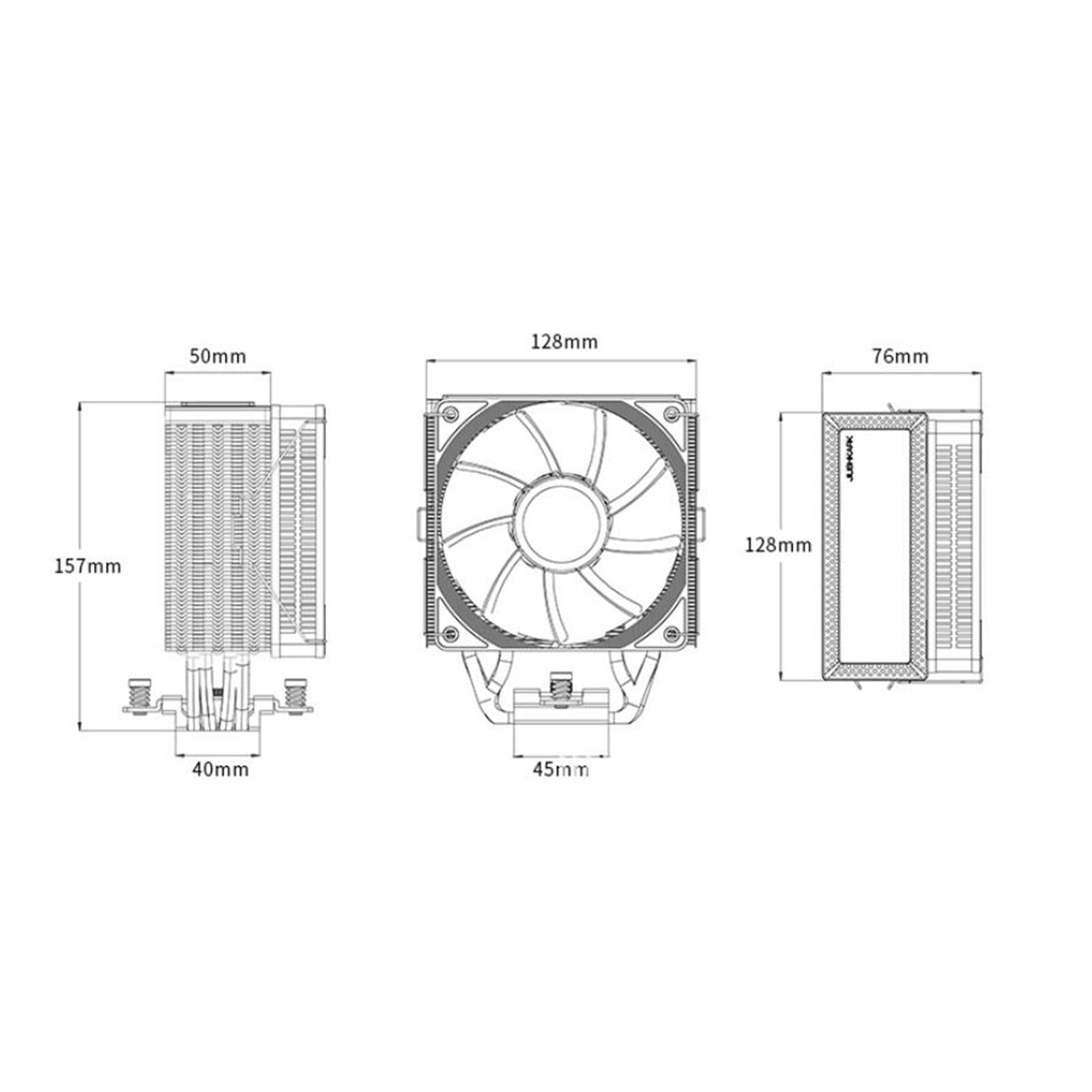

Product size: 128x76x157mm/5.04x2.99x6.18inch (LxWxH)
Fan size: 120x120x25mm/4.72x4.72x0.98inch (LxWxH)

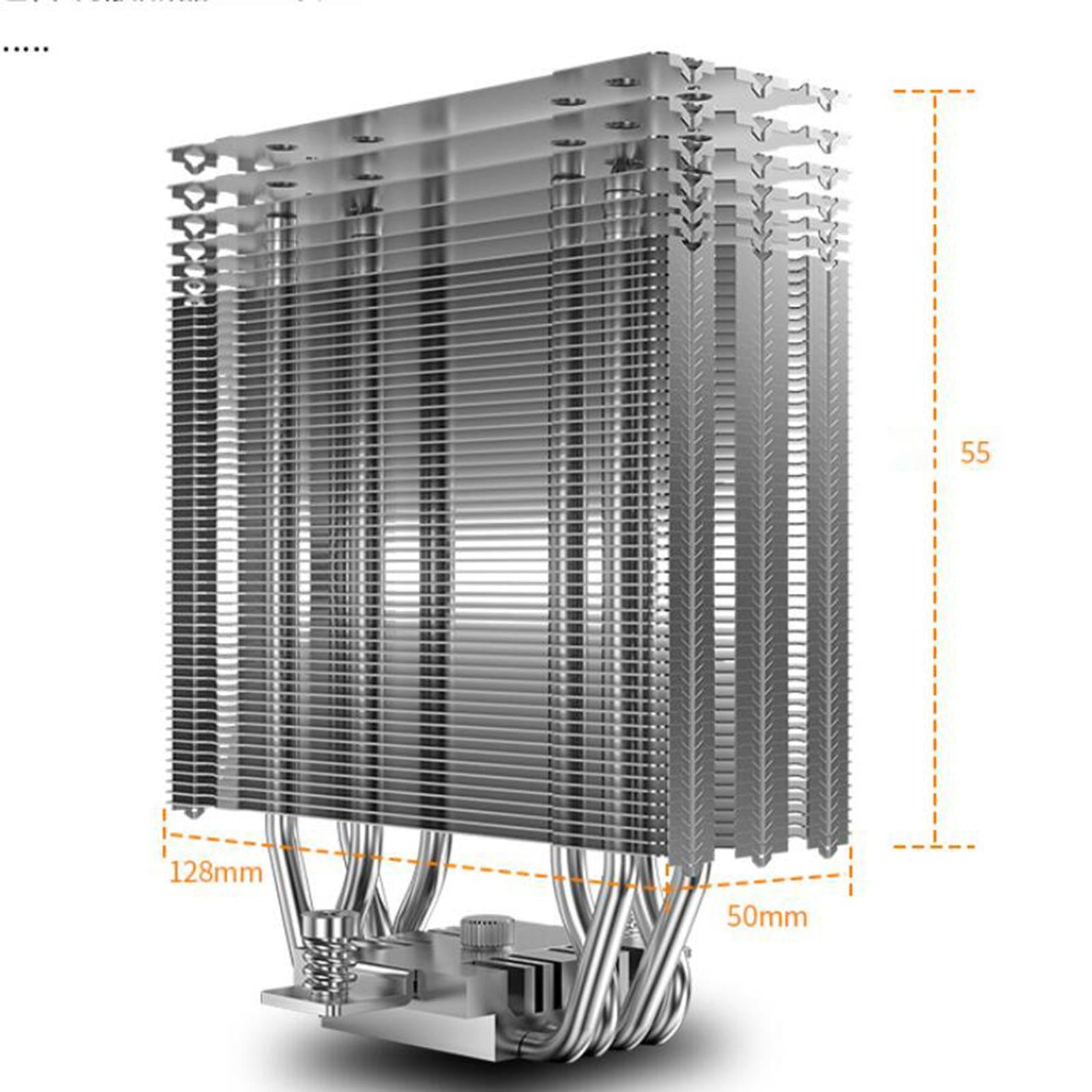

Heat sink group size: 128x50x150mm/5.04x1.97x5.91inch (LxWxH) (excluding top cover)

Package Includes:

1 Piece CPU Cooler Fan

Note:

1. Please allow slightly error due to manual measurement.
