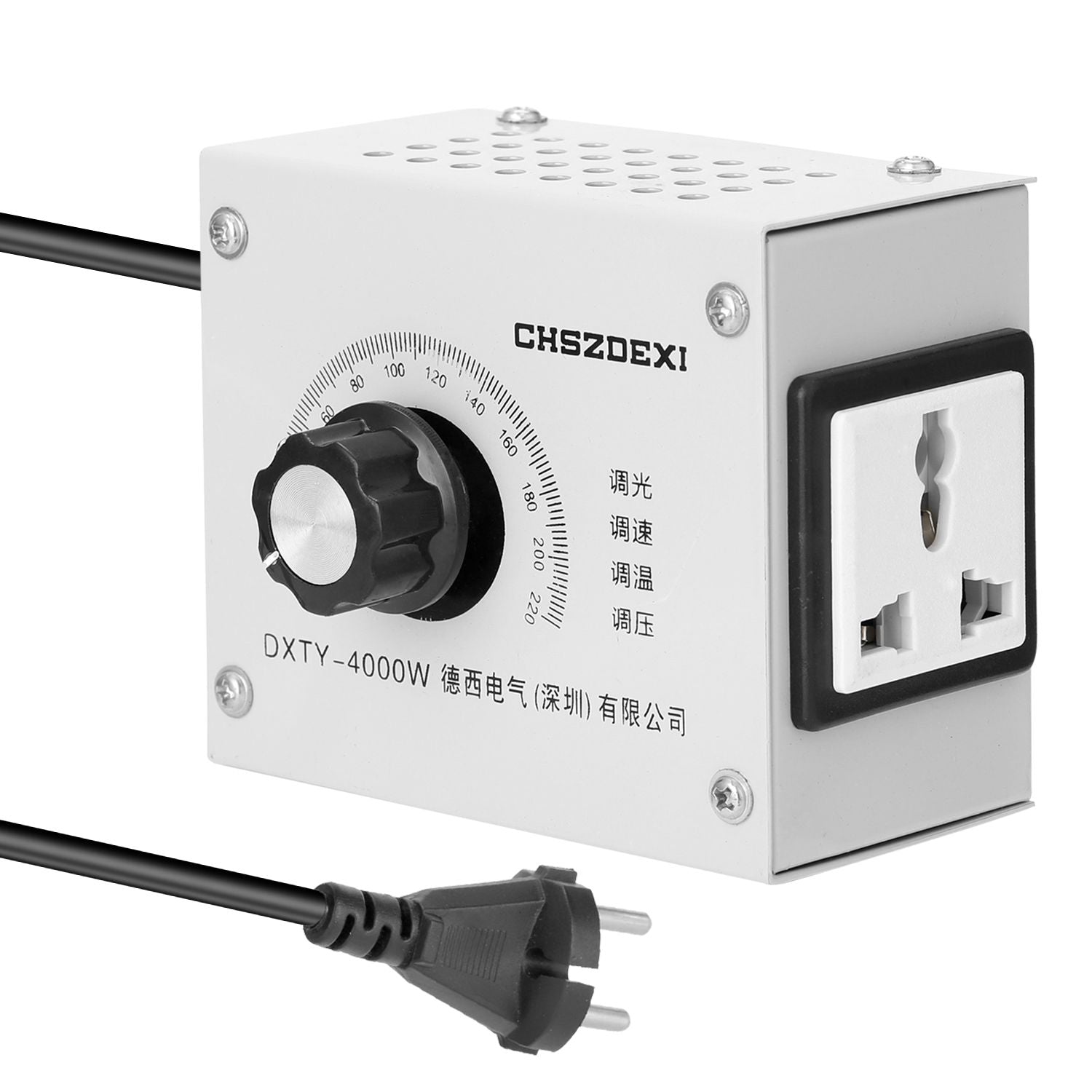

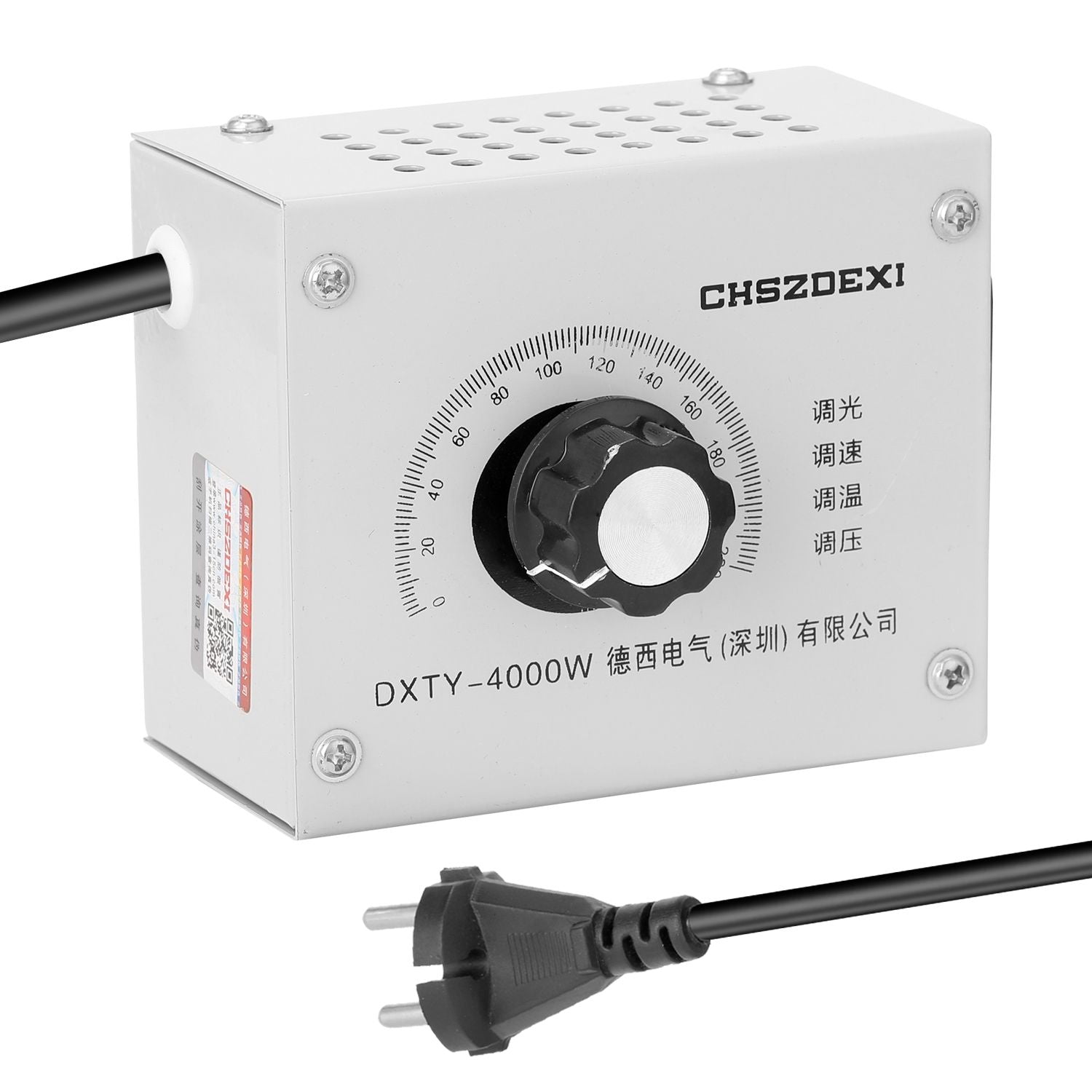

Compact Variable Voltage Regulator Portable Speed - EU Plug

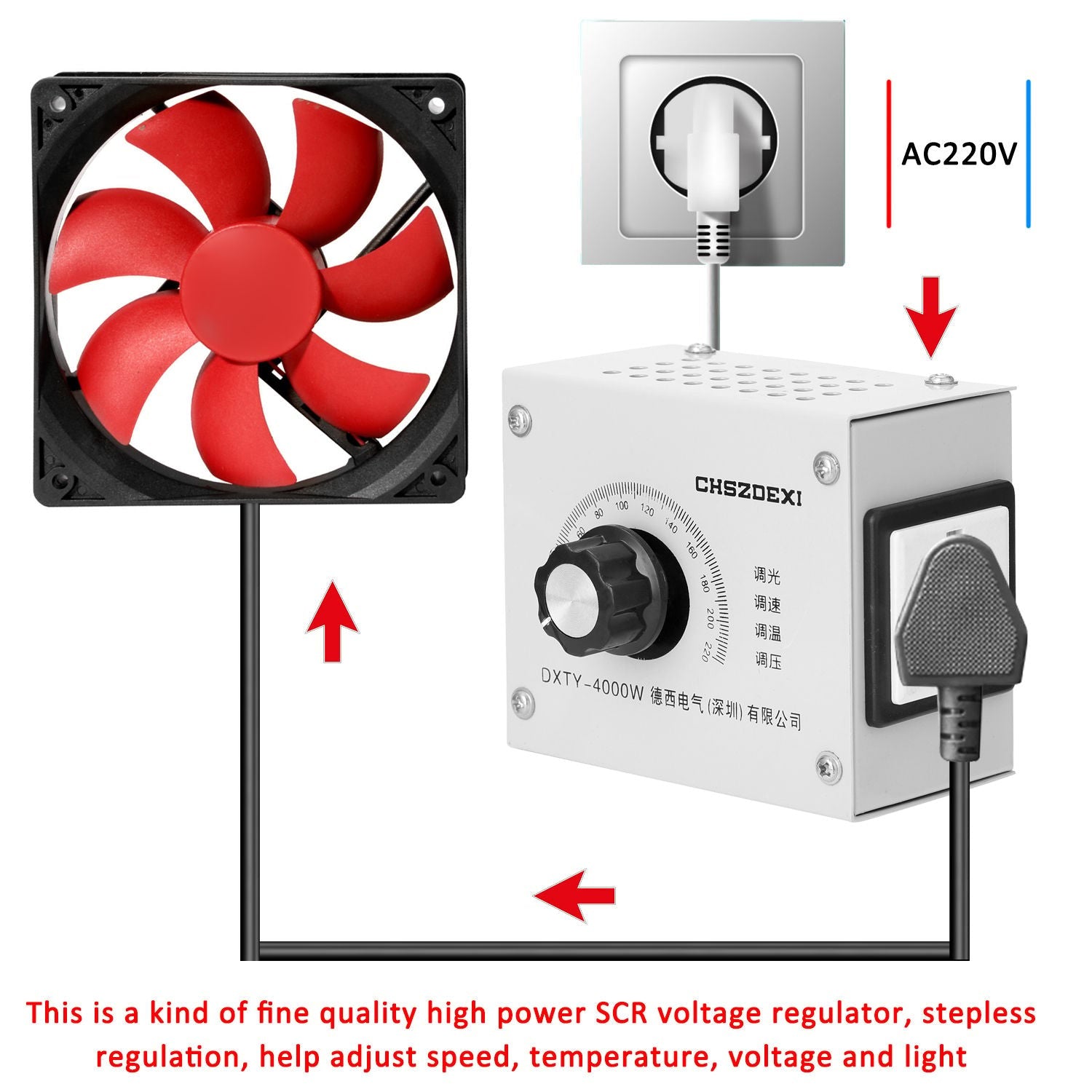

This is a kind of fine quality high power SCR voltage regulator step less regulation help adjust speed temperature voltage and light.

Adopt high-temperature resistant FR-4 circuit board origin imported chip SCR full aluminum thermal fin precisions resistance with high voltage condenser.

No postpone and no delay with crest voltage absorb circuit can protect the high power SCR effectively. You can have a try.

Features:

Mini size portable and lightweight strong power easy to use.

High power SCR voltage regulator step less regulation help adjust speed temperature voltage and light.

Adopt high-temperature resistant FR-4 circuit board origin imported chip SCR full aluminum thermal fin precisions resistance with high voltage condenser.

No postpone and no delay with crest voltage absorb circuit can protect the high power SCR effectively.

Anti surge anti-spike RC absorb and multiple protection.

Flame retardant insulation out shell high temperature resistant rustproof anti high pressure and with fine durability.

Adopt multi functional industrial sockets thicken copper part design with fine contact and safety.

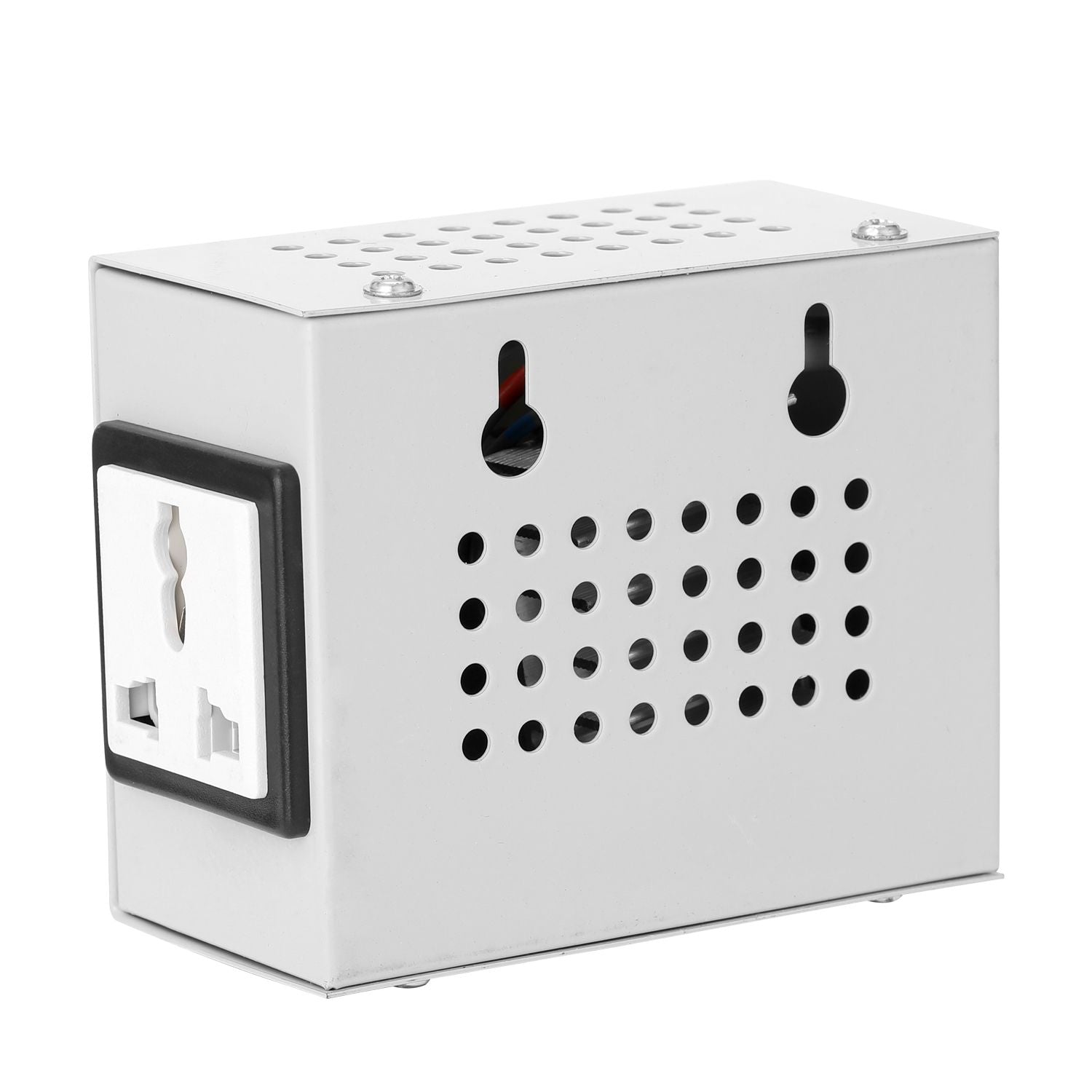

Humanized installation hole design keep flat place or hanging on it is decided by yourself.

Silent work energy saving stable anti-noise and with wide range of use.

Suitable for water heater tungsten lamp small motor electric iron and etc..

Notes:

When measuring the output voltage when it is empty it is a virtual voltage. It must be connected to a load of 20W or more to measure the correct output voltage.

Input AC power the output is also AC not DC.

The above mentioned 4000W refers to the ultimate power when working under resistive load.

The inductive load is 1/3 of the resistive load.

The resistive load means that the inductive load such as a tungsten filament lamp or a heating wire is a series-excited motor etc. and the circuit board electronic products are used with caution.

This product is a metal case and must be grounded safely.

Specifications:

Name: SCR Voltage Regulator

Material: aluminum

Color: grey

Input voltage: AC 220 V

Output voltage: 0-220 V

Max power: 4000W

Voltage adjusting range: 0-220 V

Rated current: 9A

Max current: 18A

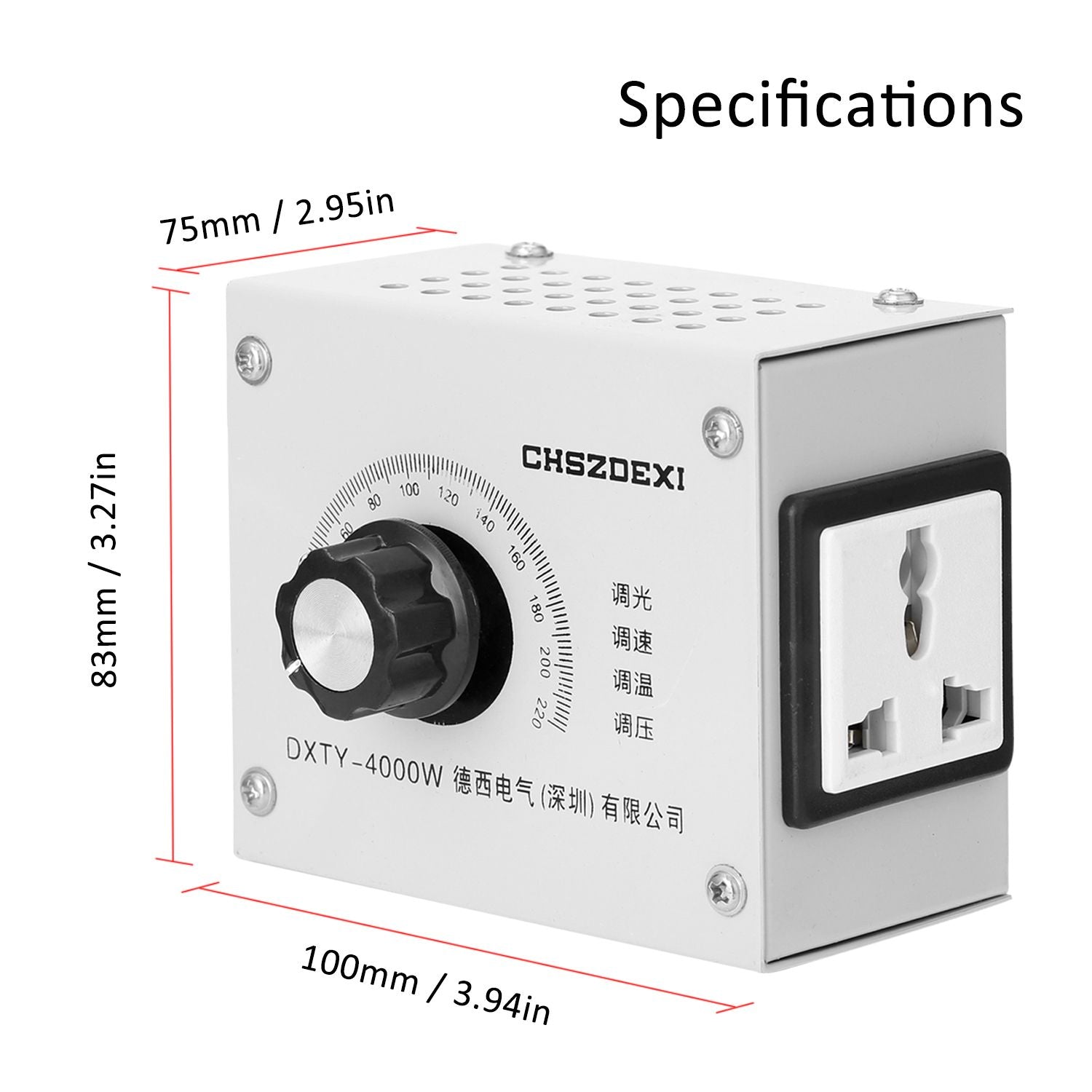

Main machine size: 100 * 83 * 75mm / 3.94 * 3.27 * 2.95in

Item weight: 418g / 0.92lb

Package size: 145 * 85 * 105mm / 5.71 * 3.35 * 4.13in

Package weight: 450g / 0.99lb

Package list:

1 * SCR Voltage Regulator
