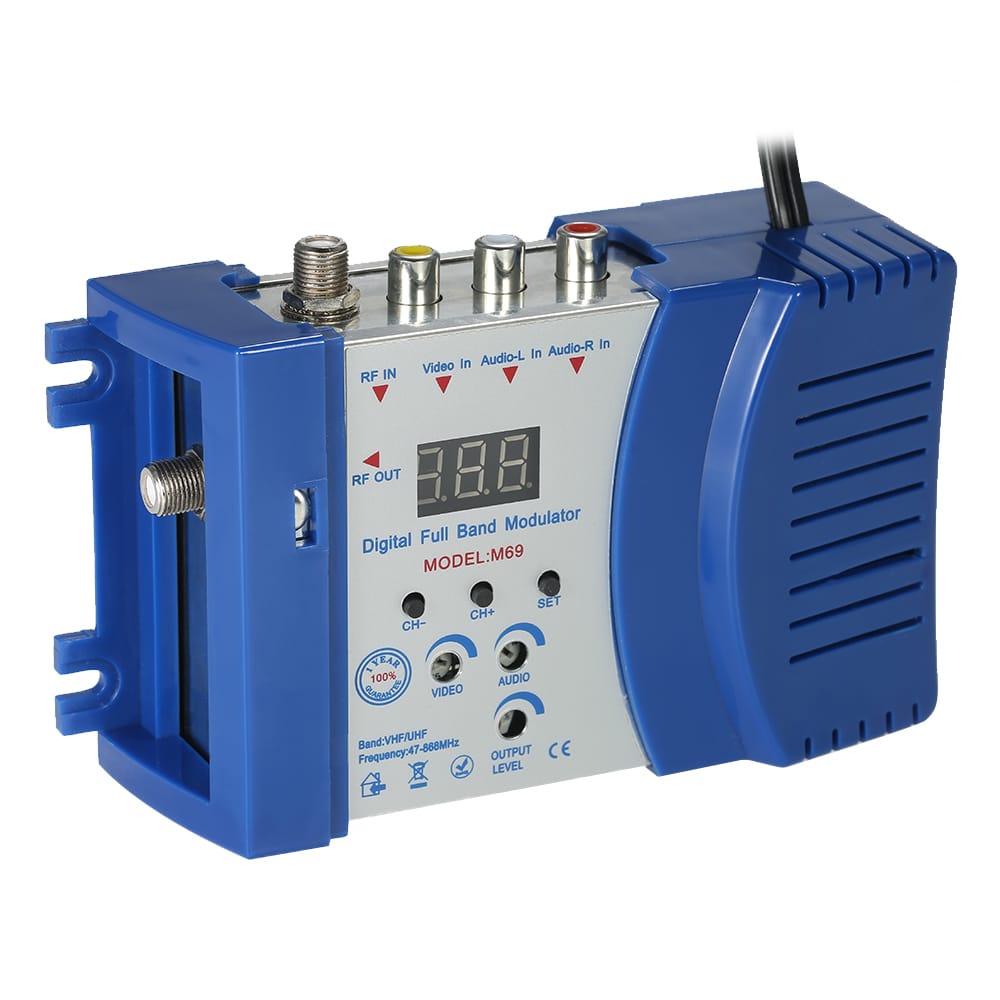

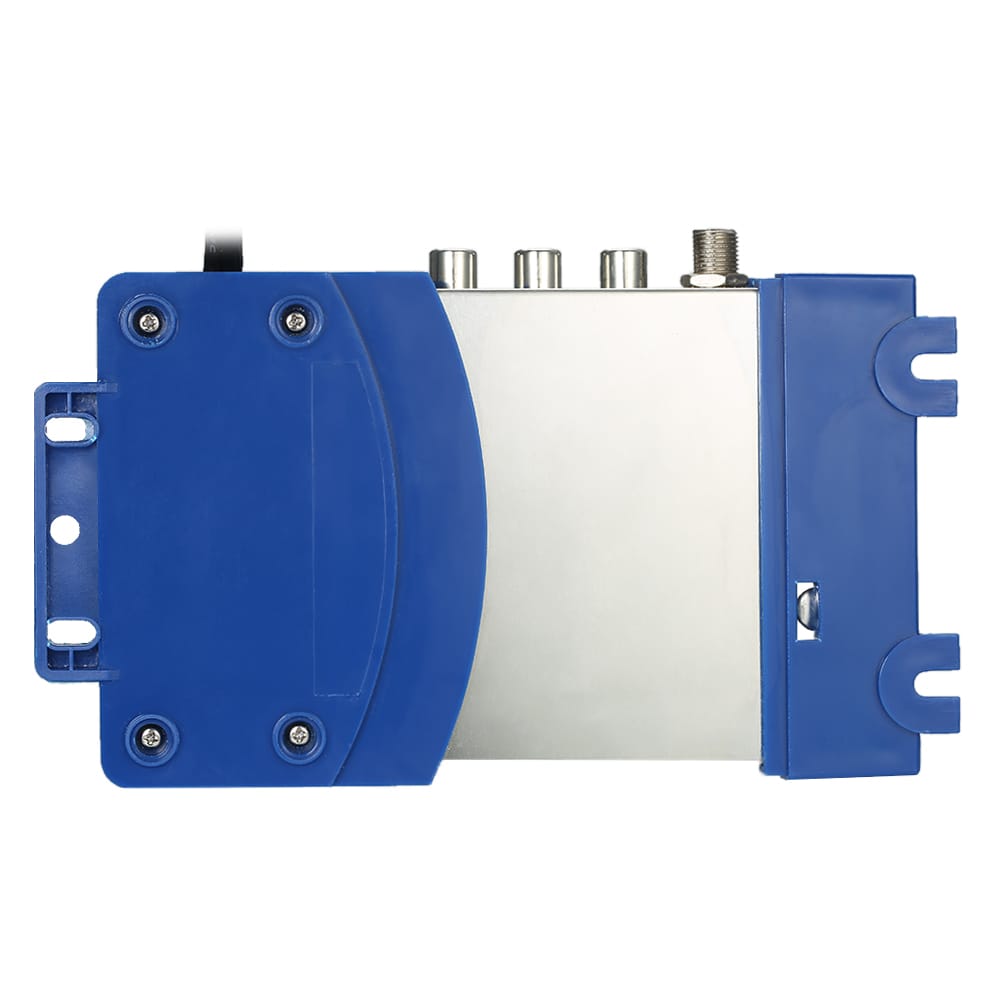

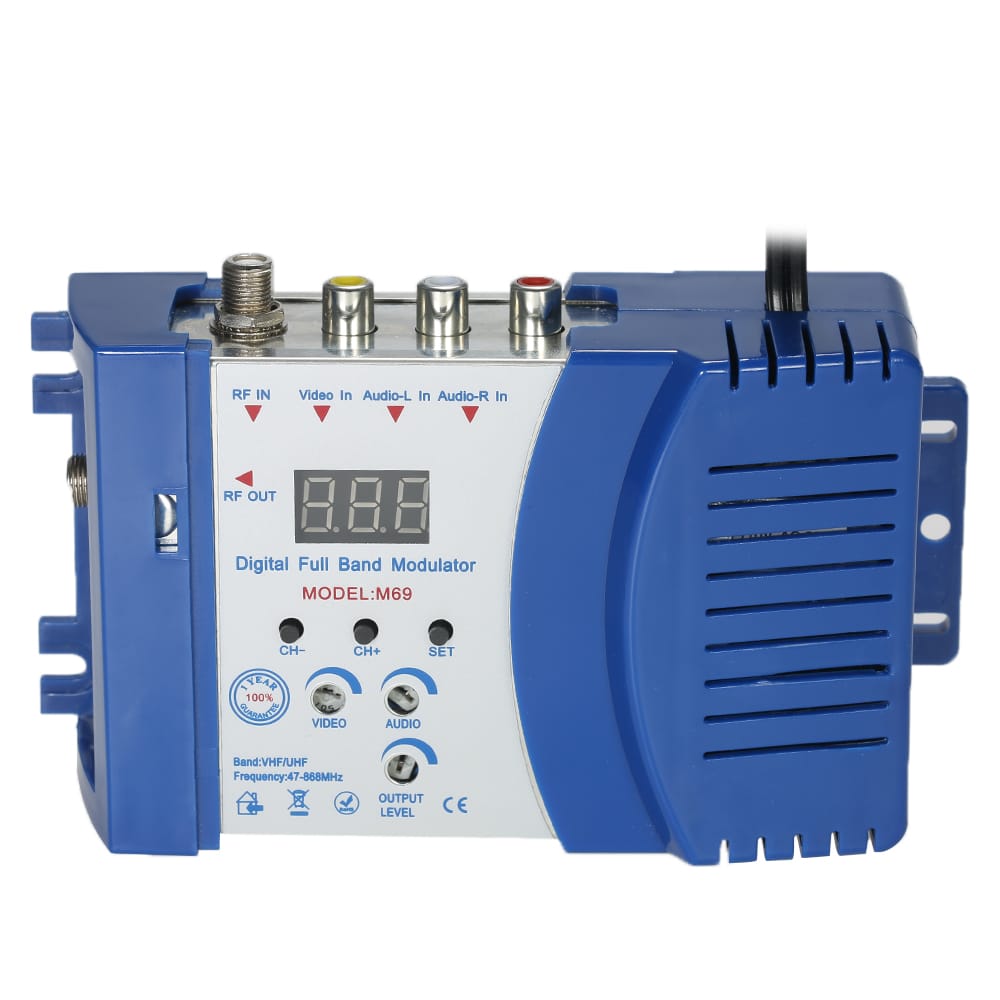

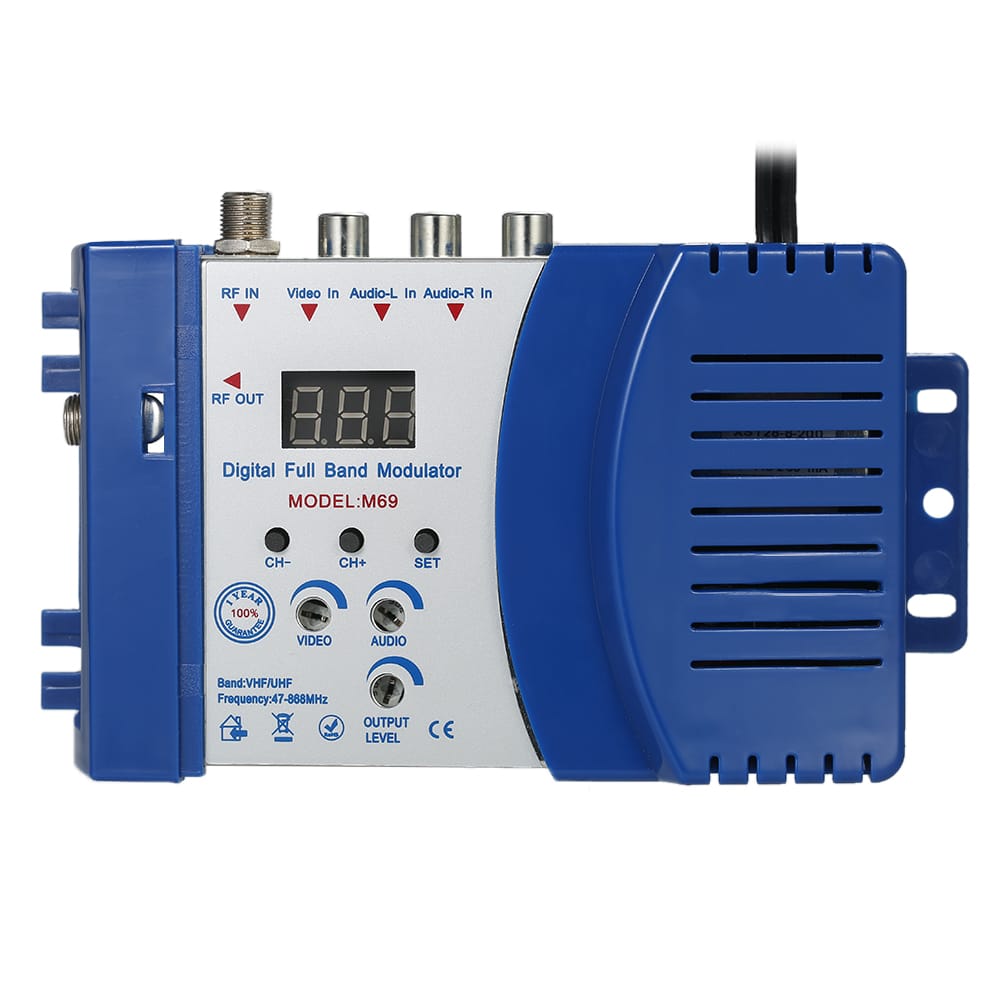

Compact RF Modulator Audio Video TV Converter RHF UHF Signal - EU Plug

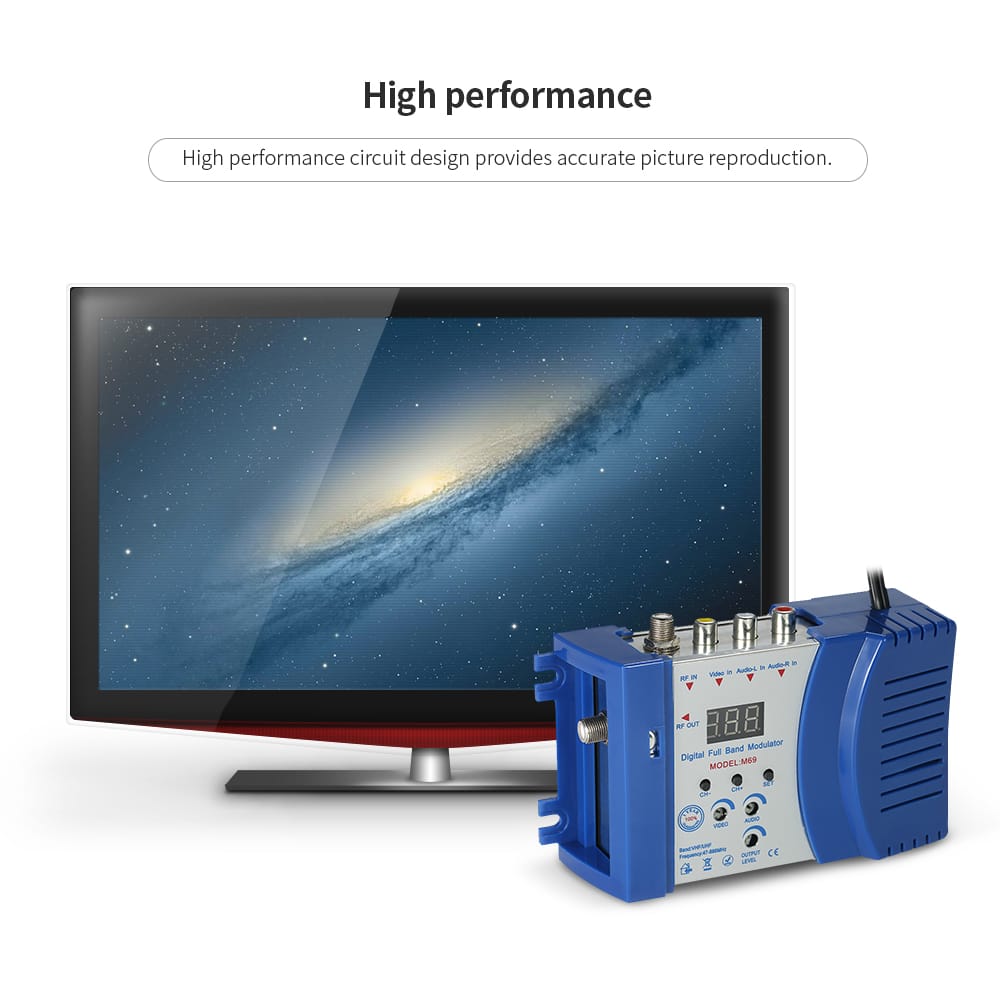

This RF Modulator is designed to generate RF andTV signal from A/V sources which you could view the program on your TV directly via channel. It&39;s widely used in schools retail display trade show presentations and more.Features:Humanized design easy to install and operate.High performance circuit design provides accurate picture reproduction.Can convert audio and video to RF via channel.VHF / UHF operating frequency from 47 to 868 MHz.With selectable output level of audio and video.Compatible with all local CATV system.Specifications:Plug Type: US / EU(Optional)Color: Blue / Orange(Optional)Material: ABS*Input:US: AC120V 60HzEU:C230V 50HzMax. Power: 3WFrequency Range: 47-868MHzOutput Impedance: 750HmOutput Level: 80-95dBuVInput Level: 0.77Vp-p for 80%+/-10%modulationSound System: M=4.5MHz?B/G=5.5MHz?I=6.0MHz?D/K=6.5MHzA/V connector: RCA FemaleRF Input: F FemaleRF Output: F FemaleOperating Temperature: -10? ~+60? / 14?~140?Item Size: Approx. 15.5 * 8.6 * 5cm / 6.1 * 3.4 * 2inItem Weight: Approx. 356g / 12.6ozPackage Size: Approx. 16.5 * 10.8 * 5.5cm / 6.5 * 4.3 * 2.2inPackage Weight: Approx. 407g / 14.4ozPackage List:1 * Modulator1 * User Manual(English)
