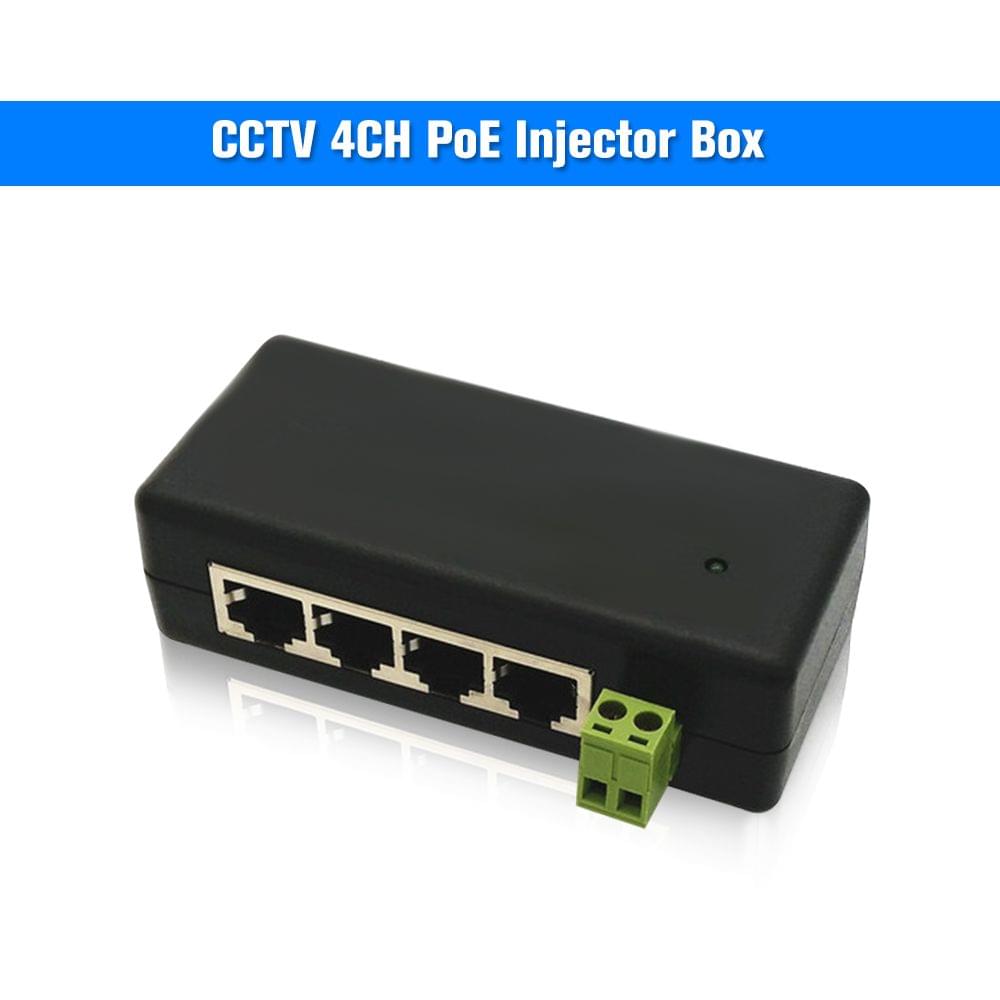

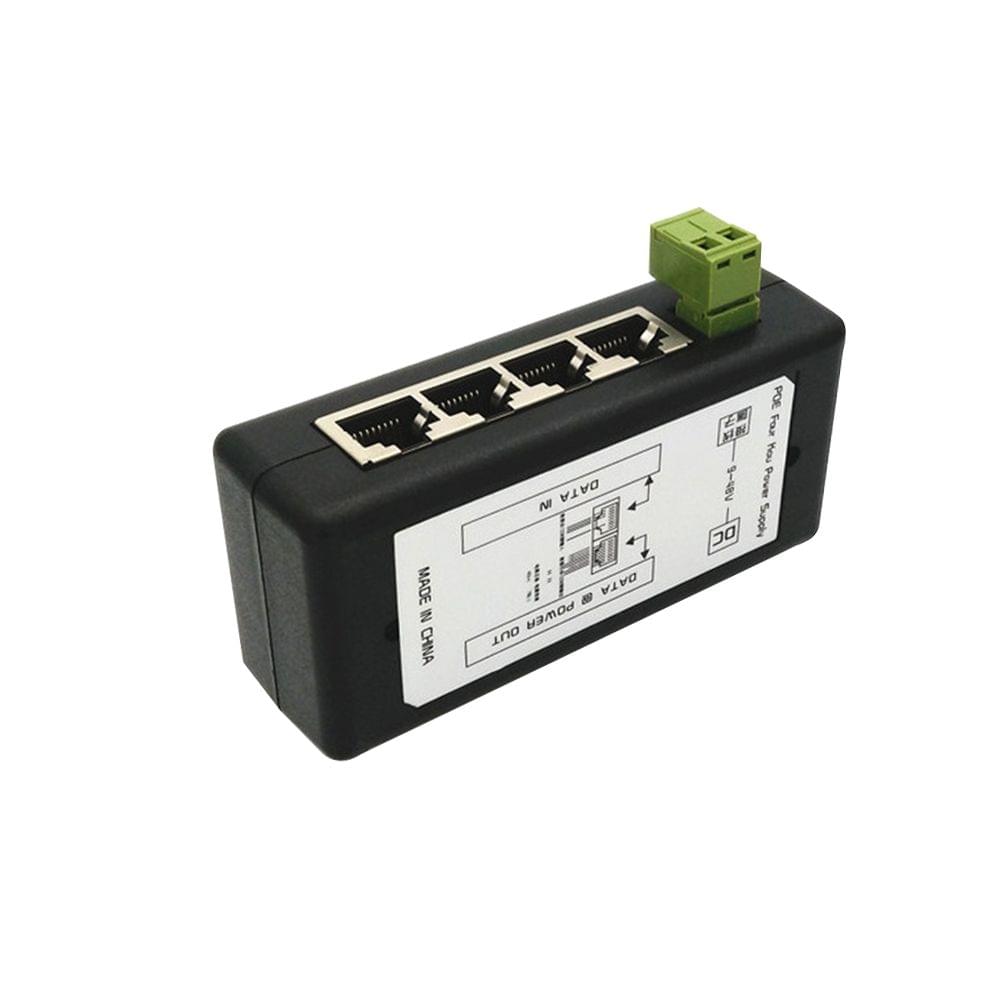

CCTV 4CH PoE Injector Box DC 12V-48V Power Supply for

Note:

This one is for 10M/100M without adapter without ethernet and power connecting cables.

Overview:

This Non standard active PoE injector is a simple and convenient equipment for PoE or Non PoE devices via only an Ethernet cable which will save your trouble about power line cabling and save cost.

This PoE injector is compatible with all IEEE802.3af network devices while it does not have auto detection function and directly supply power to the network devices by force as soon as you connect them so you must be sure that powered devices conform to standard IEEE 802.3af in order to protect them from burning at the same time pls be sure that your powered device support poe pin 4/5(+) 7/8(-) midspan.

Power Input = Power Output * channelse.g.: DC12V4A Input = DC12V1A Output per channel DC48V2A Input = DC48V0.5A per channel.

If you only use 3 of 4 channels DC12V3 A input = DC12V 1A output per channel.

But considering the distance of your to your IP cameras suggest Power input Power output * channels.

Such as: DC48V 3A input to supply DC48V 0.5A for 4 channels.

Features:

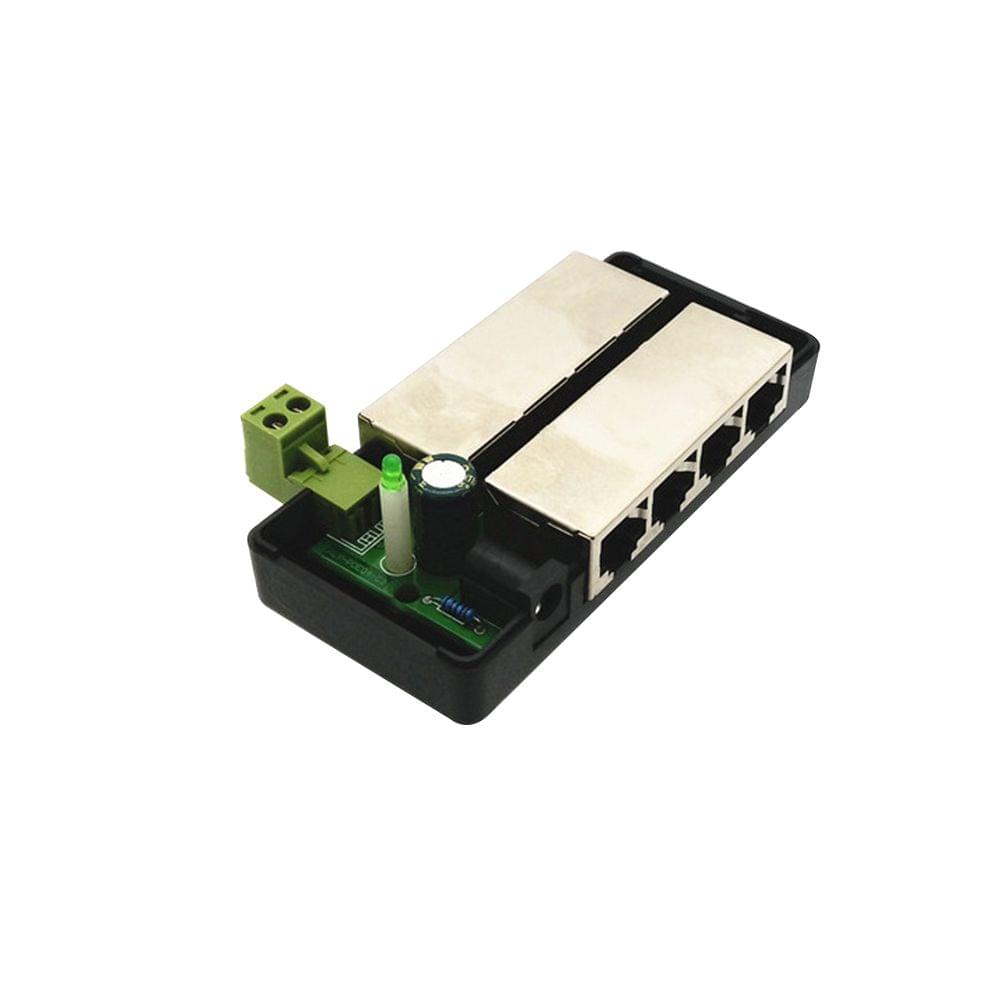

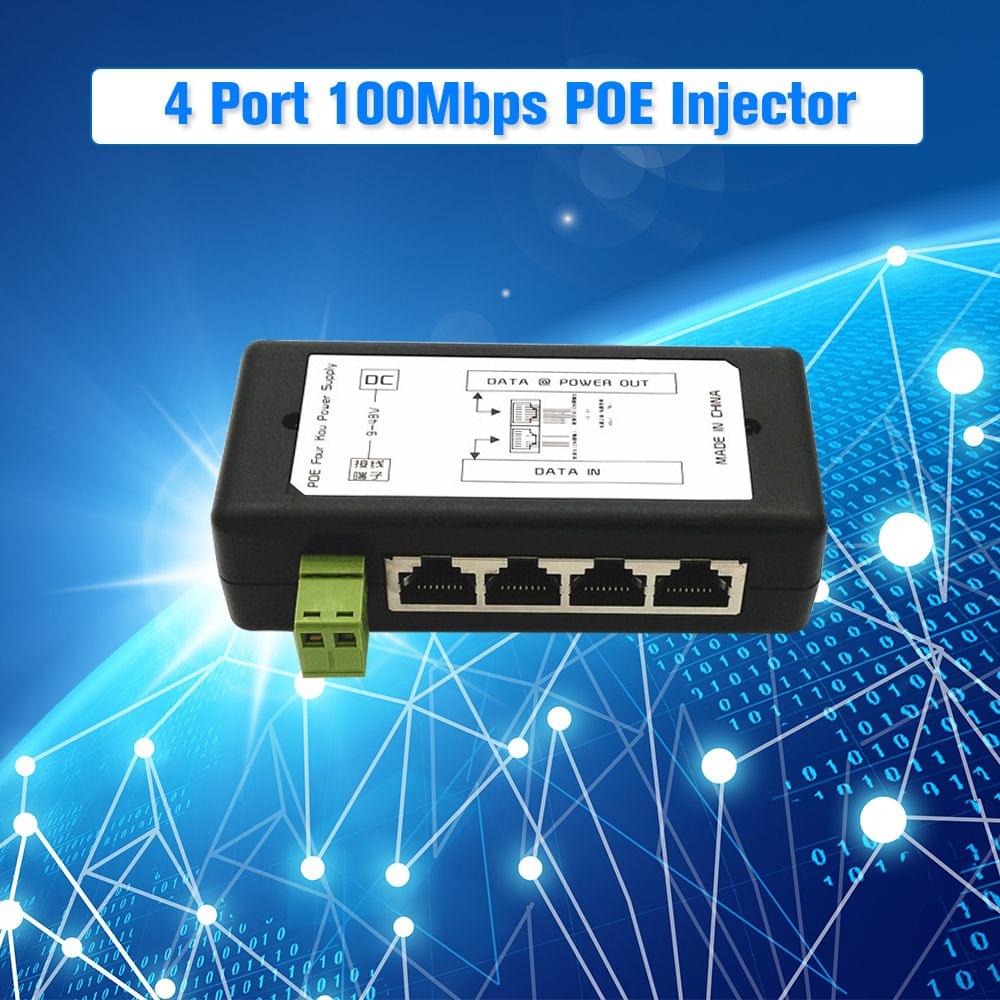

*4 port Power Injector module 4 LAN ports 4LAN+Power ports shield.

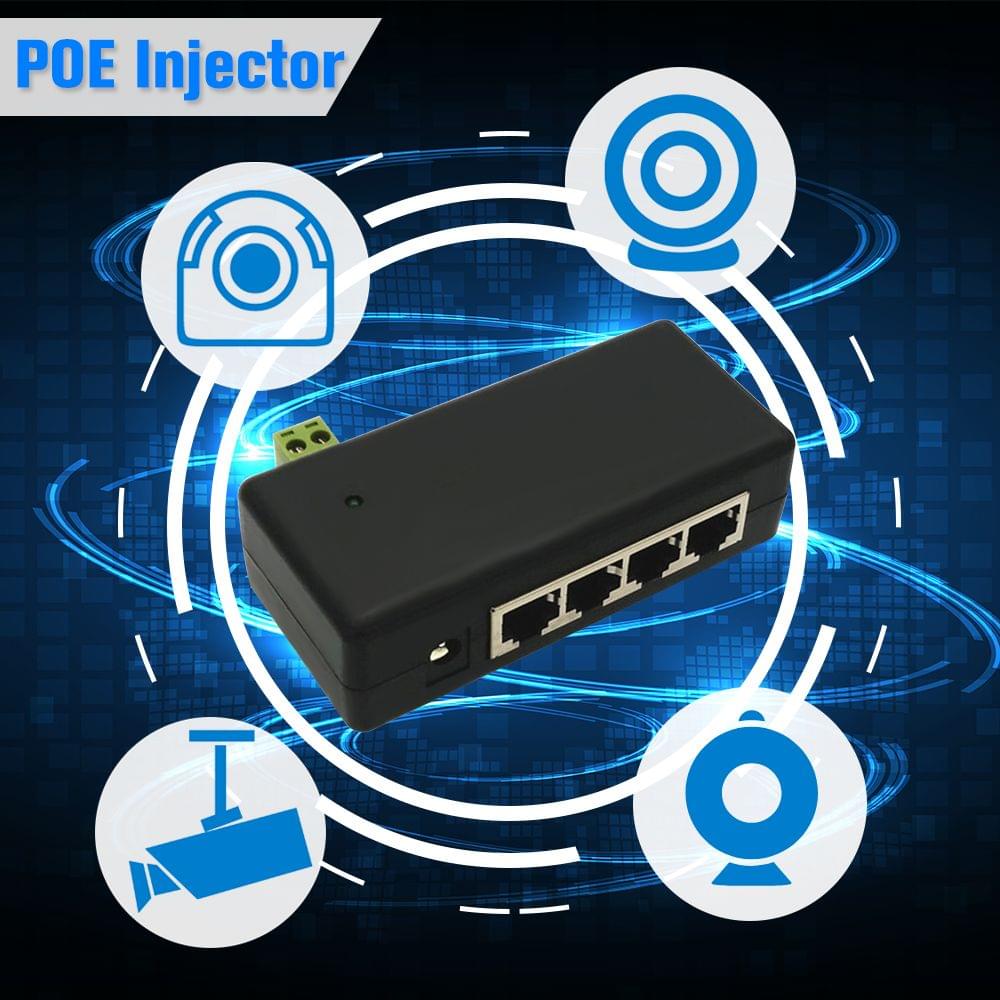

*Power VOIP phones IP Cameras WiFi Access Points and more.

*Same voltage to all ports share available power equally. 2.1mm x 5.5mm for DC plug.

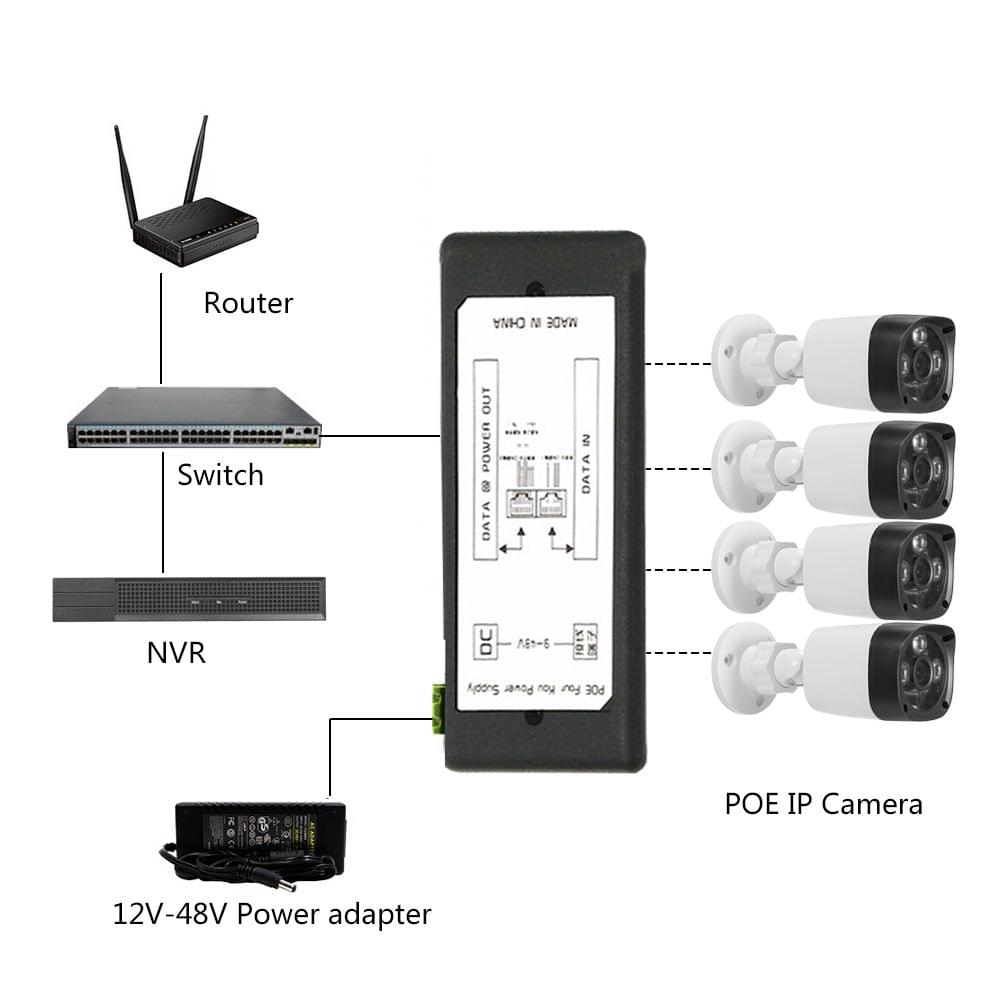

*Works with any ethernet switch or router. Use any power supply to 48 volts.

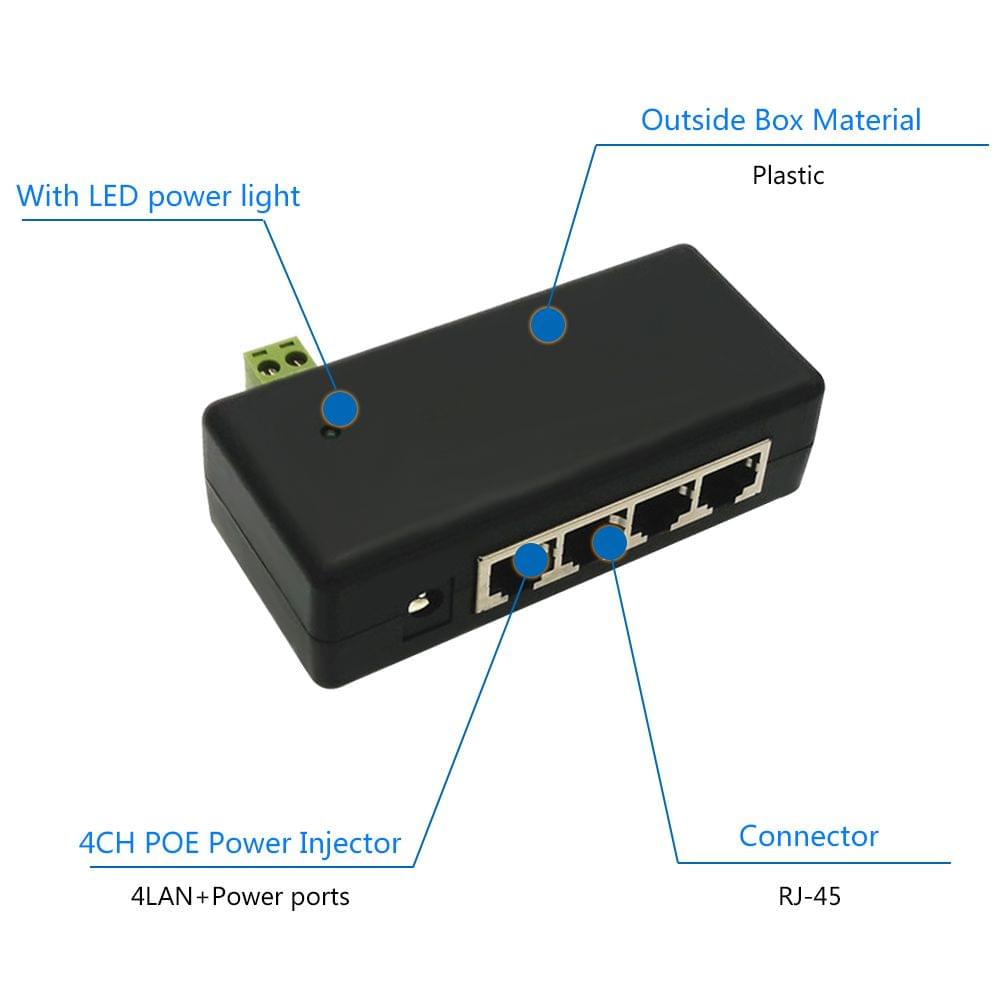

*With LED power light.

Specifications:

Input Voltage: 12V-48V

Current Output: 0.5-3A

Led: Indicate the working state

Power pin: 45(+) 78(-);

Data pin: 1/2 3/6

Data rate: 10/100 Mbps

Ethernet cable: TIA/EIA 568 Cat.5 of Cat.5e

Data in: PC/Hub/Switch/Router etc.

Connector: RJ-45Outside Box

Material: Plastic

Operating Temperature:0C~50C

Storage Temperature:-40C~70C

Operating Humidity:10%~90%RH

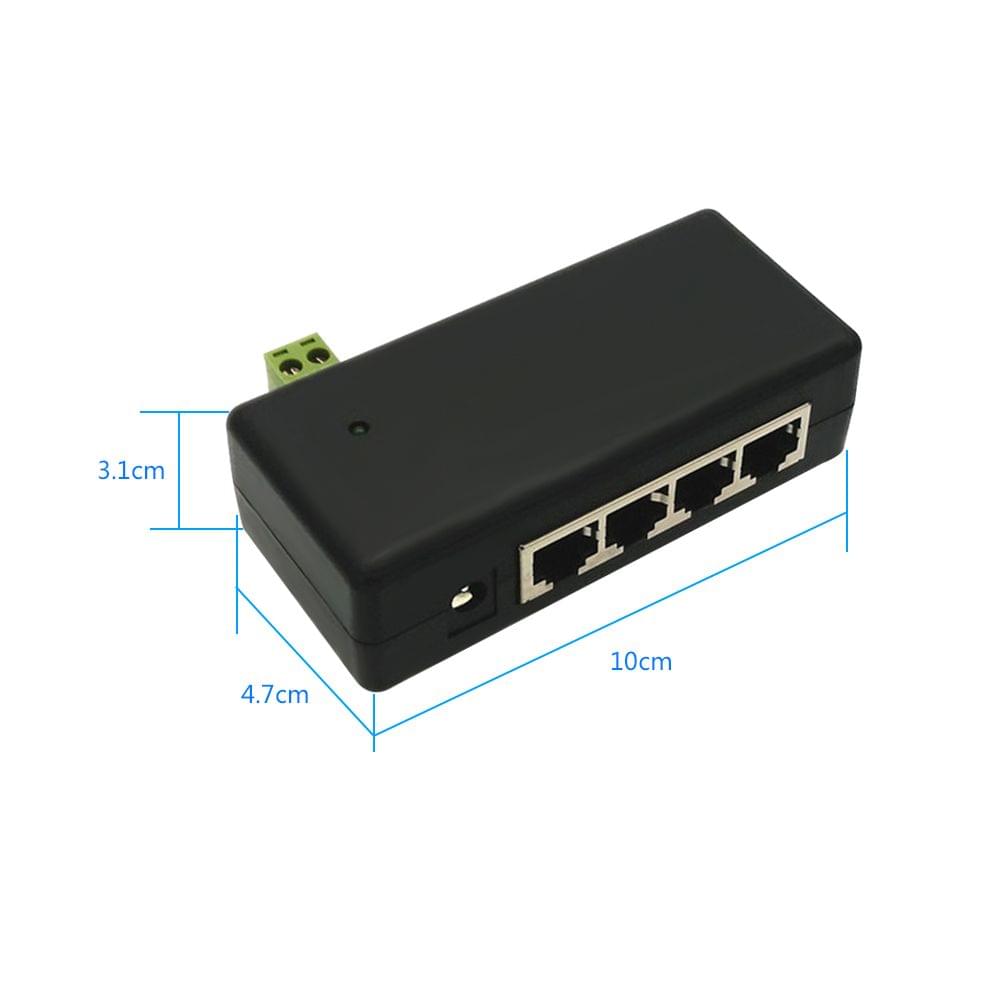

Item size: Approx. 10*4.7*3.1cm

Item weight: Approx. 100g

Package Information:

Package Size: Approx. 11.3*4.7*3.2cm / 4.4 * 1.9 * 1.3in

Package Weight: Approx. 115g / 4.1oz

Package List:

1 * 4 Channel POE Injector
