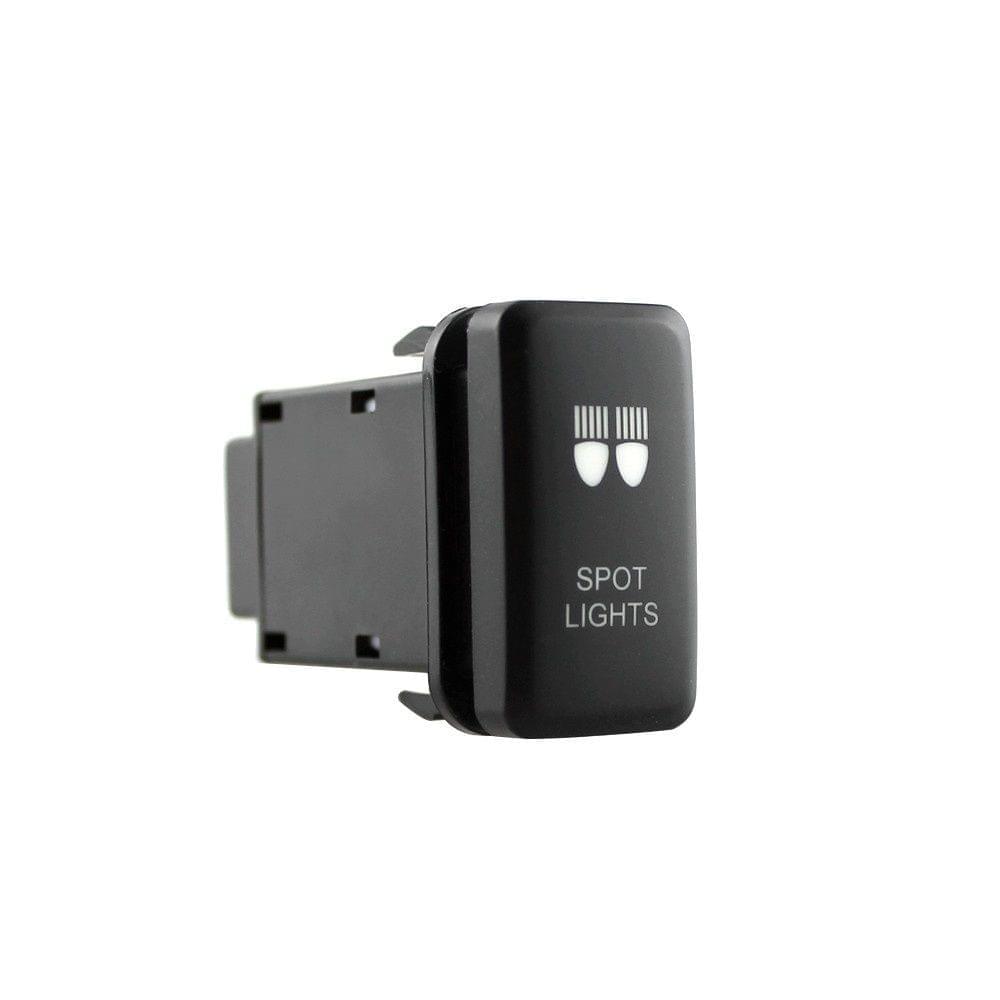

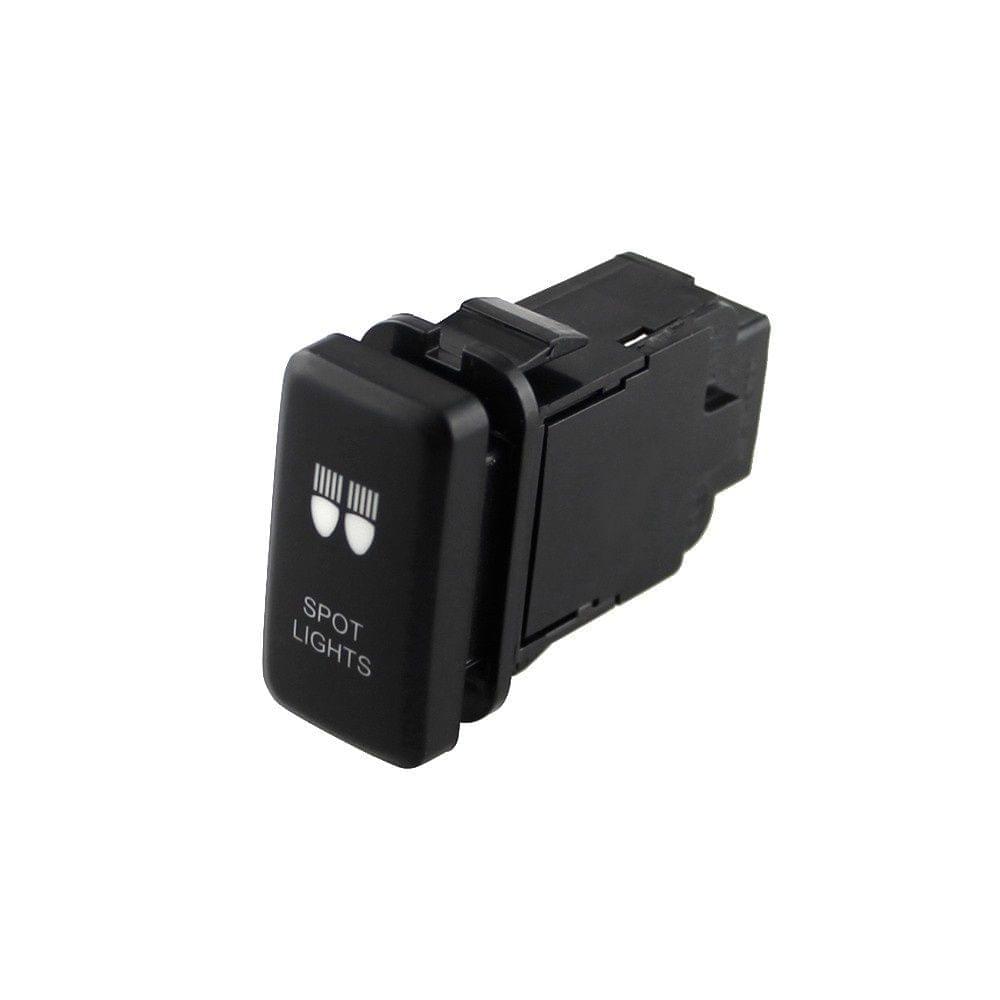

Car Push Switch Spot Light Switch

Features:

High-quality single pole single throw ON-OFF push switch. Rated at 3Amp 12V, comes with connector wire kit, easy to install.

The rocker switch etched directly onto the switch surface. Black hard surface rocker is made of heavy duty ABS plastic.

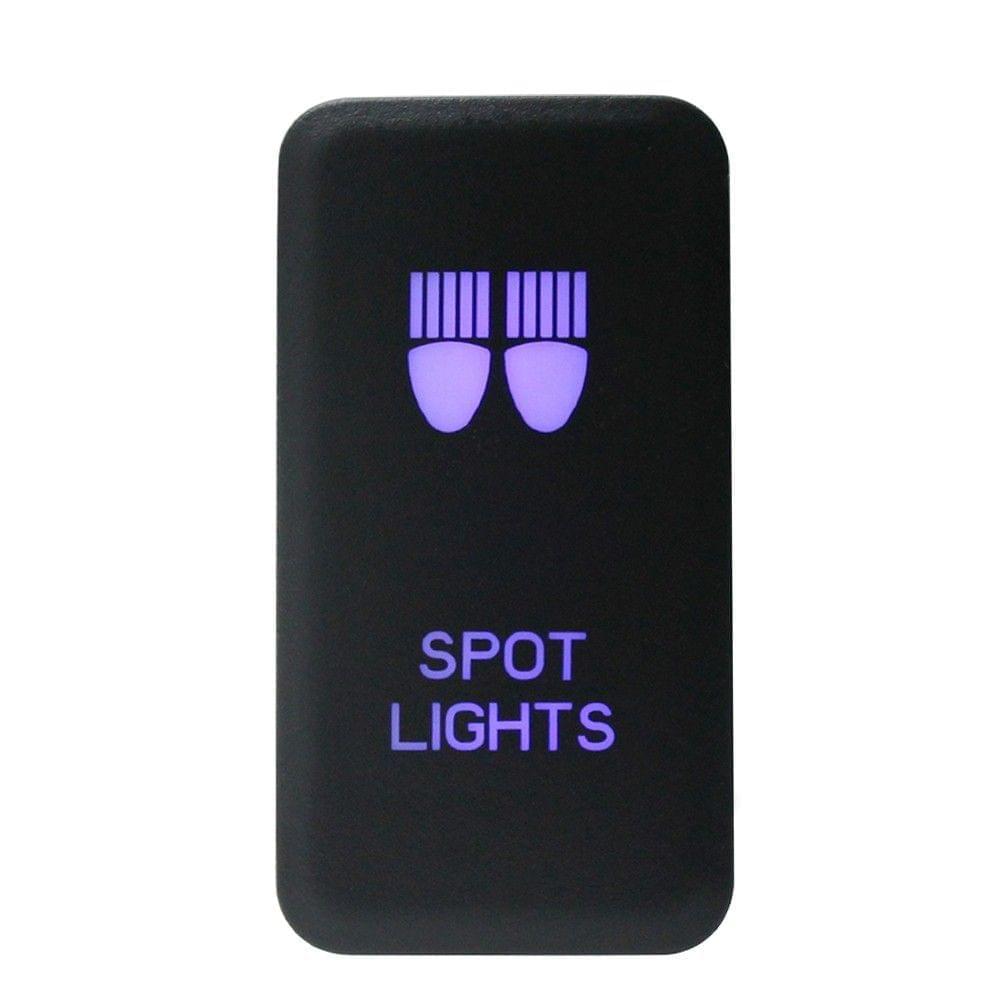

Built in two LEDs in the rocker switch, illuminated cozy beam. Use the original mounting hole of the vehicle.

Switch cutout required for the other accessories is about 17*36 mm.

This switch suits the following models ONLY: For Toyota Prado 120 Series 2003-2009 For Toyota Landcruiser 100 Series 1998-2007 For Toyota Landcruiser 79 Series New Model For Toyota FJ Cruiser 2010-2013 For Toyota Hilux KUN26R, GGN15R, GGN25R 2005-Current Wiring

Introduction:

Red wires should be connected to battery +. Black wire should be connected to battery -. Green wire should be connected to load +(load- connected to the battery -). Blue wire can be connected to battery + or not connected(You have the different choice based on yourself).

Specifications:

Material: Plastic LED Light

Color: Blue

Face Surface Size: 39 mm*21 mm

Rated: 3Amp 12V.

Package Size: 17.6*11*3cm / 6.93*4.33*1.18in

Package Weight: 34g / 1.2oz

Package List:

1 * Push Switch

1 * Wire
