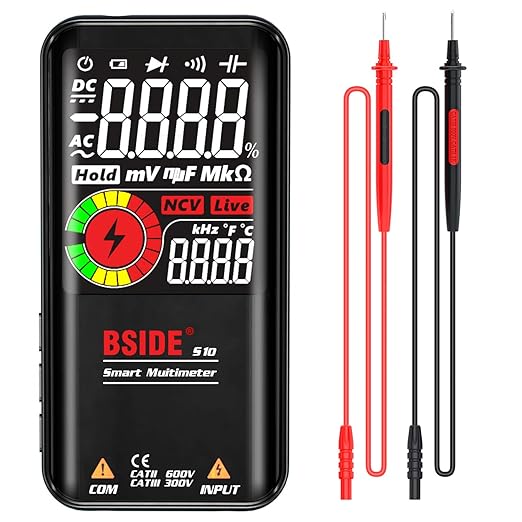

Bside Digital Multimeter 9999 Counts Auto Range Ohmmeter Smart DC AC Voltage Capacitor Resistance Diode NCV Hz Tester Detector - S10 / Black

• Color LCD Display: The color LCD display greatly enhance the reading experience, very easy to read

• 3 Results Display: The large screen can show 3 test results on the screen, such as voltage, frequency and analog bar

• Automatic Identification: It can automatically identify the tested parameters and choose their required range

Specifications:

• Material: Plastic

• Size: 14.3 x 7 x 1.6cm

• Display: 9999 counts

• Screen size: 3.5 inches

• DC Voltage: 0-620V ±(0.5%+3); Resolution: 0.001V

• AC Voltage: 0-620V ±(0.5%+5); Resolution: 0.001V

• Resistance:1?-999.9? ±(2.0%+5); 1k?-60M? ±(1.0%+3); Resolution: 0.11?

• Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF

• Frequency:

• 1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz

• 1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz

• Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%

• Diode: Auto-identify diode if less than 3.0V

• V-Alert (non-contact voltage detection): beep alarm sounds

• Live Check: alarm beep sounds, LCD screen display stripe

• Continuity: If the resistance is less than 30?, the beeper sounds

• S10 Power: 1.5V (AAA) x 2 (Not included)

• S11 Power: Built-in 700mAh lithium battery

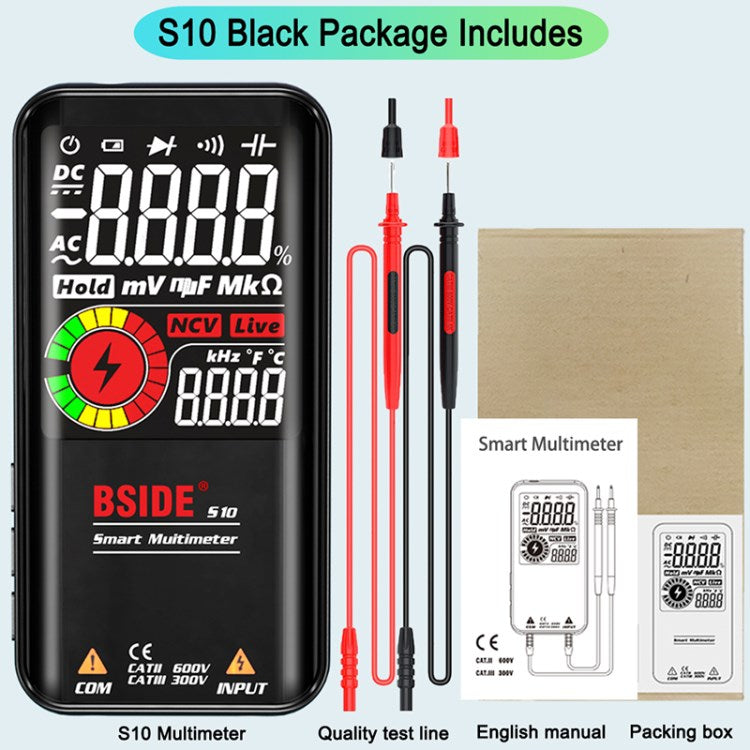

Package included:

• 1 x Multimeter

• 1 x Test Lead

• 1 x English User Manual

• 1 x USB Cable

• 1 x Cloth Bag

• 1 x Protective Shell
