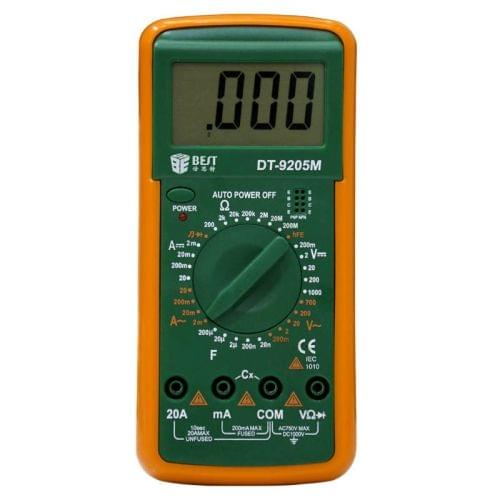

BEST 9205M 9V Handheld LCD Screen Digital Multimeter with Buzzer Test Meter

About the product
1. The BEST DT-9205M digital multimeter is an easy to operate, accurate readings, full-featured, compact, easy to carry, use battery-powered handheld large screen LCD Multimeter, DT-9205M digital multimeter for three and a half, the table can be used to Measure DC voltage / electric, AC voltage / current, resistance, capacitance test, diode test, transistor HFE measurement and circuit off, etc..
2. Suitable for engineering design, laboratory, pilot production, factory affairs, field operations and industrial maintenance use.
3. The BEST full protection DT-9205M features: full-featured wrong stalls as well as over-range protection anti-burn protection and superior performance the fuse (machine) automatic shutdown function better protect the battery COMS integrated circuit, the principle of double integral A / D converter automatic zeroing, automatic polarity selection overrange indication.
4. 1 - off test high quality buzzer sound and light-emitting diodes indicate parameters of CMOS integrated circuits, the original double integral A / D conversion, automatic zero, auto-polarity selection, over range indication LCD display 59 x 31mm big screen with high contrast screen
5. Observation position needs multimeter display angle can freely change the angle of about 70, best observed with automatic shutdown function, about 15 minutes after boot automatically cut off the power to prevent the instrument after use forgets to turn off the power to repeat the operation of the power switch, can continue to boot.
6. Highly reliable range of new optimization design / function rotary switches structure.
7. With 32 stalls.
8. More effectively to avoid misuse.

Basic functions
1. Voltage DC: 200mV / 2V / 20V / 200V / 1000V
Voltage DC Basic accuracy: +/- (0.5%+3)
2. Voltage AC: 200mV / 2V / 20V / 200V / 700V
Voltage AC Basic accuracy: +/- (0.8%+5)
3. Direct Current: 2mA / 20 mA / 200 mA / 20 A
Direct Current Basic accuracy: +/- (0.8%+10)
4. Alternating Current: 2mA / 20 Ma / 200 mA / 20 A
Alternating Current Basic accuracy: +/- (2.0%+5)
5. Resistance: 200ohm / 2K ohm / 20K ohm / 200K ohm / 2M ohm / 20M ohm / 200M ohm
Resistance Basic accuracy: +/- (0.8%+3)
6. Capacitance: 200uF / 20uF / 2uF / 200nF / 20nF
Capacitance Basic accuracy: +/- (2.5%+20)
