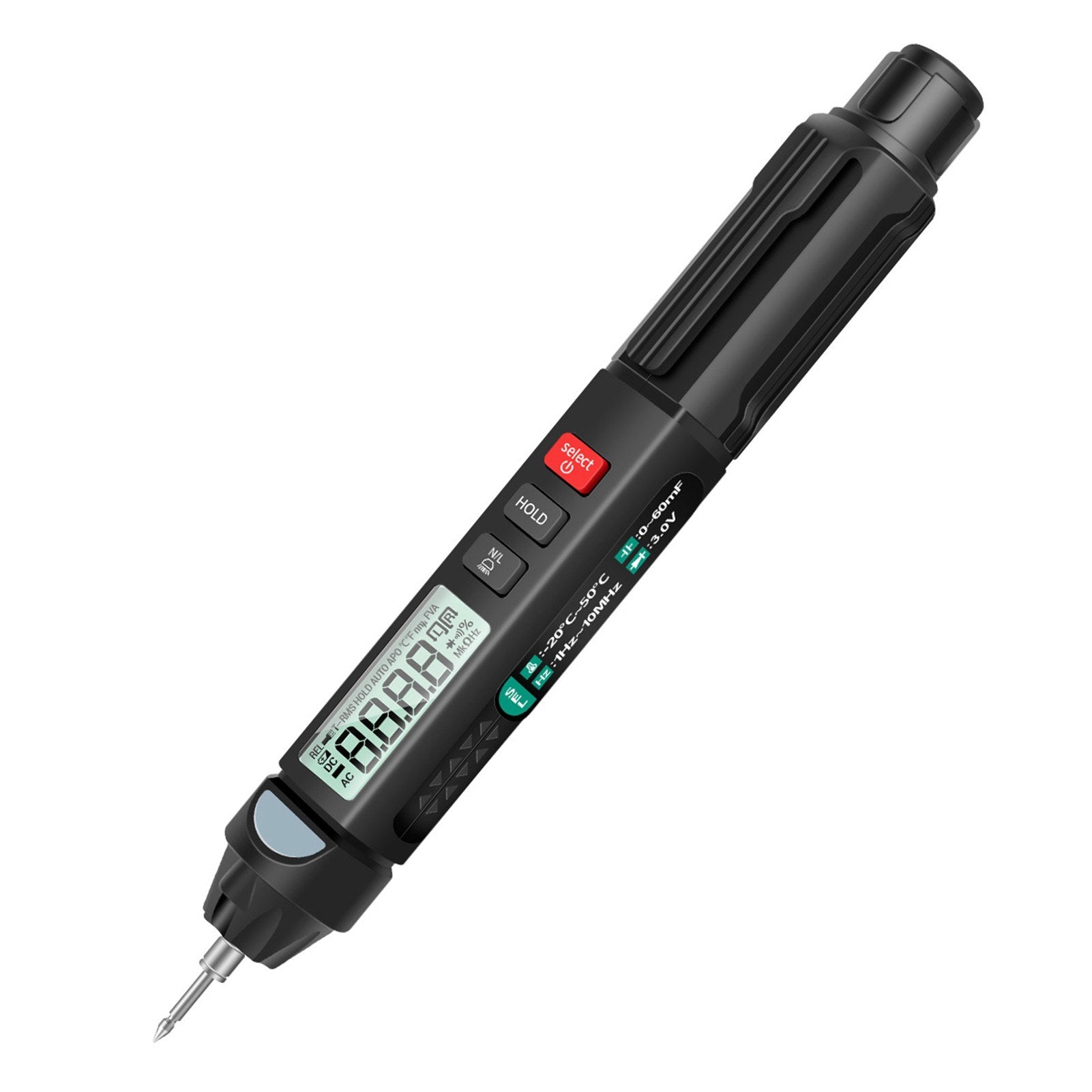

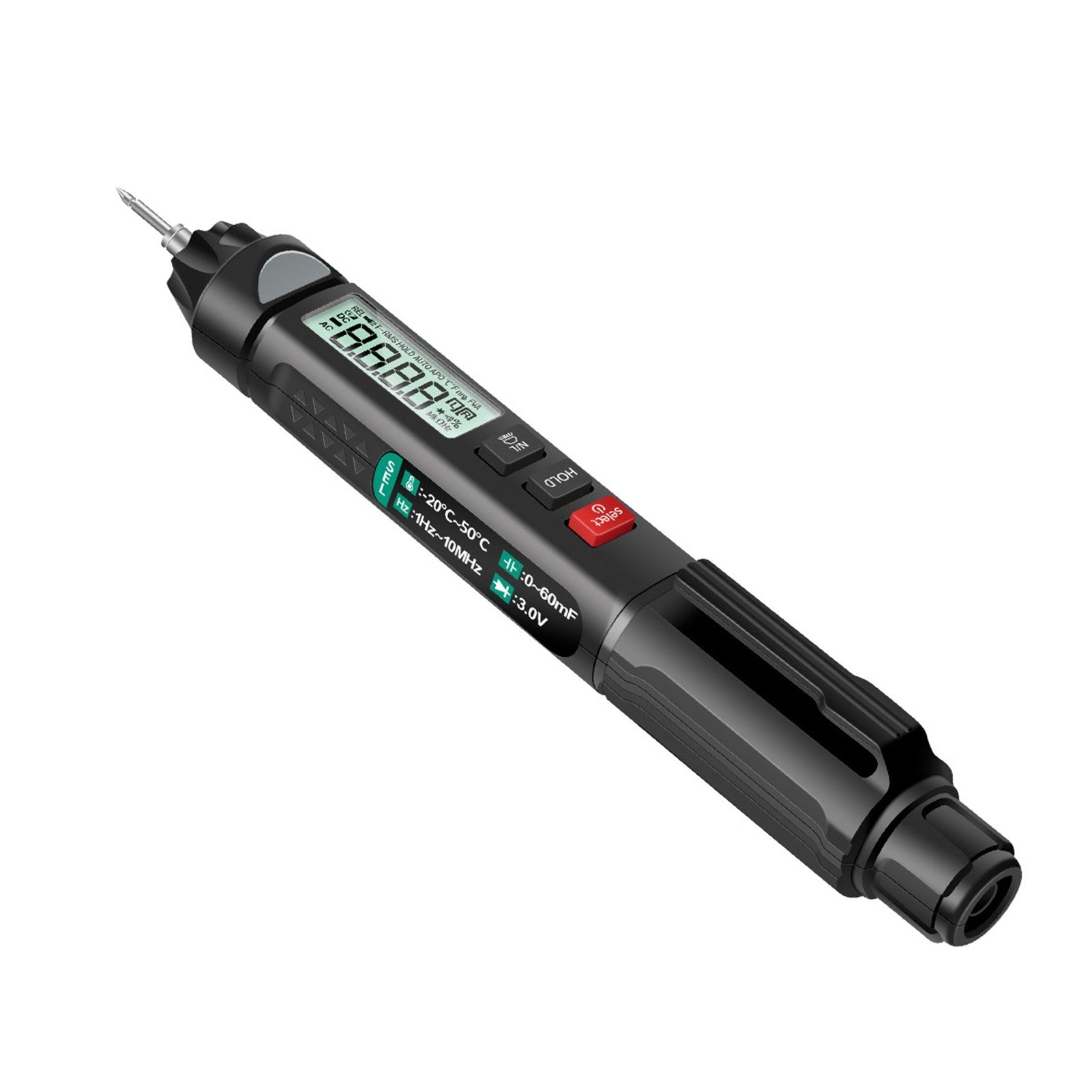

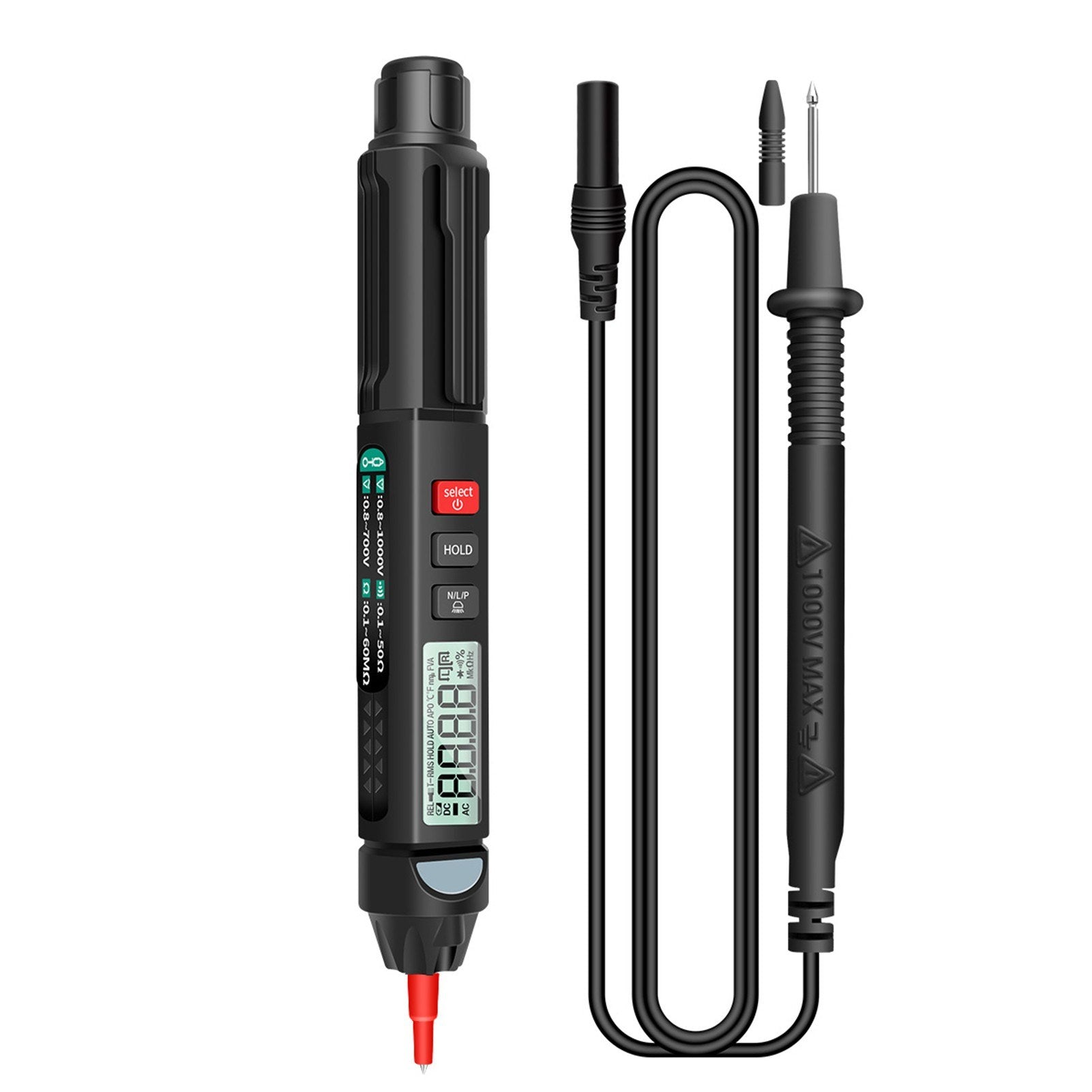

Aneng A3007 Pen Multimeter 6000 Counts Digital Voltage Tester with LCD Display Backlight Flashlight NCV Auto-off for Current Resistance Capacitance Diode Continuity Testing Tool

A3007 is a pocket type 3 5/6 digits pen-type smart multimeter, with true RMS. It will automatically identify DC voltage/AC voltage/resistance and measure, with no need to turn the dial to switch, easy to operate. Also, it features stable performance, high precision, auto-off after 5min non-operation for energy saving, capacitance/diode/more test, overload protection, continuity test, non-contact voltage measurement(NCV), zero live-line measurements, etc. A perfect tool for professional, factory, school, enthusiast, or family use.

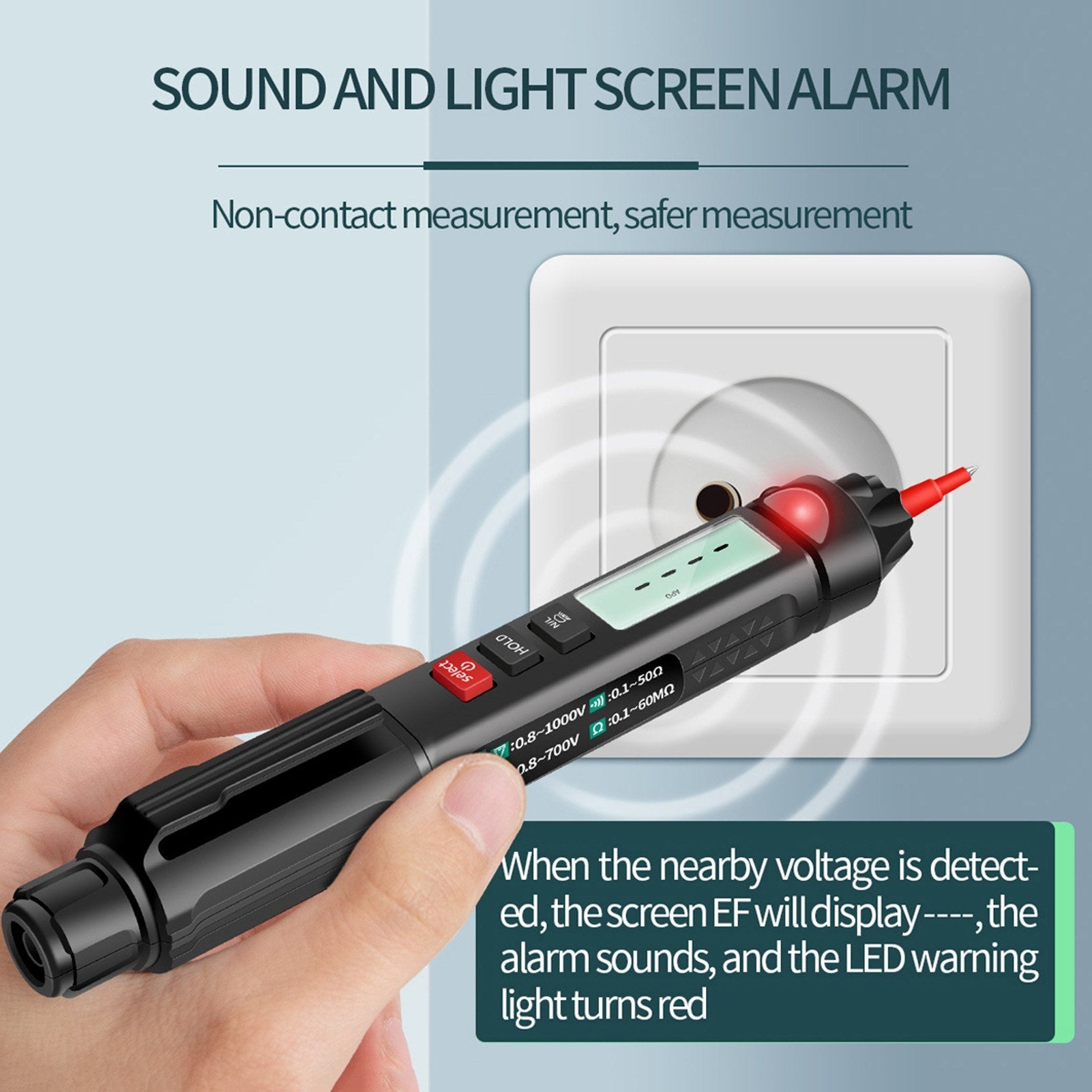

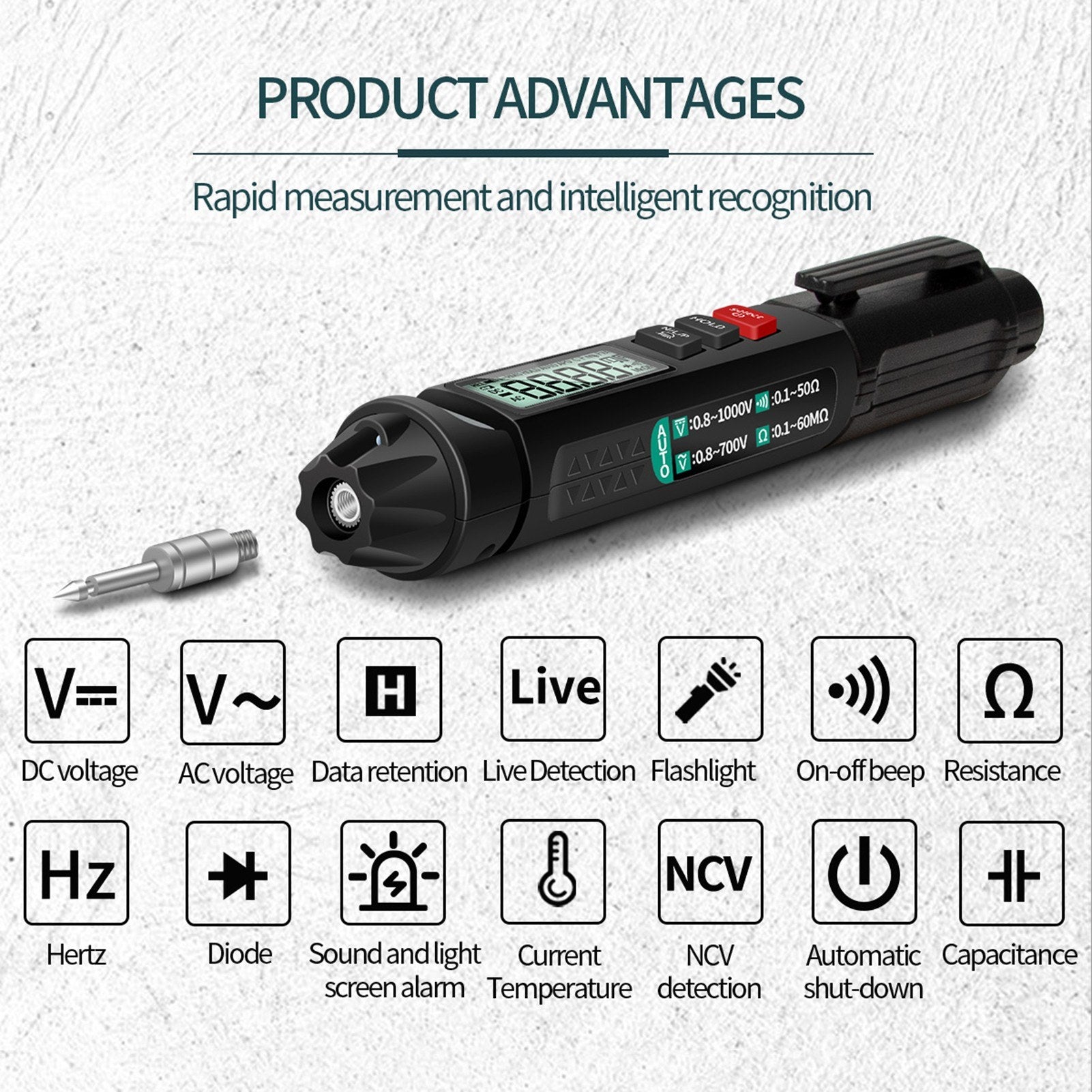

• Versatile Pen Multimeter: This multimeter features test of resistance/capacitance/diode/frequency/temperature, continuity, zero line & non-contact voltage detection, etc.
• Fast Response & High Accuracy: A3007, 6000 counts digital pen type multimeter, has a sampling speed of 3 times per second and high precision measurement

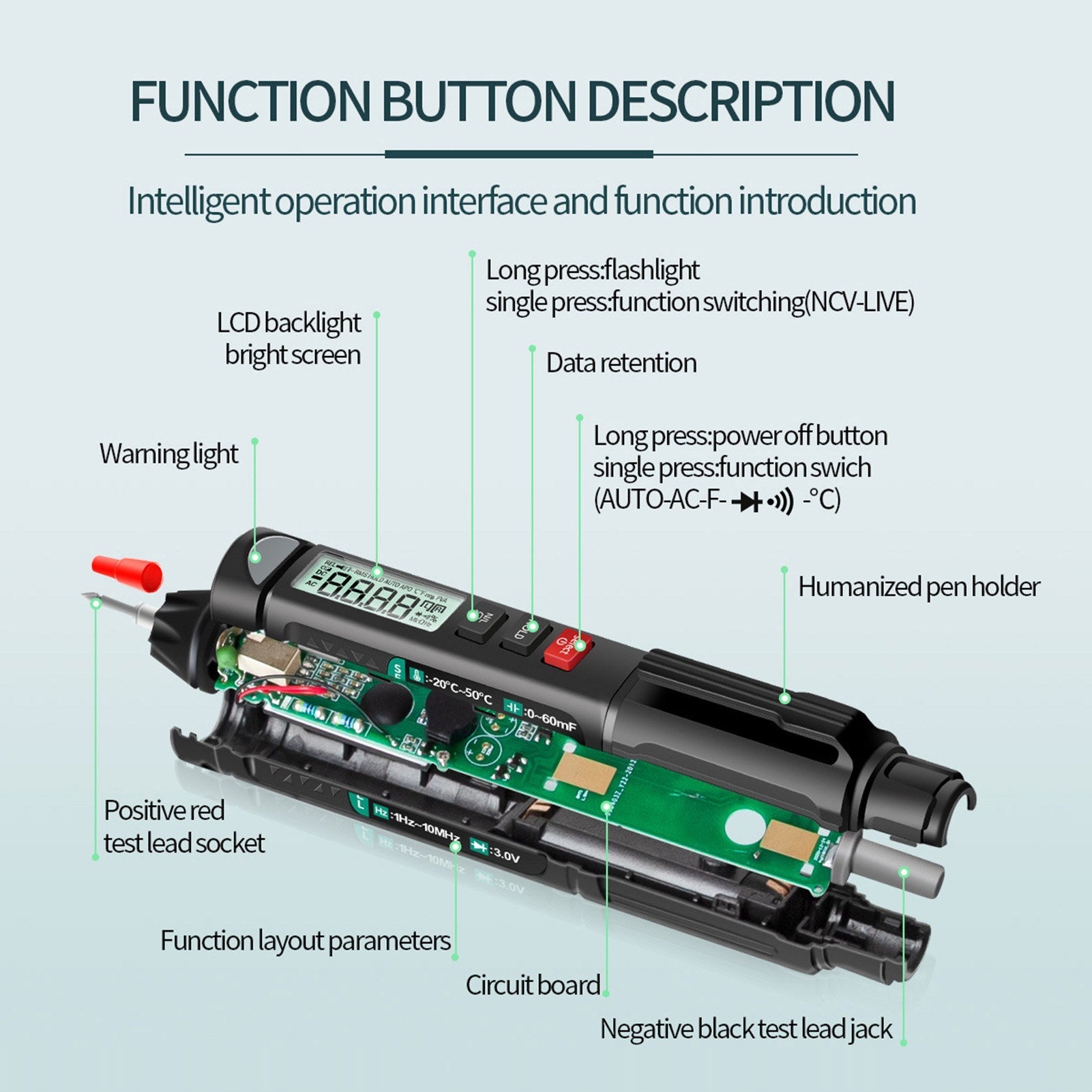

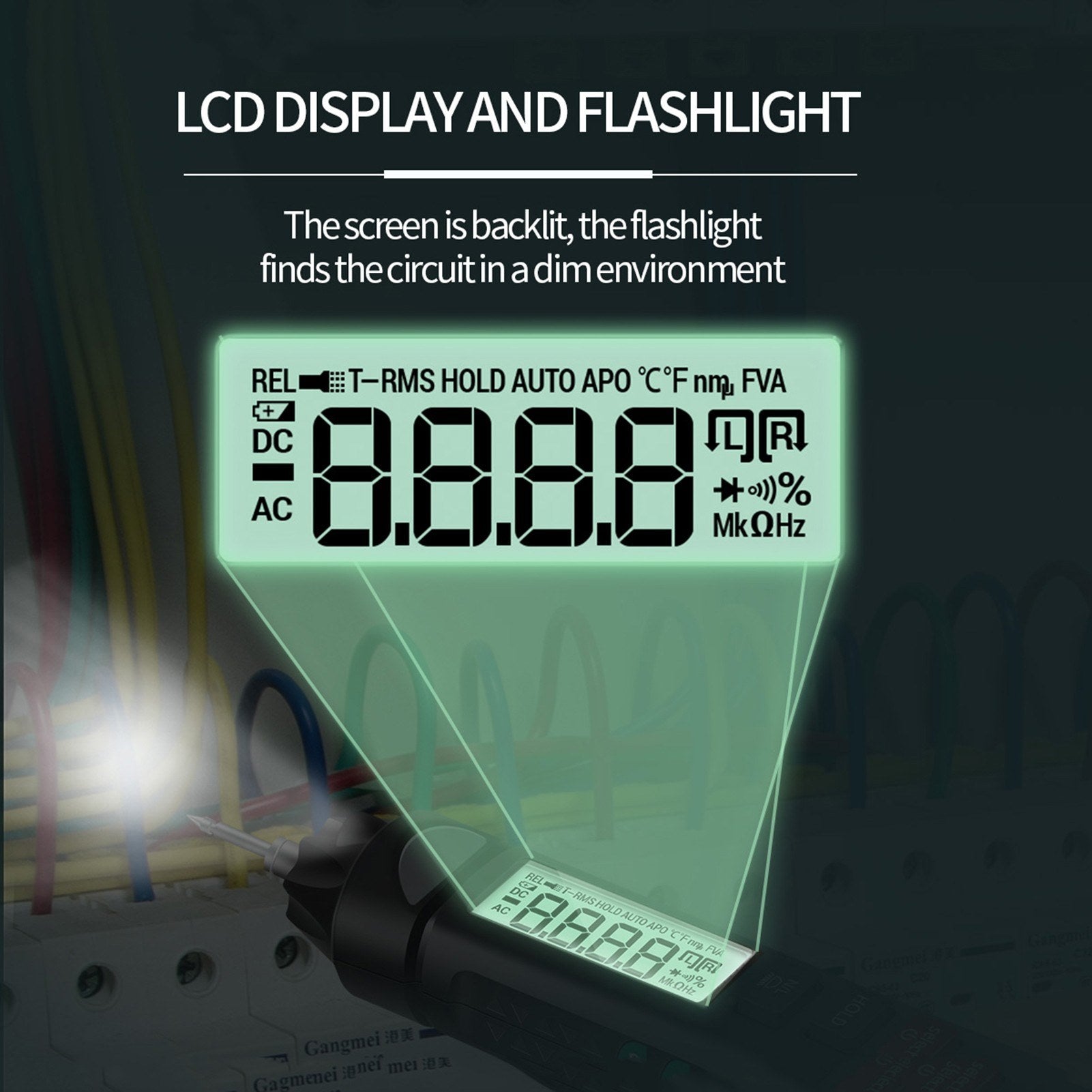

• Easy Operation: It has an LCD clear screen, easy to read the measured values, flashlight available for darkness, data retention function convenient to query data, and alarm beep when in use
• Durable Material & Portable Size: The meter, made from selected electronic components and sturdy plastic housing, is designed with a lightweight and easy-to-carry pocket size, comfortable to grip
• Wide Application: The digital multimeter--a handy instrument and assistant, for testing, diagnosing, and solving a variety of automotive and daily household electrical problems safely and accurately
• Measurement Range & Accuracy:
• DC Voltage: DC6V/DC60V/DC600V ±(0.5%+4); DC1000V ±(0.8%+10)
• AC Voltage: AC6V/AC60V/AC600V ±(0.5%+4); AC700V ±(0.8%+10)
• Resistance: 600Ω ±(0.8%+5); 6kΩ/60kΩ/600kΩ/6MΩ ±(0.8%+3); 60MΩ ±(2.5%+3)
• Capacitance: 10nF/100nF/1uF/10uF/100uF/1mF/10mF ±(3.5%+20); 60mF ±(5%+3)
• Temperature: -20~50?,±(1.0%+5)?50?; 0~122?,±(0.75%+5)?122?

Specifications:

• Model: A3007
• Material: ABS
• Test Line Material: Brass / PVC
• Screen: LCD display
• Maximum Display: 5999 (3 5/6) automatic polarity display
• Measurement Method: Double integral A/D conversion
• Sampling Time: About 3 times/second
• Over-range Indication: "OL" is displayed in the highest position
• DC Voltage Test: Yes
• AC Voltage Test: Yes
• Resistance Test: Yes
• Capacitance Test: Yes
• Diode Test: Yes
• Continuity Test: Yes
• NCV: Yes
• Neutral / Fire Test: Yes
• Full Unit Symbol: Yes
• Backlight: Yes
• Auto Power Off: Yes
• True RMS: Yes
• Data Hold: Yes
• Temperature (?/?): Yes
• Hz: Yes
• Flashlight: Yes
• Working Condition: 0?40? temperature, <80% relative humidity
• Power Supply: 1 x 1.5V AAA battery (NOT included)
• Test Lead Length: 117.4mm / 4.62in
• Product Size: 170.5x25.4x22mm / 6.71x1.0x0.86in
• Product Weight: About 50g / 1.76oz

Note:

• Multimeter only, other accessories in the pictures are not included.
• Please read the user manual carefully for more information before use.
• Due to manual measurement, there may be deviation, please in kind prevail.
• Due to lighting or other reasons, the picture and material object may slightly differ.

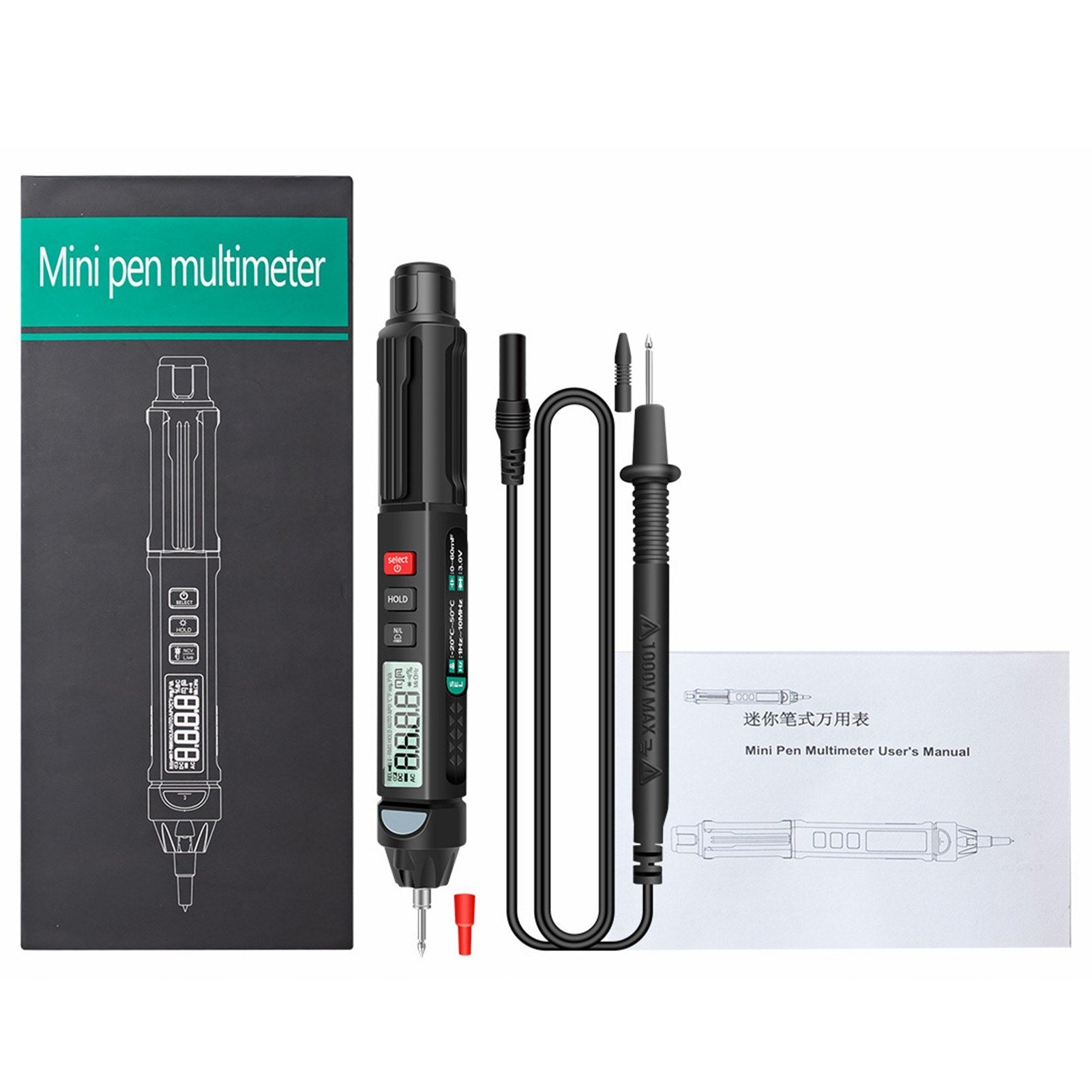

Package included:

• 1 x Multimeter

• 1 x Test Lead

• 1 x English and Chinese Manual
