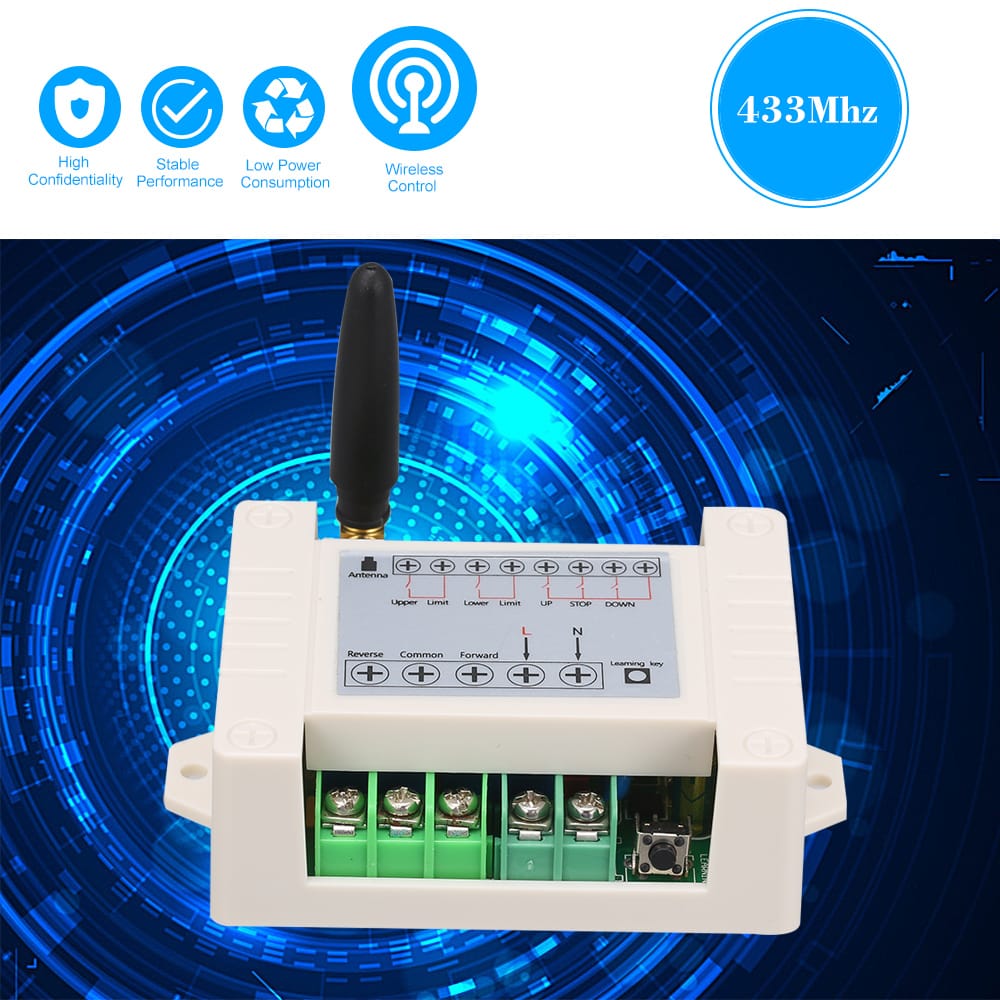

AC85-250V 10A 2CH 433Mhz Motor Remote Control Switch Motor - 1

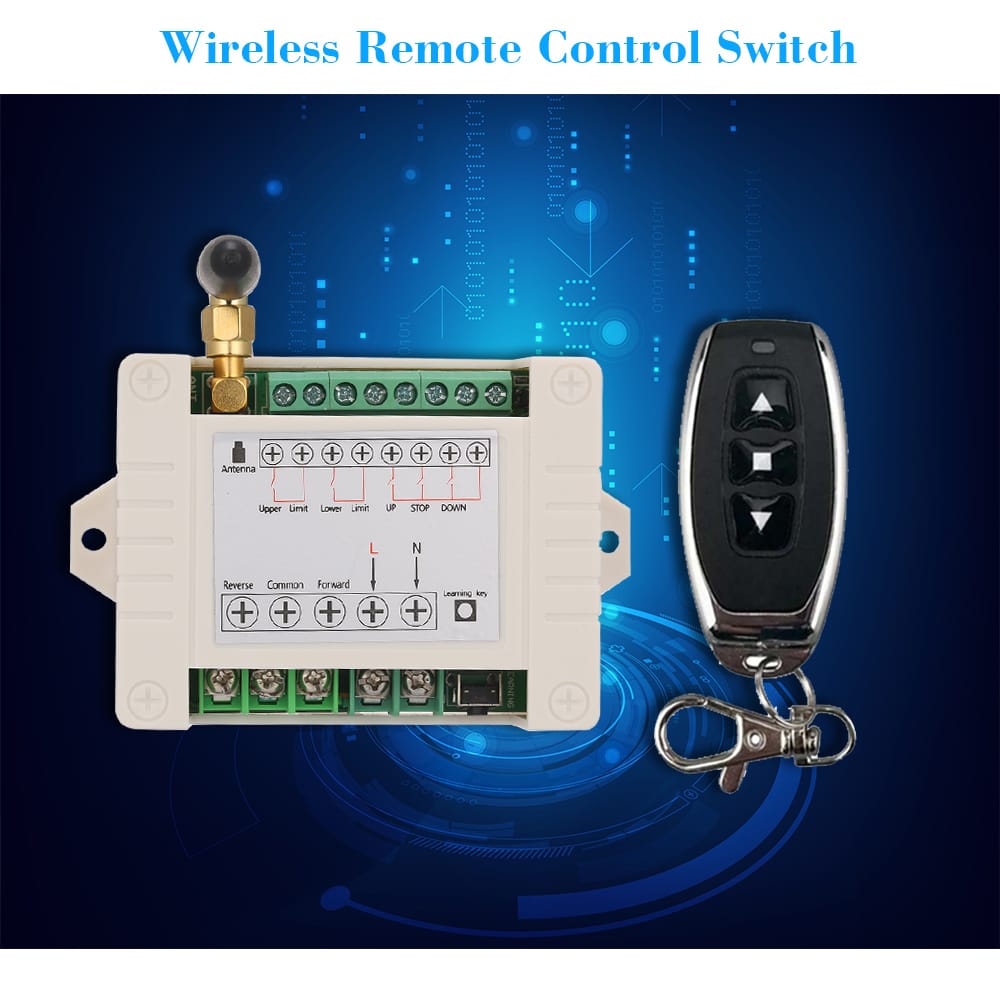

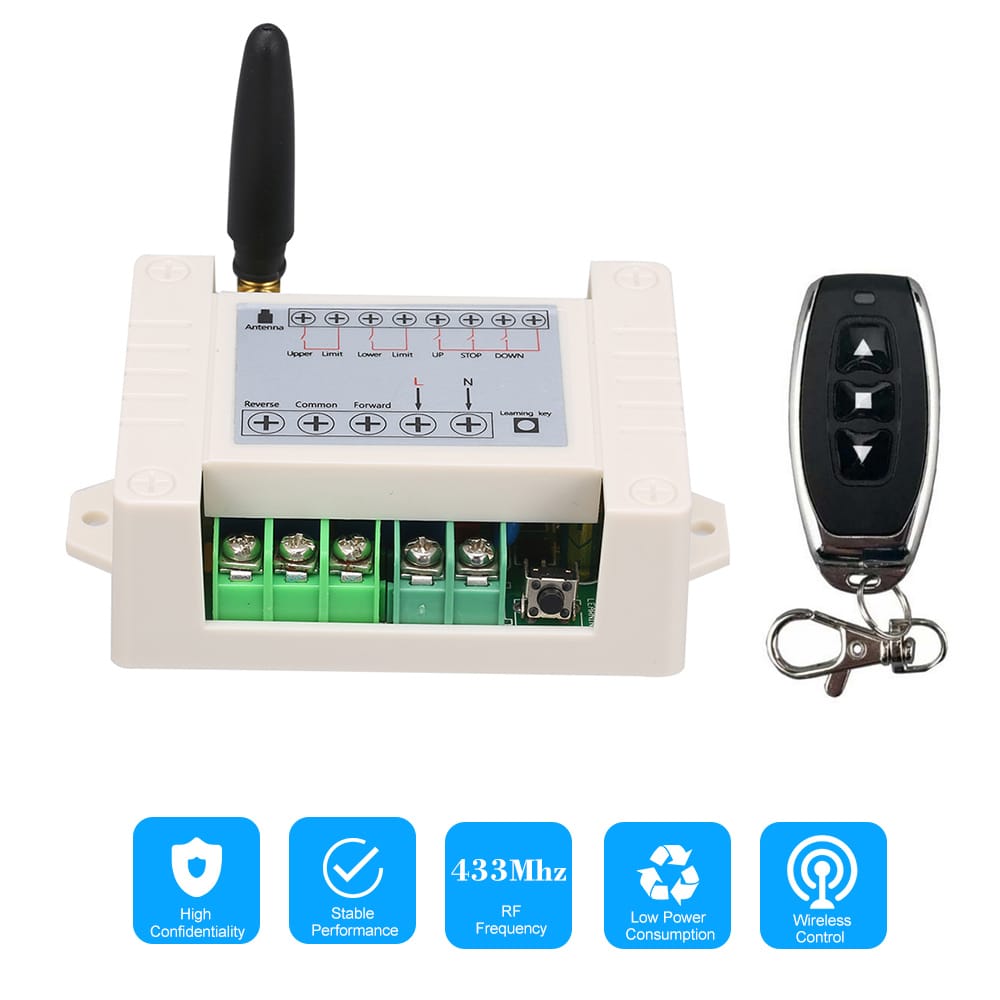

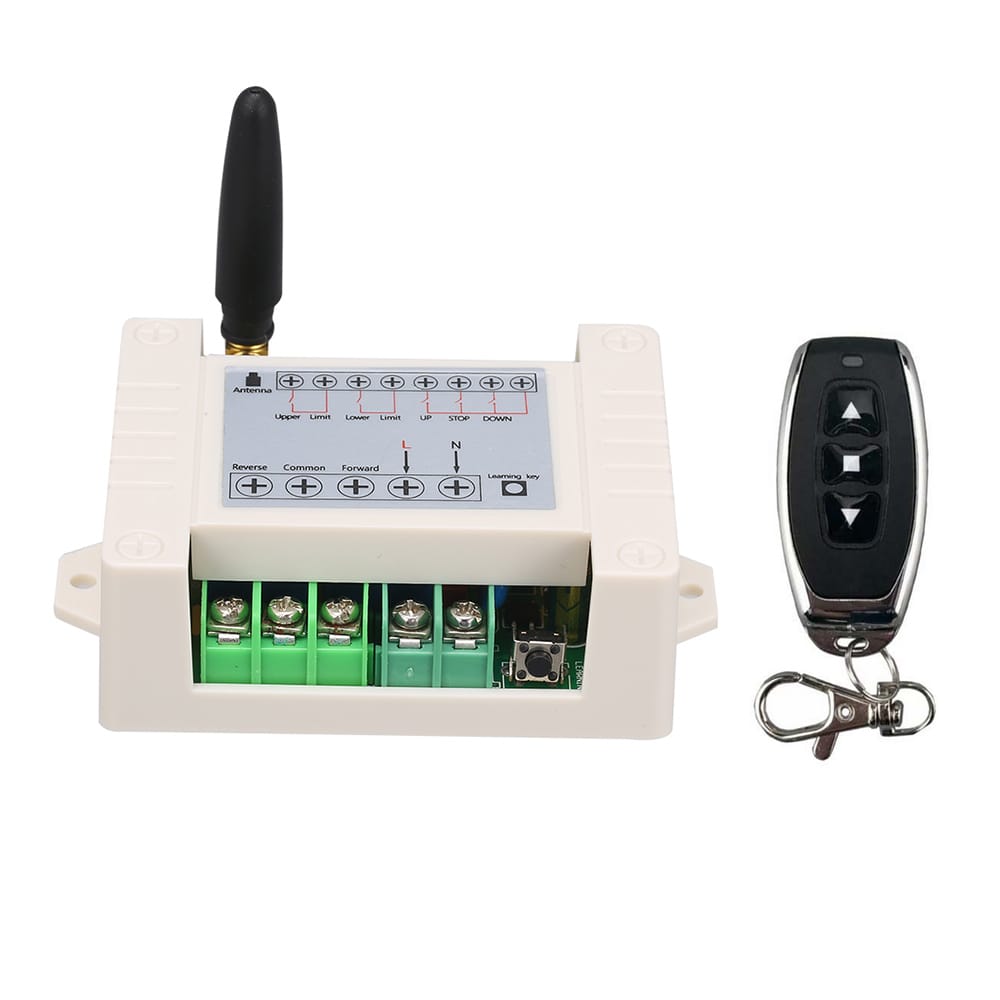

Remote Control Switch Module with Receiver and Transmitter

Overview:
This remote control switch module is designed for a wide range of applications, including controlling lights, electric doors, windows, and industrial devices. Equipped with momentary and latched modes, it provides versatile functionality for both manual and automatic operations. The product ensures safety and convenience, making it ideal for home automation and industrial use.

Features:

1. Original State OFF: Ensures the device remains OFF after a power outage, requiring manual activation for safety.
2. Adjustable Output States:
   • Momentary Mode: Relay stays active while the button is pressed.
   • Latched Mode: Relay toggles between ON and OFF with button presses.
3. Buzzer Feedback: Synchronizes with the relay, providing an audible beep when activated.
4. Protection Function: Latched mode includes a 0.5s delay for forward/reverse transitions to prevent damage.
5. Pre-configured: Transmitter and receiver are paired and tested before shipping; no additional setup required.
6. Versatile Applications: Ideal for remote control switches, lamps, electric doors/windows, curtains, lifters, and motor control.

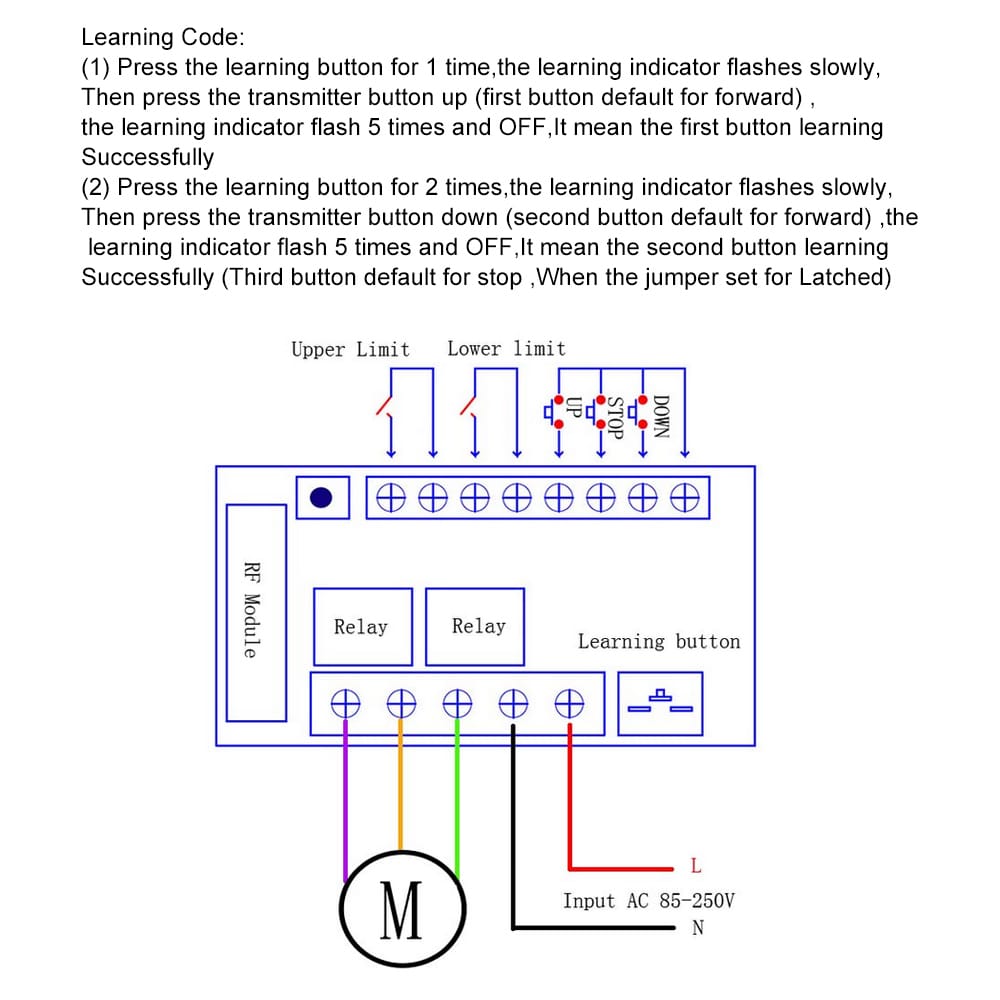

7. Learning Code Function:
   • Easy pairing of the transmitter and receiver.
   • Supports customization of buttons for forward, reverse, and stop actions.
8. Clear Code Function: Quickly reset the receiver by clearing all paired transmitter codes.

Specifications:

• Working Voltage: AC 85V–250V
• Max Load: 10A Relay (recommended load ≤5A)
• Working Frequency: 433MHz
• Receiving Sensitivity: -105dBM
• Modes:
  • Momentary Mode: Press and hold the button for operation; release to stop.
  • Latched Mode: Toggle operation with button presses.
• Remote Control Battery: 2 * CR2016 (included)
• Remote Control Buttons: 3 Keys
• PCB Size: 75 * 58 * 15mm
• Case Size: 95 * 62 * 29mm

Package Information:

• 1PCS Option:
  • Package Size: 12 * 10 * 4cm / 4.7 * 3.9 * 1.6in
  • Package Weight: 120g / 4.2oz / 0.26lb
• 2PCS Option:
  • Package Weight: 140g / 4.9oz / 0.31lb

Package Includes:

• 1 * Receiver
• 1 or 2 * Transmitters (optional)

With its compact size, reliable performance, and user-friendly design, this remote control switch module is a must-have for enhancing your automation needs.
