5.8G CF-E312A Antenna 300Mbps Wireless Bridge Outdoor Wifi CPE Compact

Description:

Using for Qualcomm AR9344 chip, with PA amplifier and high gain antenna, equipment performance and transmission distance due to high standard more outstanding.
2.4GHz band too many devices, serious interference. CF-E312A V2 works in 5.8GHz frequency band with less interference and more stable network bridge operation.

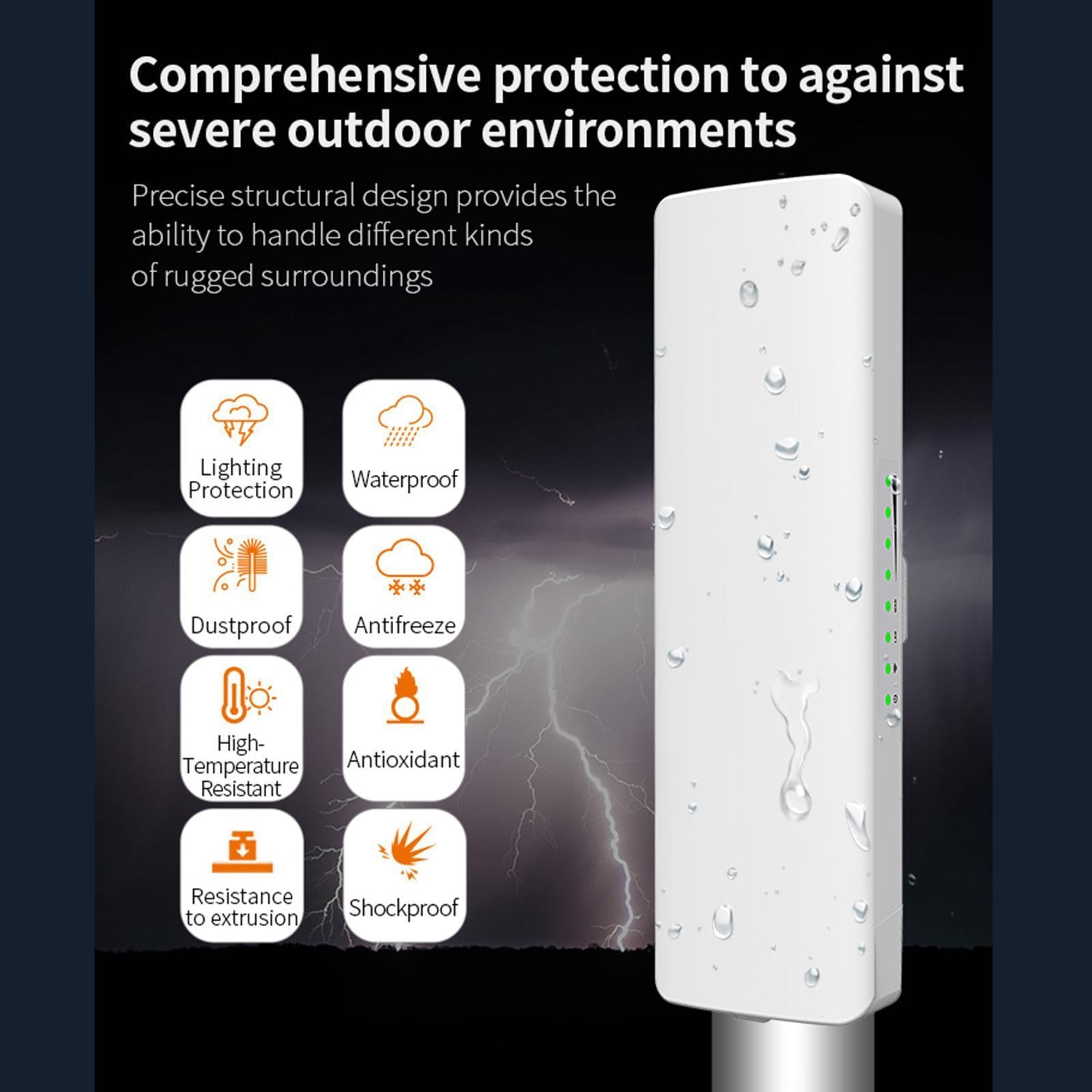

The wireless bridge adopts the precise structure design, as well as the outdoor protection level standard, the engineering users have no fear of all kinds of complex and harsh outdoor environment, do stability engineering.
The wireless bridge support -30° low-temperature start, solve the problem for high latitudes engineering users.
Equipped with 2*14dBi antenna, ensure the network bridge transmission HD picture quality, no delay, no stuck, let users easily do engineering.

Specification:

Material: ABS
Size: 262x80x53mm/10.24x3.15x2.17inch
Standard: US 110V
Model: CF-E312A V2
Motherboard chip: For Qualcomm AR9344 560MHz CPU
Memory: 64MB, PA: SKY85728-11
Antenna
Specification: 2*14dBi Intelligent dual-polarization antenna
Wireless Standard: IEEE802.11a/an
Transmitted power: 500mW(27dBm)
Receive sensitivity: -96dBm
Working Frequency: 802.11a/n 5.180GHz-5.825GHz
Wireless rate: 5.8GHz: 300Mbps
Physical interface: 1*10/100Mbps WAN Ethernet port, 1*10/100Mbps LAN Ethernet port, 1*POE output toggle switch, 1*RESET Button, 8*Indicator light

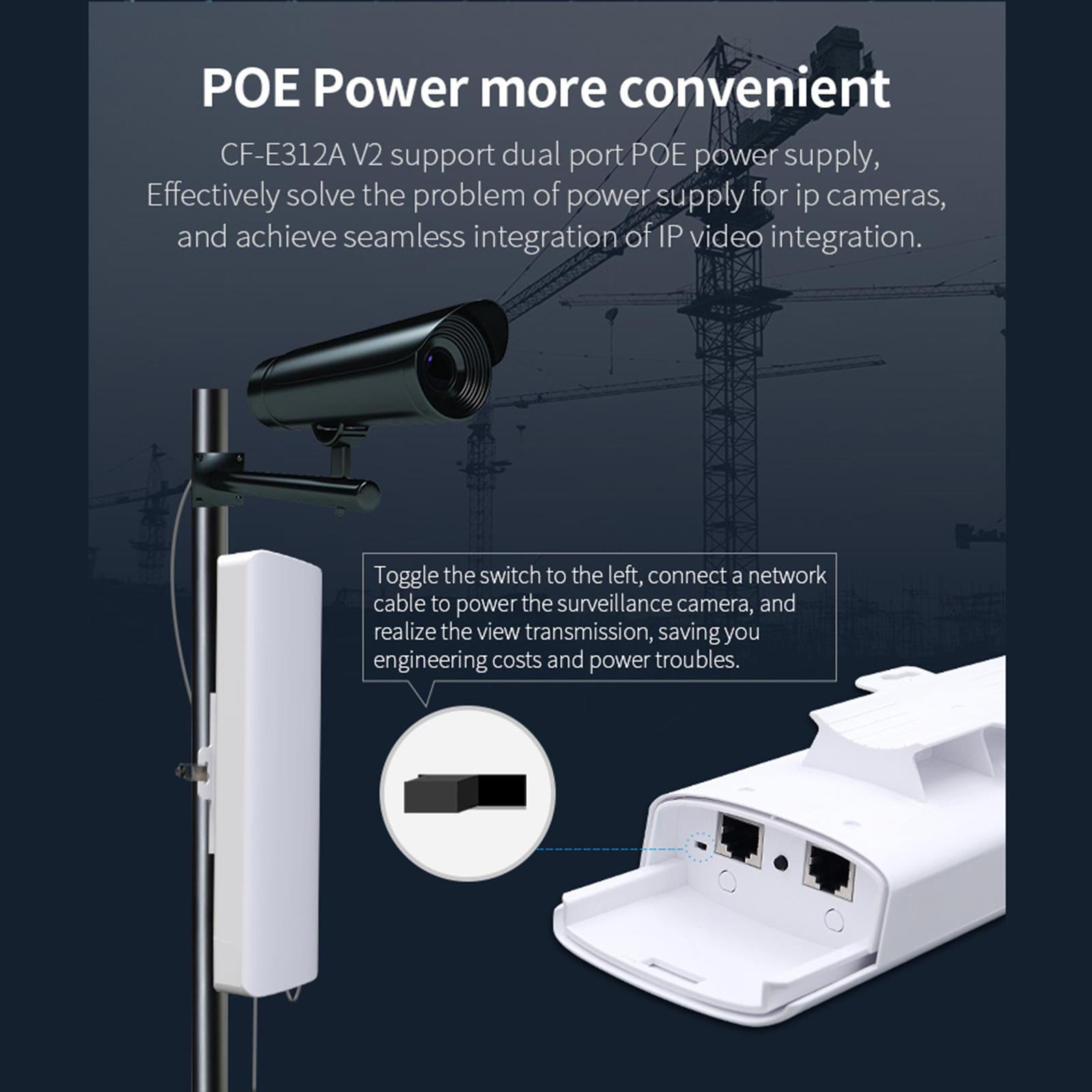

Power Supply: Support 802.3af/802.3at Compatible Power Supply
Power Supply Adapter: 24V/48V POE Power Adapter
Power dissipation: ≤8W

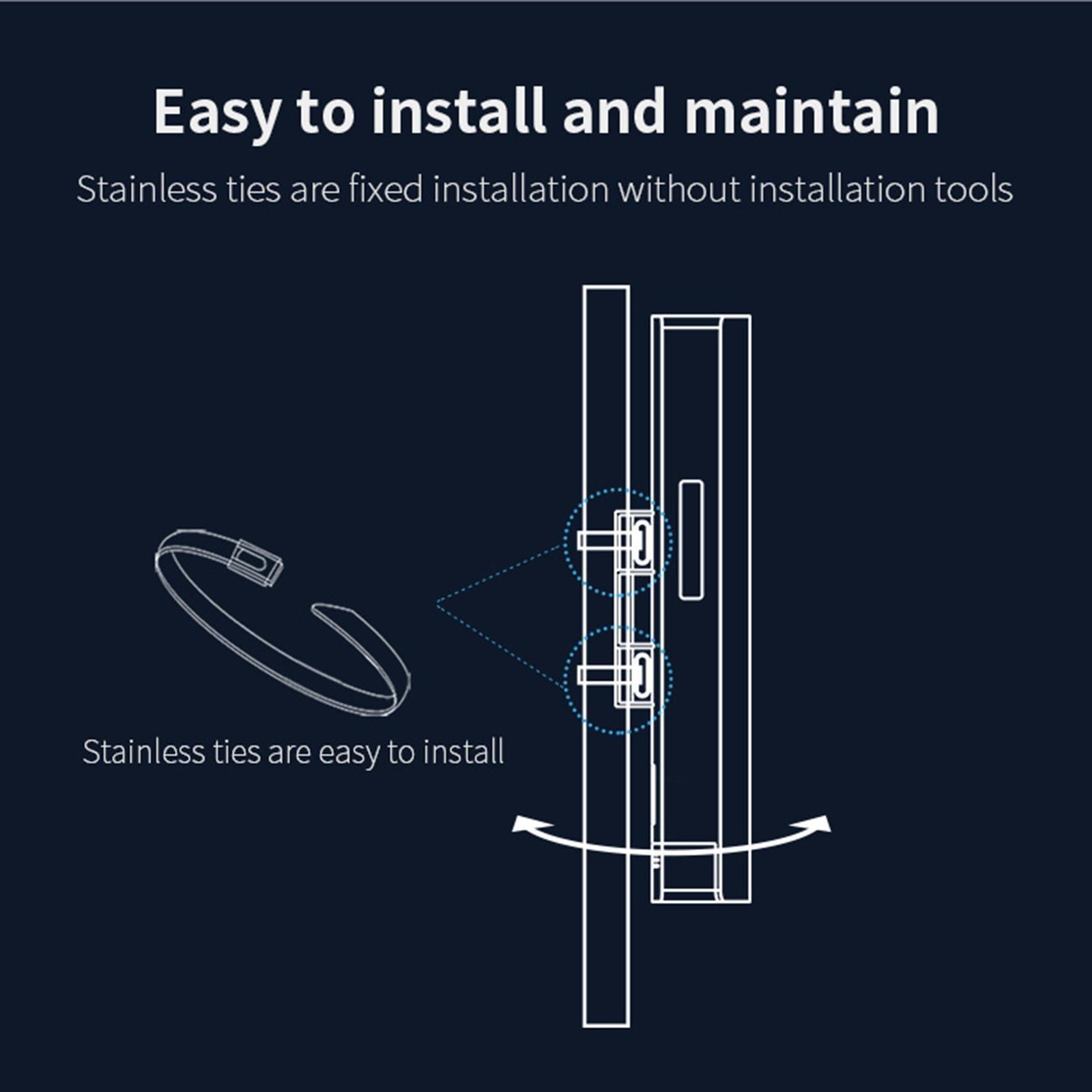

Installation: Pole type installation, Wall mounted installation, Bracket type installation

Package Includes:

1 x Wireless Bridge
2 x Metal Cable Tie
1 x POE Power
1 x Power Cable
1 x Instructions
