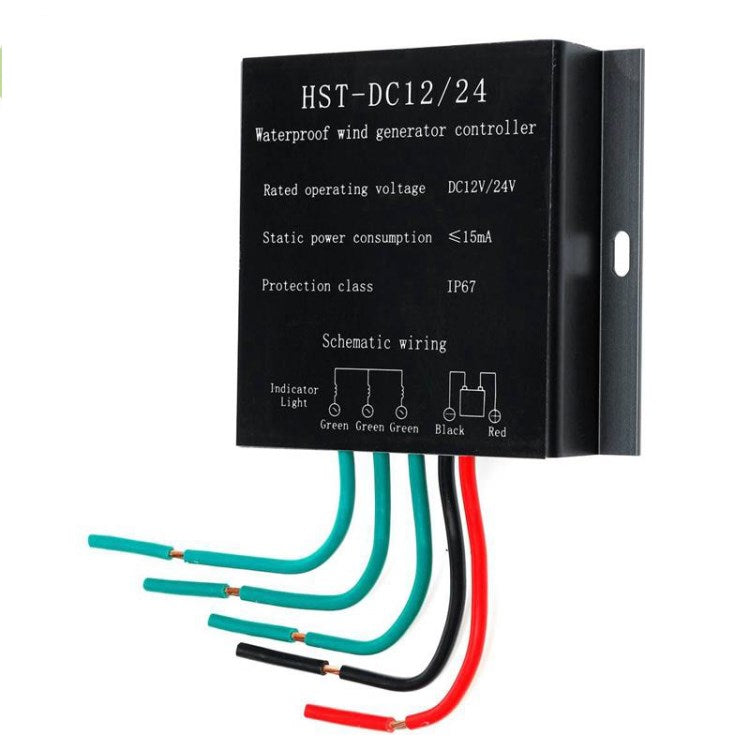

12V / 24V 9000W Waterproof Wind Turbines Generator Battery Charge Controller Regulator

• It helps to control the wind generator to charge the battery automatically

• The wind controller protects the wind turbine and the battery

• The rectification and brake circuit part has adopted an integrated module design, fast heat dissipation, and reliability

• IP67 waterproof design, it can be used normally for a long time even in water

Specification:

• Model: FW06-12/24-A

• Size: 100 x 87 x 28mm

• Battery rated voltage: 12/24V

• Rated application power: ≤ 800W

• Brake starting voltage (factory value): 30V

• Brake recovery voltage (factory value): 27V

• Display mode: LED (LED display)

• Operating temperature and humidity range: - 35~+75 ?

• Quiescent current: ≤ 20 mA

• Waterproof grade: IP67

Wiring Mode:

• 1. Connect the positive and negative poles of the battery to the positive (red) and negative (black) terminals of the battery of the controller.
• 2. Respectively connect the three-phase output voltage of the wind turbine to the three-phase input (green line) terminal of the controller fan.

Note:

• 1. Please confirm that the output voltage of the wind turbine generator is consistent with the rated voltage of the battery.

• 2. Please connect the wires in the following order, first connect the positive and negative poles of the battery, and then connect the 3-phase voltage output of the fan.

• 3. Please connect the battery and wind turbine to the controller in strict accordance with the requirements. Reverse polarity or wrong position will lead to abnormal operation of the system or even damage to the controller.

Package included:

• 1 x Wind Turbines Generator Battery Charge Controller Regulator
