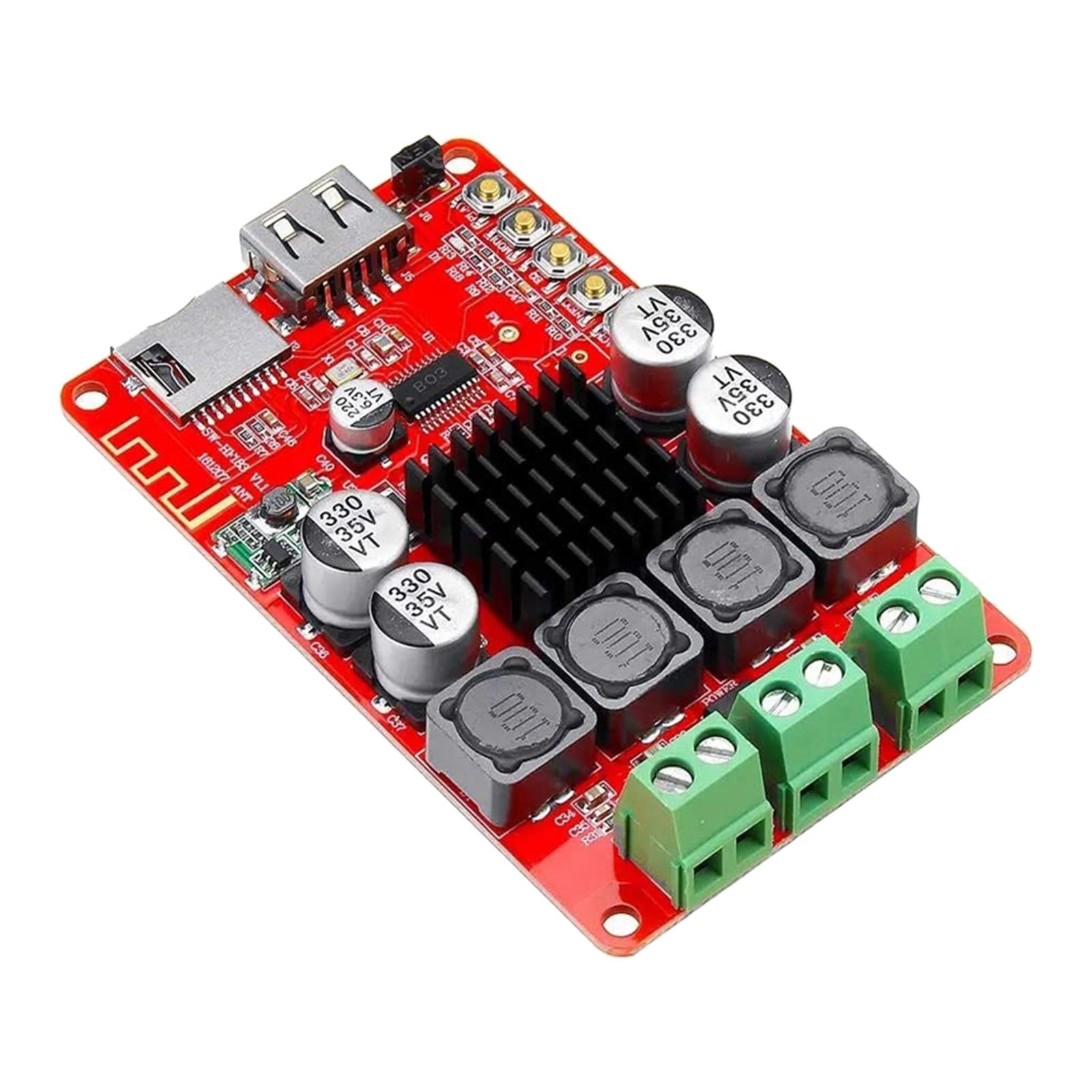

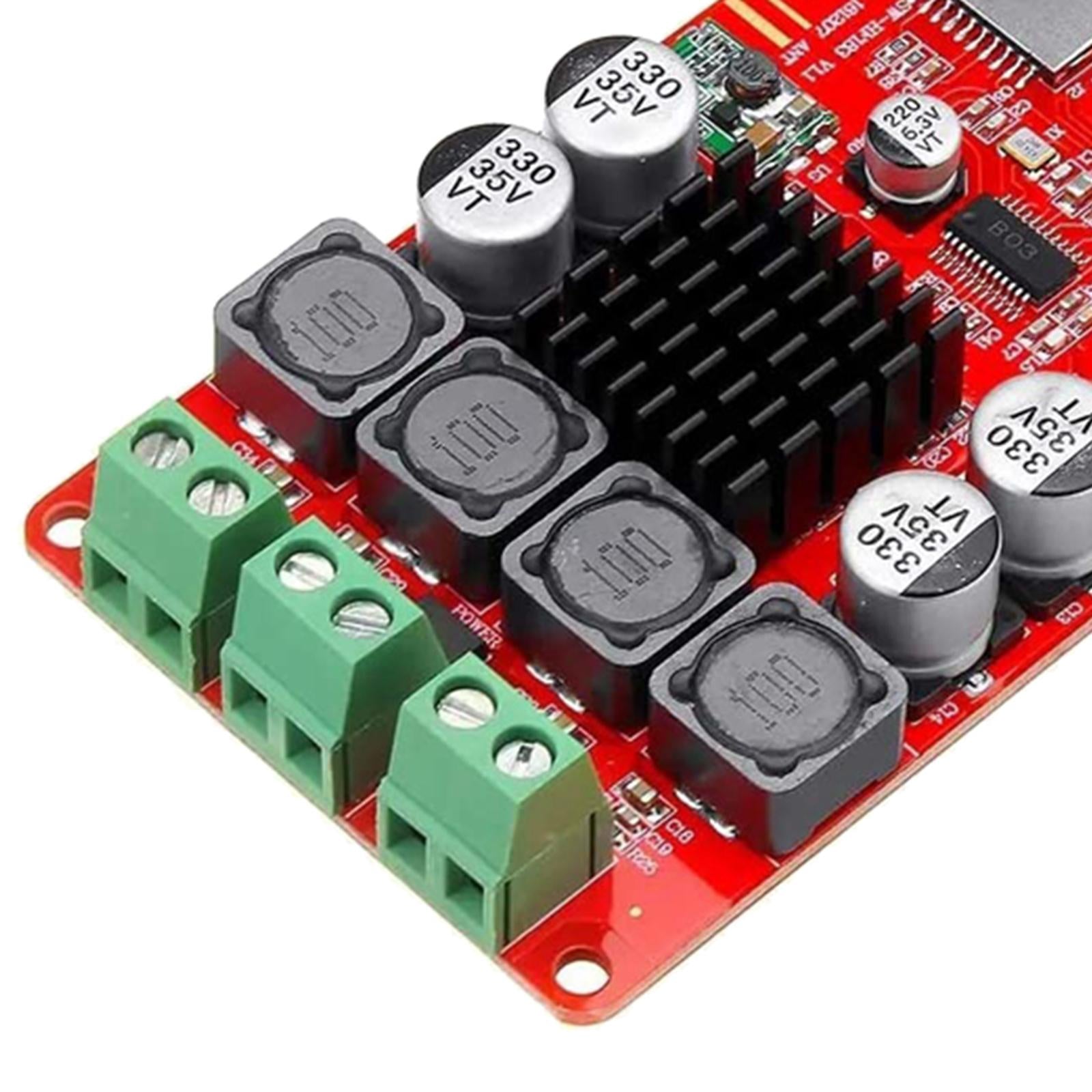

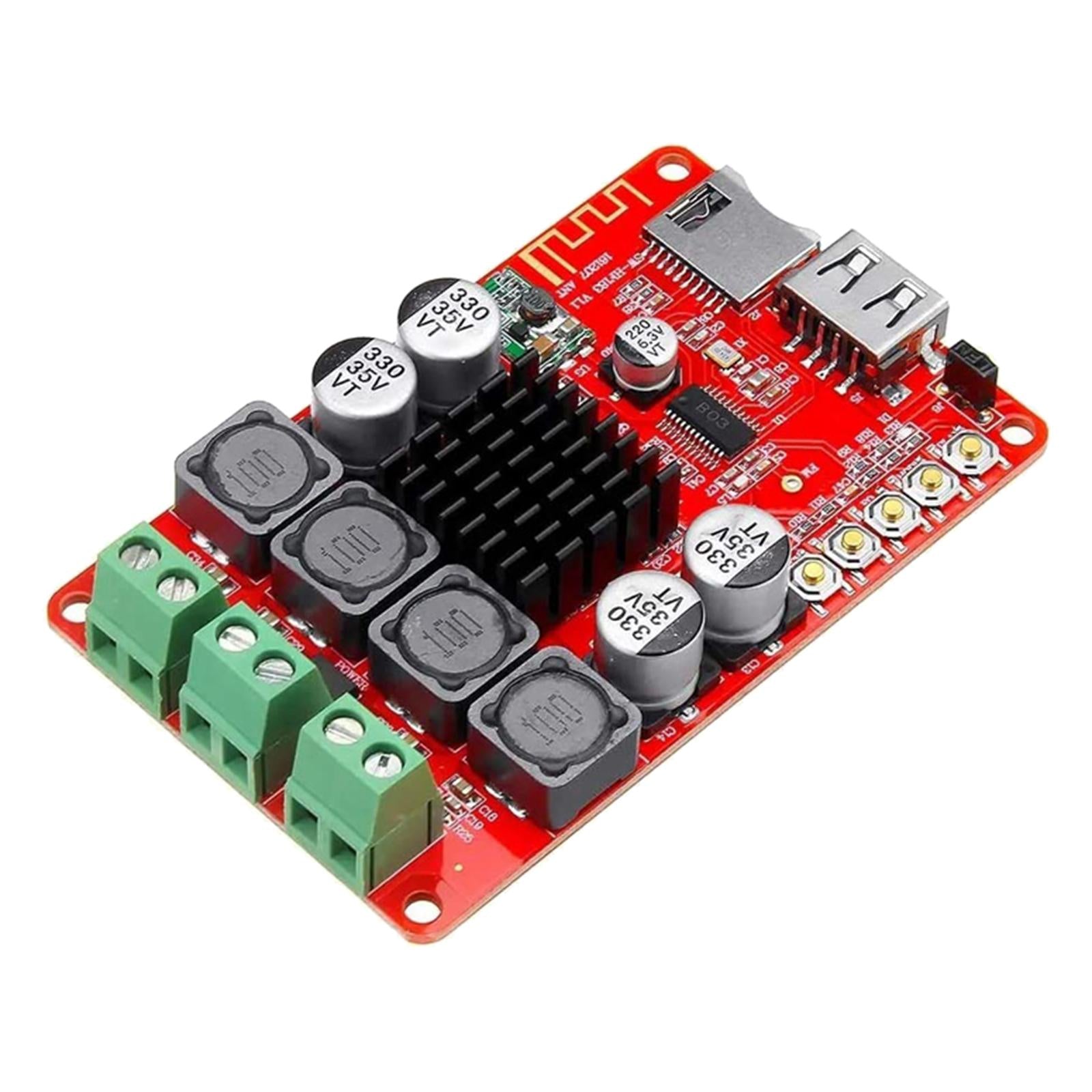

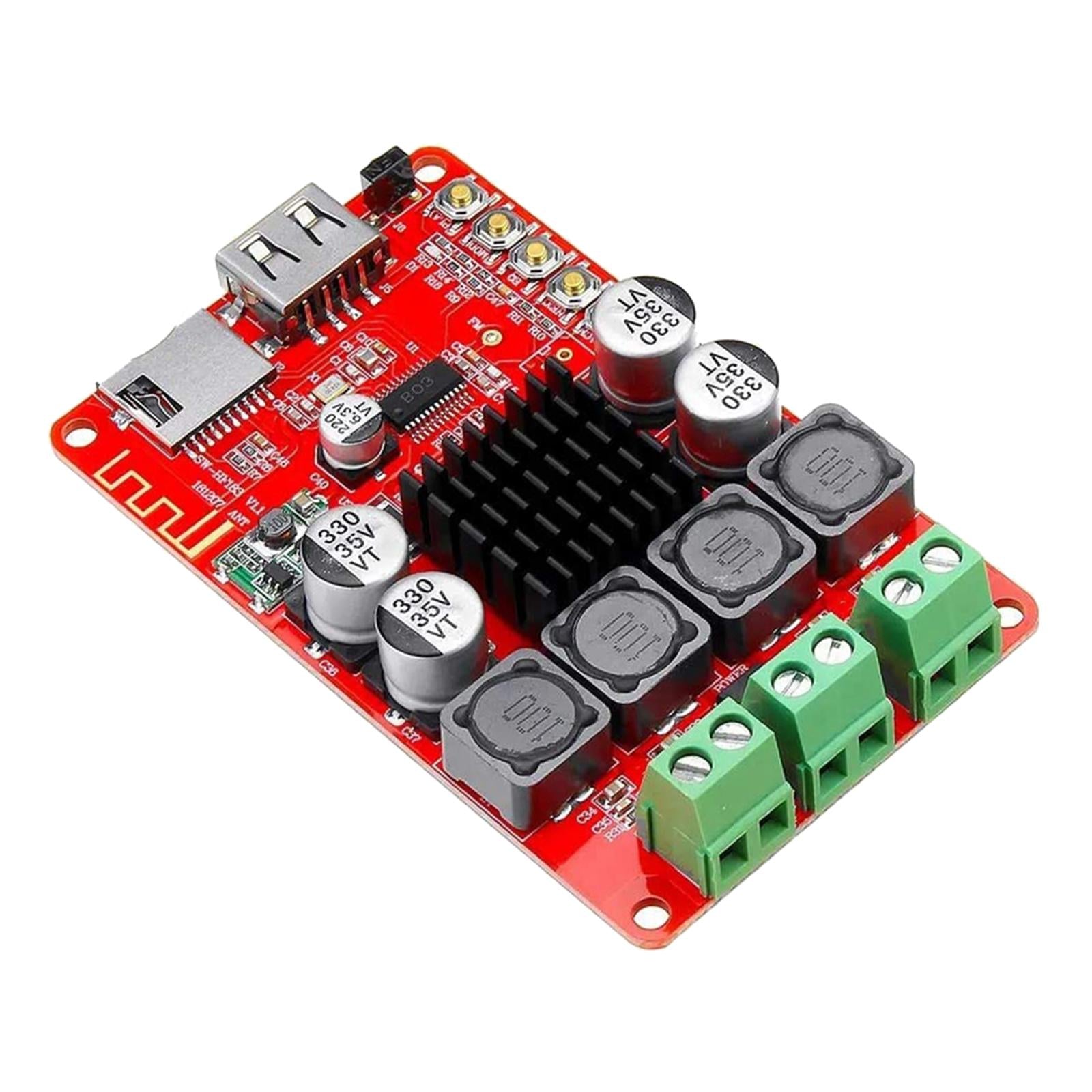

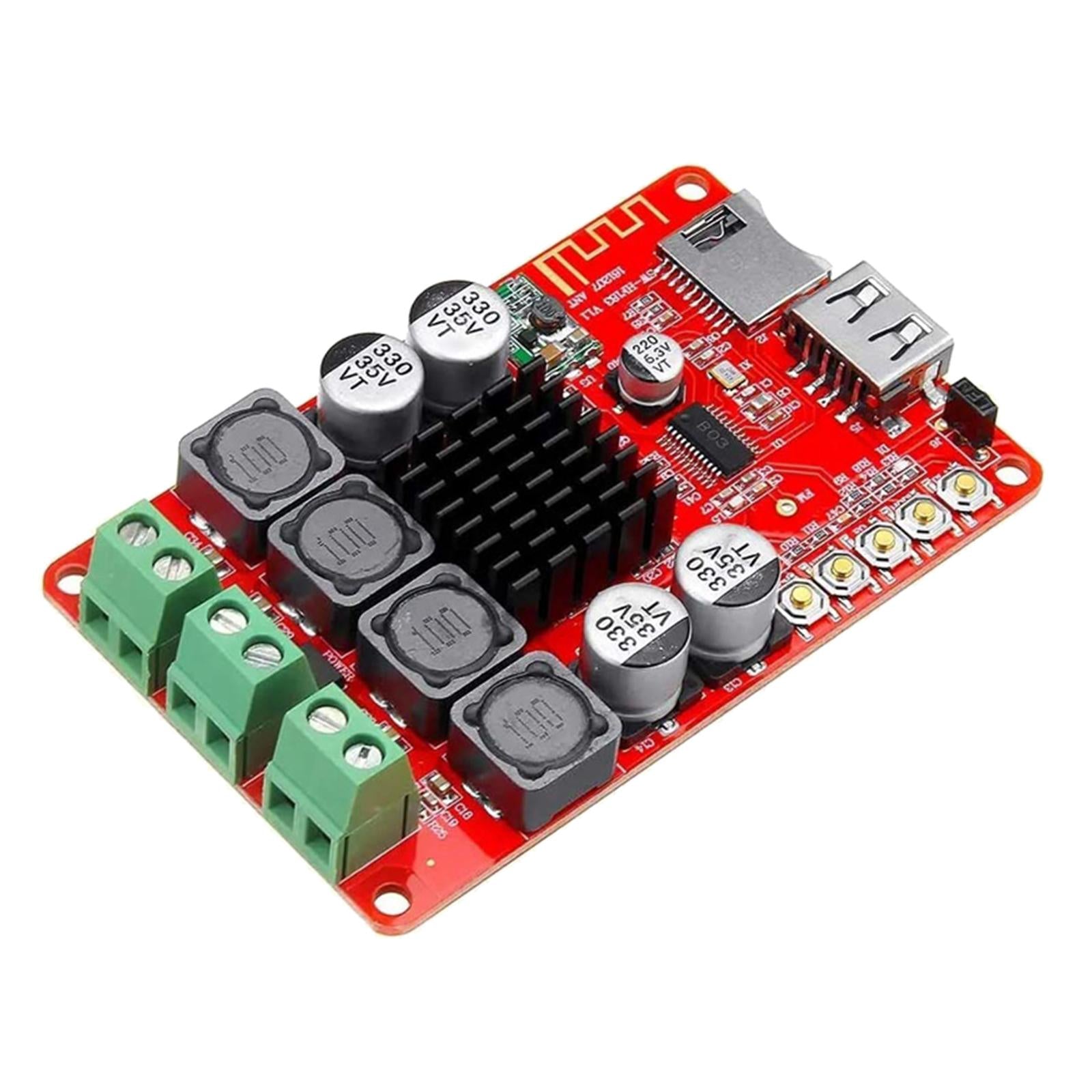

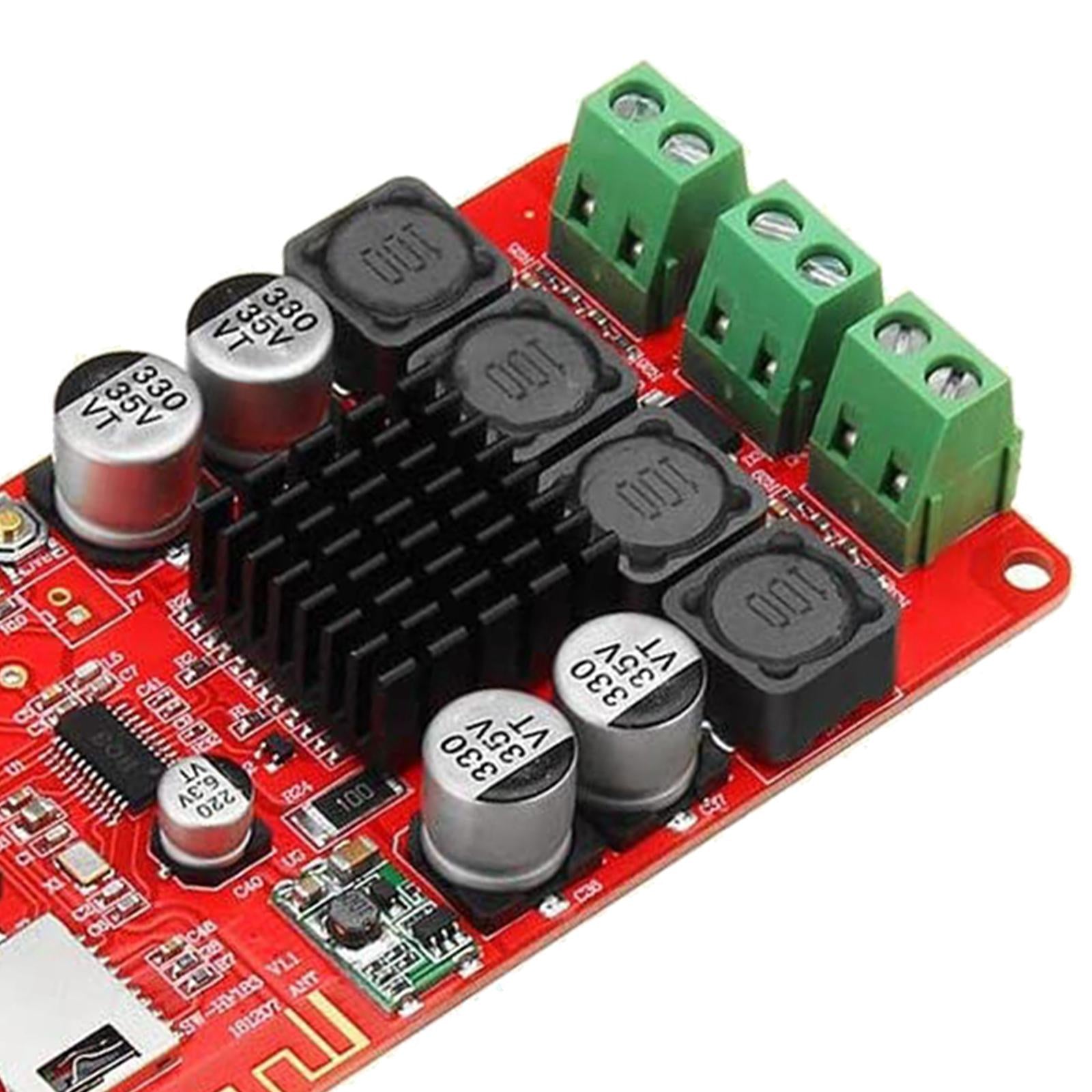

50W+50W TPA3116 Wireless Amplifier Audio Board Digital U Disk with Remote

Description:

TPA3116 power amplifier chip, 2*50W stereo power output, perfect bluetooth audio receiver board for use.
USB interface/TF card slot, supported playing formats: MP3, WMA, WAV, FLAC; with FM radio function.
DC 8-26V input voltage for power supply, the wireless receive distance can be up to 15m(shielded signals).
Equipped with heat-dissipating module on the board, with 5 buttons on the board for adjustment, convenient and easy operation.
Remote control for receiving and controlling(infrared way).

Specification:

Audio Input: Bluetooth , USB decoding, TF card decoding
Decoding Supported Formats: MP3, WMA, WAV, FLAC
Power Supply: DC 8-26V
Applicable Impedance: 4-8 ohm
Control Method: Buttons; Remote Control
Receive Distance: 15 meters
Remote Control Power: 1 x 3V CR2025 Button Battery(Not Included)

Size Chart:

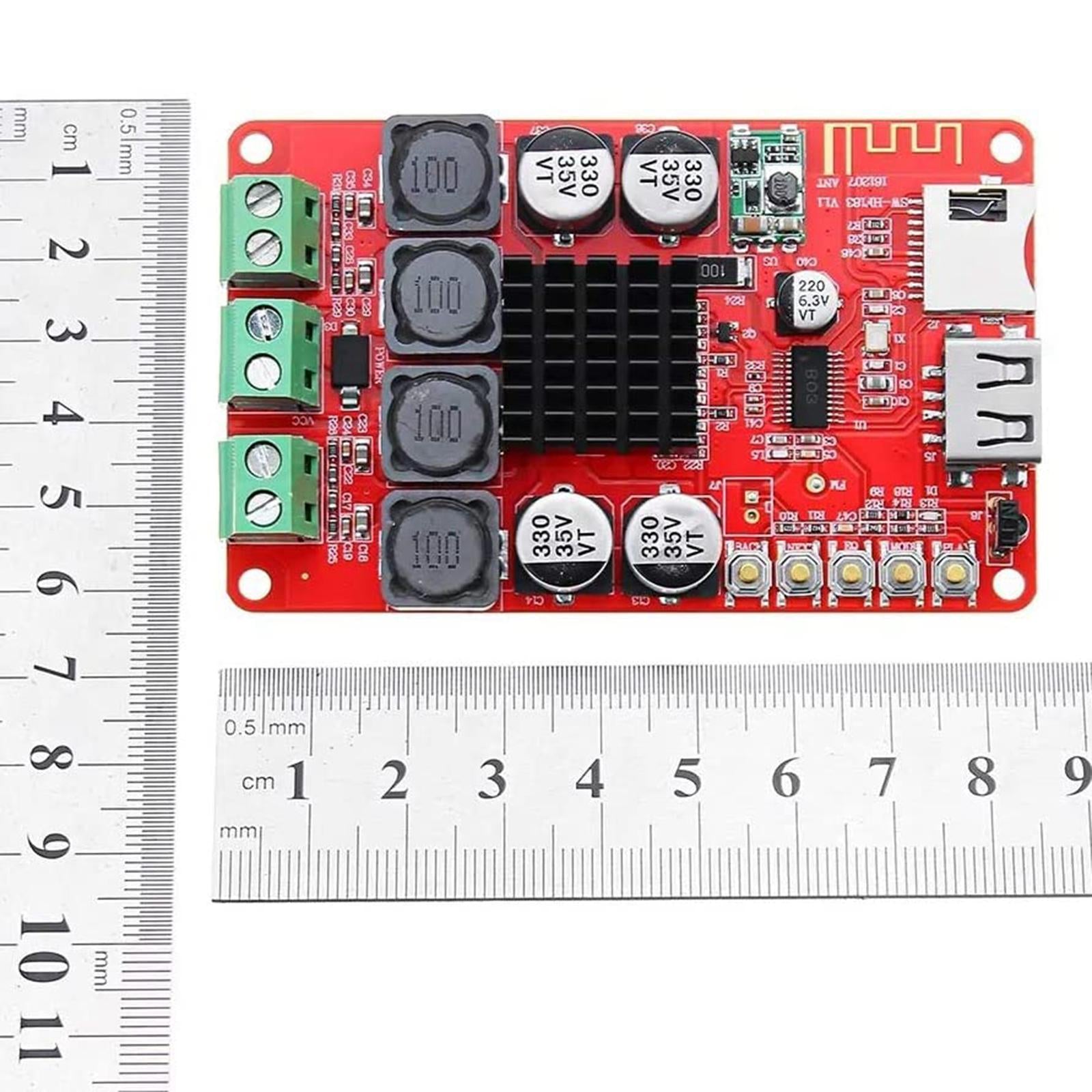

Board Size: 90x60x30mm / 3.54x2.36x1.18inch

Package Includes:

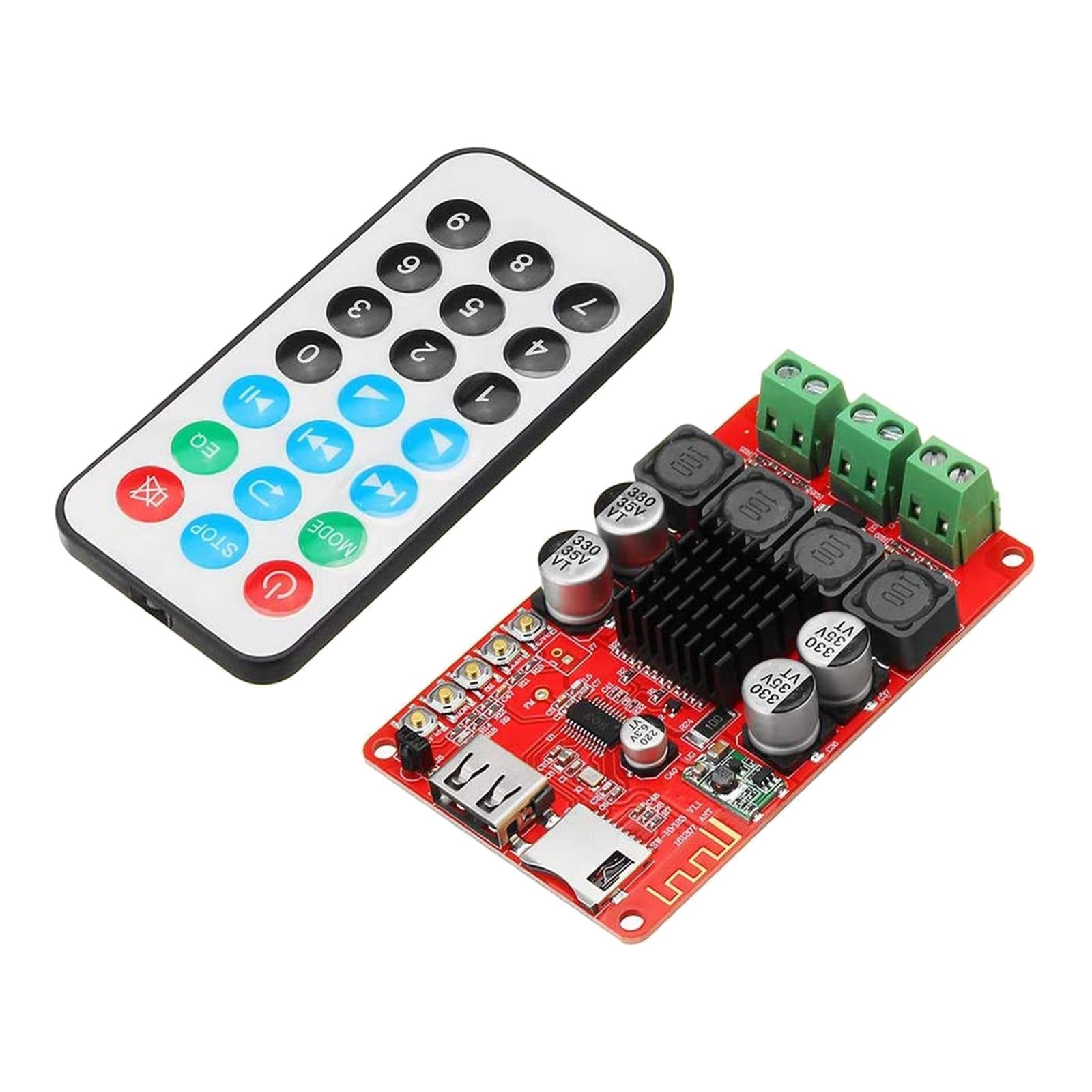

1 Piece Audio Receiver Board
1 Piece Remote Control

Note:

Color might be slightly different due to the color calibration of each individual monitor.
Please allow slightly measuring deviation due to manual measurement.
