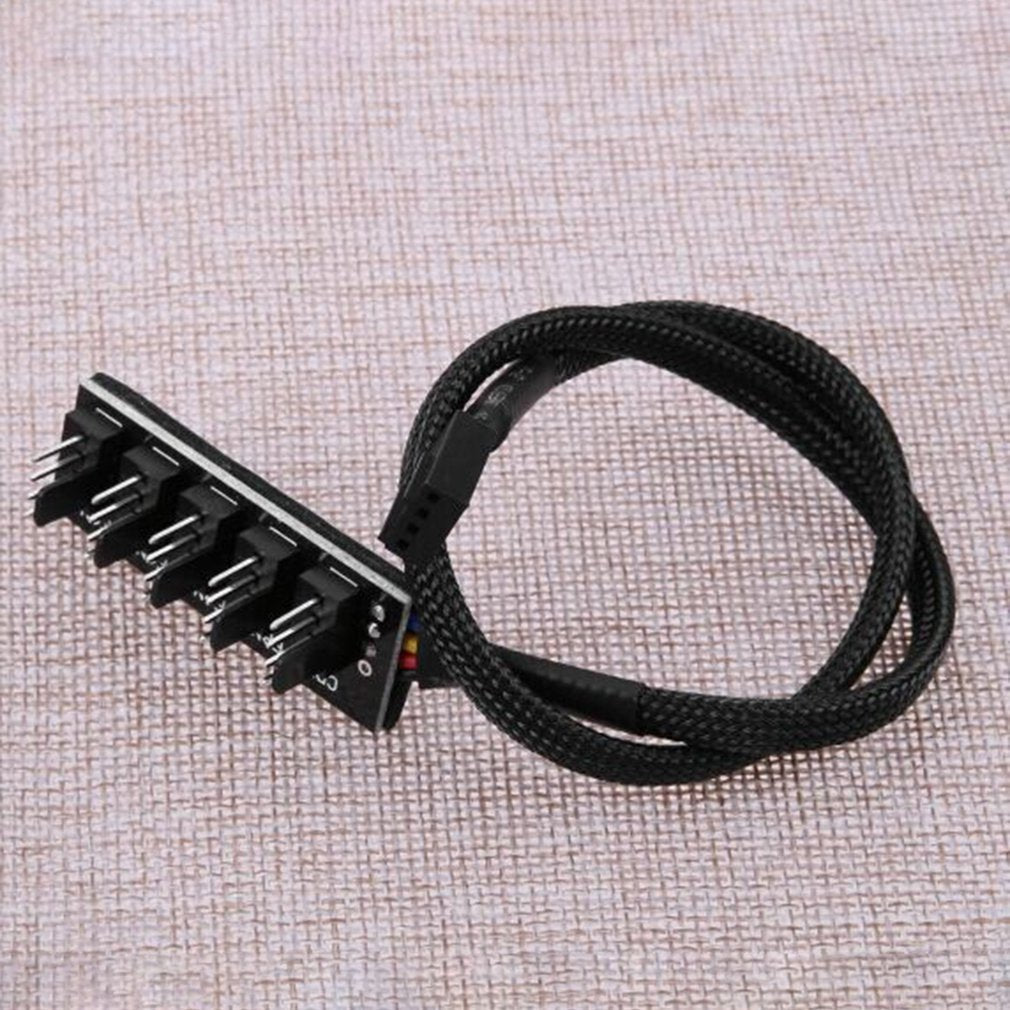

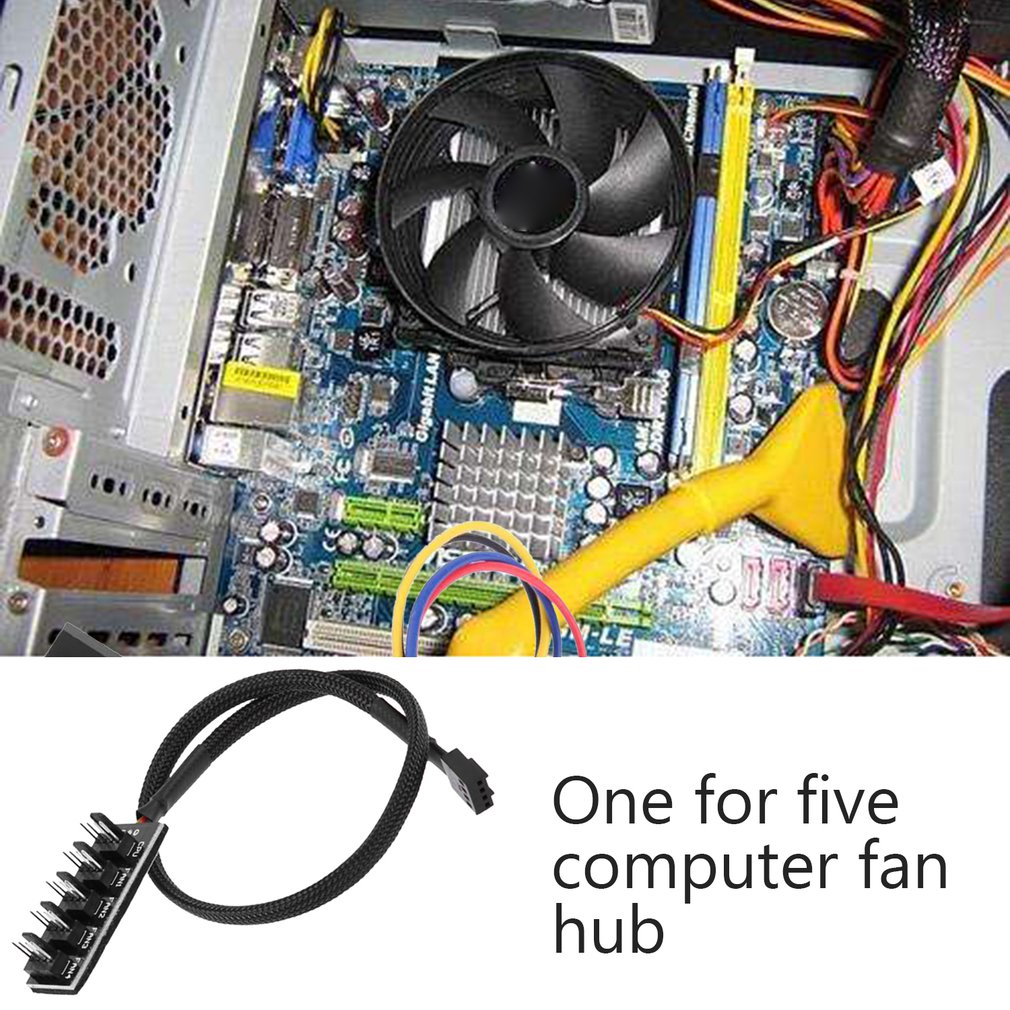

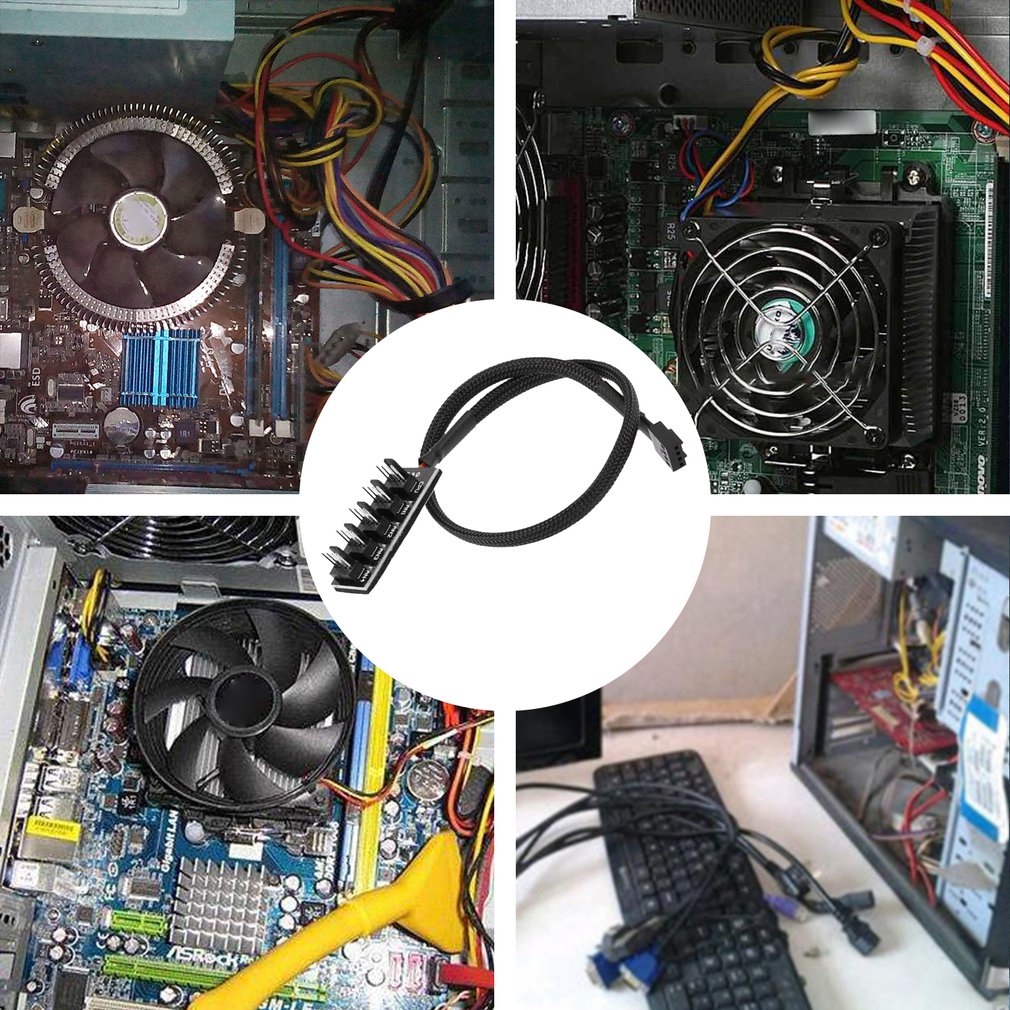

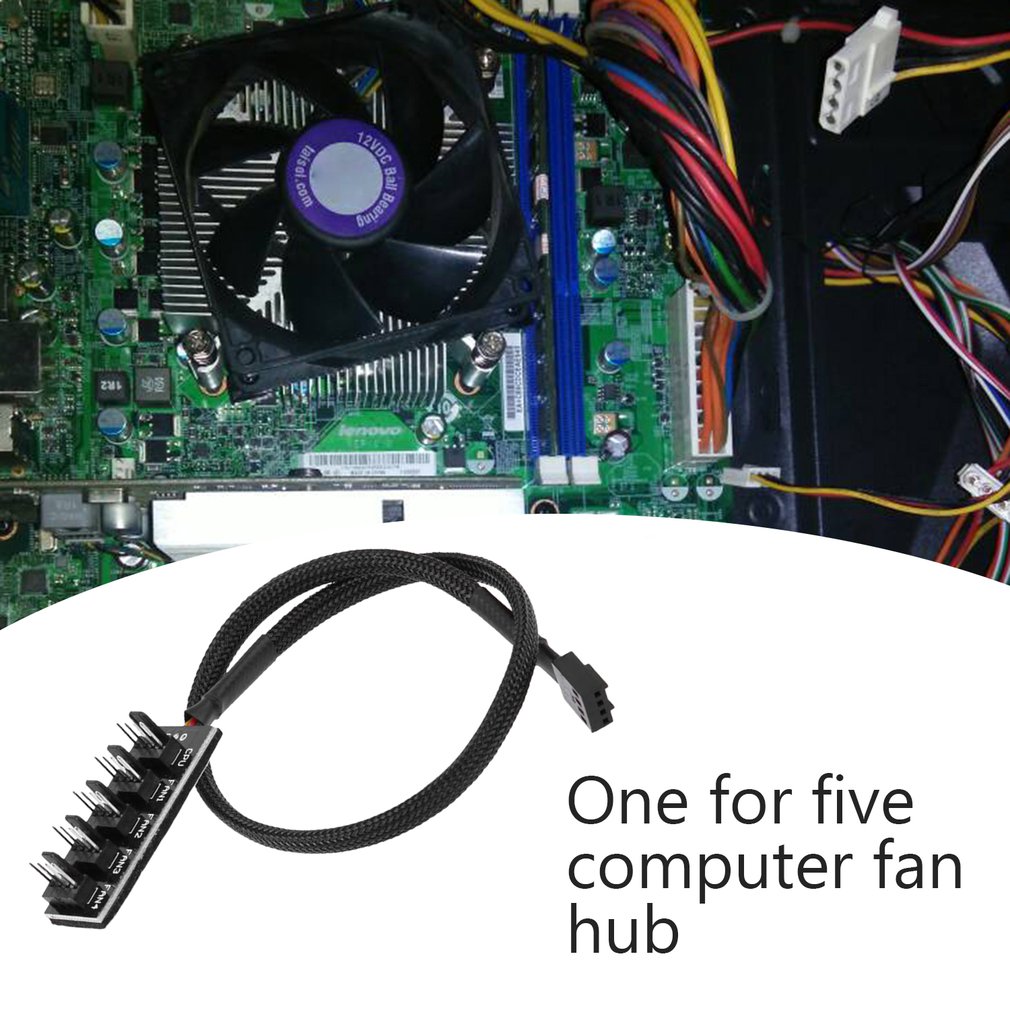

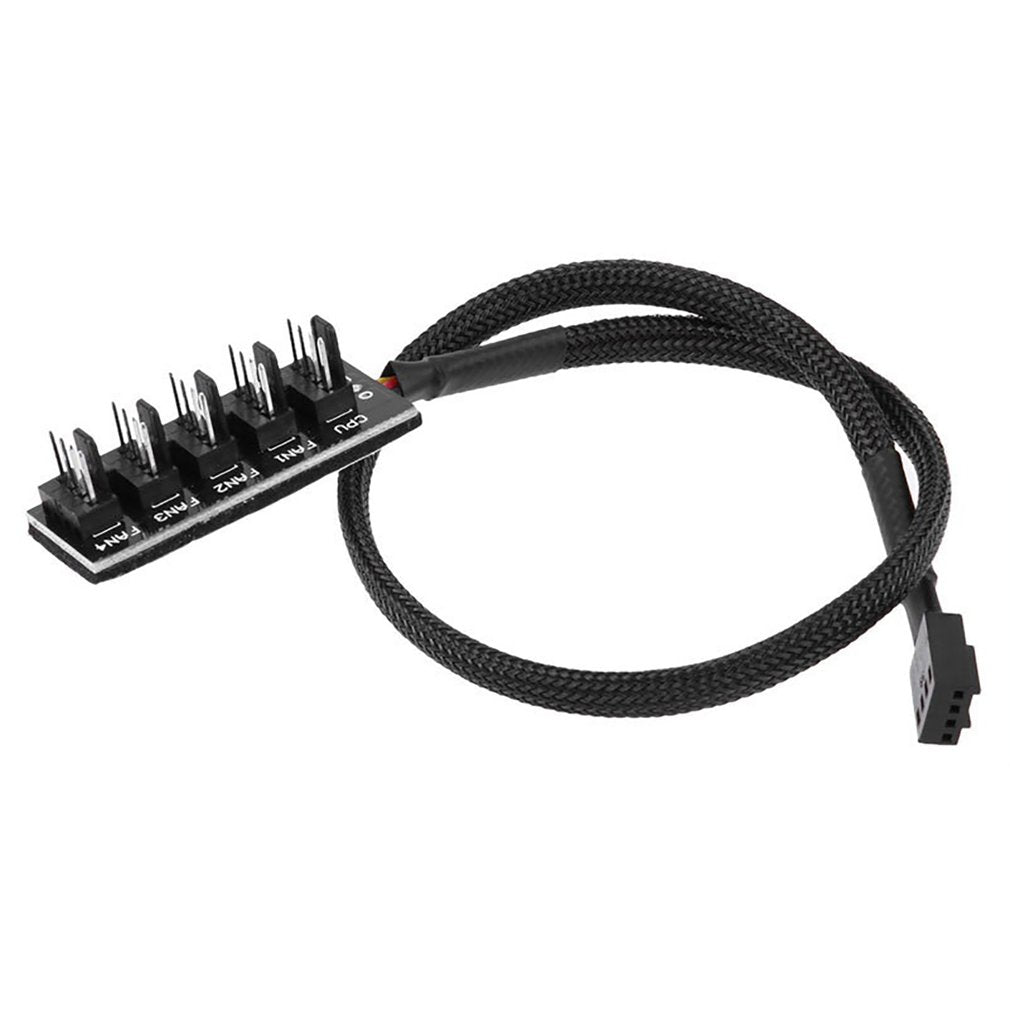

Desktop Computer CPU Chassis Fan 4-Pin PWM 1 to 5 Hub Adapter 3-Pin/4-Pin Cooling Fan Connector

• Designed for users who need to control many system fans
• It can expand 1 motherboard PWM fan interface, and support up to 5 fans
• Support PWM function, speed control, to meet your control needs
• Compatible with 3-pin/4-pin fan (Since there is no PWM controller for 3-pin, the 3-pin fan will run at full speed)
• Support cable management

Instruction:

• Since a motherboard interface can only read one RPM signal, the CPU Fan channel of the PWM distributor has only one RPM signal; therefore, the motherboard will only read the RPM signal of the PWM device connected to the channel 1 of the distributor.

Specifications:

• Product Type: 5-port fan hub

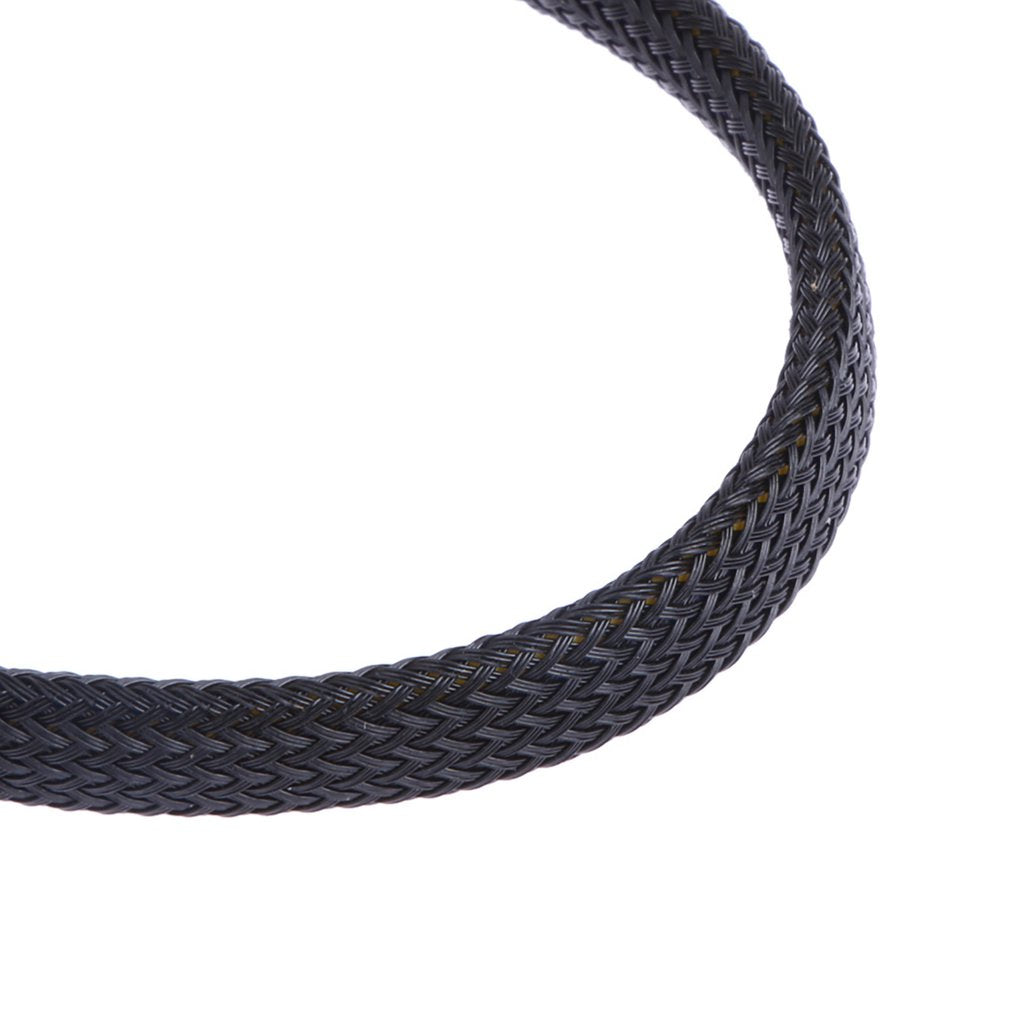

• Material: Nylon + Plastic + Metal
• Length: about 39.5cm/15.55inches

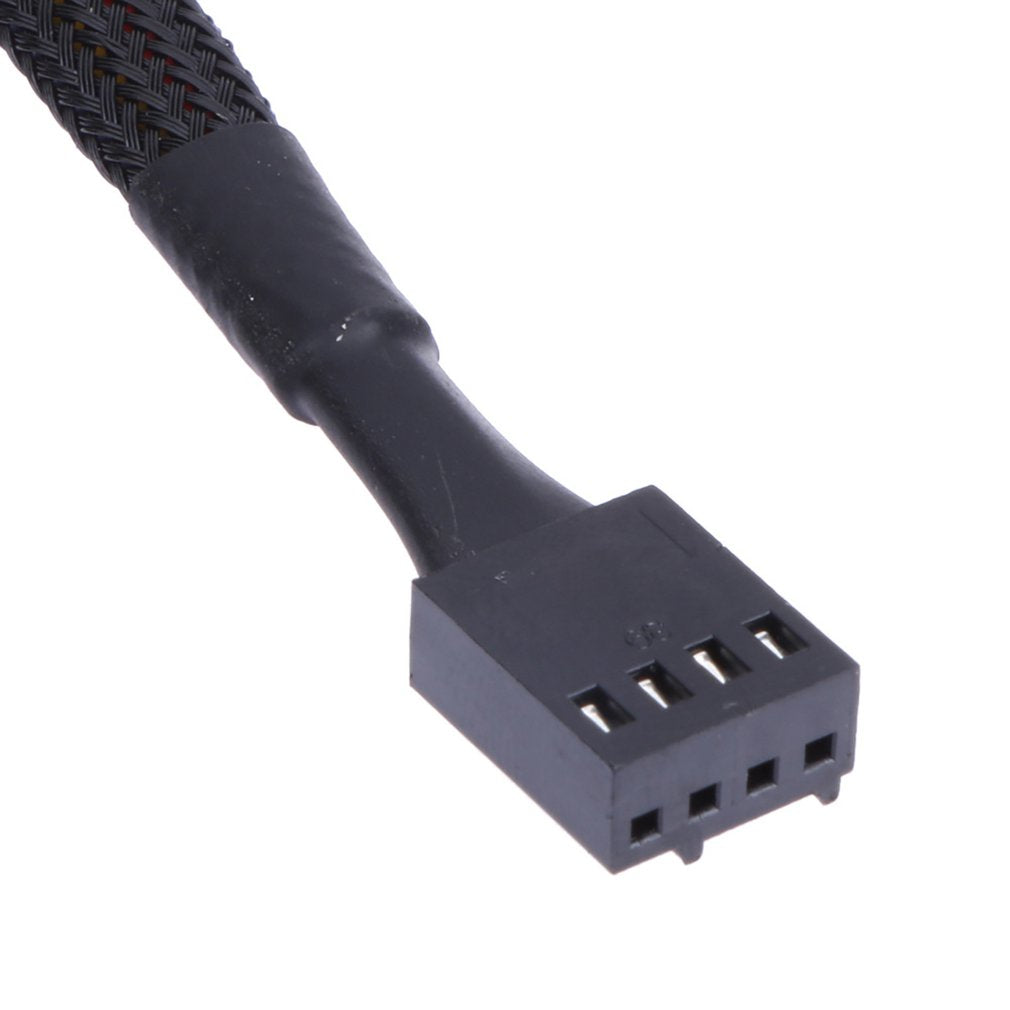

• Connector A: 1-TX4 4-pin female

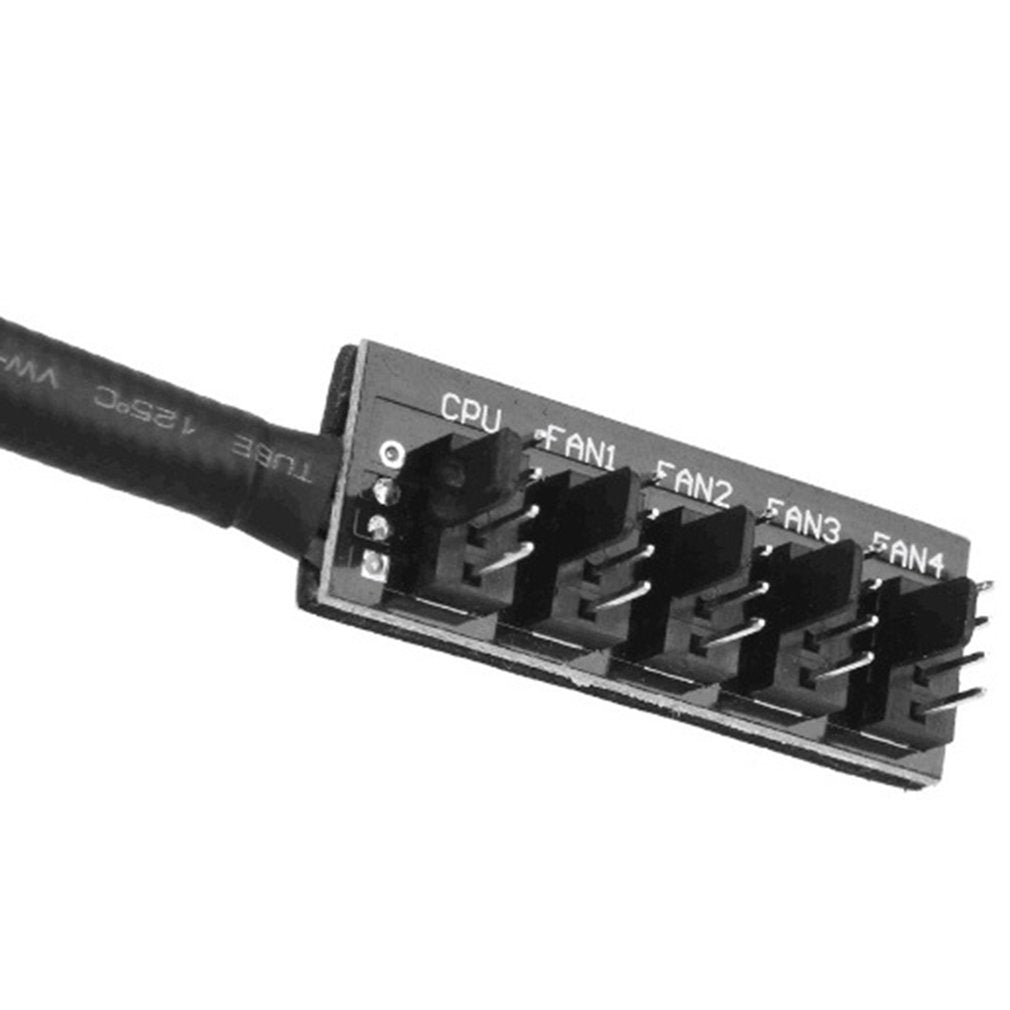

• Connector B: 1-TX4 4-pin male connector, used for CPU fan (including tachometer pin); 4-TX4 4-pin male connector, used for chassis fan
• Voltage: DC 12V

Package included:

• 1 x 1 to 5 4-Pin Molex TX4 PWM CPU Fan Hub

• Other items not included
