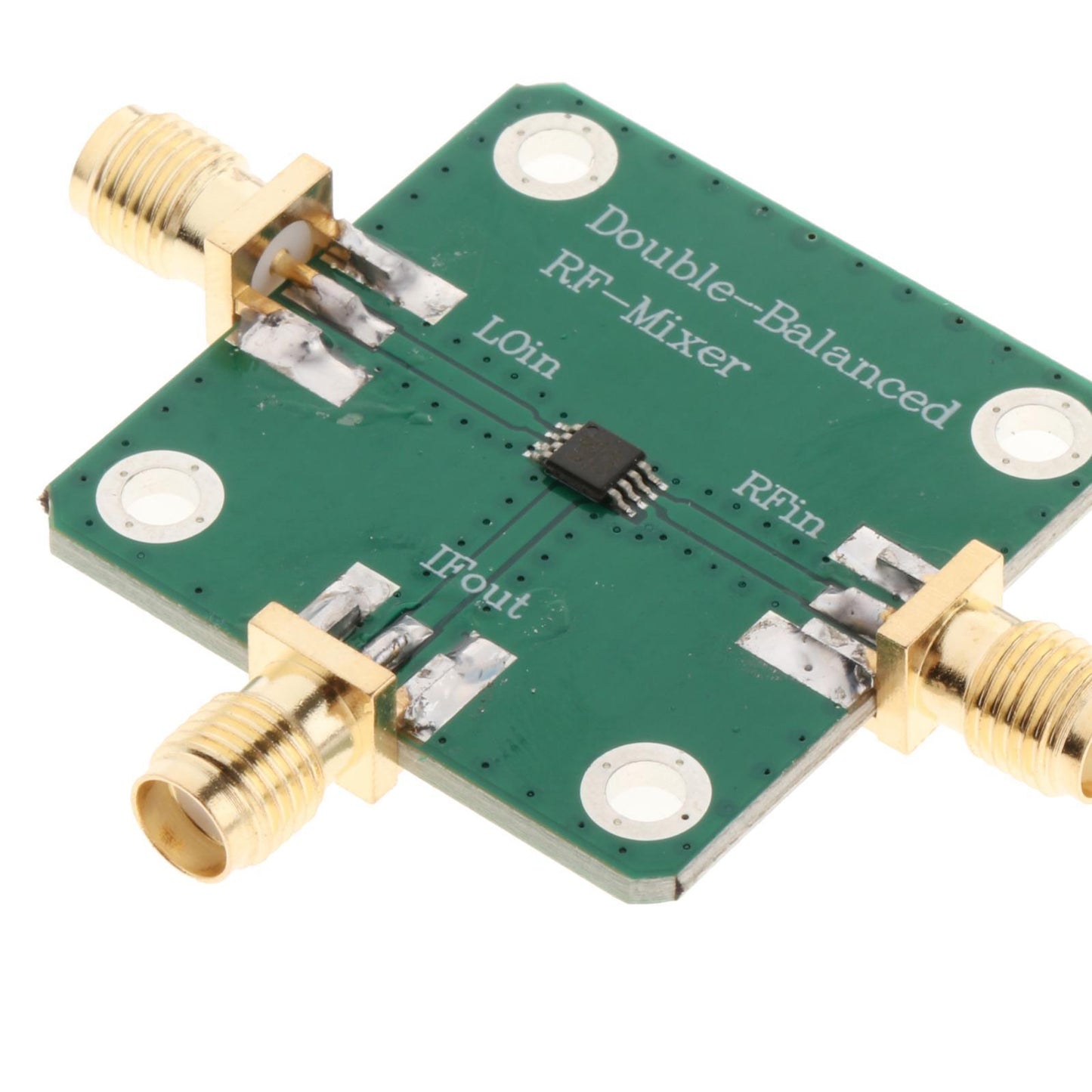

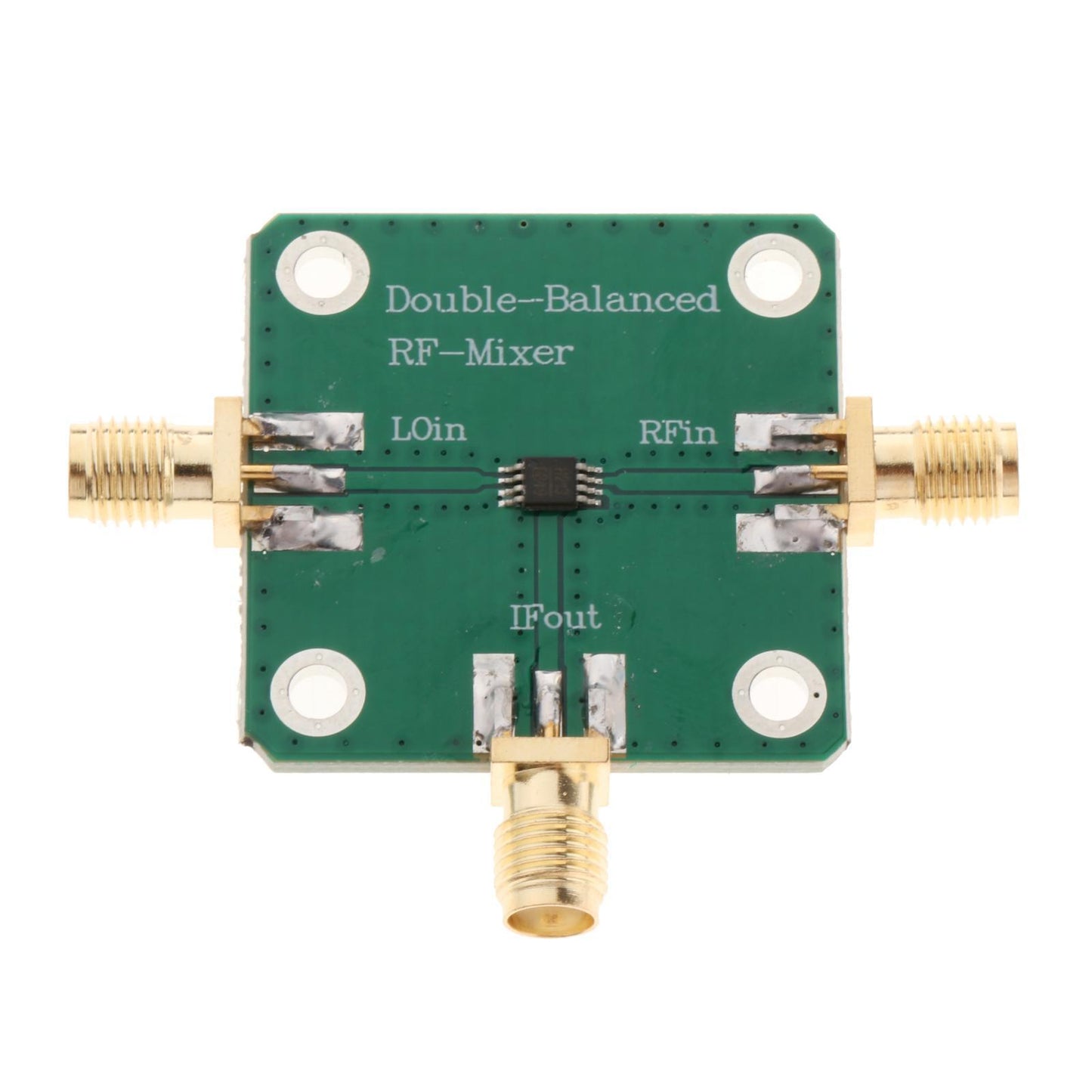

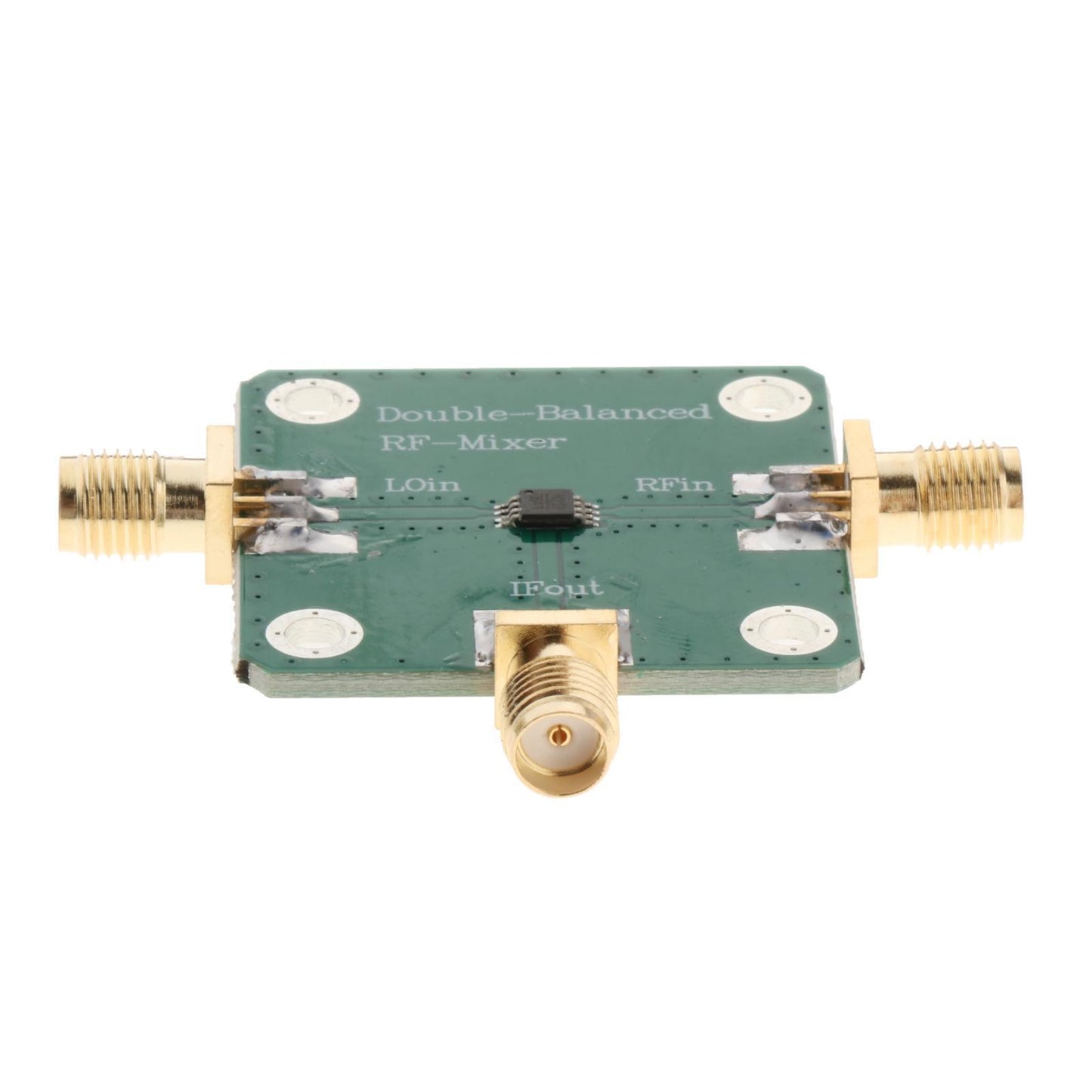

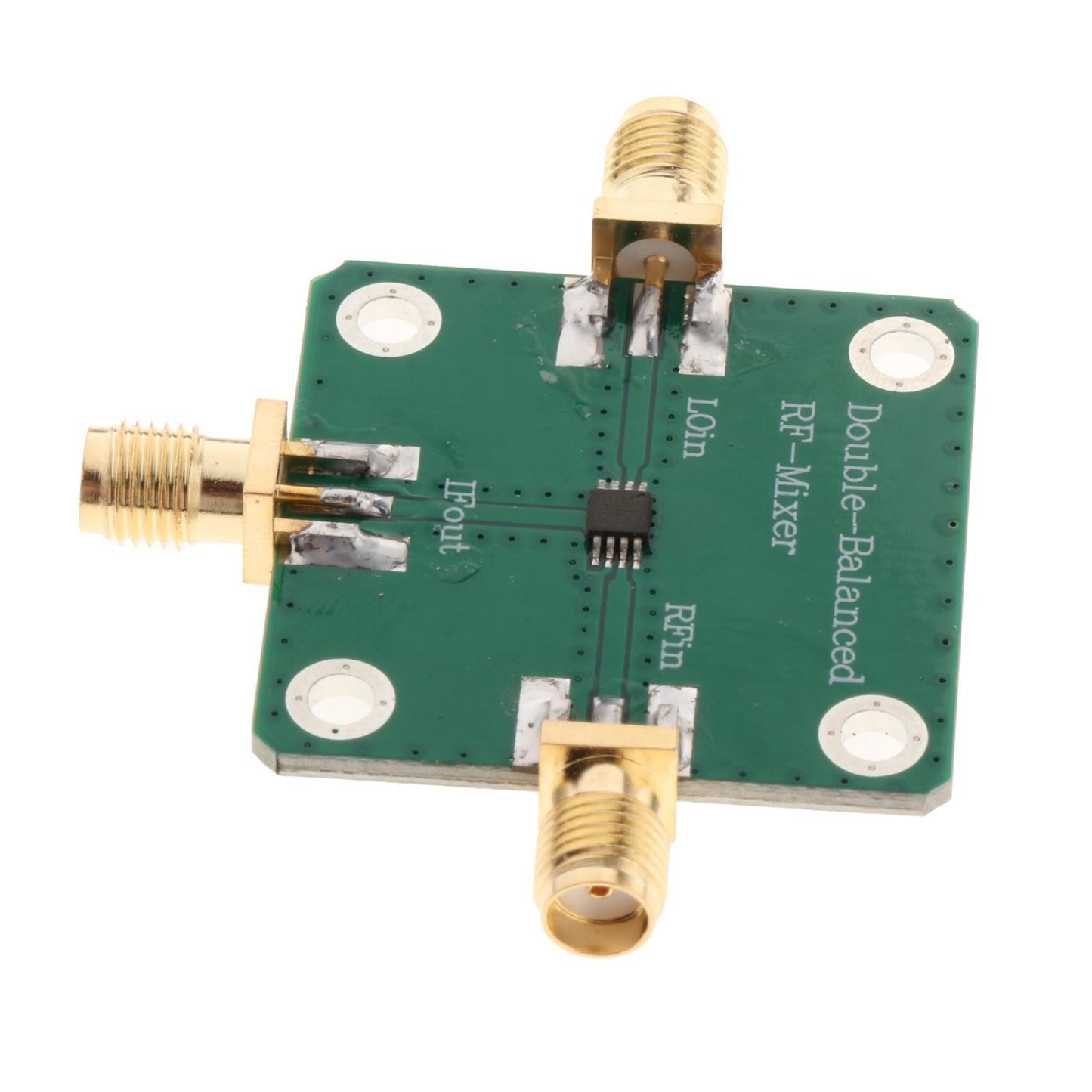

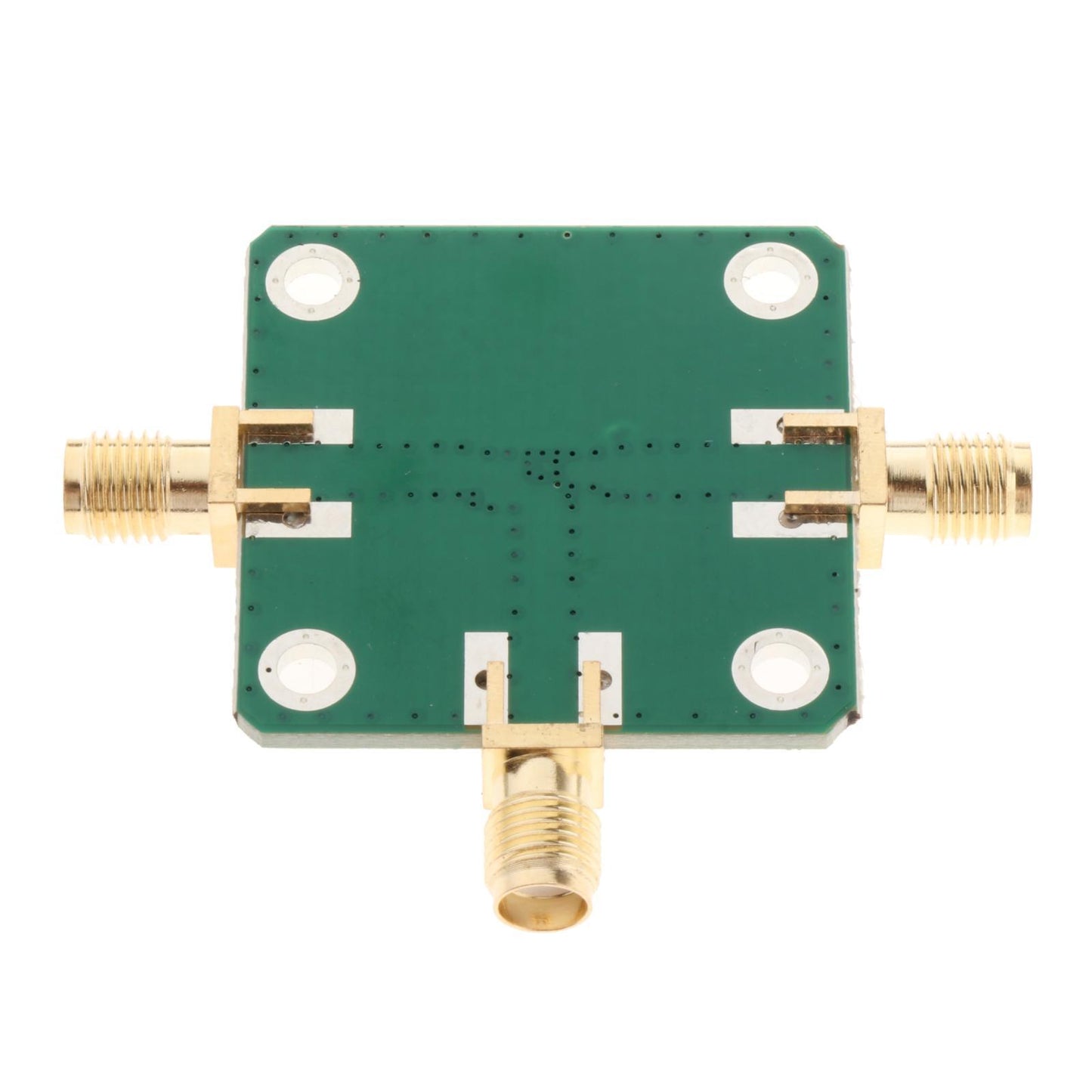

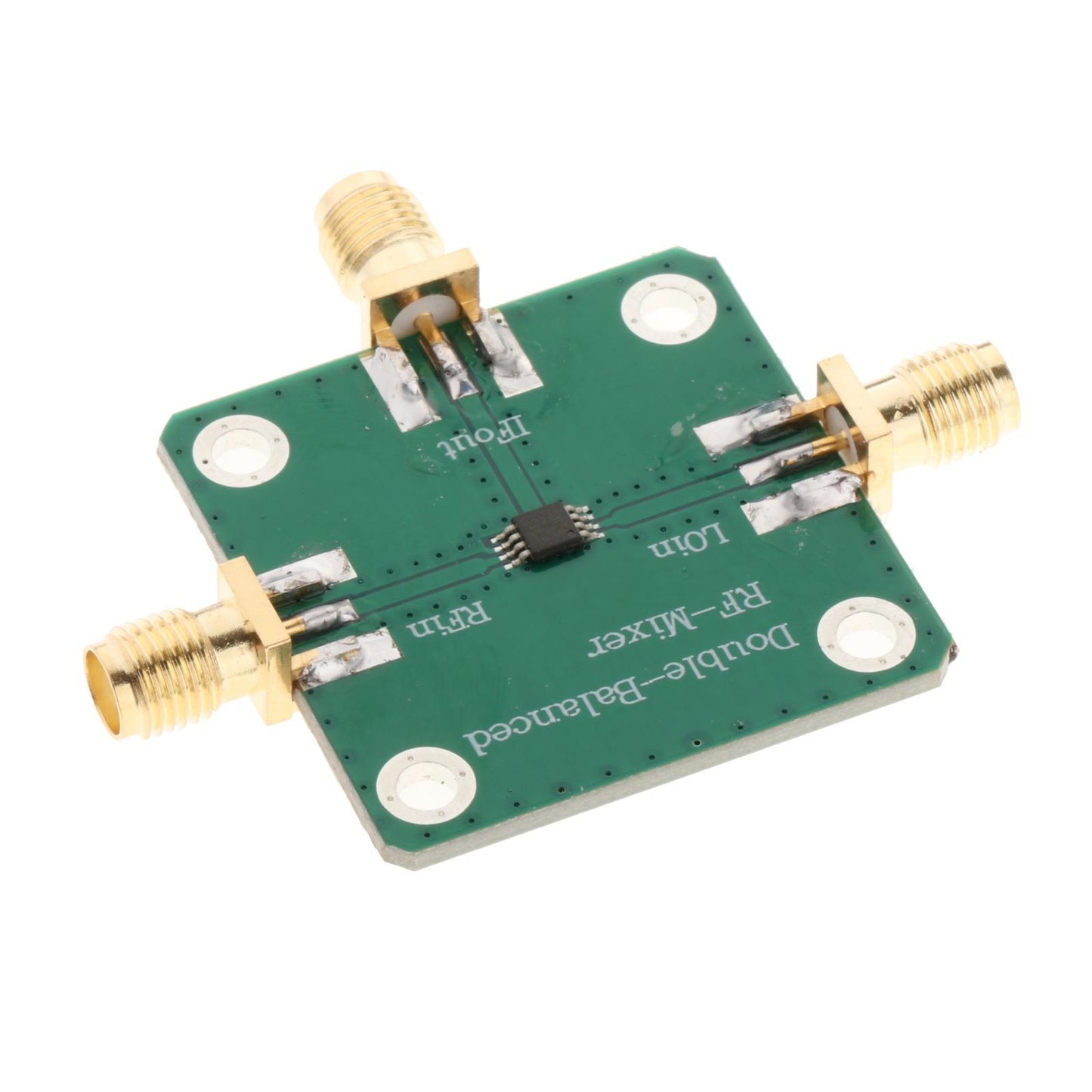

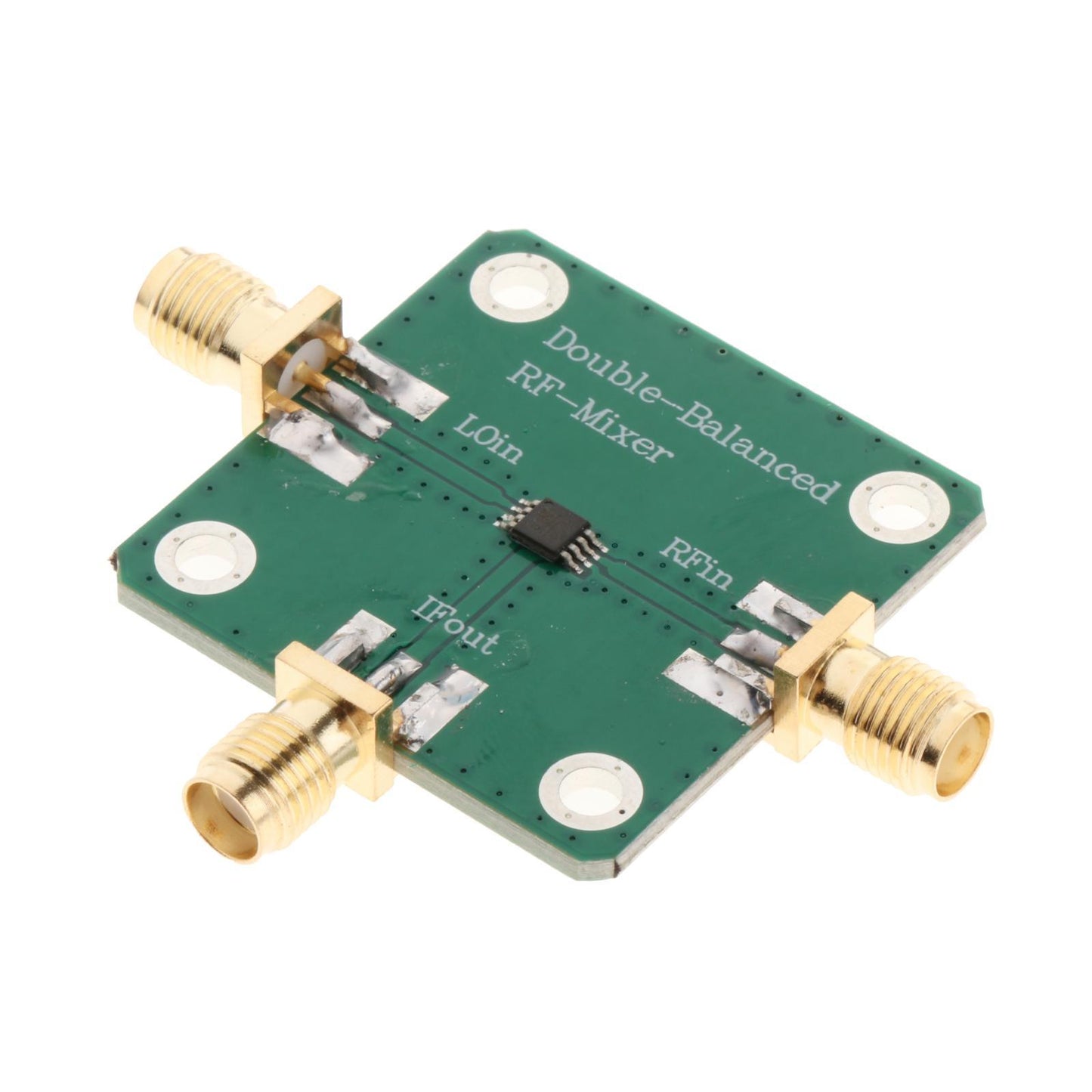

Dual Balanced RF Mixer Microwave Radio 1.5-4.5GHz DC-1.5GHz Module RF Mixer

Description:

This is a double-balanced radio frequency mixer of RFin=1.5--4.5GHz, RFout=DC--1.5GHz.
It has both its inputs applied to differential circuits, so that neither of the input signals and only the product signal appears at the output.
Radio frequency microwave receiver down-conversion, with double-balanced microwave diodes inside, high reliability, high conversion efficiency: 8.5dB loss, high isolation between local oscillator and RF input: 40dB.
This mixer has good isolation at RF and IF ends relative to LO end, so it does not demand more about IF filter.
Standard SMA female connectors are suitable for connecting most devices.

Specification:

1. Power Supply: Passive Mixer (no Need for Power Supply)
2. Rf Input: 1.5--4.5ghz
3. Intermediate Frequency Output: Dc-1.5ghz
4. Conversion Loss: 8.5db
5. Noise Figure: 8.5db (ssb)
6. Local Oscillator Input: 13dbm
7. Port Isolation:
Local Oscillator to Rf: 40db (typical)
Local Oscillator to Intermediate Frequency: 35db (typical)
8. High Input 1p3: 18dbm
9. High Input P1db: 8dbm
10. Dimensions: 33*33mm (excluding Connectors)
11. Connector Model: Standard Sma Female (outer Screw and Inner Hole)
12. Product Weight: 8g
13. Material: Pcb Circuit Board

Size Chart:

30x30cm/11.81x11.81inch

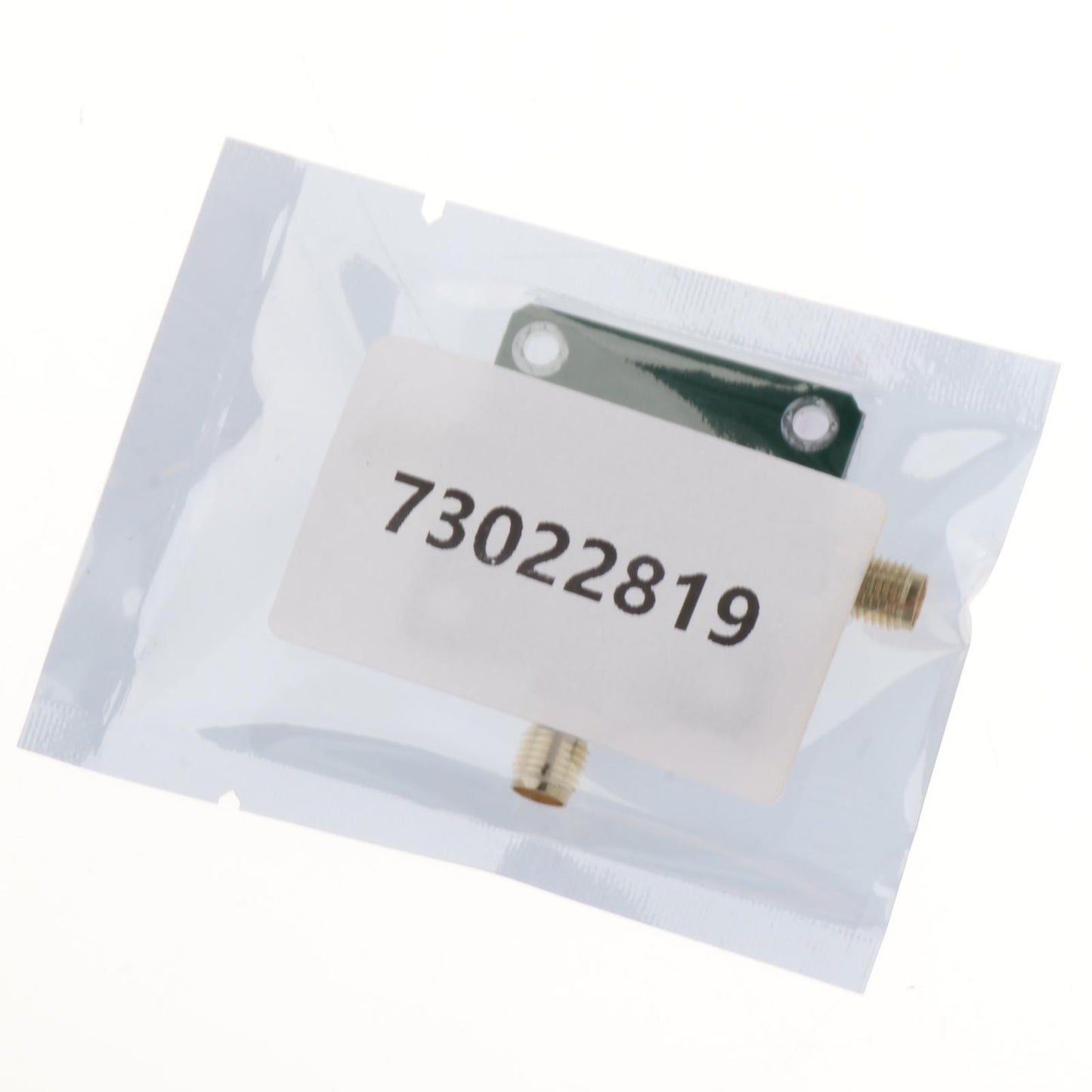

Package Includes:

1 x Frequency Mixer
