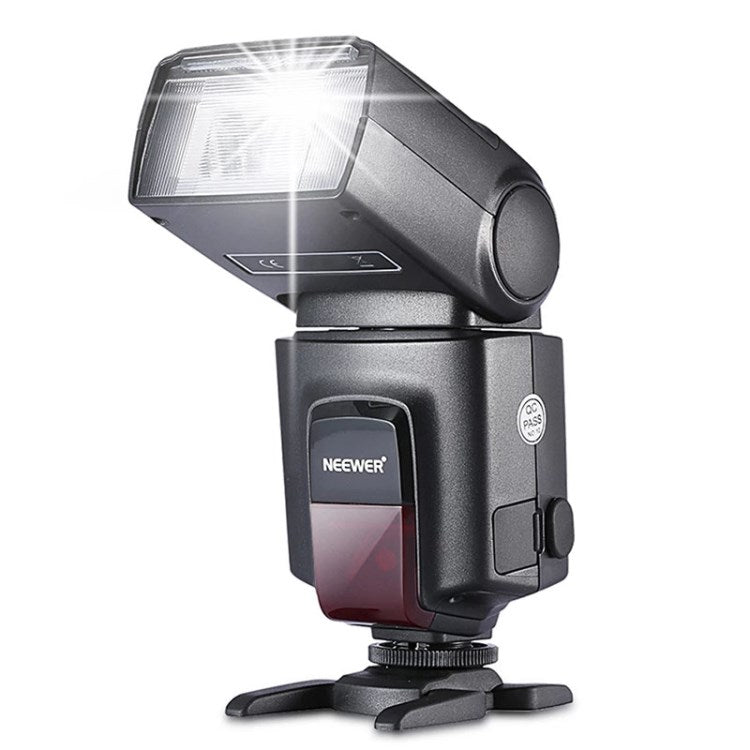

NEEWER TT560 Flash Speedlite for Canon Nikon Panasonic Olympus Pentax DSLR Cameras - Black

• TT560 Flash Speedlite for DSLR cameras including Canon Nikon Panasonic Olympus Pentax, digital Cameras with standard hot shoe

• Please note: TT560 is Flash is NOT compatible with Canon EOS Rebel SL3/250D, Rebel T7/1500D 2000D, Rebel T100/3000D 4000D, EOS Rebel T7i / 800D

1. Power Management:

• (1) Switch to the ON, the flash will start charging (the charging indicator is dim). After several seconds, the charging indicator turns red and the TT560 is ready to shoot.

• (2) For a test flash, press the test button. After use, press the ON/OFF to OFF to power off.

• (3) If the red charging indicator lamp flickers in every 1s, it indicates low battery. In such case, the power will turn off automatically and you need to replace the batteries.

2. Power Control:

• (1) The flash unit has 8 steps of power output control which is indicated by 8 pieces of LED

• lamp for different levels.

• (2) Press "+" to make power higher and they are 1/128,1/64,1/32,1/16,1/8,1/4,1/2,1/1.

• Otherwise, press "-" to make power lower.

3. M Mode:

• Press the MODE key to M Mode. In this mode, you can set TT560 On to your camera.

• hot shoe or speedlite trigger hot shoe to trigger the flash unit. When shooting, adjust the

• flash power and press the camera shutter, the flashlight will flash under the camera

• synchronous signal.

4. S1 Mode:

• (1) Press the MODE key to S1 Mode. The Mode is applicable for slave flash in order to

• create many lighting effects. It is respectively applicable for the manual flash environments.

• (2) When the flash is in S1 mode, it will fire synchronously when the master flash fires,

• comparable with the effect of the use of radio trigger.

5. S2 Mode:

• Press the MODE key to S2 Mode. The mode is applicable for slave flash in order to

• create many lighting effects. It is respectively applicable for the TTL flash environment. The

• flash unit won't flash synchronously with the first flash but the second flash from the

•  Master flash.

6. Power-saving Function:

• (1) To save battery power, the flash will enter a stand-by state in about 30 minutes of idle

• use. Press any button to wake it up.

• (2) In S1/S2 mode, the flash will enter a stand-by state in about 60 minutes of idle use.

• Press any button to wake it up.

• (3) In Power-saving mode, the charging indicator flickers every 3 seconds. Other

• Indicators are turned off.

7. Protection Function:

• (1) Protection in continuous flashes

• To prevent the flash head from getting too hot and damaged, please do not flash over 20

• times when in power level 1/2,1/1. Please cool down the flash unit for at least 10

• minutes. The over-temperature protection function will be activated if you continue to

• flash after 20 times. In this state, the charging time will turn to 10-25s. Please cool down

•  The flash unit is around 10 minutes and it will turn to a normal state.

• (2) Systematic over-temperature protection

• When the inner circuit is over-heating, which indicates the overuse of the flash unit, the inner

• circuit will shut down power automatically. The flash unit will turn to a normal state after the inner circuit is cooled down.

Specificatiosn:

• Guide Number: 38 (m ISO 100)

• Flash Mode: M, S1, S2

• Vertical Rotation Angle: 0~90°

• Horizontal Rotation Angle: 0~270°

• Power: 4xAA batteries ( Alkaline or Ni-MH are usable)

• Lighting Times: 100-1500 times ( AA alkaline batteries used)

• Recycle Time: approx 0.1-5s ( AA alkaline batteries used)

• Light Quality Output Control: with 1/8 - stop increment

• Color Temperature: 5600K

• Flash Duration: 1/300s~1/20000s

•  Dimensions: 190*75*55mm

•  Weight: 286g

Package included:

• 1 x New TT560 Flash
