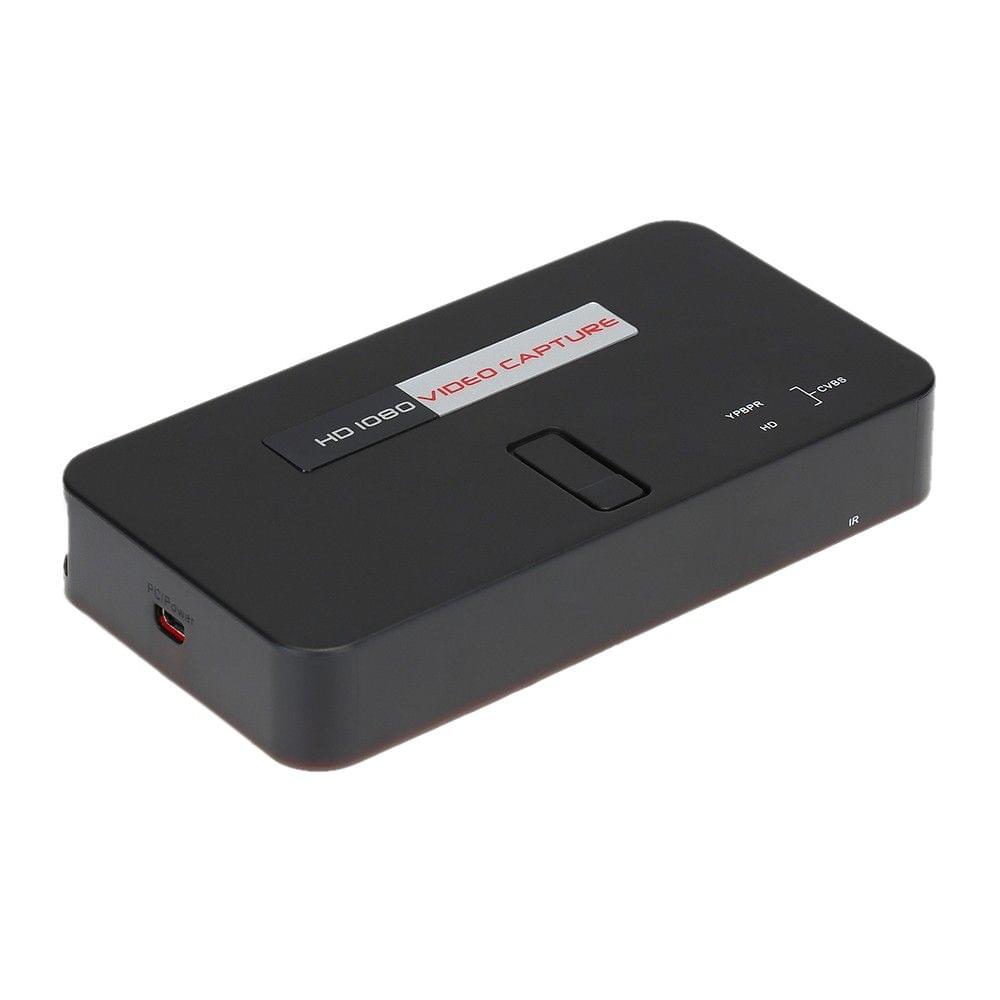

HD Video Game Capture 1080P HD / YPbPr Component or Composite Recorder into USB Disk SD Card For Blue-ray DVD Player PS3 PS4 Set-top Box

With this HD Video Capture, you can capture up to 1080P video from HD, Ypbpr (component) or composite port, such as blue ray, set-top-box, computer, game box, VHS, etc. With remote control, can set input signal manually, recording quality, or capture a still image by SNAPSHOT button.
Features:
The HD Video Recorder captures videos and games up to 1080p, and then save them into USB Flash Disk, Portable Hard Disk, or SD Card.
Easy to use, no any set-up, no PC enquired. To record video is very simple: press the record button, then you will see the indicator turns to pink, it means now recording.
Simple insert one USB Flash drive or SD Card (support FAT, FAT32, and NTFS) to get videos anywhere, anytime; Share the gameplay and fun with your friends anywhere.
With remote control, it can manually set input signal, recording quality, or capture a still image by SNAPSHOT button.
It have 3 input modes: HD, component, composite. You can capture 1080P video from game consoler(for PlayStation 3 & 4), STB, DVD, BlueRay or other video source.
Note 1: Some HD video sources may have HDCP protection, you cannot get the pass through video and record it.
Note 2: For PS4, it has disabled HDCP option for firmware 1.7 or later.
Note 3: Disable HDCP option is only for game play, not for blue ray DVD play.
Specifications:
CPU: Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz
Video Input: HD (Digital); Component Video, Composite Video (Analog).
Audio Input: HD (Digital); RCA Audio L/R, 3.5mm Microphone In (Analog) (Note: Microphone without pass through for HD input).
Video Output: HD (Pass-through from HD or Component or Composite) (Digital).
Audio Output: HD(Pass-through from HD or L/R) (Digital); 3.5mm Stereo (Pass-through from HD or Audio RCA L/R Input) (Analog).
Codec: Hardware MPEG4 encoder
User Interface: On-board Hot Button for one-click recording; LED indicator for working sratus.
Storage Media: USB Flash Disk, Portable Hard Disk, SD Card (exFAT format is not supported).
Input Resolution / Pass-through:
720 * 480 (60p), 720 * 576 (50p), 1280 * 720p (50p), 1280 * 720p(60p), 1920 * 1080 (50i), 1920 * 1080 (60i),
1920 * 1080 (24p), 1920 * 1080 (25p), 1920 * 1080 (30p), 1920 * 1080 (50p), 1920 * 1080 (60p).
Capture Resolution:
720 * 480 (60p), 720 * 576 (50p), 1280 * 720p (50p), 1280 * 720p(60p), 1920 * 1080 (50i), 1920 * 1080 (60i),
1920 * 1080 (24p), 1920 * 1080 (25p), 1920 * 1080 (30p), 1920 * 1080 (25p), 1920 * 1080 (30p). (Note: Upscaling is not supported.)
Record Format: AVI MPEG4 (Video), AAC Stereo (Audio).
Record Quality: Max 18Mbps@1080P 30fps
Record File: Max 2GB / per file
Record Place: Max 140MB / minute, 8GB / hour
Power Supply: DC 5V 2A
Main Item Size: 14.1 * 7.3 * 2.3cm / 5.55 * 2.87 * 0.91in
Main Item Weight: 116g / 4.08oz
Package Size: 15.4 * 10.6 * 8.2cm / 6.06 * 4.17 * 3.23in
Package Weight: 419g / 14.78oz
Package List:
1 * HD Video Capture
1 * Adapter Cable (for component and composite video)
1 * HD cable
1 * Power Adapter
1 * Software CD
1 * English User Manual
FAQ
Q1: Cannot record PS4 video?
A: Please make sure that the product is connected with PS4 correctly and in the state of Power On, and then confirm the firmware version of PS4 host. If the firmware version is below 1.7, it will not be able to record video due to PS4 with HDCP protection. If the firmware version is above 1.7, please enter “Go Settings” to see if “Enable HDCP”, and you need to disable HDCP function before recording (Disable HDCP option is only applicable to Game, and does not apply to Blu-ray DVD playback).
Q2: Cannot record PS3 video?
A: Please make sure that the product is connected with PS3 correctly and in the state of Power On, and then check whether the PS3 host is set correctly. Setup steps: Go to the settings - Video output settings - choose “Component/D-Terminal”, resolutions setting, make sure the “1080P” option is NOT be ticked, otherwise some game play (e.g. GT5) cannot be recorded by this capture.
Q3: When recording images of notebook, can only record video but cannot record audio?
A: Please note that the sound of computer outputs from the built-in speaker, so you can not record the sound, and you need to make the following settings: Right mouse clicks a “small speaker” icon in the bottom right corner of the computer, select “play device”; After connecting correctly to the computer, the name of the capture card will be displayed in the “play device” window, and just set the capture card as the default device.
Q4: Cannot record video of any devices?
A: Please check if the input video source is disconnected; whether the USB flash memory is insufficient; whether the USB flash memory format is supported (only supports FAT, FAT32 and NTFS; does not support exFAT); whether the USB flash memory is ready for work (10 seconds after plugging).
