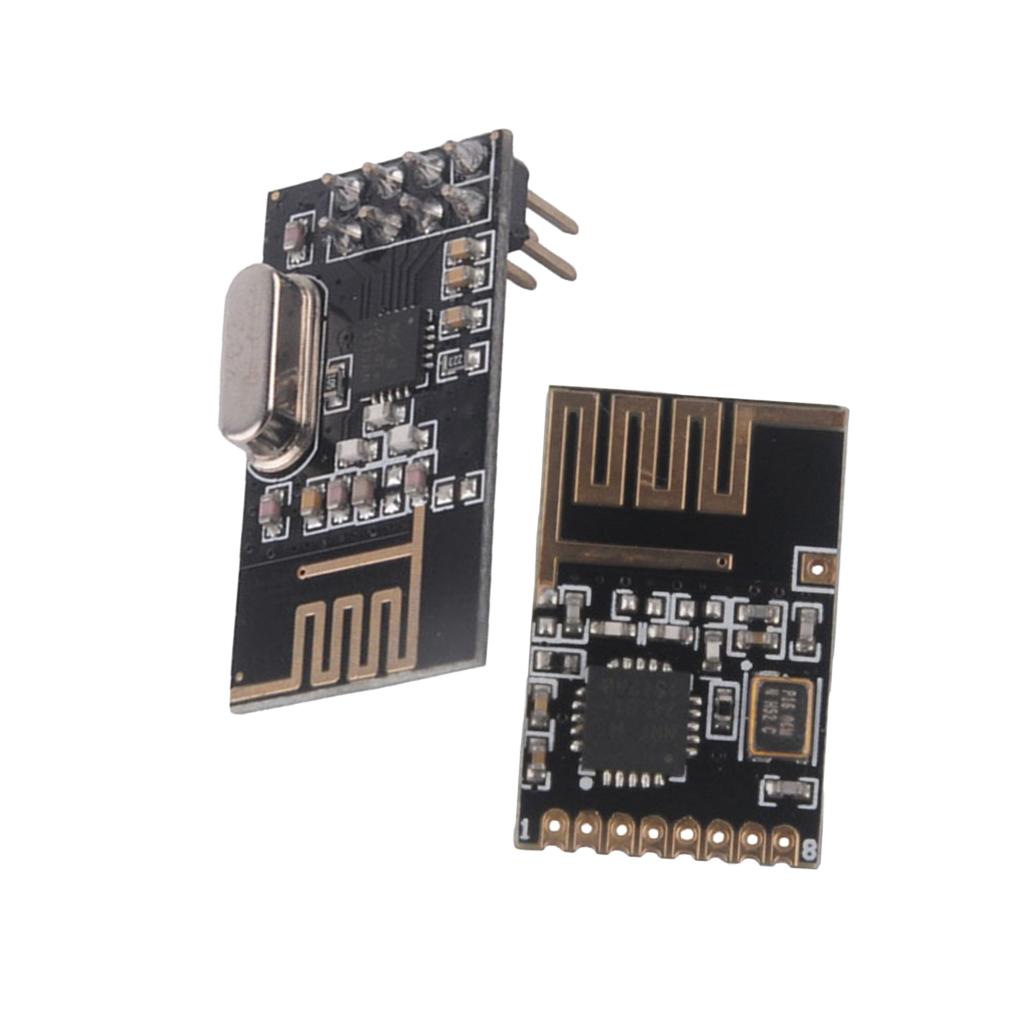

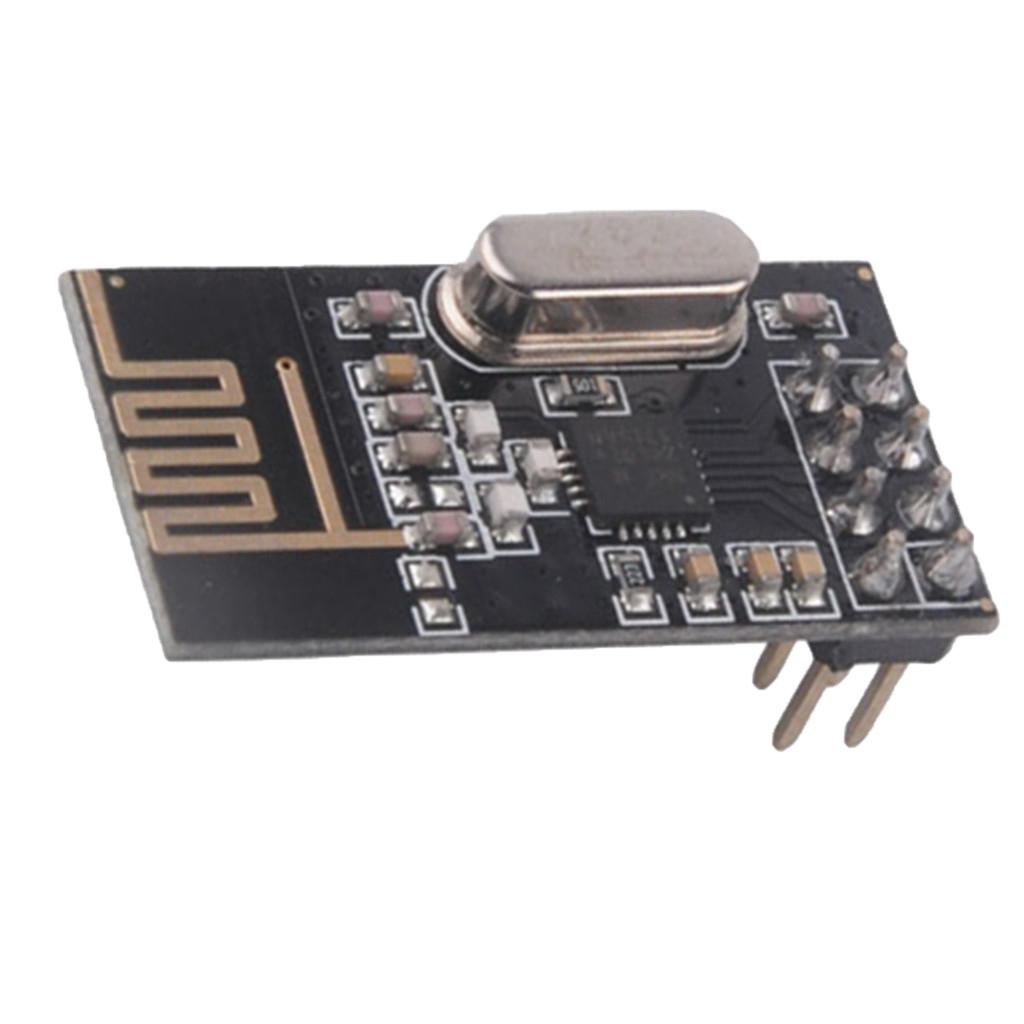

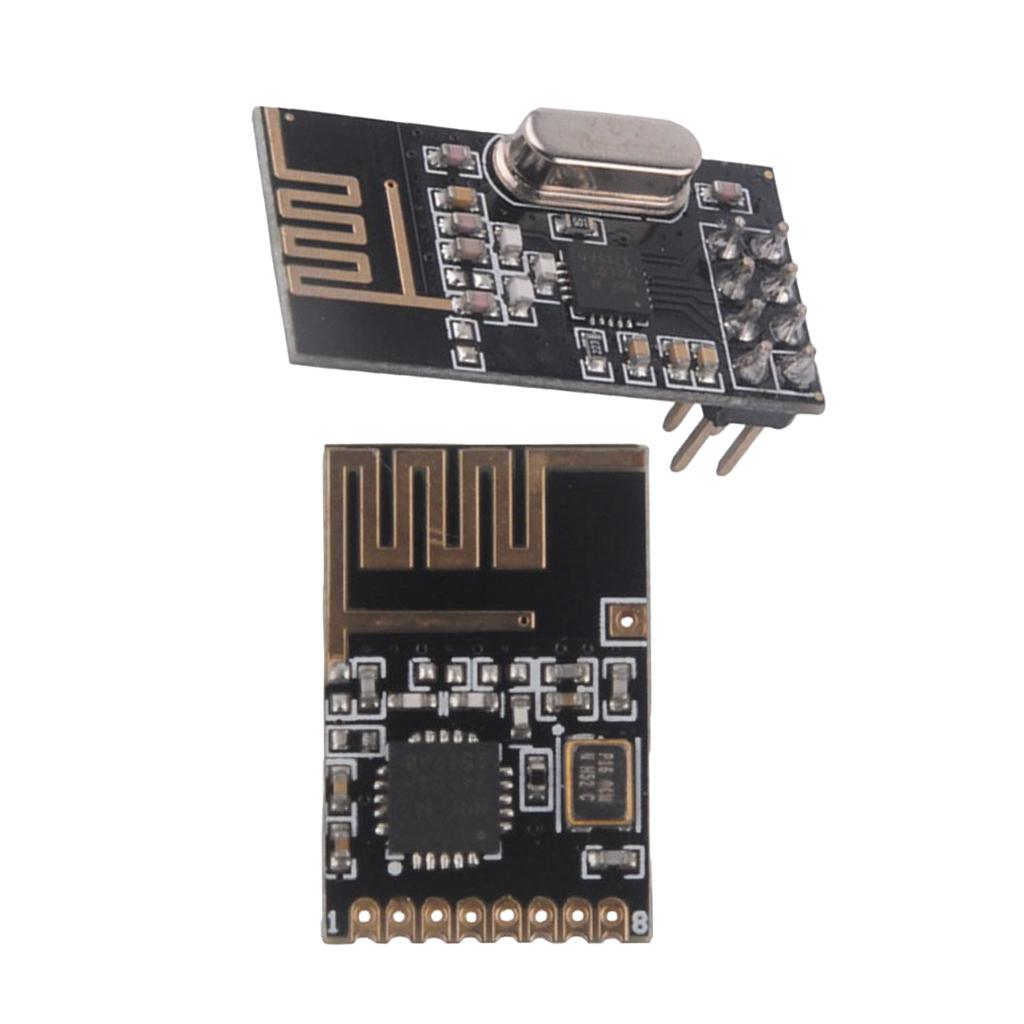

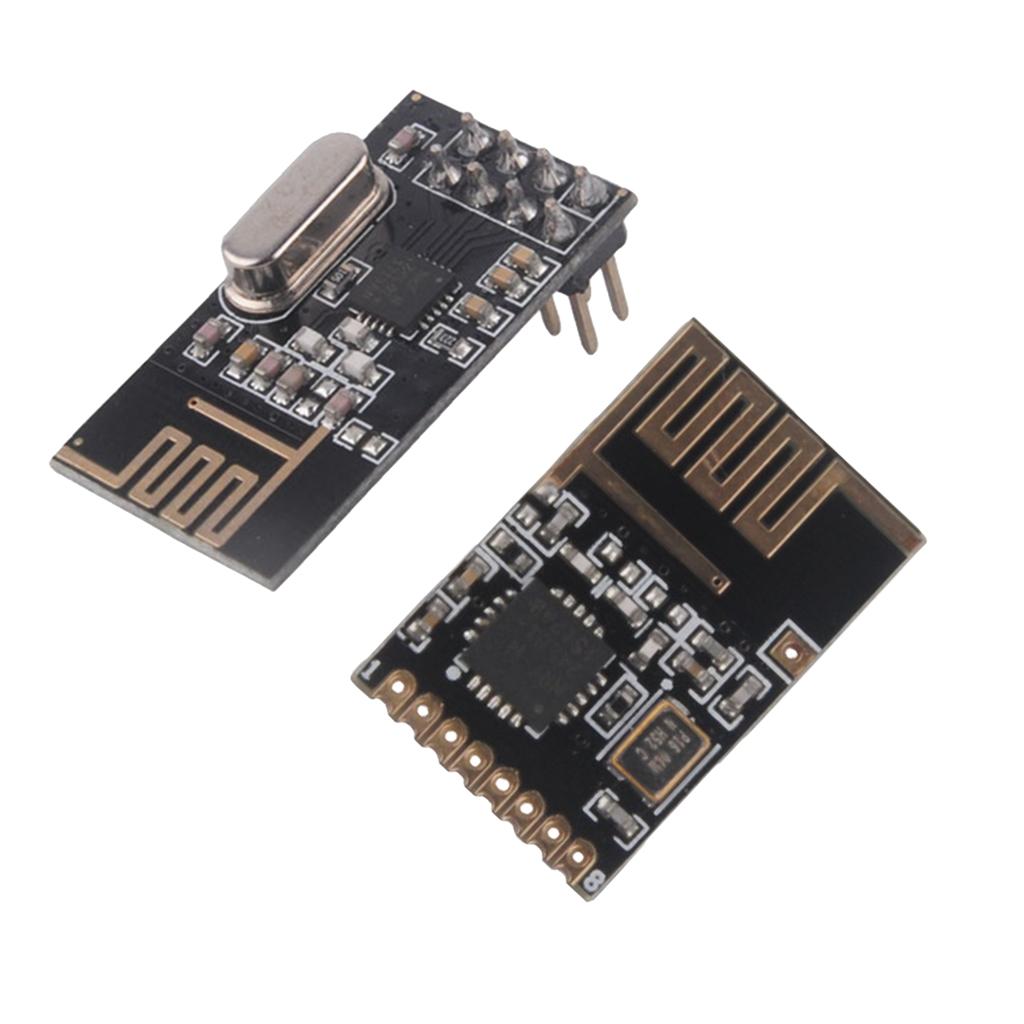

XH-NF-01 2.4G Wireless Module 100mW Power SPI Interface IOT Module 01 Built-in Antenna

Description:

XH-NF-01 is a 100mW power 2.4G wireless module with high airspeed (up to 2Mbps), SPI interface, and pure hardware module for high-performance transmission; high stability, high cost performance, good spectrum test characteristics, small Volume, using all industrial grade components.
XH-NF-01 can be widely used in various Internet of Things applications, and is suitable for wireless mouse and keyboard, wireless remote control, somatosensory equipment, active RFID, NFC, low-power self-organizing network wireless sensor network nodes, etc. The ideal solution.
The XH-NF-01 is packaged in DIP-8. It can be quickly connected to existing products, whether it is for learning or mass production. It can be directly inserted and removed without welding. It is very convenient to use.
Low application cost: SI24R1 integrates all high-speed signal processing parts related to RF protocol, such as automatic retransmission of lost data packets and automatic generation of response signals. The SPI interface of SI24R1 can be connected with the hardware SPI port of the microcontroller or with the microcontroller I/.
Easy to develop: Since the link layer is fully integrated on the module, it is very easy to develop. Automatic retransmission function, automatic detection and retransmission of lost data packets, retransmission time and number of retransmissions. Software control automatically stores packet auto-answer function without receiving response signal.

Specification:

Material: as shown

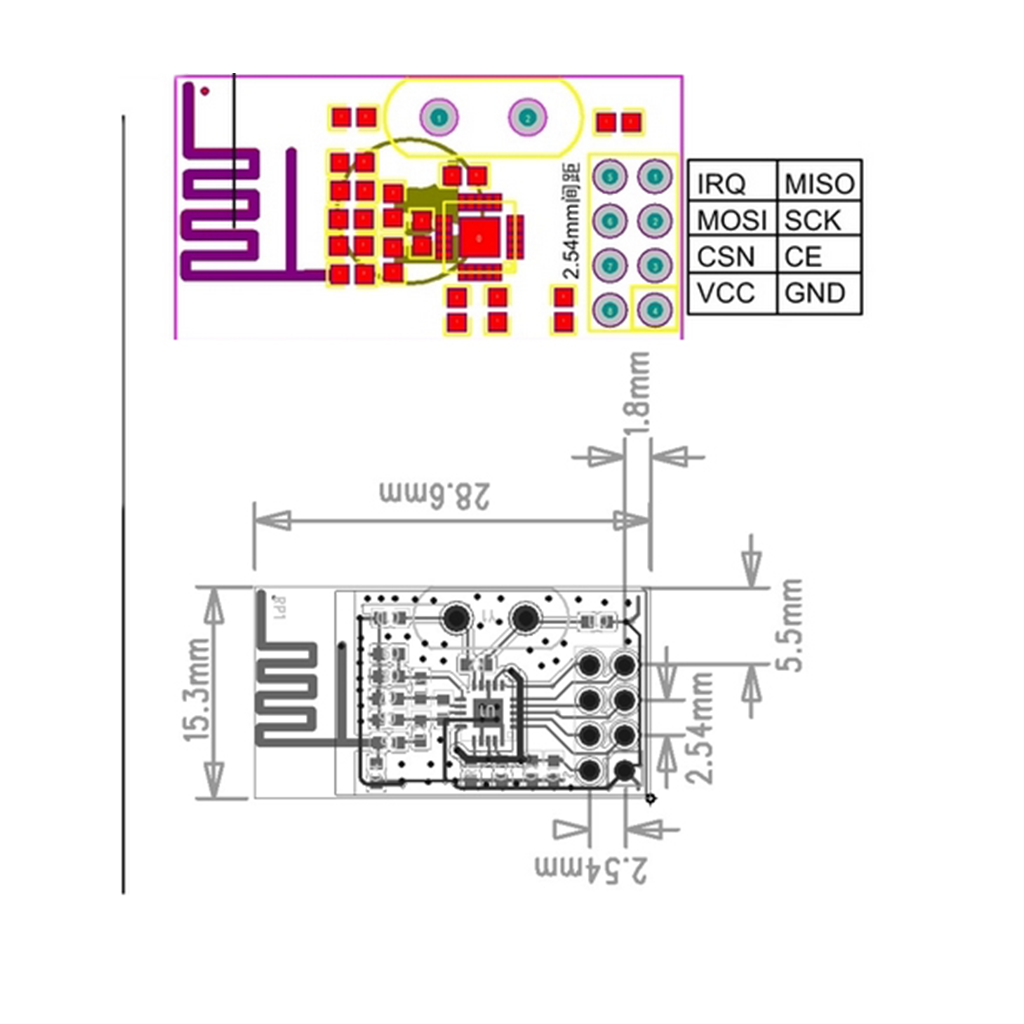

XH-NF-01 size: 28.6*15.3*3.2 mm/1.13x0.60x0.13inch
XH-NF-03 size: 18*12mm/0.71x0.47inch
DIP-8 ultra small package, built-in 2.4G antenna, compact size, easy to use
Supports six channels of data reception
Supports general modulation methods such as GFSK/FSK
Supports 2Mbps/1Mbps/250Kbps data rate
Multi-frequency point: 126 frequency points, meeting the needs of multi-point communication and frequency hopping communication
Internally integrated high PSRR LDO
Wide supply voltage range: 2.0V~3.6V
Average emission current as low as 110mA
Receive sensitivity: -96dBm@250kbps
Maximum transmission power: +7dBm
4-wire SPI interface with speeds up to 10MHz
Internal integrated intelligent ARQ baseband protocol engine
Transceiver data hardware interrupt output
Support 1bit RSSI output

Package Includes:

1 Piece Module
