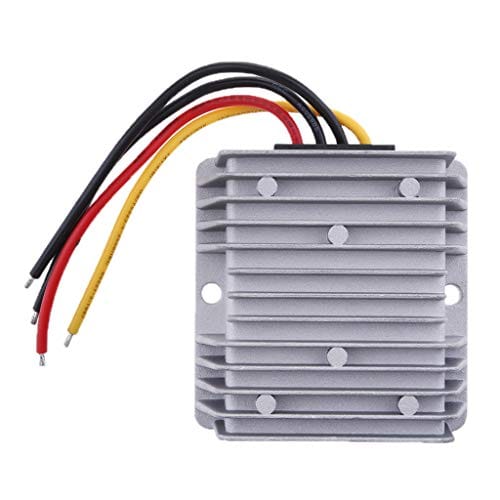

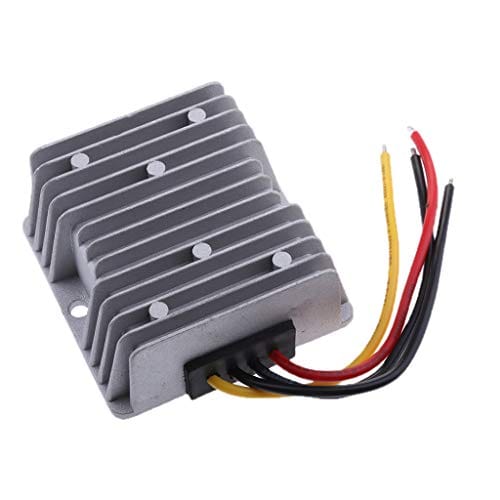

Waterproof DC/DC Converter 48V (30-60V) Step Down to 24V/15A 24V 15A 360W Power Supply Module

Waterproof DC/DC Converter 48V (30-60V) Step Down to 24V/15A 24V 15A 360W Power Supply Module

All epoxy sealed containers with Waterproof Housing; Non-isolated
High efficiency: >96%; Reliable, low heat dissipation max. 40 ℃;
With overload / over-current / over / low voltage protection, stable performance.
Light compact, convenient to use and transport; Auto
Widely used in Car device, such as LED Display, Hard Disk Player, MP3, DVD, GPS, etc

Description:

All epoxy sealed containers with Waterproof Housing; Non-isolated
High efficiency: >96%; Reliable, low heat dissipation max. 40 ℃;
With overload / over-current / over / low voltage protection, stable performance.
Light compact, convenient to use and transport; Auto
Widely used in Car device, such as LED Display, Hard Disk Player, MP3, DVD, GPS, etc

Specification:

Input voltage:48V (30-60V)
Output voltage: DC24V
Output Current: 15A (rated long-term operating current)
Output Power:360W (MAX)
Operating temperature: Industrial grade (-45 ℃ to + 85 ℃)
Full temperature: 45 ℃
No-load current: Typical 25mA
Voltage Regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please enter the installation of fuses or circuit protection)
Input reverse polarity protection: no, you can enter the series diode.
Volume 75 * 74 * 31mm (L * W * H)

Package Includes:

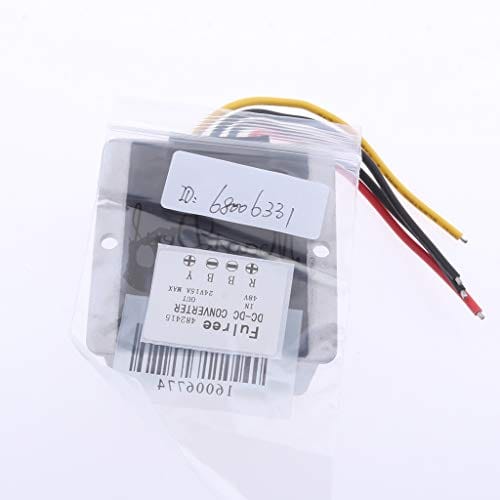

1 Piece DC buck converter
