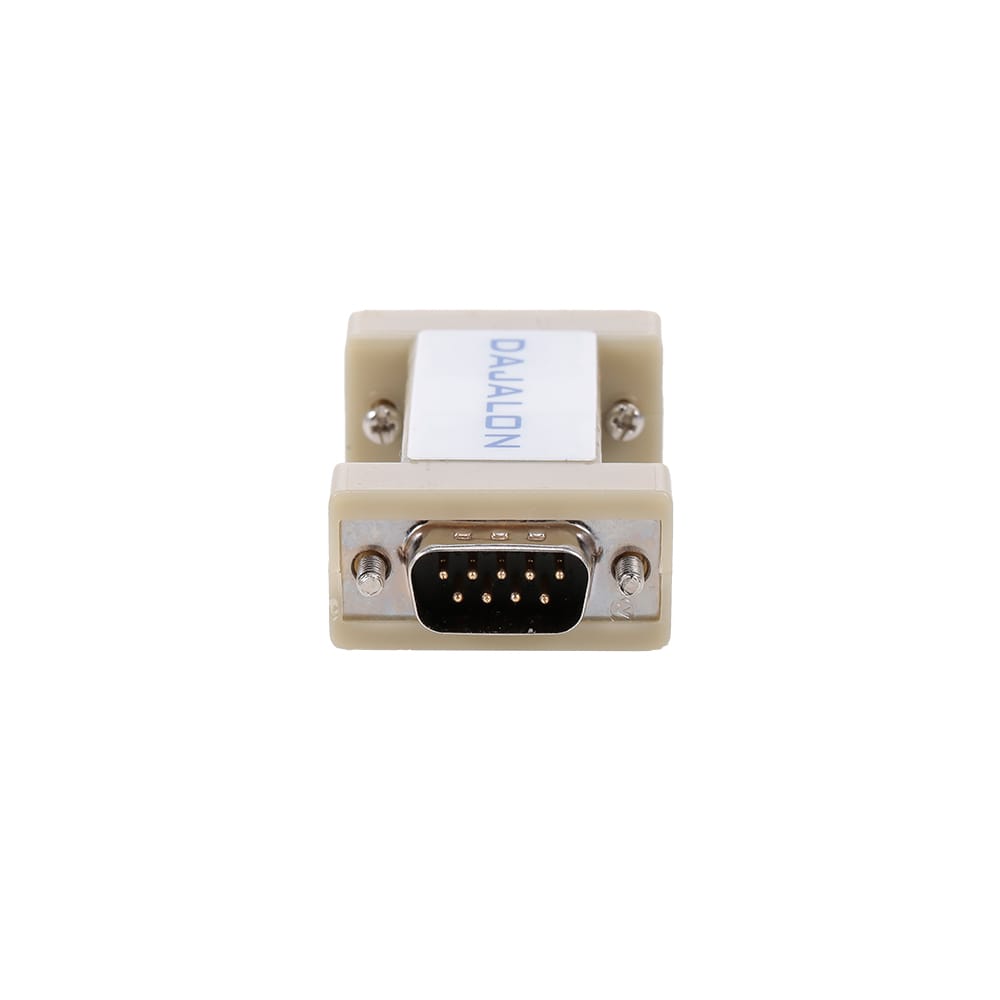

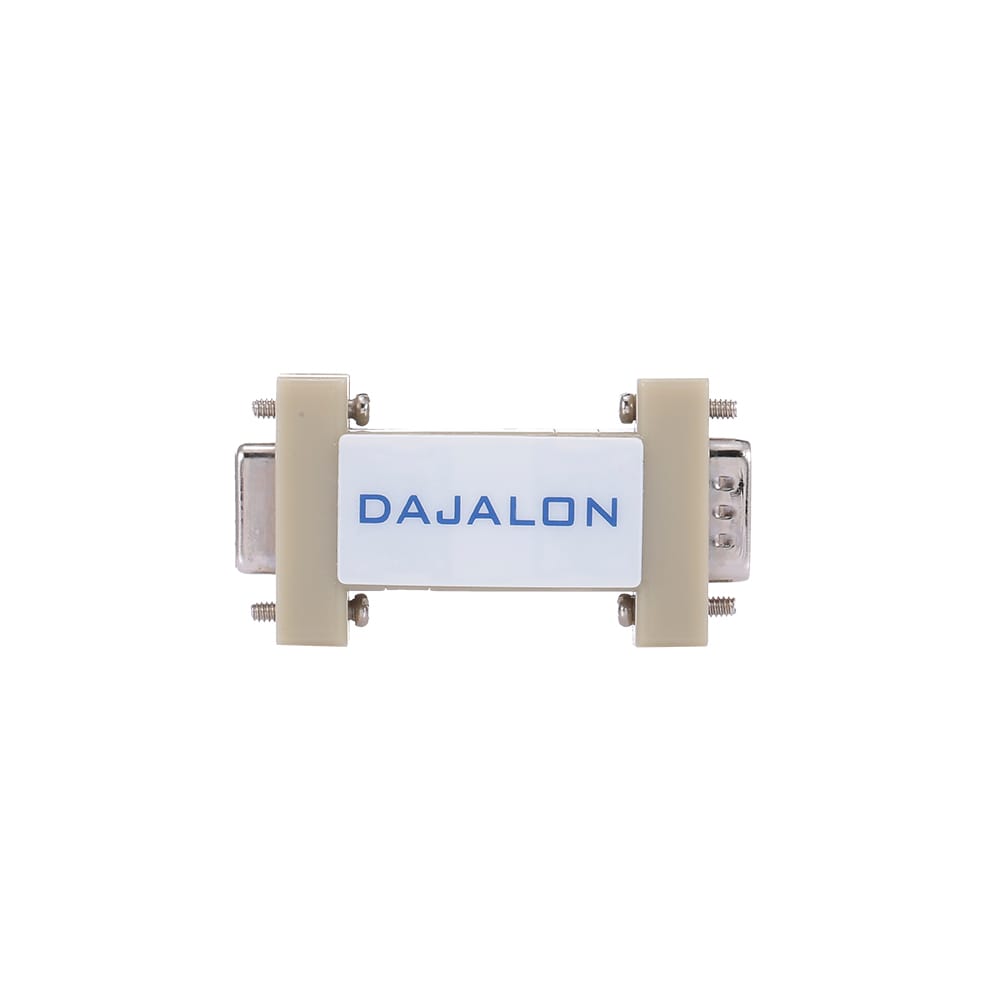

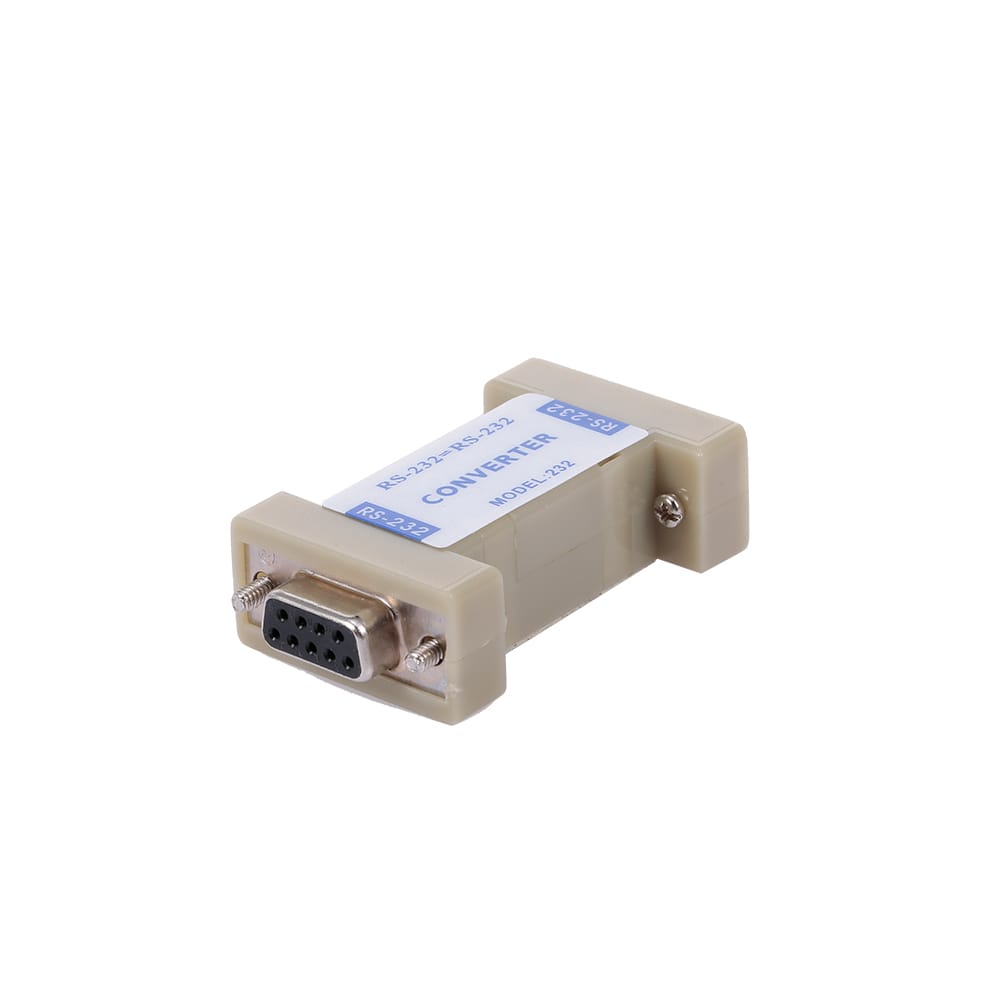

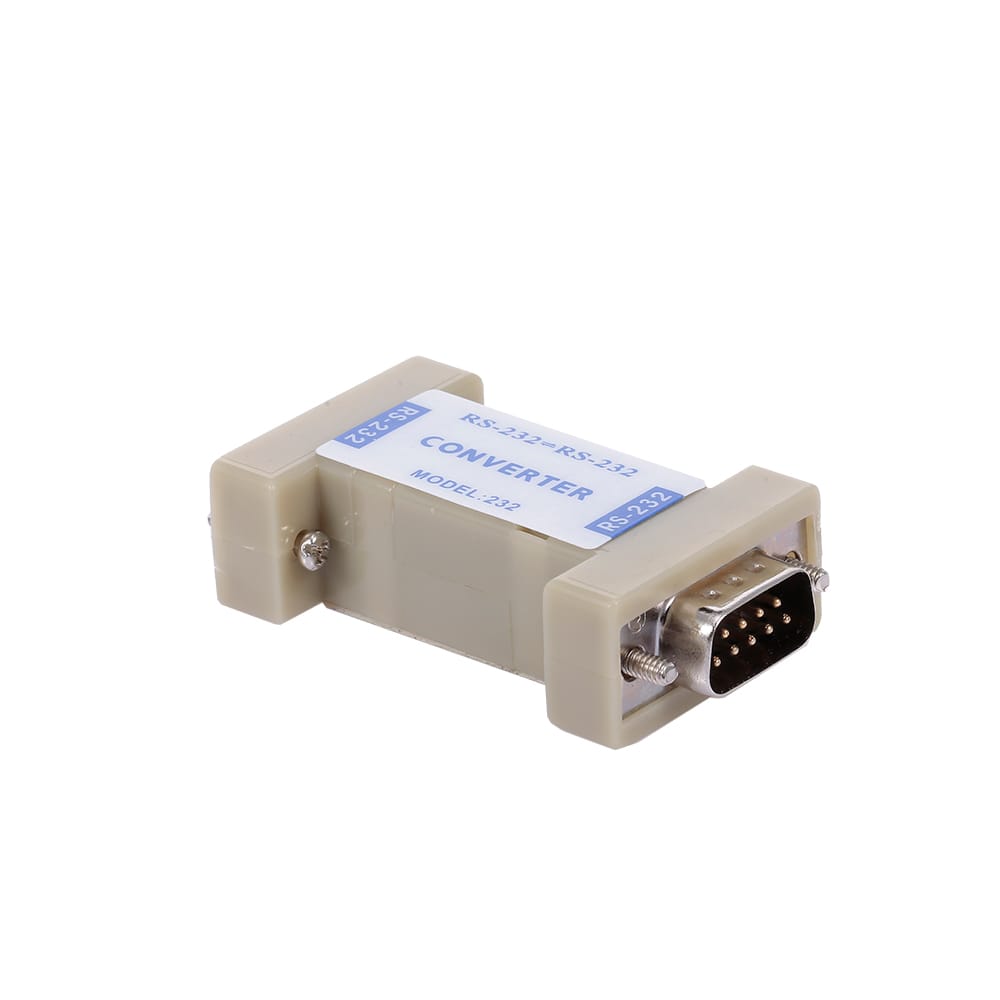

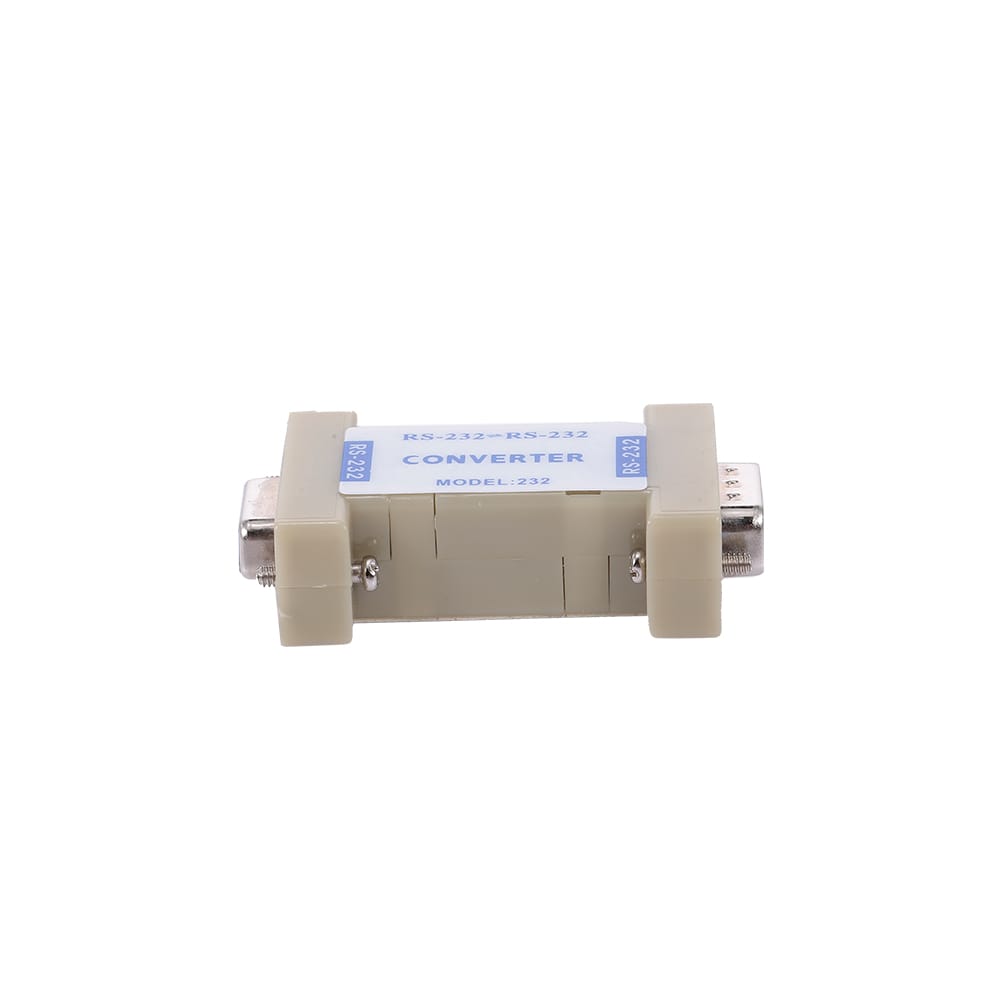

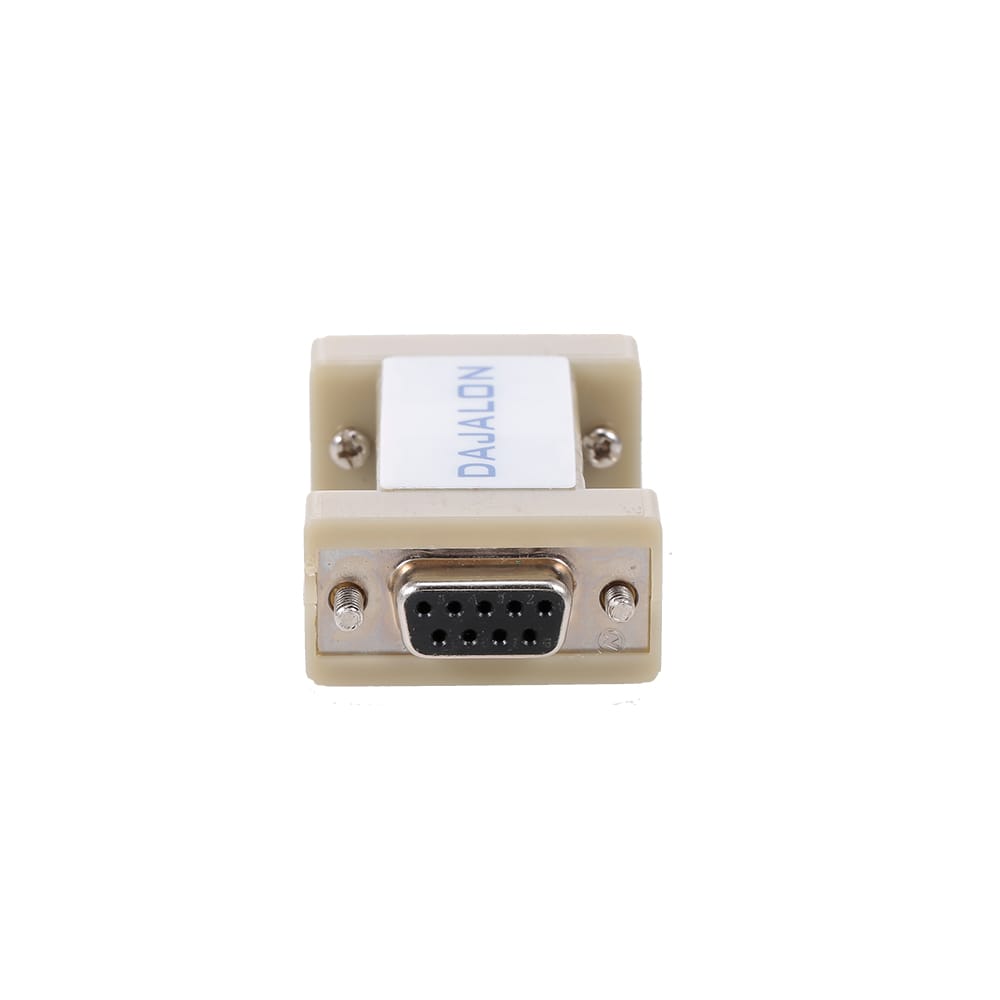

RS232 to RS232 Photoelectric Isolator Converter Serial Port

Features:Adopt photoelectric isolation technology to isolate the electrical and ground circuits of both RS-232 devices which protects the communication equipment from the disturbance of power supply grounding circuit and surge obviously improves the reliability and stability of the communication system.Uses double-line balanced transmission the original single-end transmission mode of RS-232 interface is changed greatly enlarges the communication distance.There are 4 6 and 8 lines for power supply. Four lines can transmit a pair of data signals. Six lines and eight lines can also transmit a pair or two pairs of control signals.Small size no special requirements for conductor wires no external power supply required plug and play convenient to use.Widely used in point-to-point RS-232 communication multi-user terminal and host connection RS-232 remote control system program-controlled switch billing terminal and satellite receiver.Specification:Item name: RS232 to RS232 photoelectric isolation converter Isolation voltage: 2500V continuous or 7500V pulseTransfer rate: Up to 57.6kbpsItem size: 6.4 * 3.3 * 1.7cm /2.52 * 1.3 * 0.67in(L * W * H)Item weight: Approx.22.4g /0.79ozPackage weight: 26g /0.92ozPackage list:1 * RS232 to RS232 photoelectric isolation converter
