RF Power Amplifier Amplification for 2-700MHz 3W HF VHF UHF FM Transmitter

Description:

HIGH QUALITY: Using high quality circuit boards, stable and reliable. Made of high quality plastic material, durable.

FEATURE: The maximum output is 3 watts, 15V voltage power supply, 2mHz to 700mHz can work in the frequency range.

APPLICABLE: Broadband RF power amplification, suitable for HF FM VHF UHF FM transmission, various radio applications, shortwave FM remote control toys, radio walkie-talkies, digital radio stations, etc.

TIP: The RF power amplifier is a vulnerable part, be sure to connect the input and output and pay attention to the impedance matching and power-on test.

Specification:

Material: Plastic

Supply Voltage: DC+12~15V (Typical 15V@0.3-0.5A) pad interface

Working Frequency: 2-700mHz

Input and Output Impedance: SMA@50ohm;

Maximum Output Power: 34.8dbm(3W)

Typical Power Gain: 35 dB (300M gain slightly decreased)

Maximum Input Power: +10dBm

Measured Power Index: 2-300M +34dBm maximum 3W 300-500M +32dBm

Size Chart:

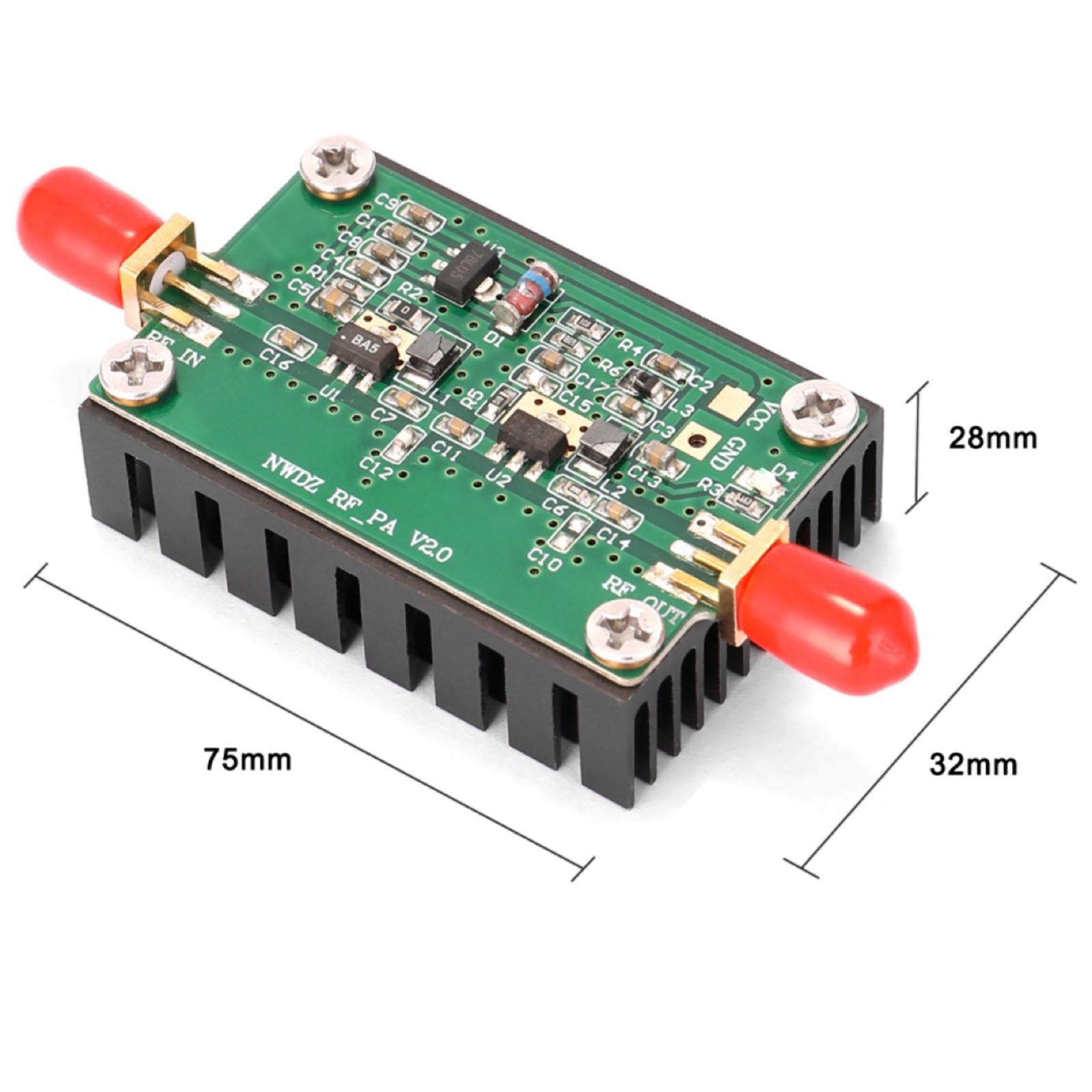

75x28x32mm / 2.95x1.10x1.26inch
