N76E003AT20 Small System Board Development Board for Central Programming

Description:

N76E003AT20 small system board core board development board nu-link programming
Fully static 8-bit 1T 8051 core CMOS microcontroller. The instruction set is fully compatible with MCS-51. 4-level priority interrupt configuration. RAM (XRAM) is read and written by MOVX instruction.
Memory: Up to 18K bytes of APROM user program code area. Configurable 4K/3K/2K/1K/0K byte LDROM boot code area for flexible user configuration.
All FLASH areas are separated into 128-byte pages. – Built-in IAP programming function Code encryption function. 256 bytes of on-chip direct access RAM. Extra 768 bytes of on-chip indirect access
Support external clock input. Support system clock real-time software switching (On-the-fly) function, support software configuration clock frequency division up to 1/512.

Specification:

Material: Plastic
Product detailed size: PCB board size: 26x20mm / 1.02x0.79inch
Clock source: – 16 MHz high speed internal oscillator
±1% accuracy level under 5.0V power supply
Full working condition range ± 2% accuracy level
10 kHz low speed internal oscillator.
Dual Data Pointers (DPTRs) Operating Conditions: – Wide voltage operating range from 2.4V to 5.5V. Wide operating frequency up to 16MHz.
Industrial grade operating temperature -40 ° C to +105 ° C.

Package Includes:

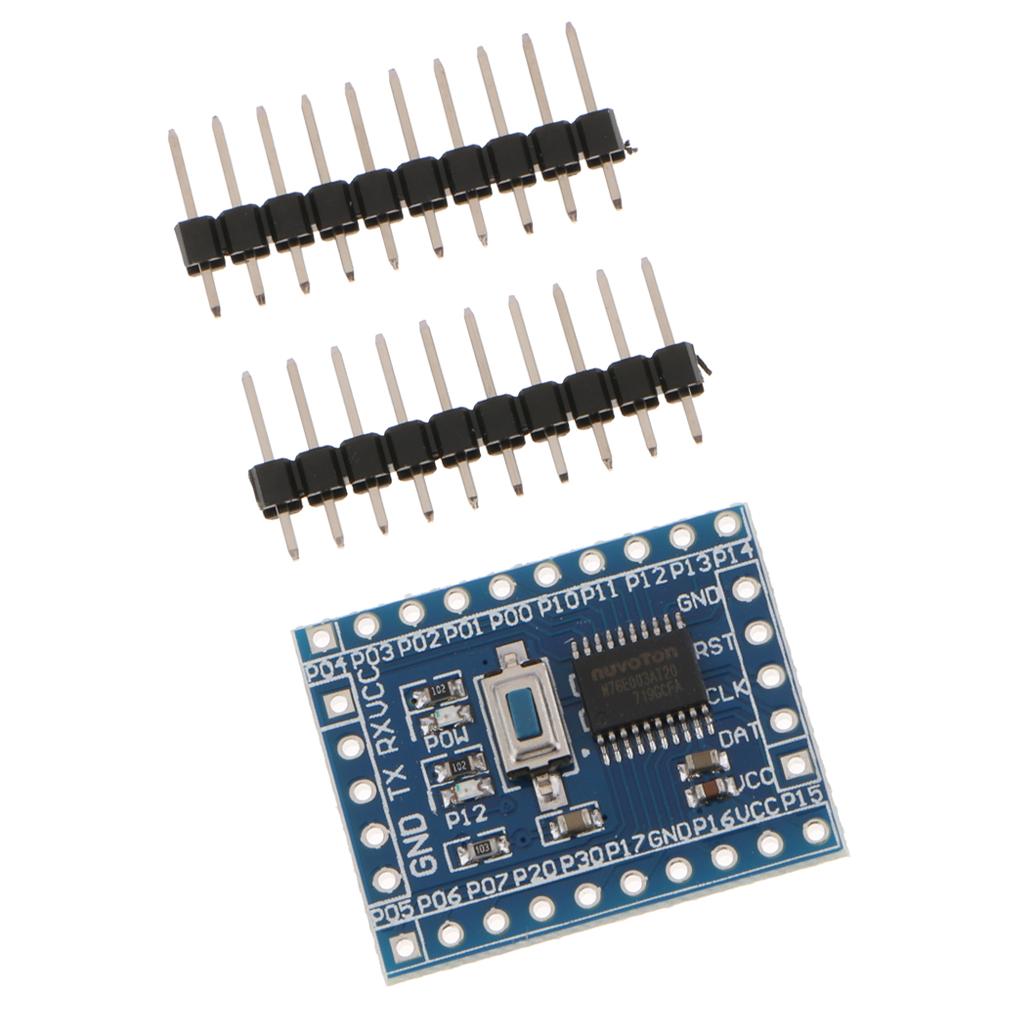

1 Piece N76E003AT20 Small System Board
2 pin header
