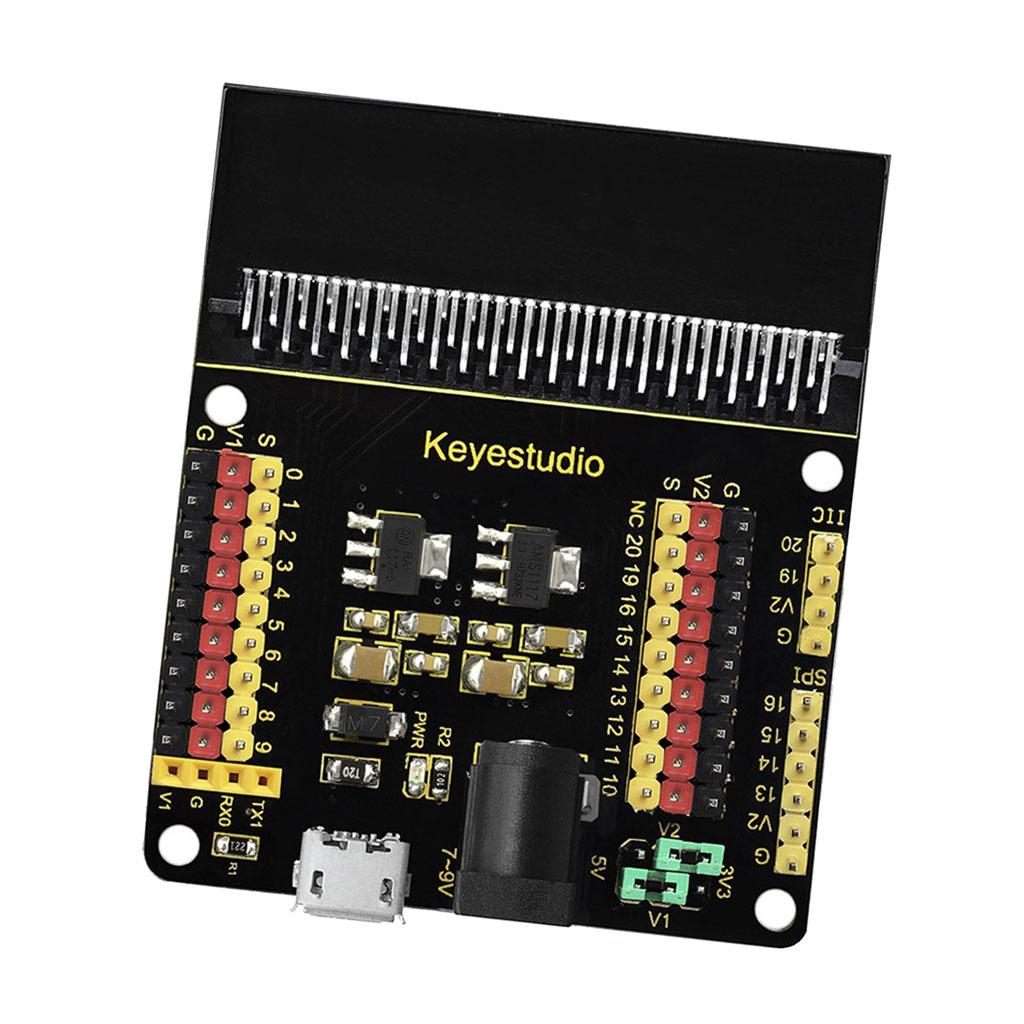

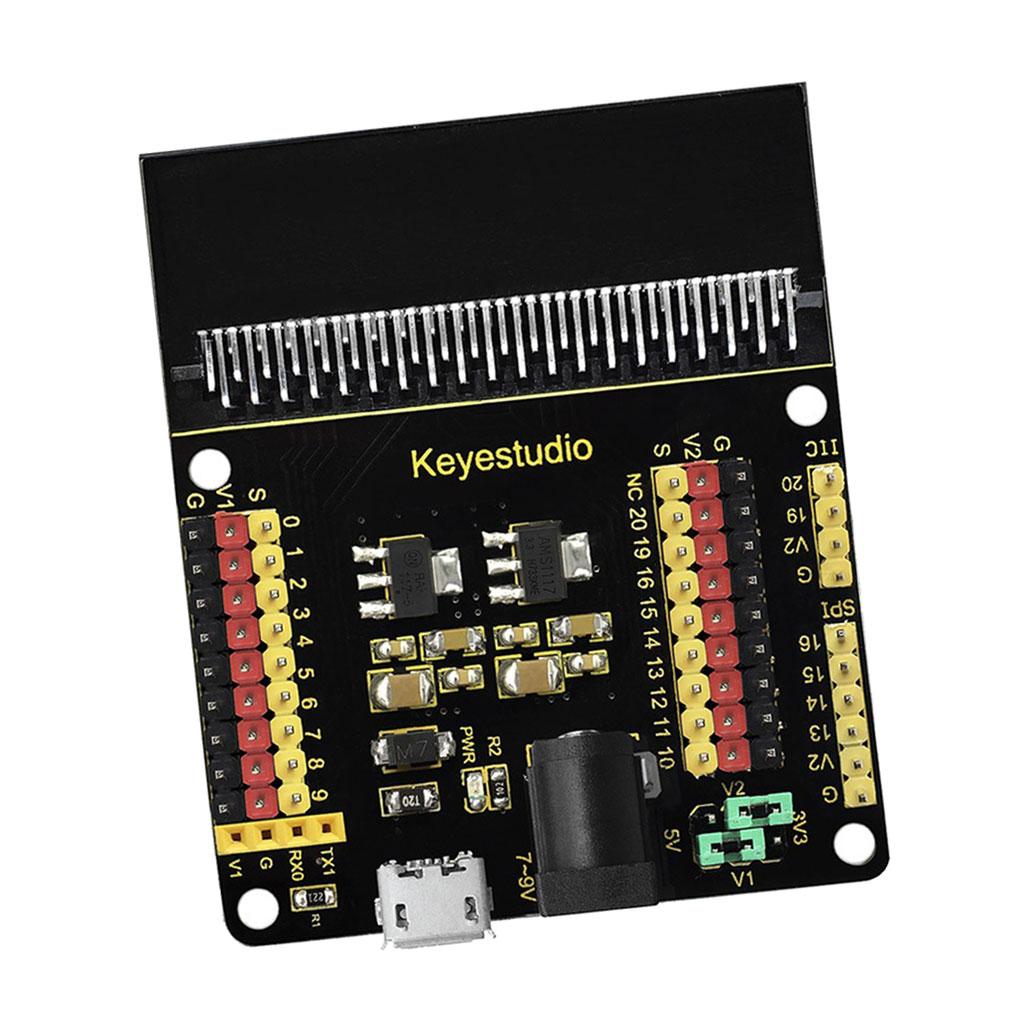

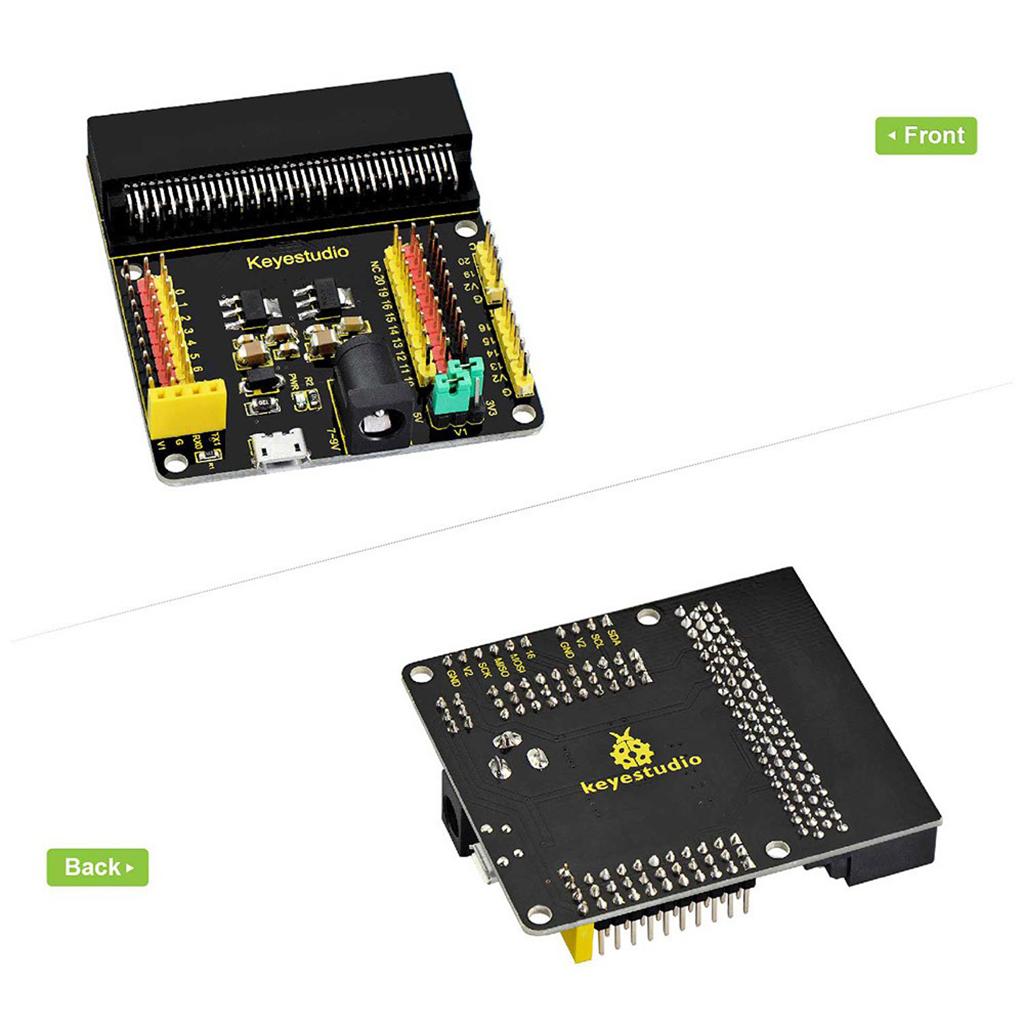

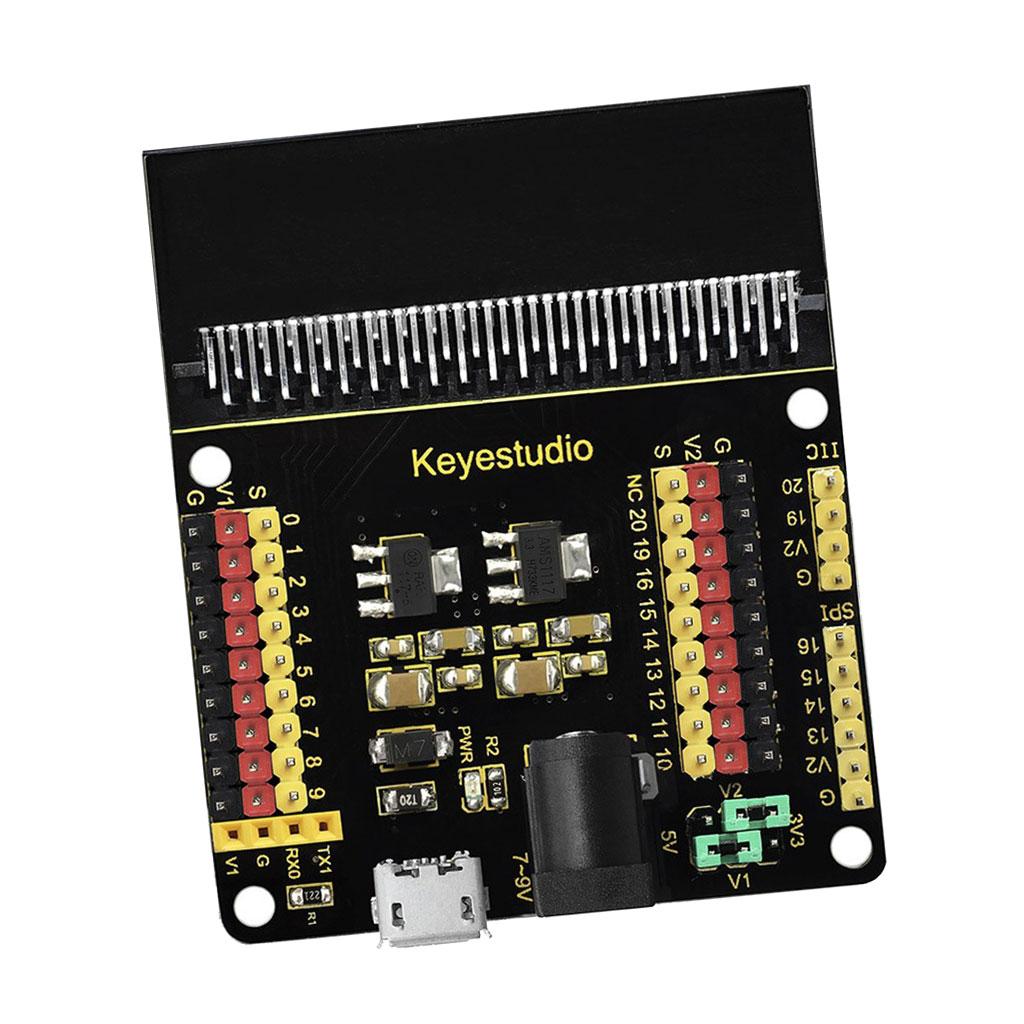

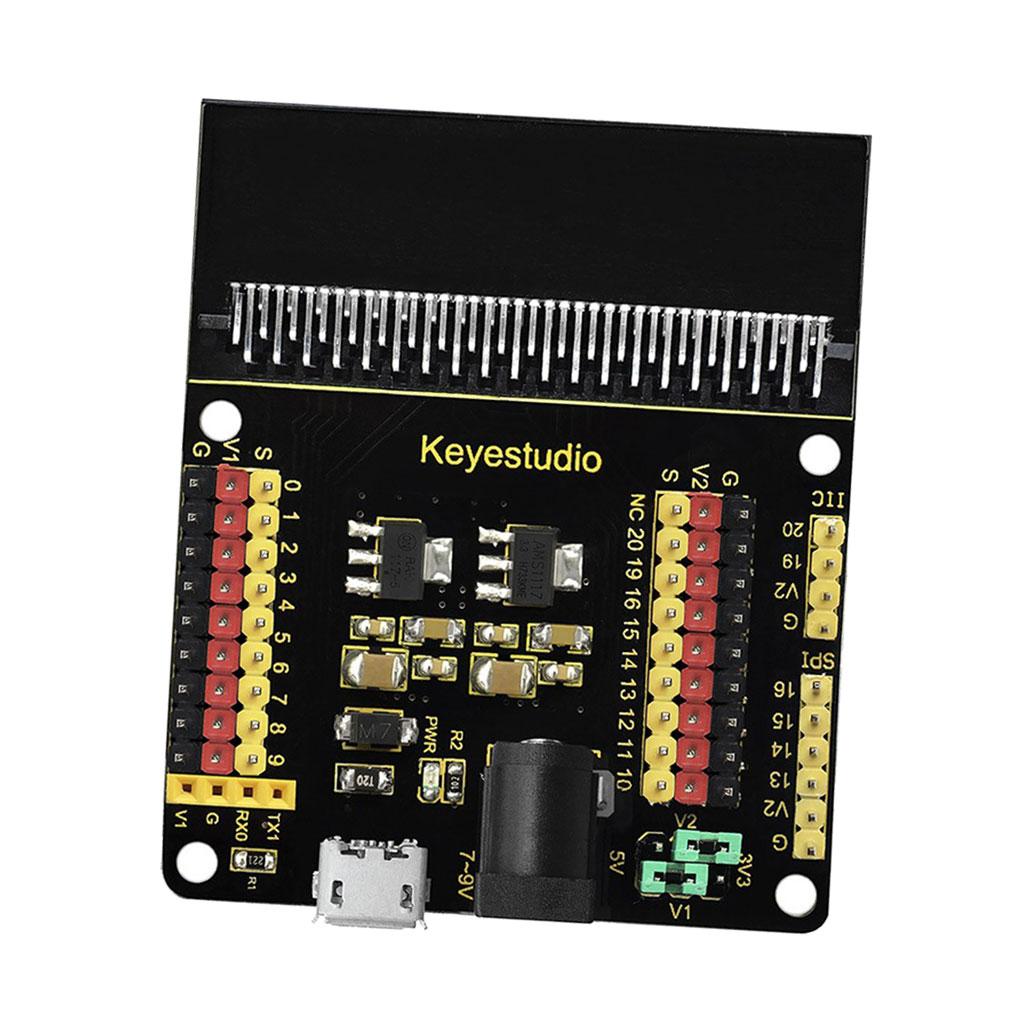

Keyestudio Sensor Shield V2 Sensor Expansion Board for BBC micro:bit

Description:

--Particularly design this keyestudio sensor expansion board V2 for micro:bit. breaks out all the PIO ports on the micro:bit control board into 3PIN interface (GND, VCC, Signal), easy to connect it with other sensor modules.
--Extending some commonly-used serial communication interfaces into pin or female headers with 2.54mm pin pitch, such as I2C and SPI communication pins.Allows communication between micro:bit control board and other communication devices.
--Two kinds method to power the micro:bit board, through a black DC jack (DC 7-9V) or a mciro USB port (DC 5V) on the shield.
--Connection Diagram, Sample Code, Using Method and Resources are provided in our wiki page. Technical support is available via email or message.
--Solder is very clean, everything is aligned nicely, all boards are well packed after function, voltage, current testing. Up to FCC and CE Standard: made from environmentally friendly components and materials.

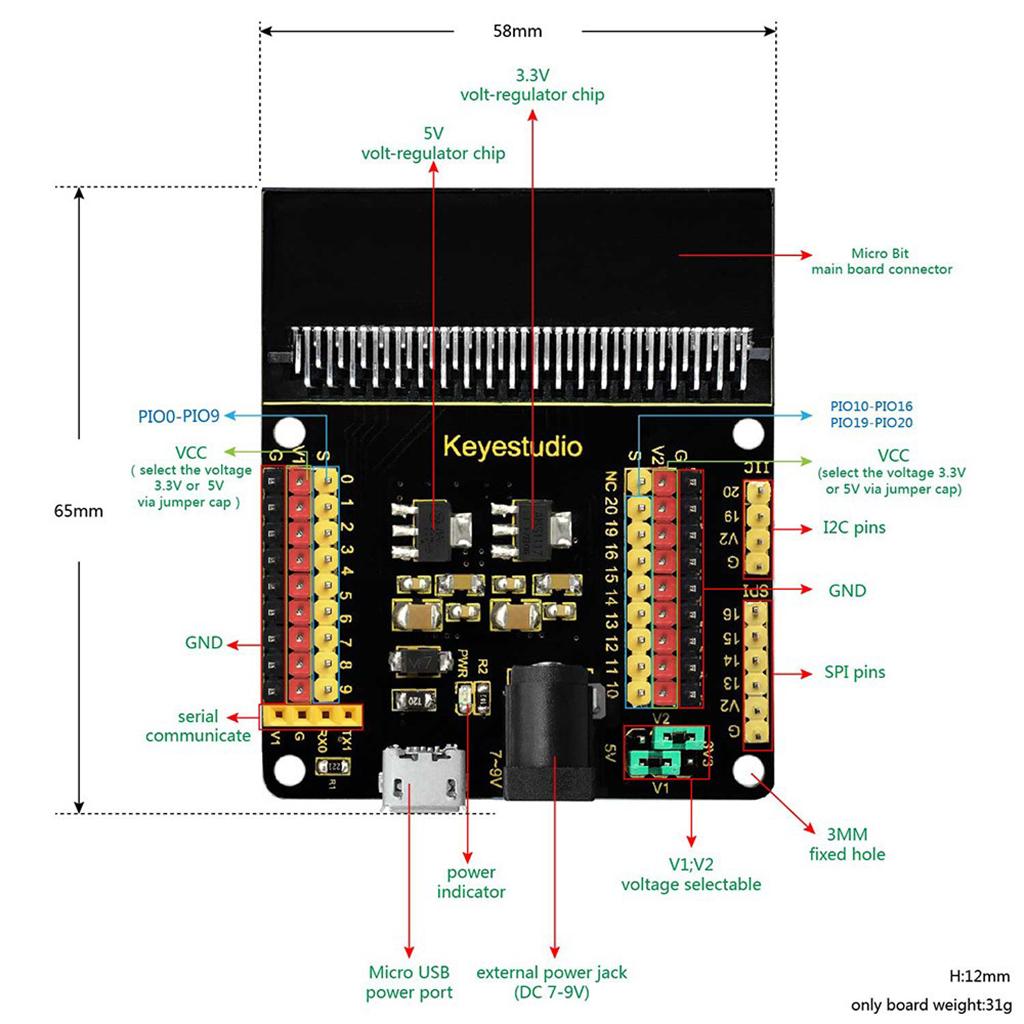

Specification:

Power input: black DC jack (DC 7-9V) or micro USB port (DC 5V)
Voltage output: select 3.3V or 5V via jumper cap V1/V2
Comes with a power indicator
Extends the PIO of micro:bit into 3PIN interface
Serial communication pin
I2C communication pin
SPI communication pin
Dimensions: 65mm x58mm x12mm
Weight: 31g

Package Includes:

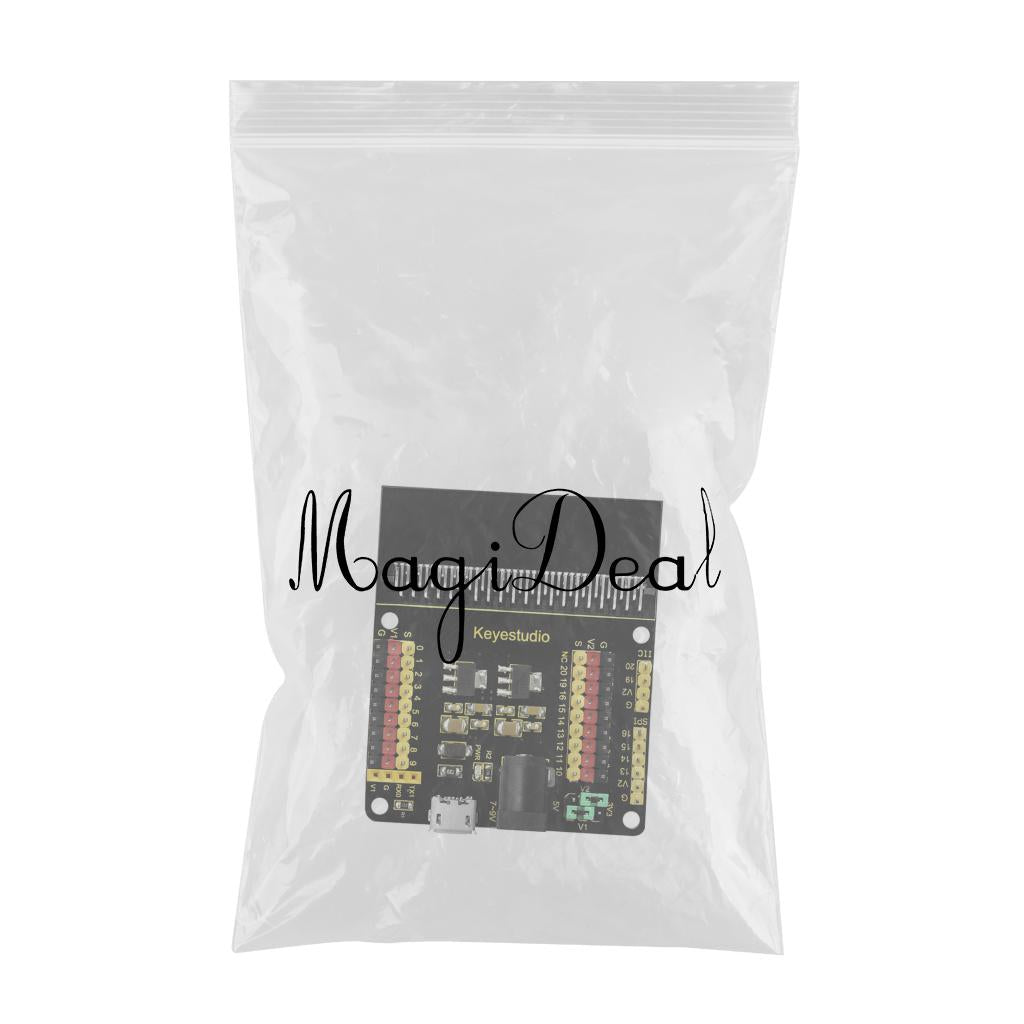

1 x KEYESTUDIO Sensor Shield V2 for BBC micro:bit
