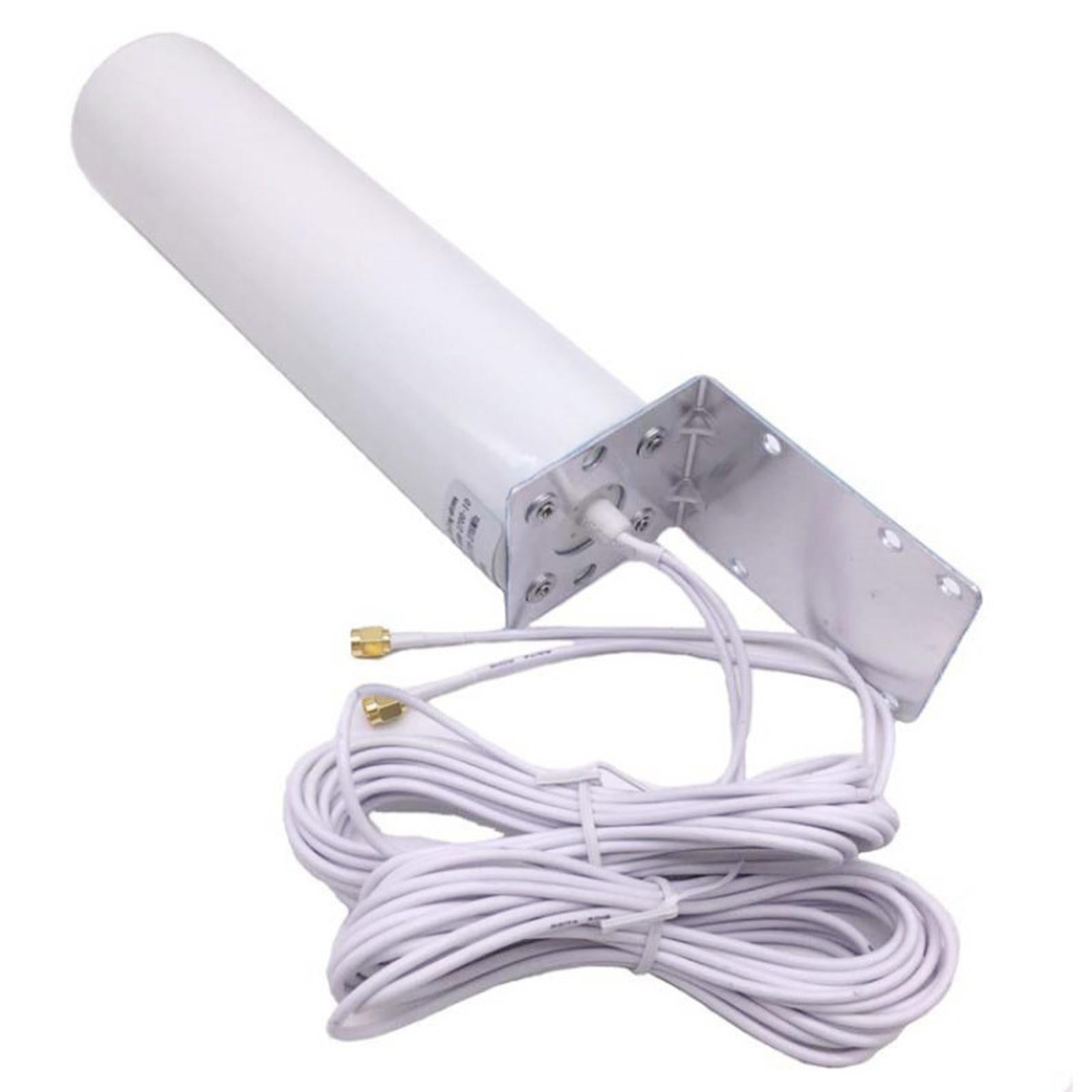

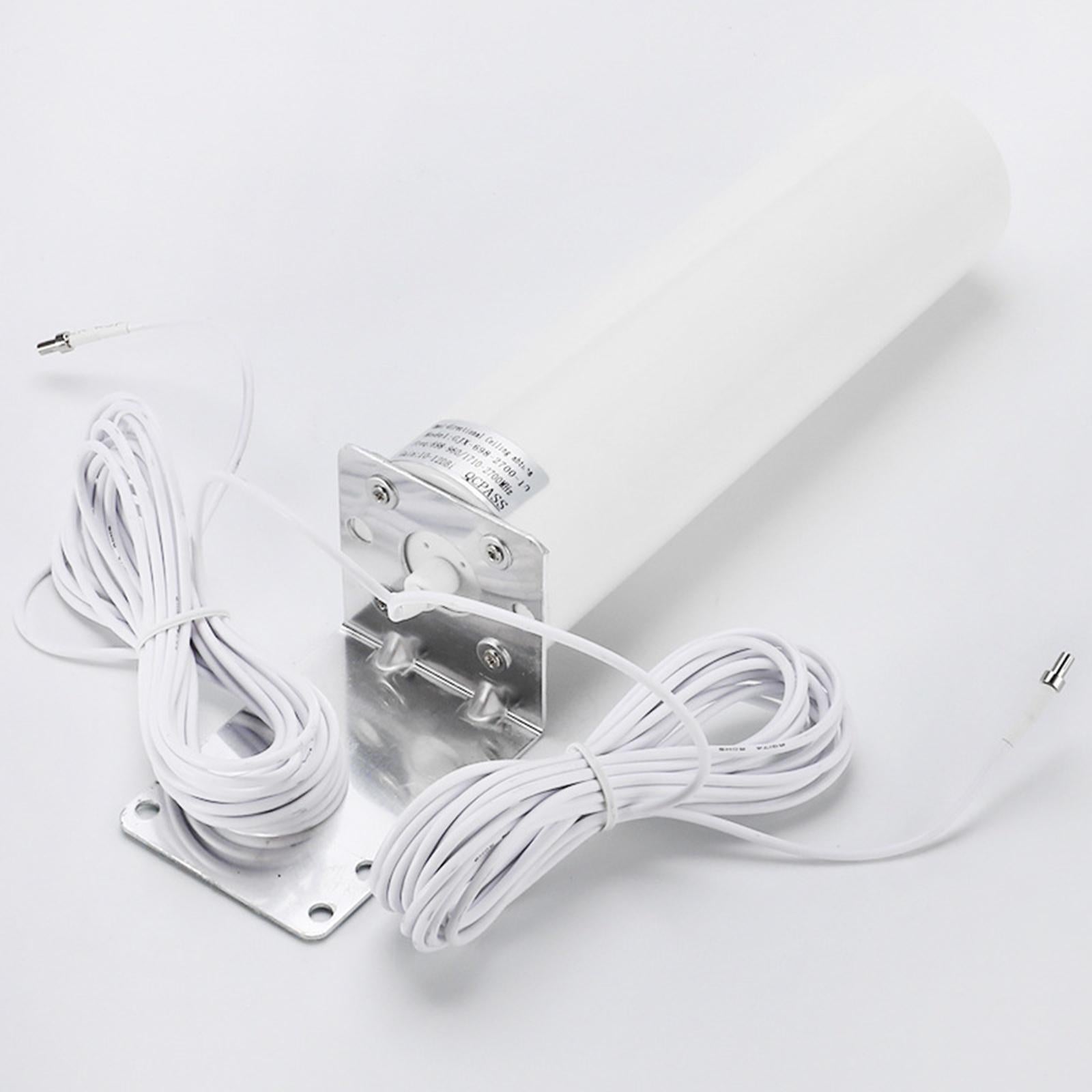

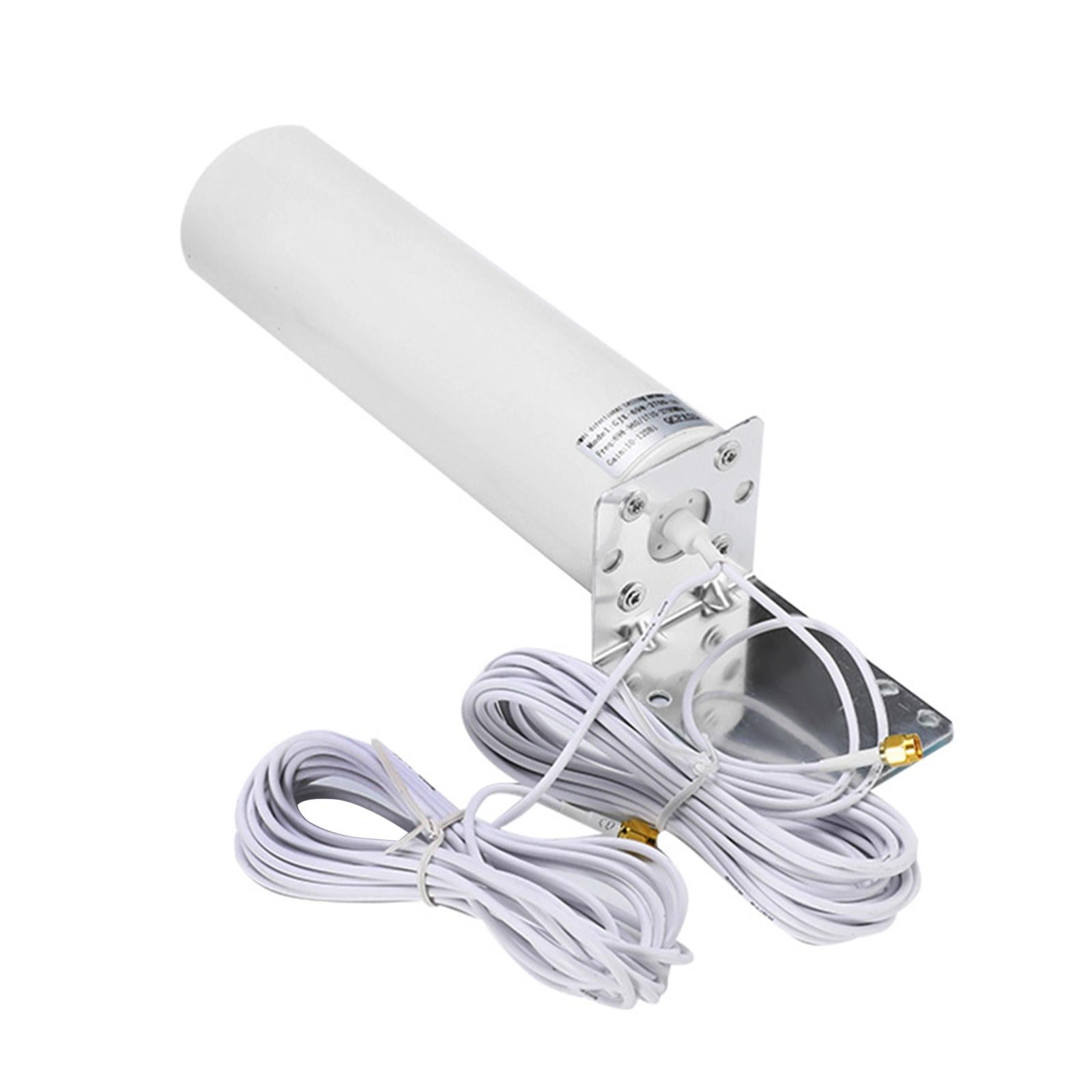

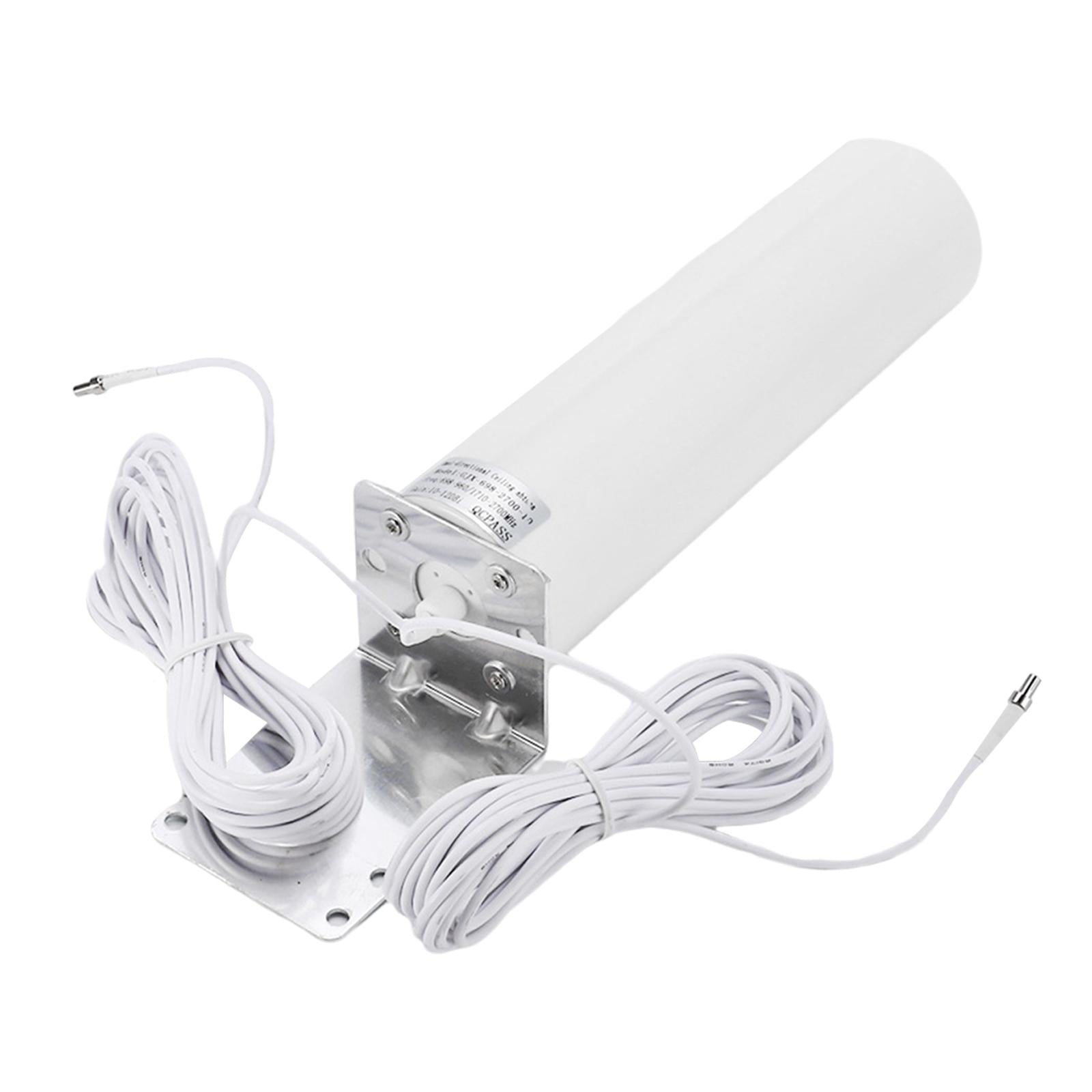

4G LTE External Antenna Dual SMA Male Outdoor Router Modem Crc9 TS9 5M Cable

Description:

Frequency Range: 698 - 2700 MHz; Gain: 10-12dBi; Direction: Omni-directional; Cable Type: RG174; Antenna Connector: Dual SMA Male.
Compatible with 3G 4G mobile broadband modems router. Fits 4G modems with SMA male/TS9/CRC9.
Indoor or outdoors use to enhance and maintain excellent signal quality. Simple installation, no software required.
Designed for outside, features a rugged waterproof structure, which can withstand damage from the elements.
It can easily be set up in an outdoor space such as home rooftops, utility poles, surveillance trailers, office and other places.

Specification:

Material: Metal Plastic
Color: White
VSWR:<2.5
Polarization Type: Vertical
Max Power imput: 10W
Input Impedance: 50 Ohms

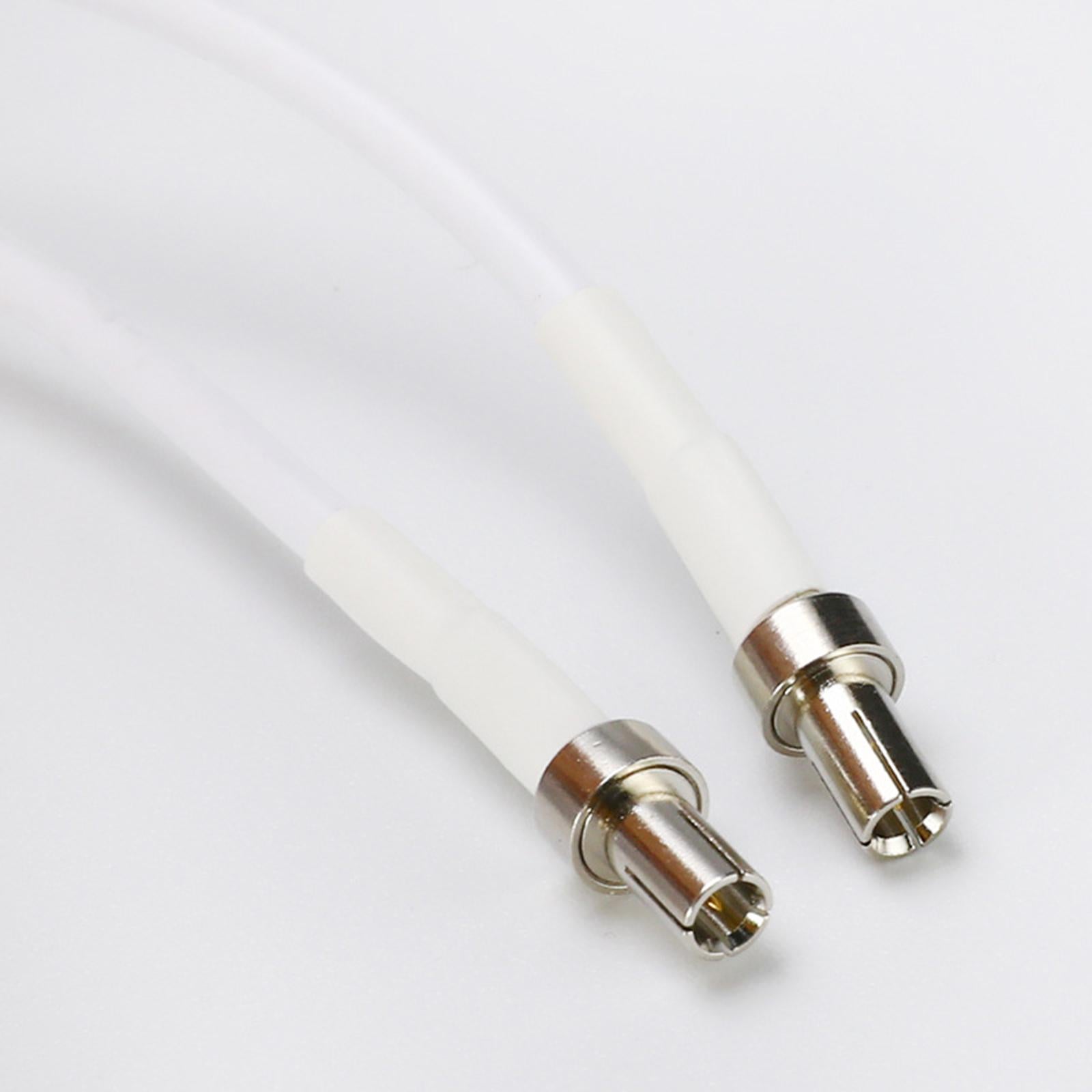

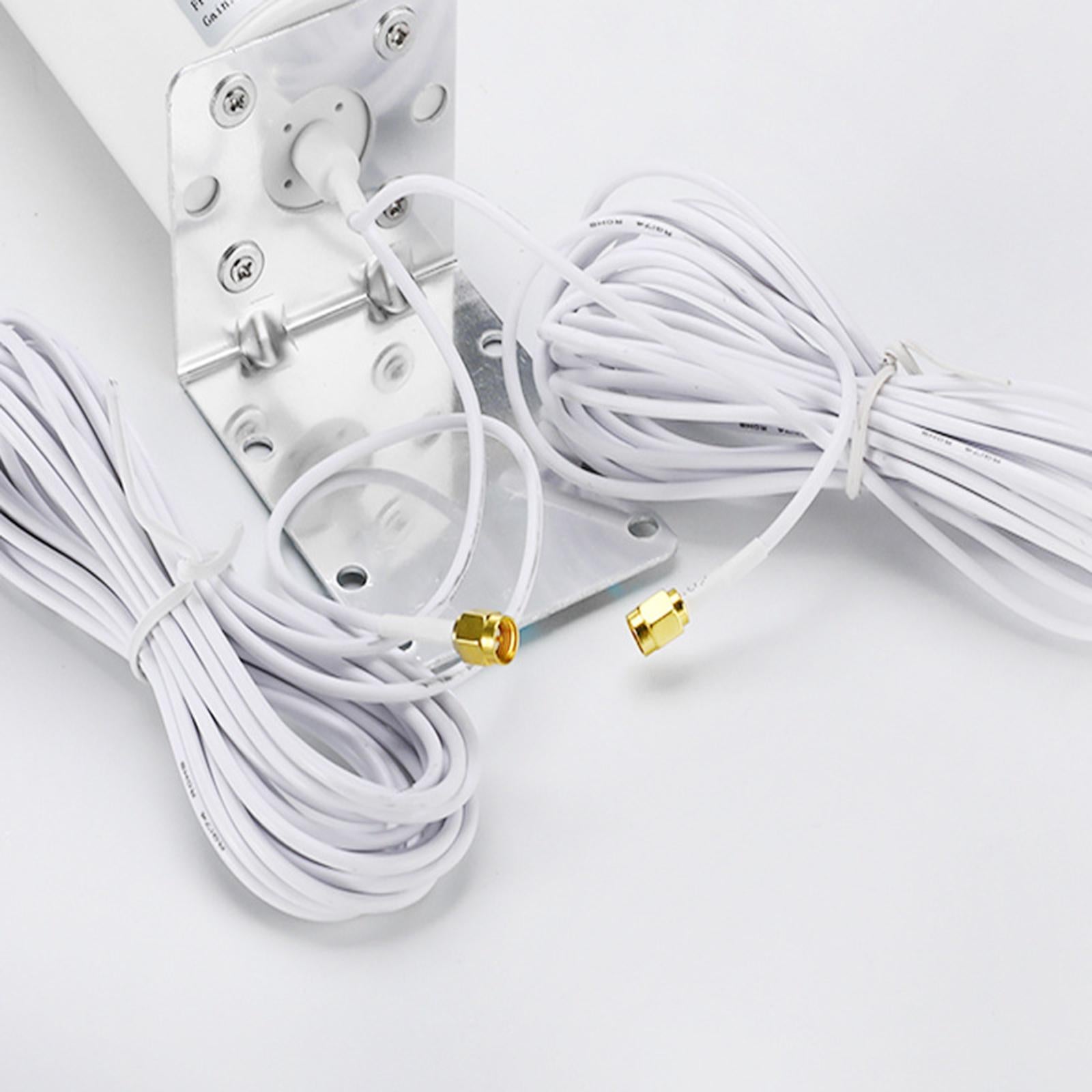

Connector Type : SMA,TS9,CRC9 or other
Cable Type: RG174 100% cooper
Cable Length: Approx. 5M
Installation Tips:
Antenna should be mounted vertically to maximize performance.
Antenna should not be mounted against metal.
Before use, please turn off the power of your device, then plug in the antenna, and then turn on the power again.

Size Chart:

23x6.5x6.5cm/9.06x2.56x2.56inch

Package Includes:

1 Piece External Antenna
1 Piece Bracket
1 Set Screws
1 Piece Cable

Note:

1. Please allow slightly error due to manual measurement.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
