433M Relay Module Wireless Remote Control Switch 1-CH DIY 12V 1 Key Remoter

Description:

Module Type: 433MHZ 1-Channel learning type;
Receiving Distance: 15-50 meters
Working Mode: self-locking, jogging and interlocking working modes
Work Instructions: D2-power indicator; D4-relay switch indicator; D3-learning indicator.
Suitable for infrared remote control switch, equipment appliance control switch, replace manual mechanical switch, power switch, remote control product modification, and so on.

Specification:

Operating Input Voltage: 5V/12V/24V
VCC: connected to positive pole of power supply
GND: connected to negative pole of power supply
Working Current: about 32/45/75mA(relay pull-in state)
Static Working Current: about 4mA (relay release state)
Receiver Size: 50x35x22mm/1.96x1.37x0.86 inch (with housing, housing with screw holes)
Module Type: 433M learning type wireless module
Receiving Distance: 15-50 meters
Output Mode: The output is passive output, the module is mainly used as a switch;
C.K (normally open), COM (common), CB (normally closed)
Note: CB and COM are connected under normal conditions. When CB and COM is used as switch, CB is usually not used. Only the two interfaces C.K and COM are used.

Operating Manual:
Self-locking Mode: after power-on, press and hold the button S1 on the module, the indicator light D4 flashes 1 time, and then release the button and press the remote control button that needs to be learned; the module D4 indicator flashes 3 times and does not flash; At this time the remote control button is successfully learned, and the module is automatically set to the self-lock mode.
Jog Mode: after power-on, press and hold the button S1 on the module, the indicator light D4 flashes 2 times, then release the button, then press the remote control button that needs to be learned; the module D4 indicator flashes 3 times and does not flash; At this time the remote control button is successfully learned, and the module is automatically set to the jog mode.
Interlock Mode: after power-on, press and hold the button S1 on the module, the indicator light D4 flashes 3 times, then release the button, then press the remote control button that needs to be learned; the module D4 indicator flashes 3 times and does not flash; At this time the remote control button is successfully learned and the module is set to be able to open only; After power on, press and hold the button S1 on the module, the indicator light D4 flashes 4 times, and then release the button and press and hold the remote control button to be learned; The D4 indicator flashes 3 times and does not flash; At this time, the remote control button is successfully learned and the module is set to only turn off and cannot be turned on; Thereby achieving the function of one button to open a button.
Clear Mode: after power-on, press and hold the button S1 on the module, the indicator light D4 flashes 5 times, then release the button; the module is cleared.

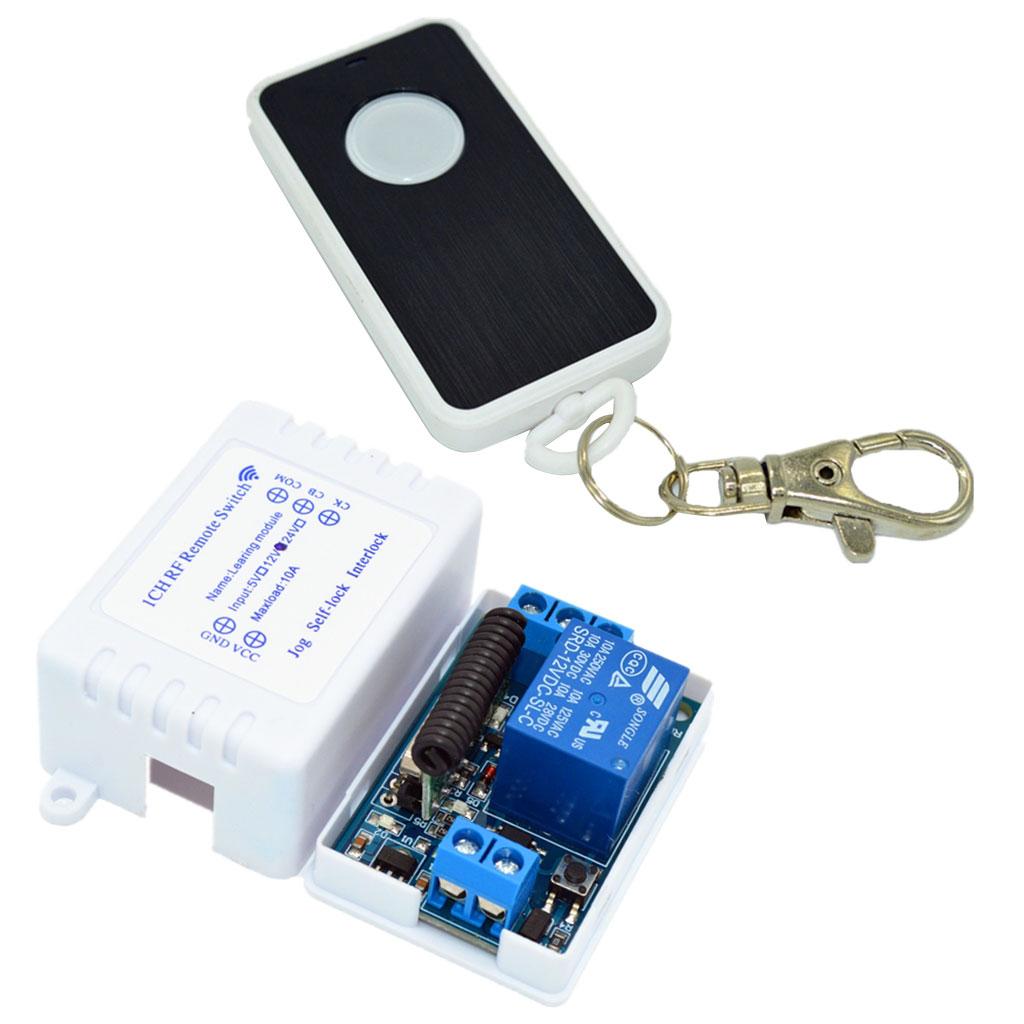

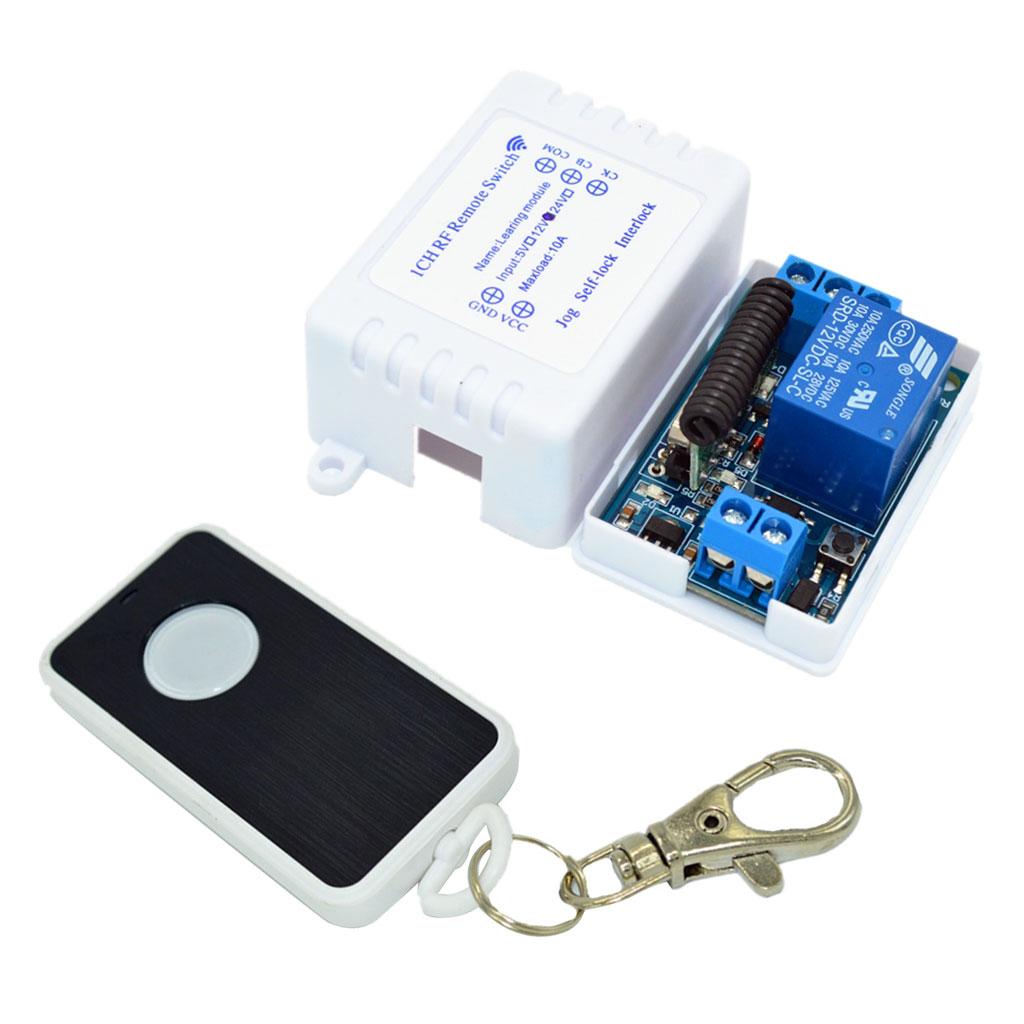

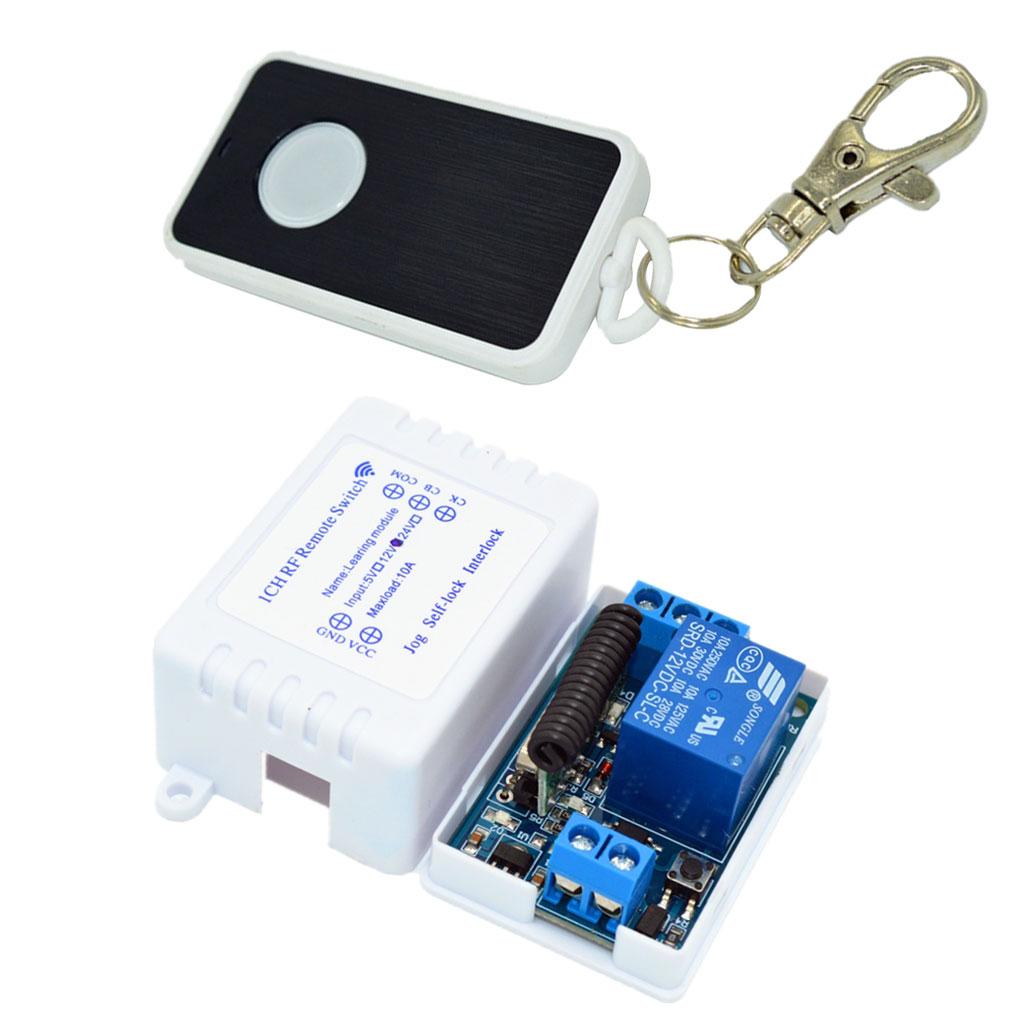

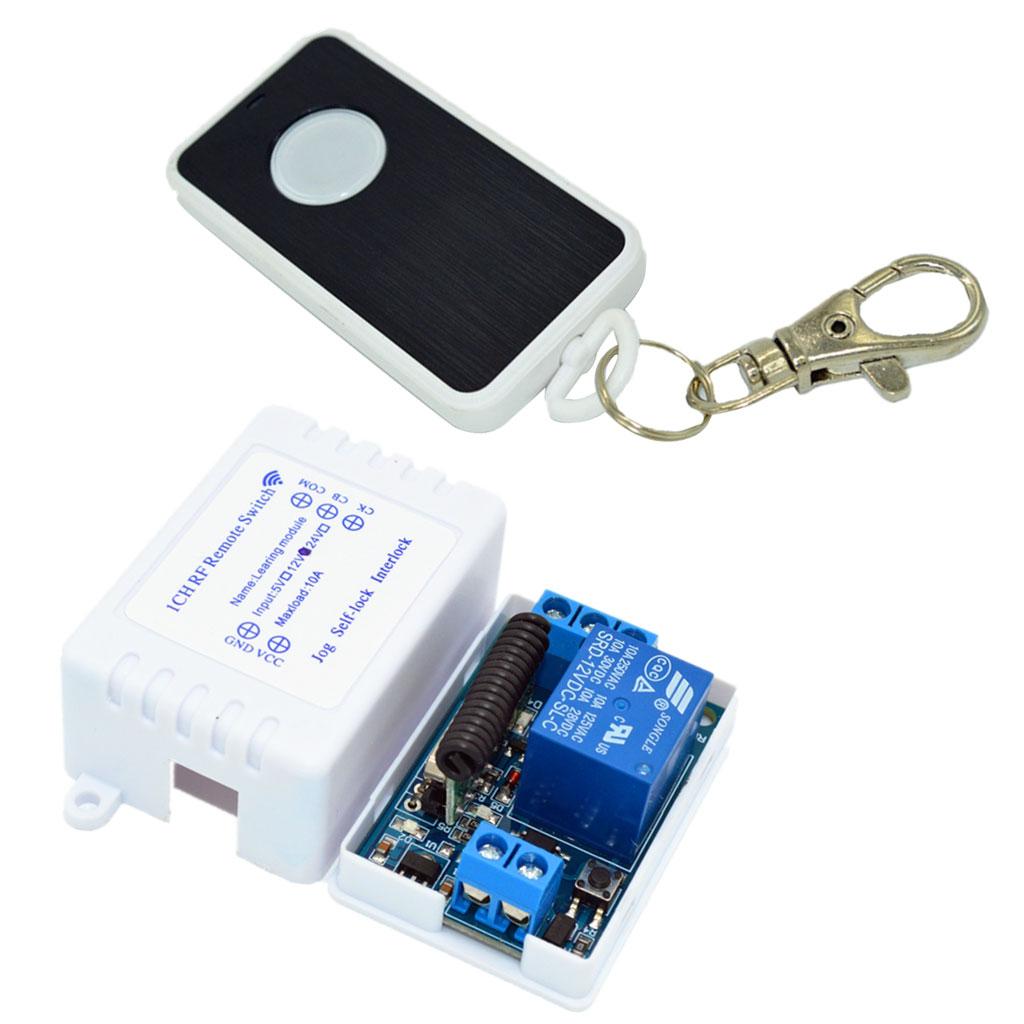

Package Includes:

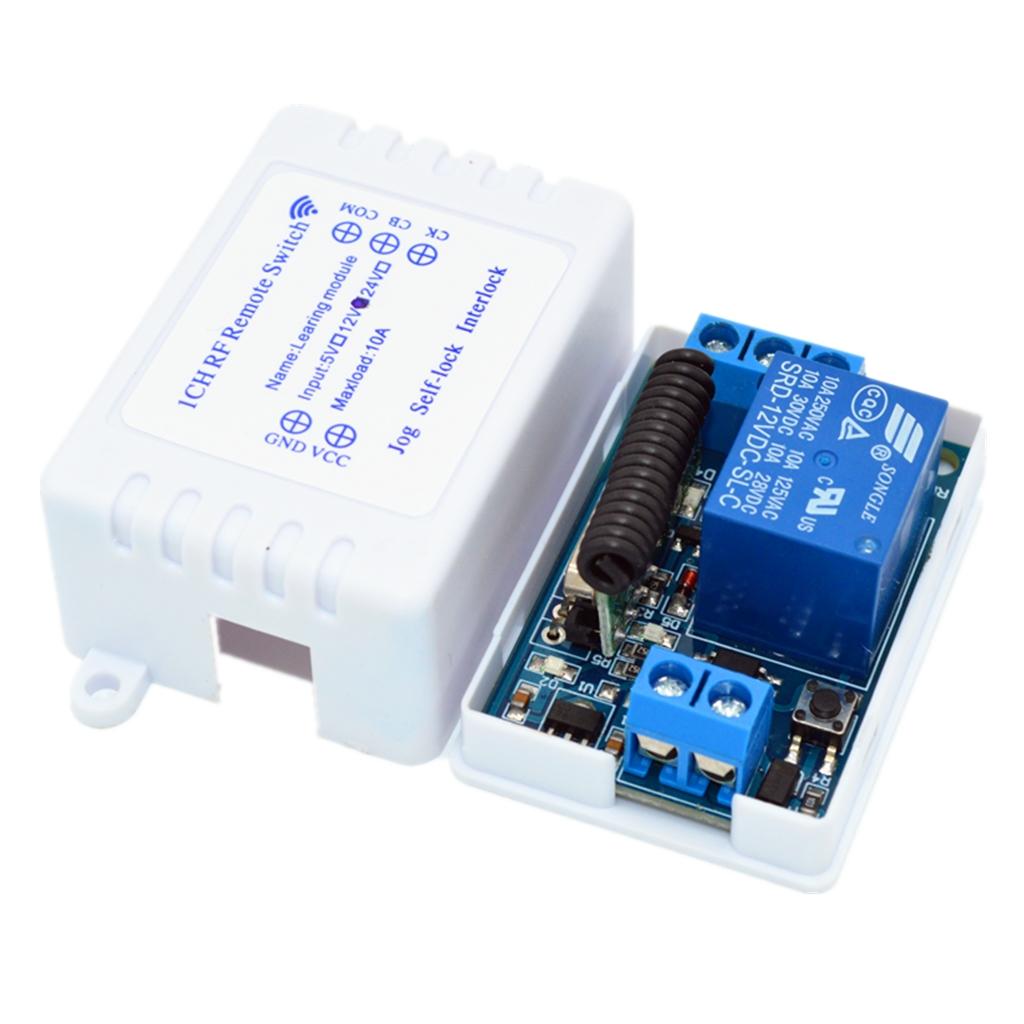

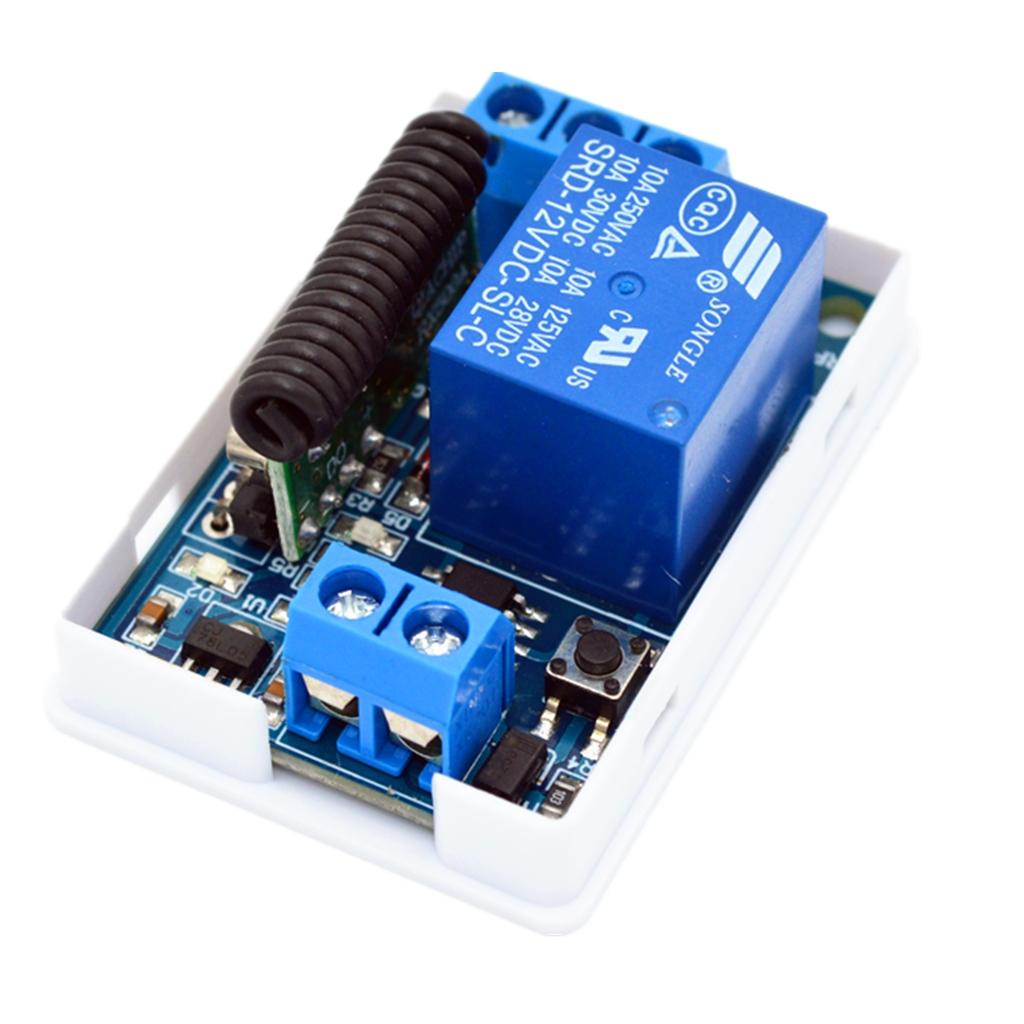

1 piece Relay Module with housing

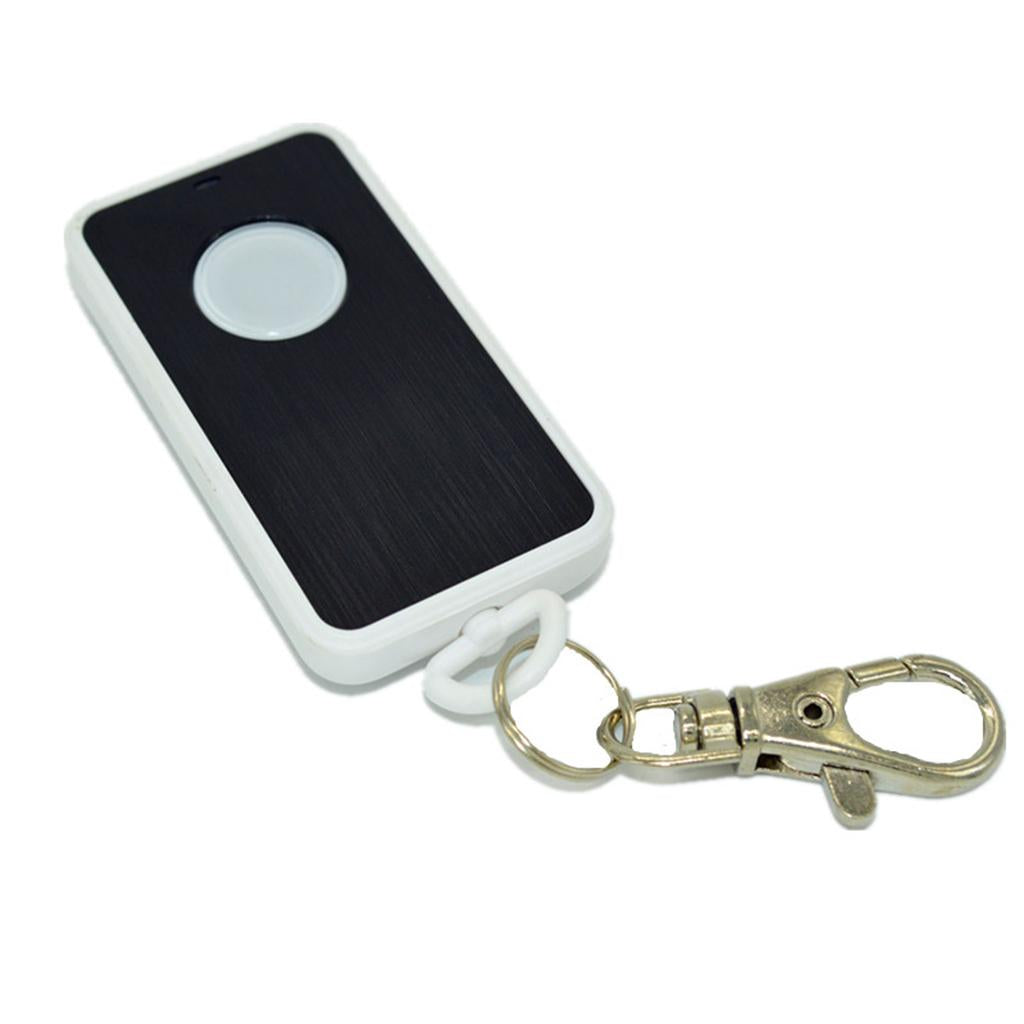

1 piece Remote Control
