1 Piece 2-way motor board + 16-way board robotic FOR servo motor drive module

Description:

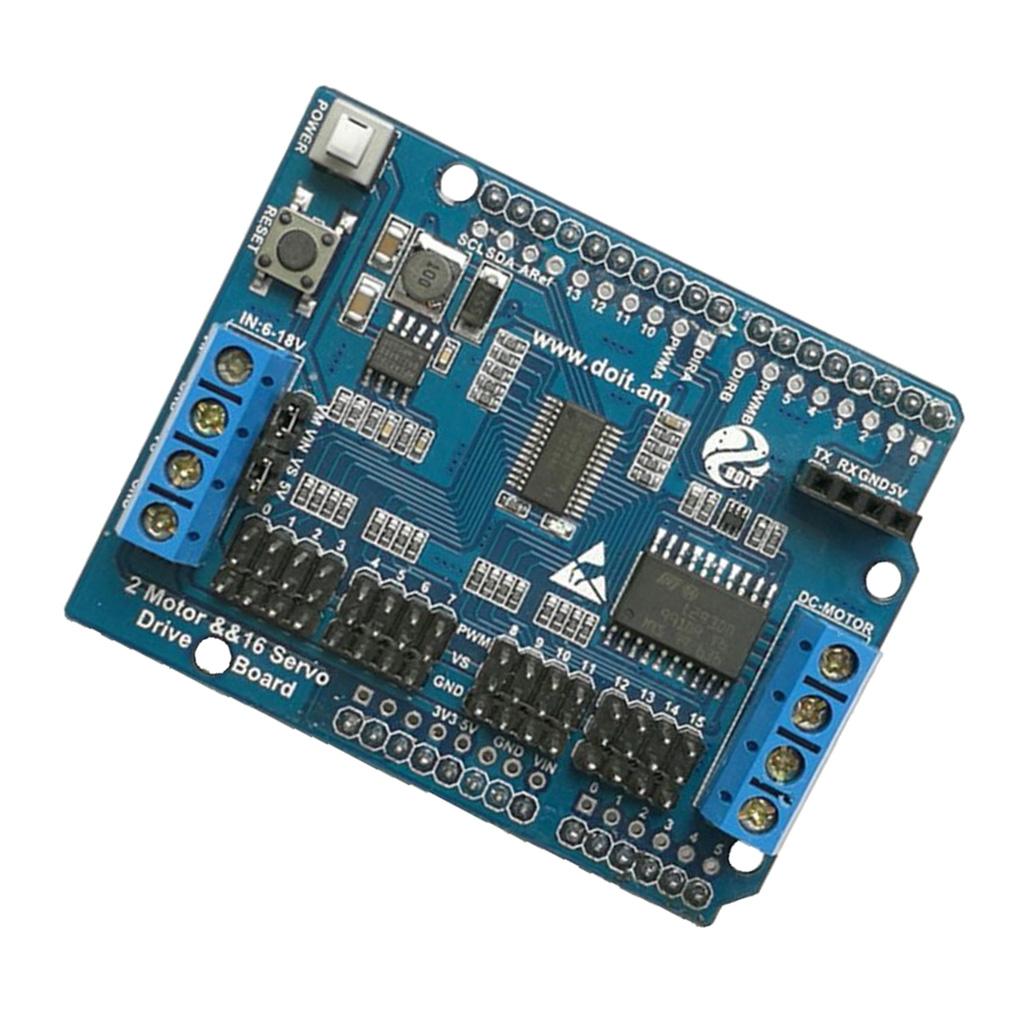

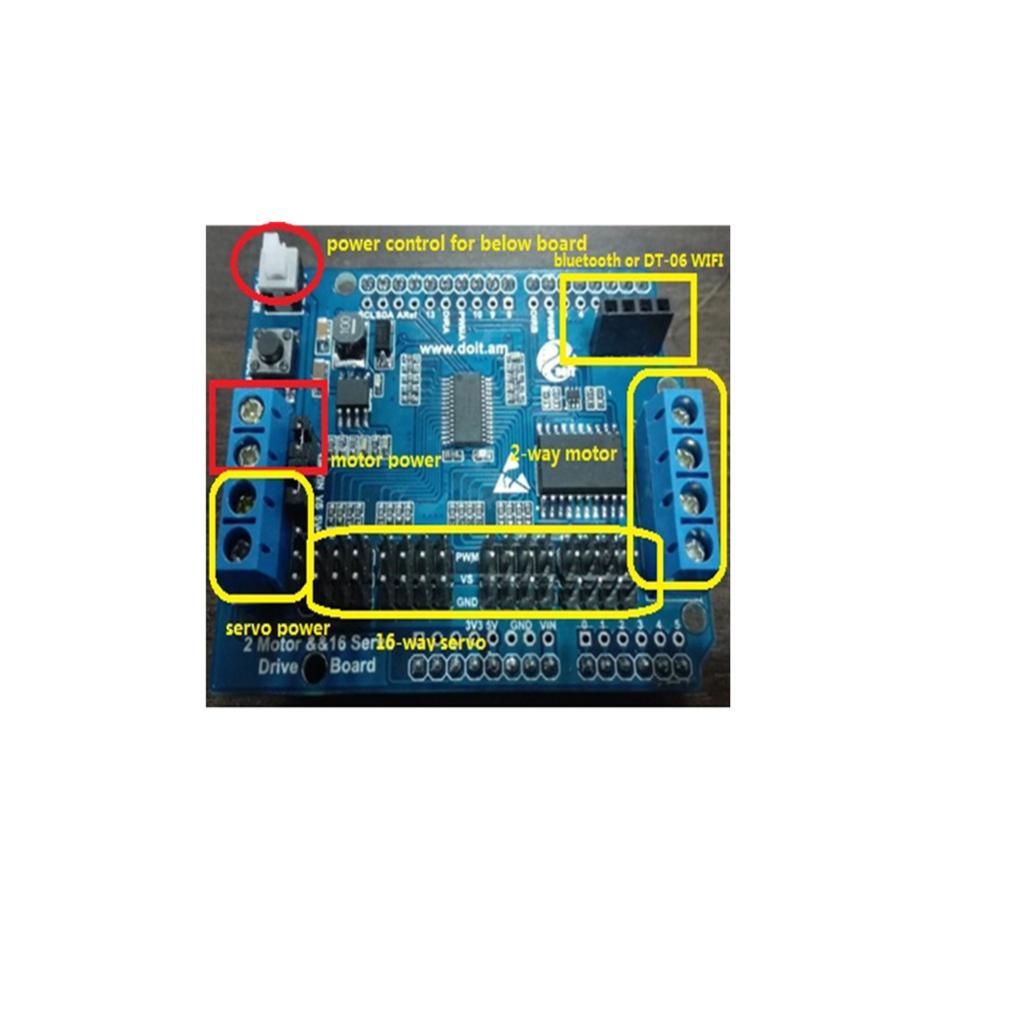

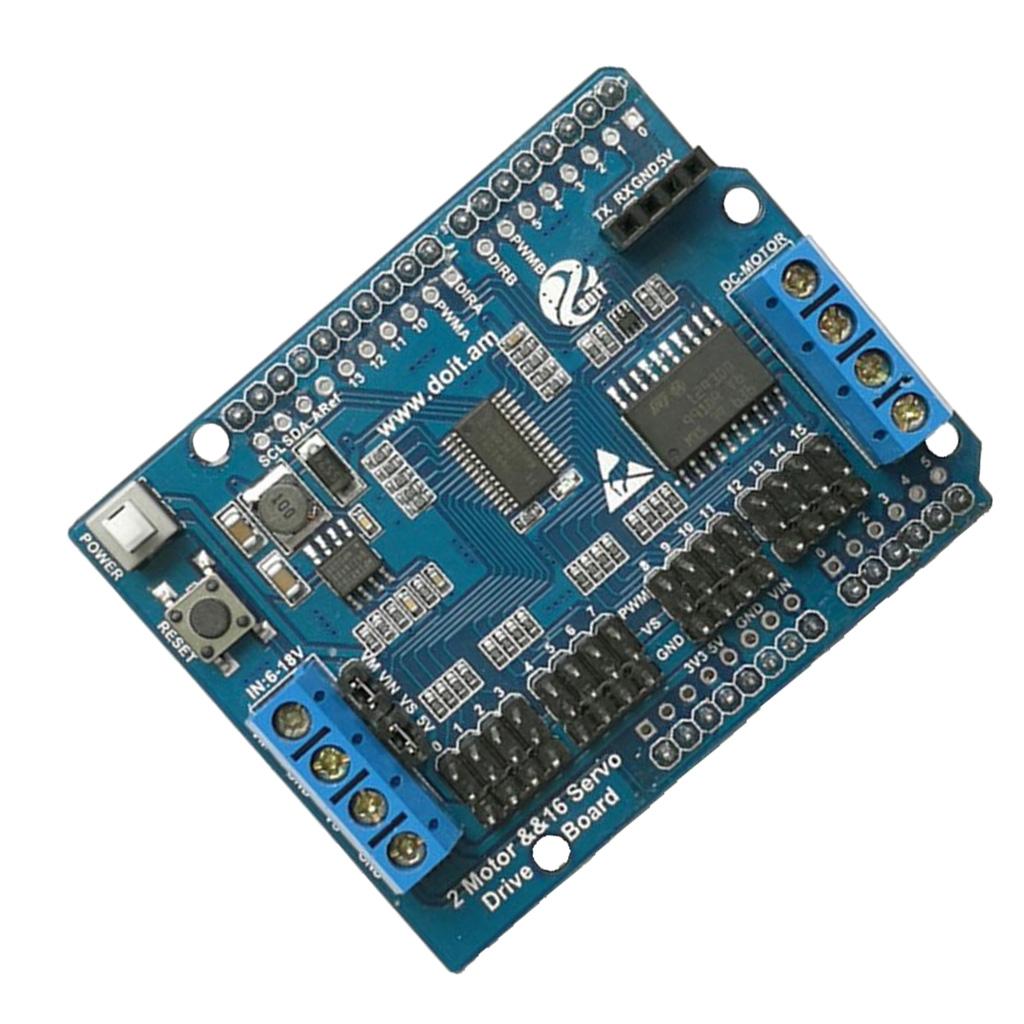

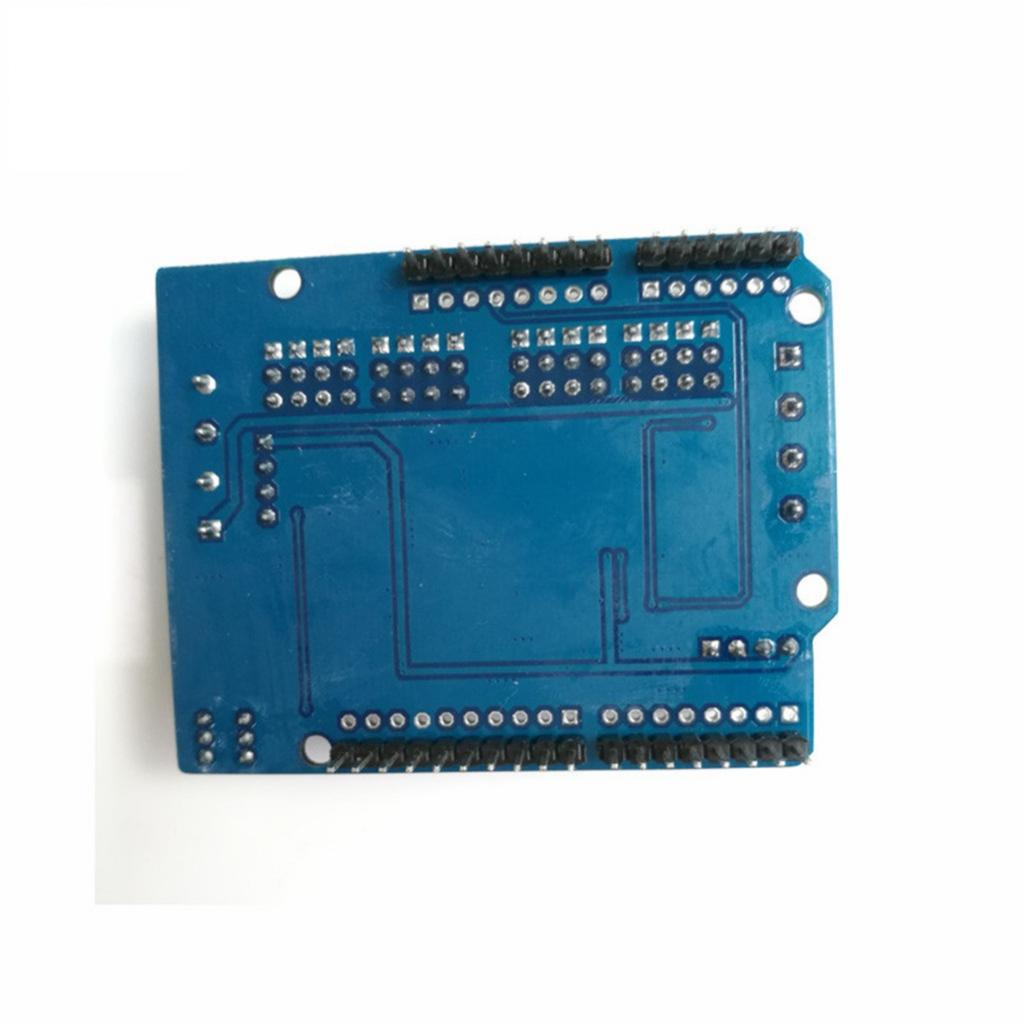

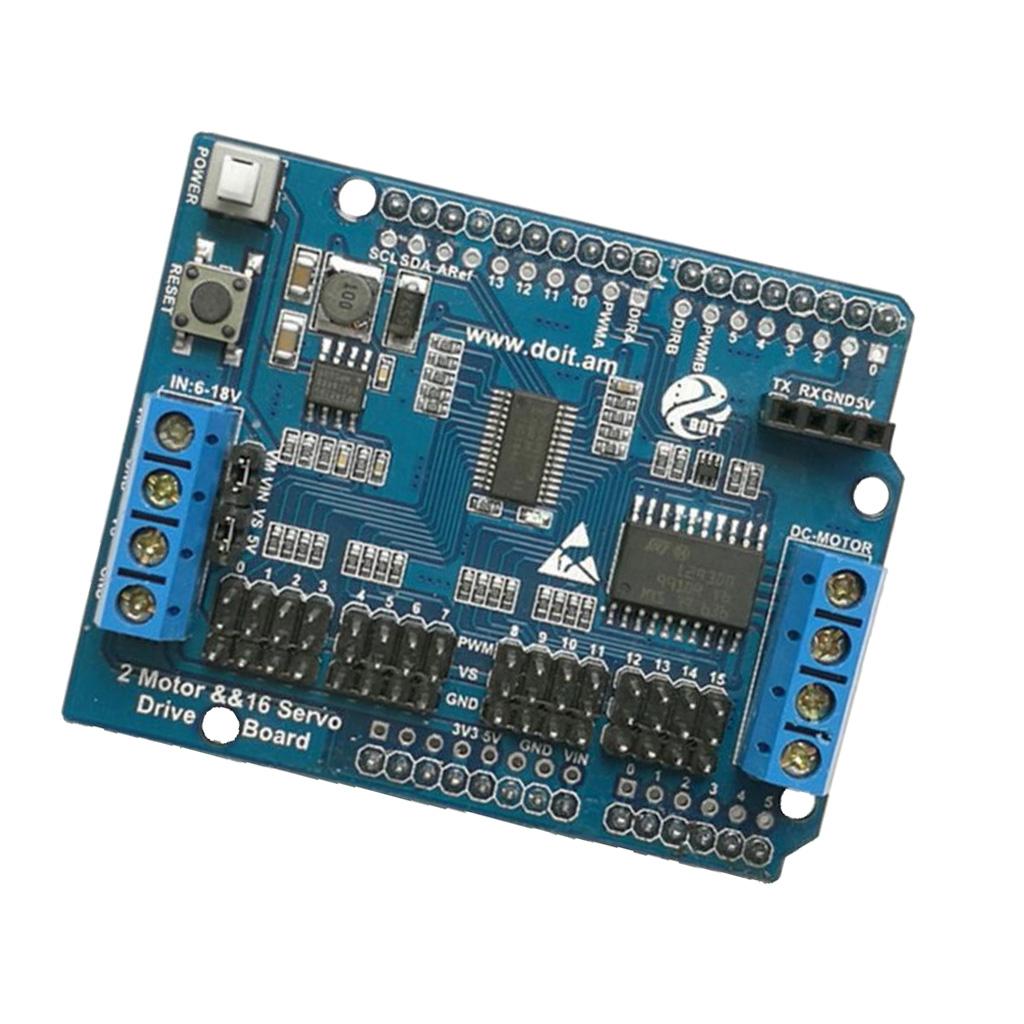

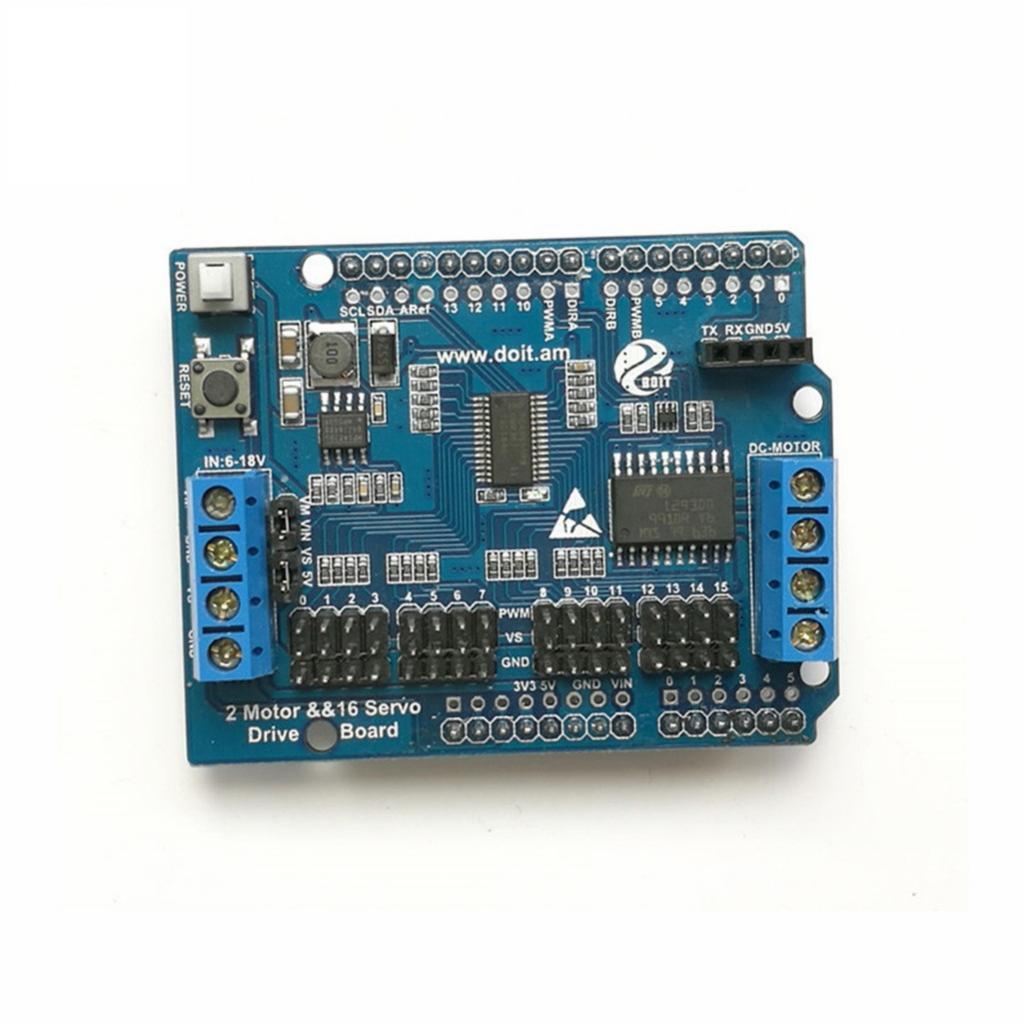

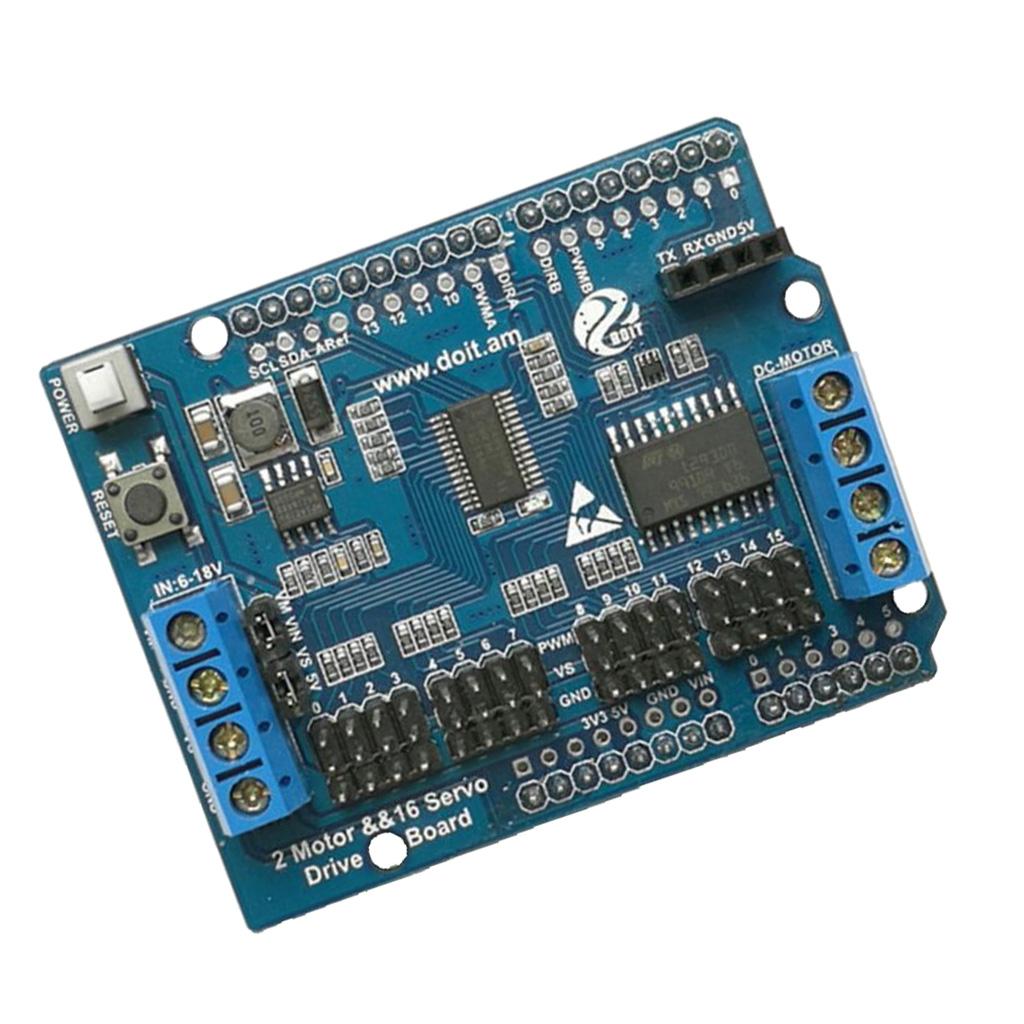

2-way Motor and 16-way Servo Drive Shield is a motor and servo drive module compatible with Arduino UNO and ESPduino. Plug-in module board designed, can be directly connected to the Arduino UNO or ESPduino board.
Can control 2-way DC motors (4.5~36V) and 16-way servos (5~18V) at the same time, which is suitable for mobile robot drive control with robot arm.
Using L293DD chip, which can drive directly 2-way DC motor or 1-way stepping motor.Max current: 1.2A.
16-way servo is controlled by IIC interface on the board. Humanized design, power button switch, easily switch the power switch.
The board can directly be used to control the intelligent robot by Bluetooth (reserved interface) or WiFi.

Specification:

Power Input:
Motor Power Supply(VM): 4.5~36V (can be powered separately);
Steering Gear Power Supply(VIN): 5~18V (can be powered separately)
Single Power Supply Use:
Open circuit VM and VIN,separately control the motor,6~36V;
Open circuit VS and VIN,separately control the servo 6~18V;
Short-circuit VM and VIN,while shorting VS and 5V. Simultaneous control of motor (6~18V) and 16-road 5V servo.
Working Current Io: ≤1.2A
Max Power Consumption: 4W (T=90℃)
Input for Control Signal: High Level: 2.3V≤VIH≤VIN; Low Level: -0.3V≤VIL≤1.5V
Working Temperature: -25~125℃
Driven Mode: Double big power H bridge driver
Size: 69x54x20mm/2.72x2.13x0.79inch
Weight: Approx.46g

Package Includes:

1 Piece 2-way Motor and 16-way Servo Drive Shield
