7S Power Wall 18650 Battery Holder Battery Pack 29.4V Li-Ion for DIY Kit 7s20A

Description:

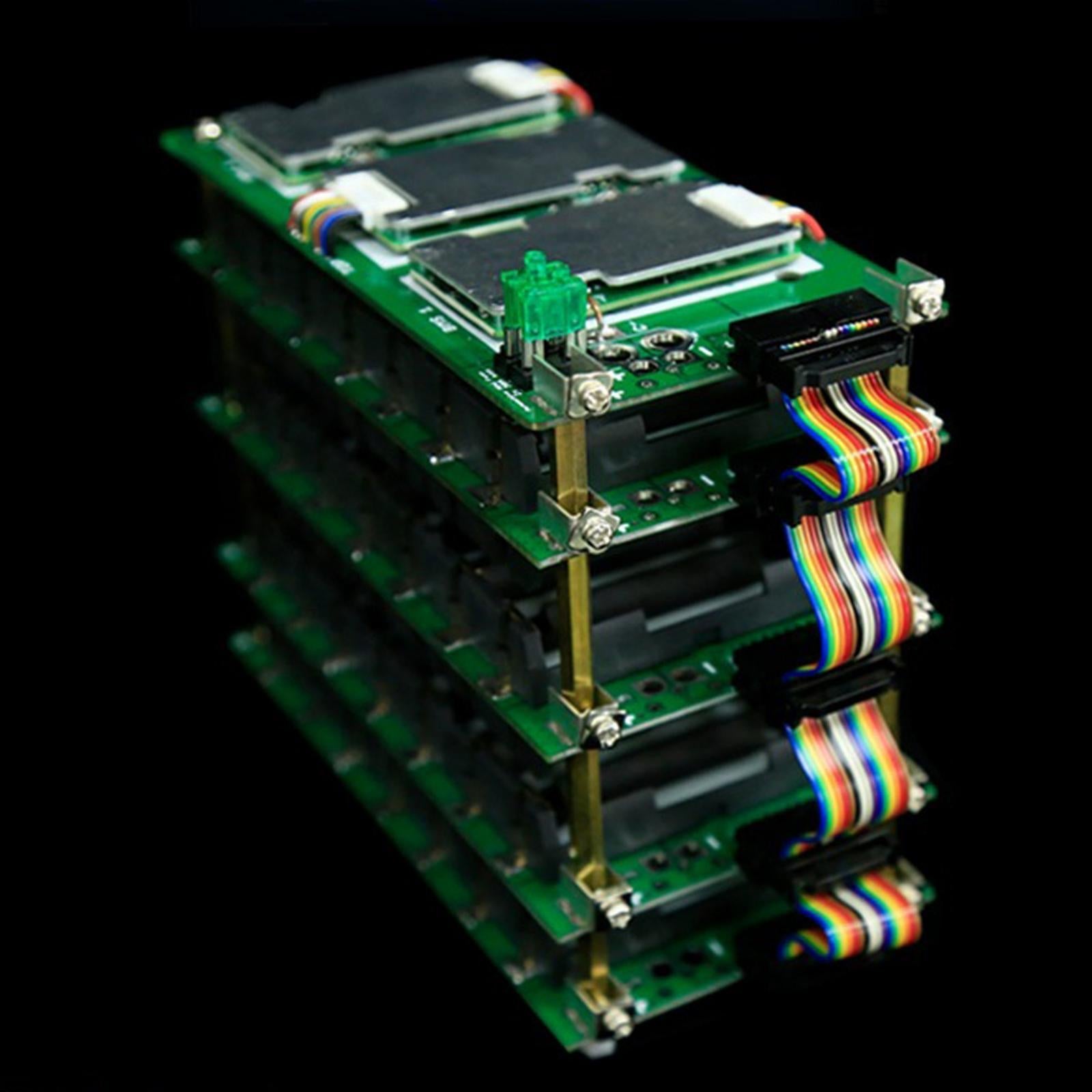

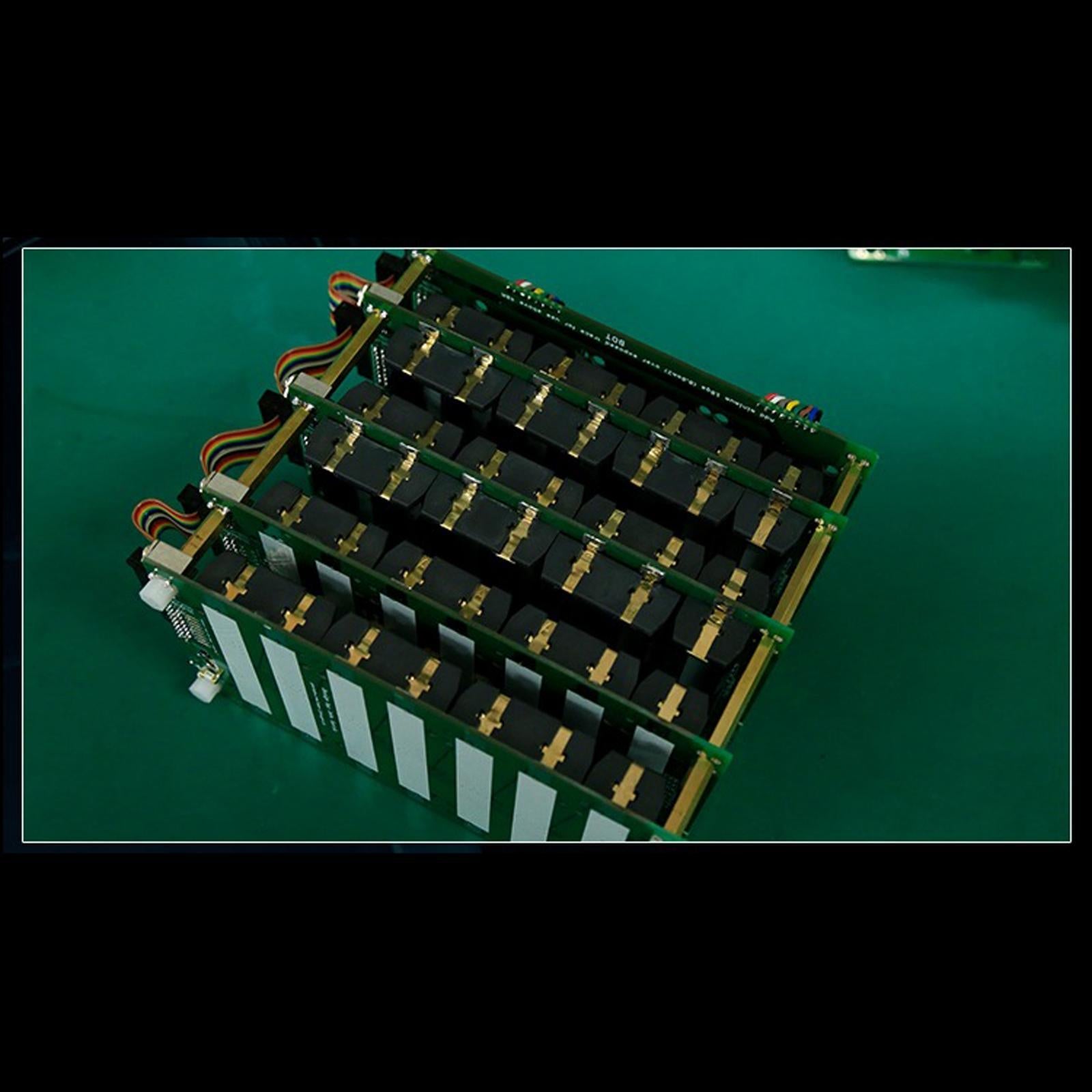

Support multi-layer overlay to increase power and capacitance.Support subsequent expansion modules, support single-sided or double-sided battery.

High current wiring, Full-chip high-current protection board and battery holder.High Conversion efficiency, Support multi-layer balanced release.

With over-voltage protection function to prevent overshoot or over-discharge.With voltage equalization function, to ensure that multiple sets of voltage are the same, increase the life of the battery pack.

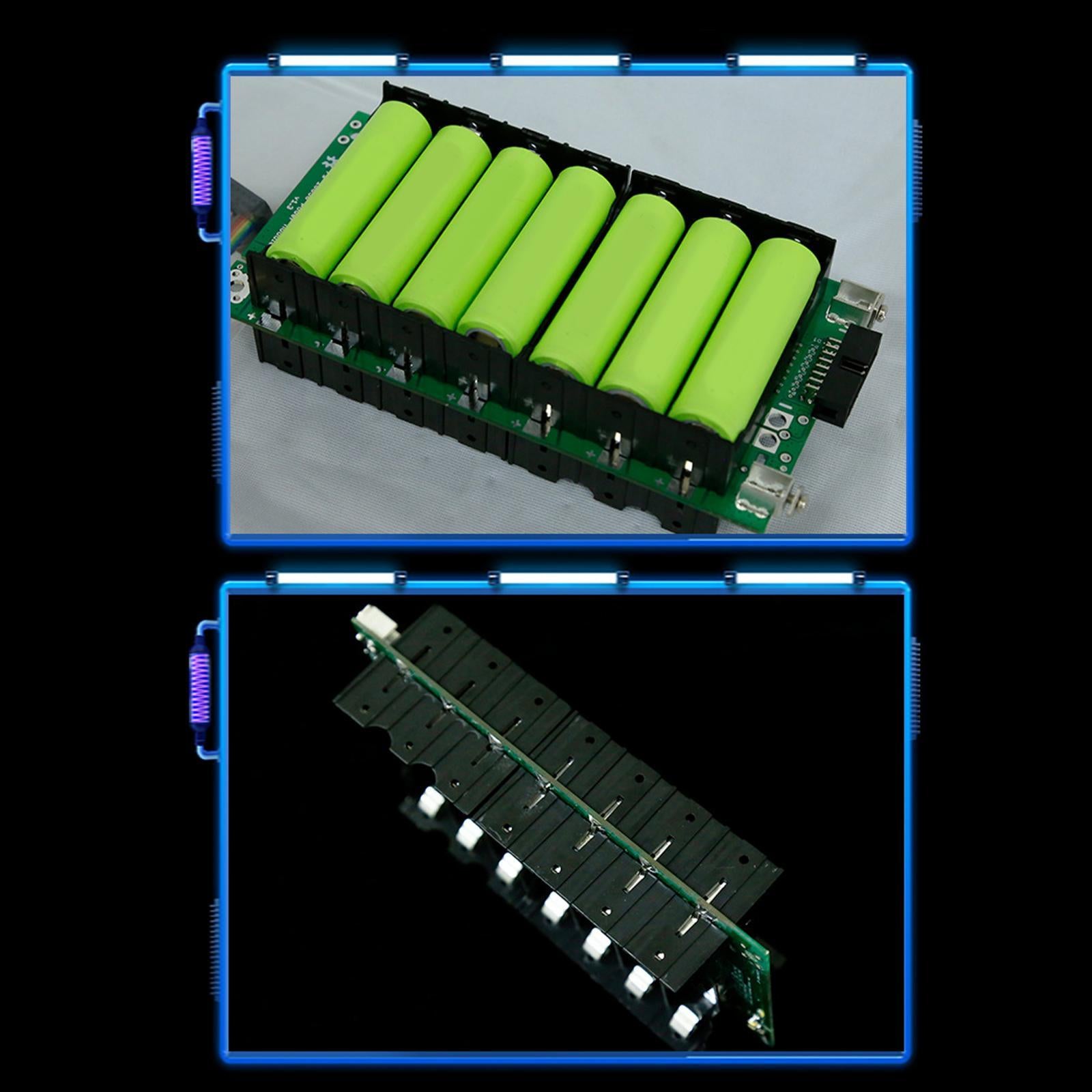

Easy and simple to use and operate, no other tools needed to install.Install the battery according to the positive and negative sides on the circuit board. Be careful not to reverse it.

Specification:

Item Type: Battery Holder Protection Board
Material: plastic+metal+electronic components
Size:17x9cm/6.69x3.54inch
Color: As shown
Voltage: 29.4V(fully charged)
Current: 20A, 40A, 50A,60A

Warm Tips:(Battery not included)
1.The 7S requires a 29.4v charger.
2.Do not use it on metal table top, pay attention to insulation and do not short circuit.
3.The charging current of each layer is not recommended to exceed 2a, otherwise the battery may generate heat (for example, if there is only one layer, choose 2a charger, and if there are two layers, choose 4a charger).
4.Look at the circuit board with the battery orientation,and all the batteries cannot be staggered in the same orientation.
5.Don't connect the power supply with the wrong positive and negative, there are signs on the circuit board, pay attention to observation.

Package Includes:

1 Set Battery Holder Protection Board Kits
(Not include the balance line shown in the picture)
